Vazone S22 Cordless Vacuum Cleaner User Manual

1. Product Overview

The Vazone S22 is a lightweight, 6-in-1 cordless stick vacuum cleaner designed for versatile home cleaning. It features powerful suction, a self-standing design, and a multi-stage filtration system to effectively clean various surfaces and tackle different types of debris.

Image: The Vazone S22 cordless vacuum cleaner being used to clean a floor, demonstrating its lightweight and ergonomic design.

2. Safety Instructions

Please read all safety instructions carefully before using the Vazone S22 Cordless Vacuum Cleaner. Retain this manual for future reference.

• Do not use the appliance to pick up water or any other liquids, hot ashes, or sharp objects.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not operate the vacuum cleaner if it is damaged or malfunctioning.
• Use only the charging adapter provided by the manufacturer.
• Ensure the filter is properly installed before operation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Package Contents

Verify that all components are present in the package:

1. Vacuum Cleaner Main Unit
2. Wall Mount
3. Charging Adapter
4. Crevice Nozzle
5. 2-in-1 Bristle Brush
6. Mini Cleaning Brush
7. Filter Sponge
8. User Manual (this document)
9. Telescopic Tube

Image: All components included in the Vazone S22 package, laid out with corresponding numbers for easy identification.

4. Product Components and Filtration System

The Vazone S22 features a robust 6-stage double cyclone filtration system designed to capture fine dust and allergens, ensuring cleaner exhaust air.

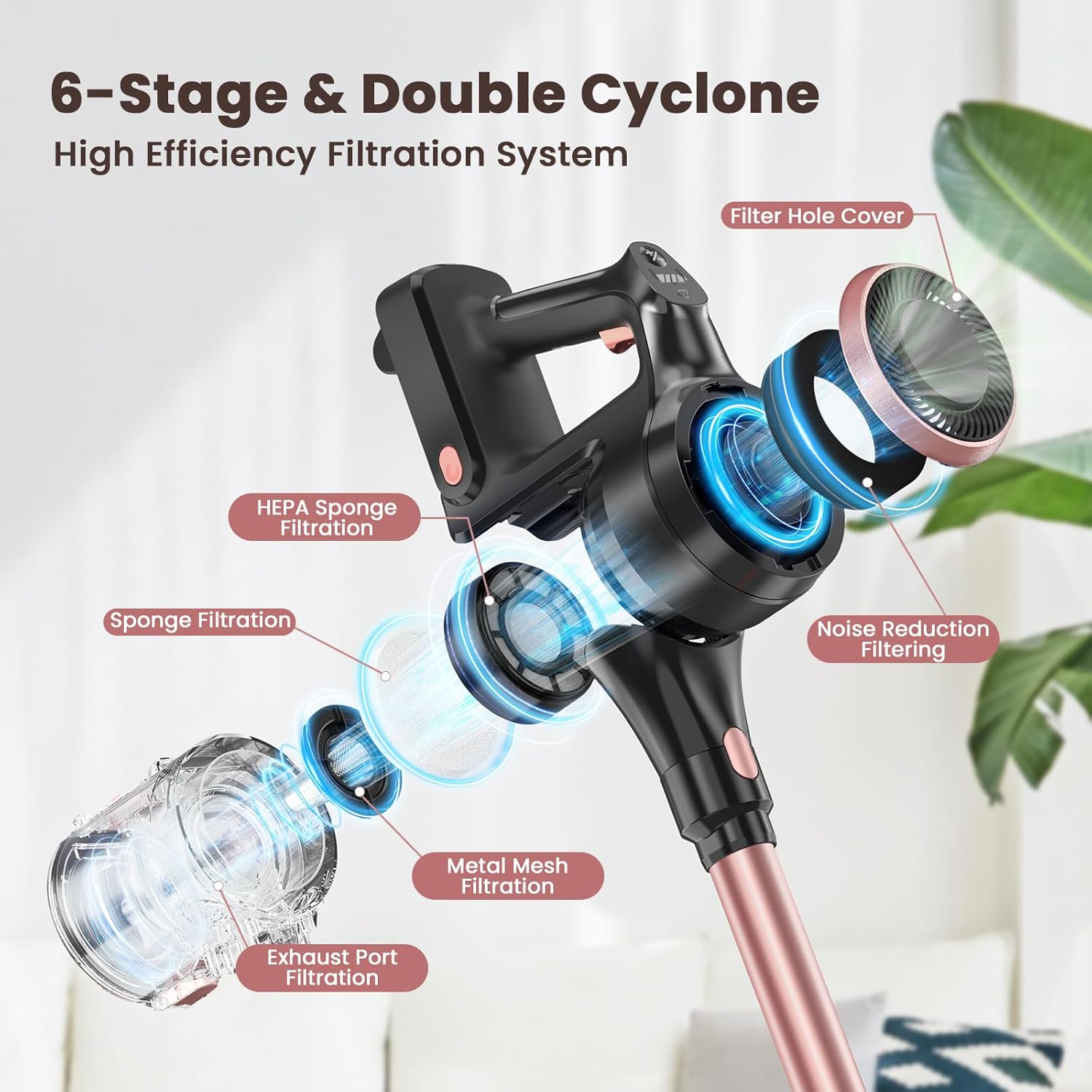

Image: An exploded view diagram illustrating the 6-stage double cyclone filtration system, including the filter hole cover, HEPA sponge filtration, sponge filtration, metal mesh filtration, and exhaust port filtration.

Filtration System Components:

• Filter Hole Cover: Protects the internal filters.
• HEPA Sponge Filtration: Captures microscopic particles.
• Sponge Filtration: Provides an additional layer of filtration.
• Metal Mesh Filtration: Separates larger debris.
• Noise Reduction Filtering: Helps to minimize operational sound.
• Exhaust Port Filtration: Ensures clean air is expelled.

5. Assembly and Setup

5.1 Assembling the Vacuum

1. Insert the telescopic tube into the main vacuum cleaner unit until it clicks into place.
2. Attach the floor brush head to the other end of the telescopic tube, ensuring it is securely fastened.
3. For handheld use, detach the telescopic tube and attach desired accessories (crevice nozzle or 2-in-1 brush) directly to the main unit.

5.2 Wall Mount Installation

The included wall mount allows for convenient storage and charging.

• Choose a suitable location near a power outlet.
• Mark the drilling points for the wall mount.
• Drill holes and insert wall anchors (if necessary).
• Secure the wall mount with screws.
• Hang the vacuum cleaner on the wall mount for storage and charging.

6. Charging the Battery

Before first use, fully charge the vacuum cleaner for approximately 4-5 hours. The battery display on the main unit will indicate the charging status.

• Connect the charging adapter to the charging port on the main unit or the wall mount.
• Plug the adapter into a power outlet.
• The battery indicator will show charging progress.
• A full charge provides up to 35 minutes of runtime in standard mode. Additional battery packs can be purchased separately to extend usage time.

7. Operating Instructions

7.1 Powering On/Off and Suction Modes

The Vazone S22 offers two adjustable power modes to suit different cleaning needs.

Image: Illustration showing the two adjustable power modes: Standard Mode (22Kpa, 55 Mins Runtime) and Max Mode (40Kpa, 25 Mins Runtime), suitable for various debris like dust, pet hair, crumbs, and pet food.

• Press the power button to turn the vacuum cleaner on. It will start in Standard Mode (22Kpa suction, up to 55 minutes runtime).
• Press the mode button to switch to Max Mode (40Kpa suction, up to 25 minutes runtime) for deeper cleaning.
• Press the power button again to turn the vacuum cleaner off.
• The LED display on the main unit shows the current suction mode and battery level.

7.2 Using Attachments and Features

The 6-in-1 design allows for versatile cleaning throughout your home and car.

Image: A collage demonstrating the Vazone S22 in various configurations, including a full stick vacuum, a handheld unit for sofas, and an extended tool for high areas like curtains.

• Floor Brush: Ideal for all floor types, including hardwood, carpet, marble, and tile. The brush head rotates 90°-180° for easy maneuverability, and integrated LED lights illuminate dark areas.
• Crevice Nozzle: Use for narrow gaps, corners, and edges.
• 2-in-1 Bristle Brush: Suitable for upholstery, curtains, keyboards, and car interiors.
• Self-Standing Design: The vacuum can stand upright on its own, allowing you to pause cleaning without leaning it against a wall or laying it on the floor.
• Retractable Metal Tube: Adjust the tube length for comfortable cleaning at different heights.

8. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

8.1 Emptying the Dust Cup

The 1.5L dust cup features a one-click empty design for hygienic disposal of debris.

Image: The Vazone S22 handheld unit with its 1.5L dust cup being emptied into a trash bin with a single click, highlighting the washable and reusable filters.

1. Ensure the vacuum cleaner is turned off.
2. Press the dust cup release button to detach the dust cup from the main unit.
3. Position the dust cup over a trash bin.
4. Press the bottom release button on the dust cup to open the lid and empty the contents.
5. Close the dust cup lid and reattach the dust cup to the main unit.

8.2 Cleaning Filters

The filters are washable and reusable. Clean them regularly to maintain suction power.

1. Remove the dust cup as described above.
2. Twist and pull out the filter assembly (HEPA filter, sponge filter, metal mesh filter).
3. Rinse all filter components under running water until clean. Do not use detergent.
4. Allow all filter components to air dry completely for at least 24 hours before reassembling. Do not expose to direct sunlight or heat.
5. Reassemble the dry filters and reattach the dust cup.

8.3 Cleaning the Floor Brush

• Turn off the vacuum cleaner and detach the floor brush.
• Use the mini cleaning brush (included) or scissors to remove tangled hair and debris from the brush roll.
• Wipe the exterior of the brush head with a damp cloth.

9. Troubleshooting

Refer to this section for common issues and their solutions.

10. Specifications

11. Warranty and Support

Vazone products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided on your purchase receipt or visit the official Vazone website.

Please have your model number (S22) and purchase date ready when contacting support.
