1. Introduction
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your tifgalop Adult Electric Bike ES28PRO. Designed for various terrains, this electric bike features a powerful 2000W motor, a long-lasting 52V 22Ah detachable lithium battery, and robust 26-inch fat tires, offering a maximum speed of 37 MPH and a range of up to 80km.
Figure 1.1: tifgalop ES28PRO Adult Electric Bike.
2. Key Features
- 2*1000W High-Speed Pure Copper Brushless Motor: Provides a top speed of 33 miles per hour with 80Nm torque for various terrains. Features a pure copper motor for longer life and reduced maintenance.
- 52V 22AH Lithium-Ion Battery: Offers a travel range of up to 90km per charge in pedal assist mode. The battery is easily removable for security and convenient charging.
- 26 Inch Pneumatic Off-Road Tires: Equipped with oversized threaded 26" x 4" fat tires designed for traversing diverse off-road terrains.
- High-Quality Shock Absorbers and Suspension Forks: Helps reduce vibration from bumps and debris, enhancing ride comfort on uneven surfaces.
- Hydro-Mechanical Disc Brake: Provides excellent stopping power for the electric bike, even on challenging descents.
- Sturdy Aluminum Frame: Constructed from an ultra-sturdy aluminum alloy frame, ensuring durability and smooth riding across various terrain types. Supports a 440 lb load capacity.

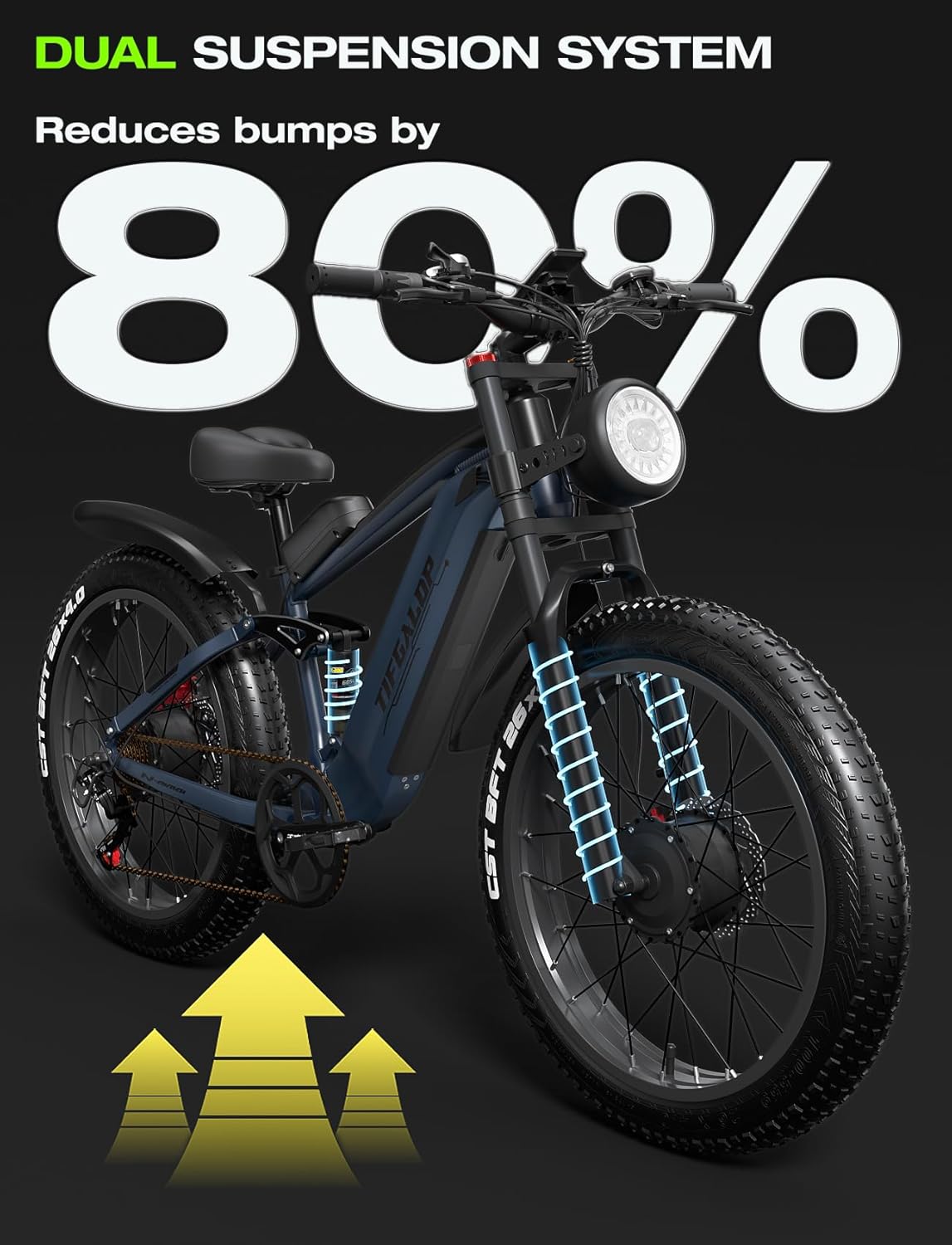

Figure 2.1: The dual suspension system significantly reduces bumps for a smoother ride.
Figure 2.2: Powerful 2000W brushless motor for high speed and climbing ability.
Figure 2.3: Detachable 52V 22Ah Lithium-Ion Battery for extended range and easy charging.
Figure 2.4: 26-inch fat tires designed to conquer various terrains including city roads, sand, gravel, and snow.
3. Setup and Assembly
Your tifgalop ES28PRO electric bike arrives 85% assembled. The remaining assembly typically involves attaching the front wheel, handlebars, pedals, and seat. Please refer to the included components list and follow the detailed instructions provided in the separate assembly guide for a smooth setup process.
3.1 What's in the Box
Figure 3.1: Overview of components included with your ES28PRO electric bike, such as the 85% assembled e-bike, front wheel, fenders, battery, headlight, saddle, phone holder, helmets, pedals, charger, keys, bike lock, and tools set.
4. Operating Instructions
Familiarize yourself with the controls and modes of your ES28PRO for an optimal riding experience.
4.1 LCD Display and Controls
The intelligent LCD display provides real-time ride data and allows control over various functions, including:
- Lighting Control: Manage the bike's headlight.
- 7 Speed Shifter: Adjust gears for different riding conditions.
- Half-twist Throttle: Engage electric power without pedaling.
- PAS Mode (Pedal Assist System): Provides electric assistance while pedaling.
- Cruise Mode: Maintain a set speed.
- Walking Mode: Provides low-speed assistance for walking alongside the bike.
Figure 4.1: The LCD display shows speed, battery level, PAS level, and other vital information.
4.2 Battery Removal and Charging
The 52V 22Ah lithium-ion battery is designed for easy removal. Use the provided key to unlock and detach the battery for charging or security. Ensure the battery is securely locked in place before riding.
Video 4.1: Demonstrates the features and riding capabilities of the tifgalop Adult Electric Bike, including battery handling.
Video 4.2: A brief overview of the tifgalop 2000W ES28pro Ebike, showcasing its design and key aspects.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric bike. The pure copper motor is designed for less maintenance, but general care is still essential.
- Check All Bolts and Screws: Periodically inspect and tighten all bolts and screws, especially after initial assembly and the first few rides. Pay particular attention to critical areas like the brake calipers and wheel hubs.
- Tire Pressure: Maintain recommended tire pressure for optimal performance and safety. Refer to the tire sidewall for specific pressure ranges.
- Brake System: Regularly check brake pads for wear and ensure proper brake lever function. Adjust as needed to maintain effective stopping power.
- Battery Care: Store the battery in a cool, dry place. Avoid fully draining the battery and charge it regularly, even when not in use, to prolong its lifespan.
- Cleaning: Clean your bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
6. Troubleshooting
This section addresses common issues you might encounter. For more complex problems, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike not powering on | Battery not charged or not properly seated; power button not pressed. | Ensure battery is fully charged and securely inserted. Press and hold the power button on the display. |
| Motor not assisting | PAS level too low; throttle not engaged; brake levers engaged. | Increase PAS level on the display. Ensure throttle is fully twisted. Release brake levers completely. |
| Unusual noises during ride | Loose components; chain issues; brake rub. | Inspect all bolts and screws for tightness. Check chain for proper tension and lubrication. Adjust brake calipers if rubbing. |
| Speed not reaching maximum | Speed limit setting on display; low battery; terrain. | Check and adjust the speed limit setting (P-values) on the LCD display as per advanced user guide. Ensure battery is adequately charged. Consider terrain and rider weight. |
7. Specifications
| Attribute | Detail |
|---|---|
| Bike Type | Electric Bike |
| Model Name | Es28pro-blue |
| Brand | tifgalop |
| Motor | 2*1000W High-Speed Pure Copper Brushless Motor |
| Wattage | 1000 watts (per motor, total 2000W) |
| Battery | 52V 22Ah Detachable Lithium-Ion Battery (0.86 Kilowatt Hours) |
| Maximum Speed | 37 MPH (approx. 60 km/h) |
| Maximum Range | Up to 90km (in pedal assist mode) |
| Wheel Size | 26 Inches (Fat Tire) |
| Frame Material | Aluminum |
| Suspension Type | Dual (Front and Rear) |
| Brake Style | Hydro-Mechanical Disc Brake |
| Number of Speeds | 7 |
| Maximum Weight Recommendation | 440 lbs |
| Net Weight | 92.4 LBS |
| Assembly Required | No (85% pre-assembled) |
| UPC | 768472373328 |
Figure 7.1: Detailed dimensions of the ES28PRO electric bike, including height, length, and wheel size.
8. Warranty and Support
tifgalop is committed to providing quality products and support.
- Warranty: The tifgalop ES28PRO Electric Bike comes with a Lifetime Warranty. Please retain your proof of purchase for warranty claims.
- Accessories Support: We offer 90 days of free accessories support.
- Customer Service: For any product issues, questions, or to order exclusive parts, please contact tifgalop customer service. Our team is dedicated to providing long-term after-sales support.
