LQT Hair Clipper, Trimmer, and Shaver Kit (Model LQT-889) User Manual

1. Product Overview

The LQT Hair Clipper, Trimmer, and Shaver Kit (Model LQT-889) is a comprehensive grooming solution designed for versatile hair and beard care. This 3-in-1 professional barber set includes a main hair clipper, a T-blade trimmer, and a men's shaver, all equipped with sharp stainless steel blades and powerful motors for efficient and precise grooming. Each device features a rechargeable lithium-ion battery and convenient USB-C charging.

Figure 1.1: Overview of the LQT Hair Clipper, Trimmer, and Shaver Kit, showing the main clipper, T-blade trimmer, and shaver along with accessories.

2. Safety Information

Always keep blades away from face and eyes. Be cautious when cleaning blades to avoid injury. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

3. Package Contents

Please verify that all items listed below are included in your package:

• 1 x Hair Clipper
• 1 x T-blade Trimmer
• 1 x Men's Shaver Razor
• Multiple Guide Combs (for clipper and trimmer)
• 1 x Cleaning Brush
• 1 x Blade Oil
• 1 x Hair Comb
• Blade Protector Covers
• 2 x USB-C Charging Cables
• 1 x Barber Cape
• 1 x Hard Carry Case

4. Setup and Initial Use

4.1 Initial Charging

Before first use, fully charge each device. Connect the provided USB-C cable to the charging port on the device and plug the other end into a compatible USB power source (e.g., computer, wall adapter, power bank). The LED display on the clipper and trimmer will show the battery percentage, while the shaver has an LED indicator bar.

• Hair Clipper: Approximately 3 hours for a full charge, providing up to 180 minutes of working time.
• T-blade Trimmer: Approximately 1.5 hours for a full charge, providing up to 160 minutes of working time.
• Men's Shaver: Approximately 1.5 hours for a full charge, providing up to 160 minutes of working time.

Figure 4.1: USB charging details and battery capacities for each device.

Figure 4.2: Various USB charging options including car charger, mobile power, computer, and wall plug.

4.2 Attaching Guide Combs

Select the desired guide comb for your preferred hair length. Align the comb with the blade and firmly push it until it clicks into place. Ensure it is securely attached before operating the device. To remove, gently pull the comb away from the blade.

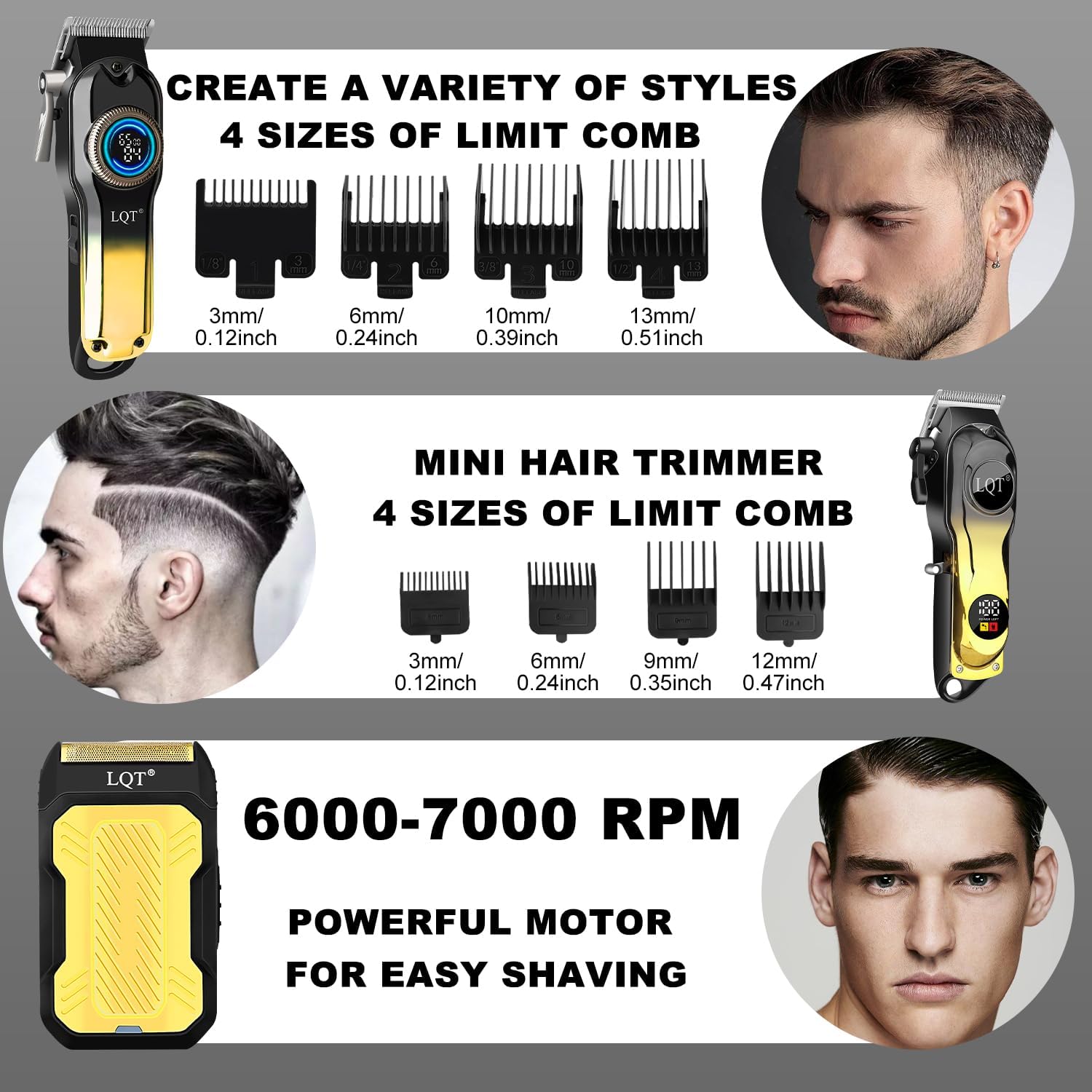

Figure 4.3: Available limit comb sizes for the main clipper and mini hair trimmer.

5. Operating Instructions

5.1 Hair Clipper

The main hair clipper is ideal for general hair cutting and fading. Use the side lever to adjust the blade length for fine-tuning cuts. Attach the appropriate guide comb for desired hair length. Turn on the clipper using the ON/OFF switch and move it against the direction of hair growth for an even cut.

5.2 T-blade Trimmer

The T-blade trimmer is designed for precise detailing, outlining, and beard trimming. Its zero-gap capability allows for sharp lines and close cuts. Use without a guide comb for closest trim or with smaller guide combs for beard length maintenance. Turn on the trimmer and carefully guide it along the desired areas.

5.3 Men's Shaver Razor

The men's shaver provides a smooth, close shave for facial hair and can also be used for trimming sideburns. It features a durable mesh head for comfortable skin contact. For sideburns, utilize the pop-up blade feature. Turn on the shaver and gently glide it over the skin in short, circular motions.

Figure 5.1: Demonstrations of the LQT grooming kit for various uses including hair cutting, beard trimming, and close shaving.

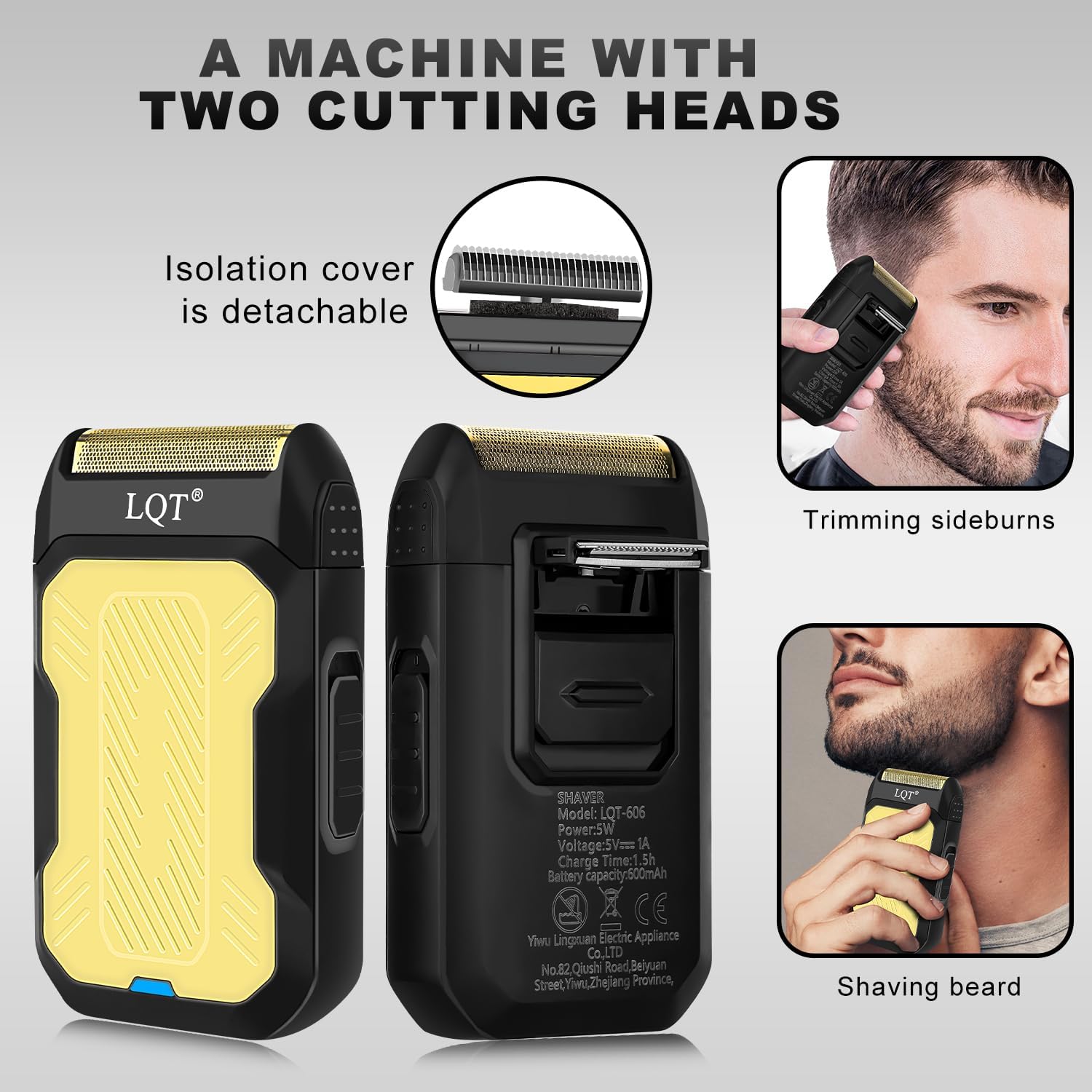

Figure 5.2: Detailed view of the LQT shaver, highlighting its detachable isolation cover and applications for trimming sideburns and shaving the beard.

Figure 5.3: Examples of styles achievable with the multifunctional hair set, including engraving, gradation, beard trimming, and body trimming.

6. Maintenance and Cleaning

6.1 Cleaning Blades

After each use, turn off the device and remove any attached guide combs. Use the provided cleaning brush to remove loose hairs from the blades. Only the blades can be rinsed under running water; do not submerge the entire device. Ensure blades are dry before reattaching or storing.

6.2 Oiling Blades

Regularly apply a few drops of the provided blade oil to the blades. Turn on the device for a few seconds to distribute the oil evenly. This helps maintain blade sharpness and ensures smooth operation.

6.3 Storage

Store the devices and accessories in the hard carry case when not in use. This protects them from damage and keeps all components organized.

7. Troubleshooting

8. Specifications

• Model Number: LQT-889
• Power Source: Rechargeable Lithium-Ion Battery
• Battery Type: P76 (included)
• Charging Interface: USB-C
• Hair Clipper Charging Time: Approximately 3 hours
• Hair Clipper Working Time: Up to 180 minutes
• Trimmer/Shaver Charging Time: Approximately 1.5 hours
• Trimmer/Shaver Working Time: Up to 160 minutes
• Package Dimensions: 11.85 x 7.52 x 3.58 inches
• Package Weight: 2.56 Pounds
• Manufacturer: LQT

Figure 8.1: Key features of the LQT grooming kit, including intelligent display, stainless steel blades, powerful motor, and USB charging.

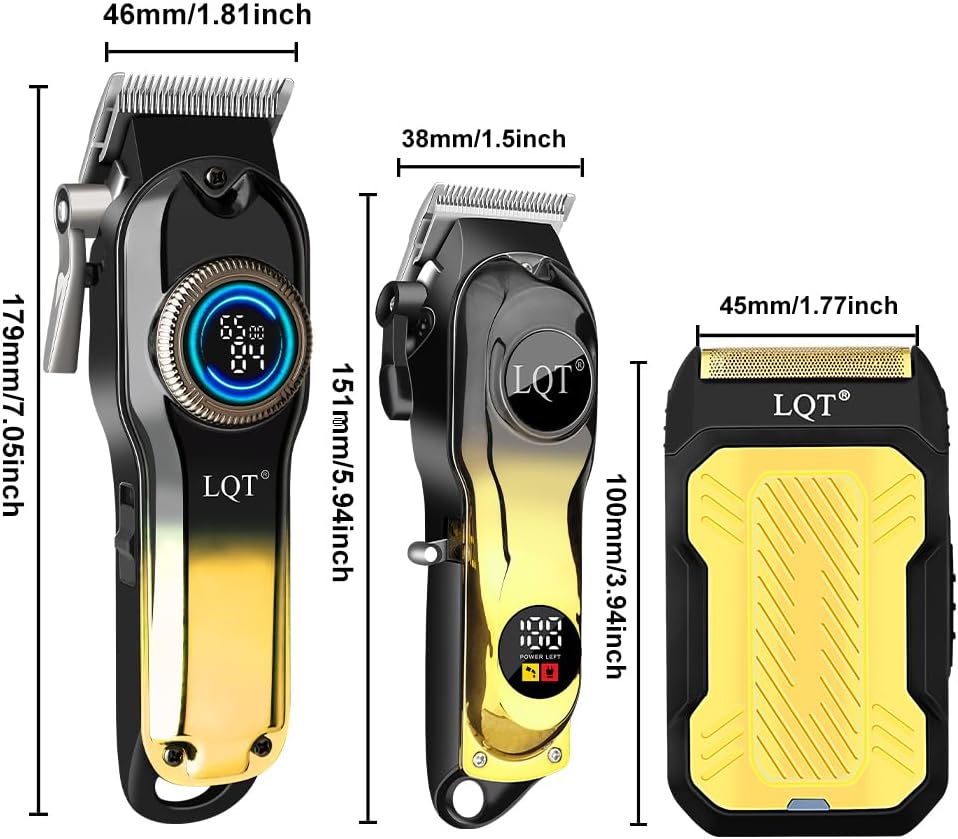

Figure 8.2: Physical dimensions of the LQT hair clipper, trimmer, and shaver.

9. Warranty and Customer Support

For warranty information or any product-related inquiries, please contact LQT customer support through the retailer where the product was purchased or visit the official LQT website. Please retain your proof of purchase for warranty claims.
