Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Jstpure FD-M300 Front Derailleur. Designed for 3x7 speed bicycle systems, this derailleur ensures reliable shifting performance. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Safety Information
- Always wear appropriate safety gear when working on your bicycle.
- Ensure all bolts are tightened to the manufacturer's recommended torque specifications. Overtightening or undertightening can lead to component failure.
- Keep fingers and clothing clear of moving parts, especially the chain and chainrings, during adjustment and operation.
- If you are unsure about any installation or adjustment steps, consult a professional bicycle mechanic.
Package Contents
Please verify that all items are present in your package:
- 1 x Jstpure FD-M300 Front Derailleur
- Instruction Manual (this document)
Setup and Installation
Follow these steps for proper installation of the FD-M300 Front Derailleur.
1. Mounting the Derailleur
The FD-M300 is designed for seat tubes with diameters ranging from 28.6mm to 34.9mm. It features a dual-pull design, allowing the cable to be routed from either the top or bottom.
- Loosen the derailleur clamp bolt.
- Position the derailleur on the seat tube so that the outer cage plate is directly above and parallel to the largest chainring, with a gap of 1-3mm between the bottom of the outer cage plate and the top of the largest chainring teeth.
- Ensure the derailleur cage is parallel to the chainrings.
- Tighten the clamp bolt securely. Refer to your bicycle's specifications for torque values.

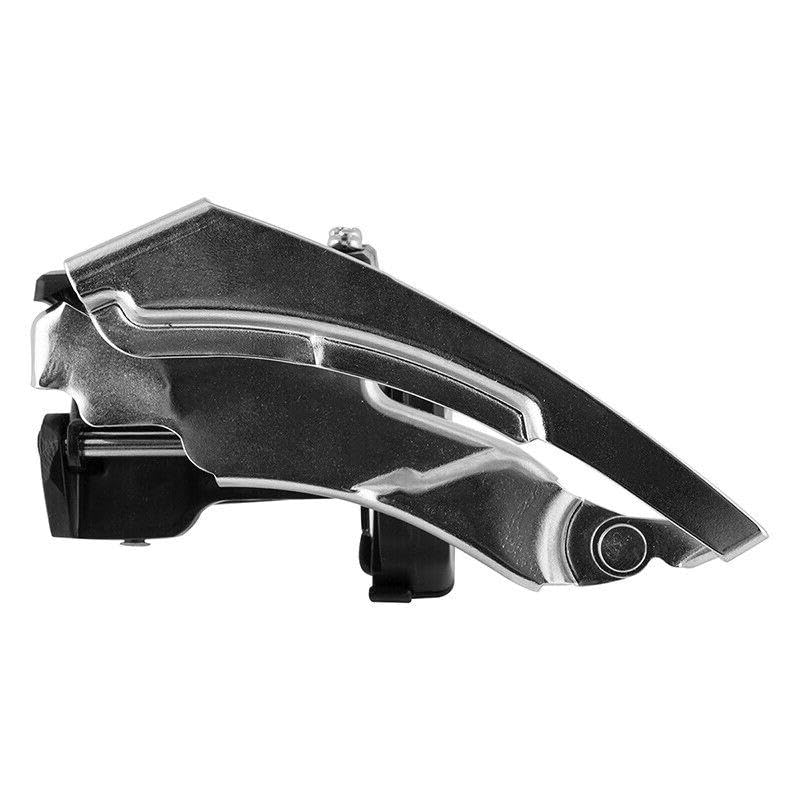

Image: The Jstpure FD-M300 Front Derailleur, showing its design and mounting clamp. This image illustrates the component before or during installation on a bicycle frame.
2. Cable Routing and Attachment
Route the shift cable from your shifter to the derailleur. The FD-M300 supports both top-pull and bottom-pull cable routing.
- Shift the front shifter to the lowest gear (smallest chainring position).
- Pull the shift cable taut and secure it to the derailleur's cable fixing bolt. Do not overtighten.
3. Limit Screw Adjustment
The limit screws prevent the chain from shifting off the chainrings. There are two screws: 'L' for the low gear (smallest chainring) and 'H' for the high gear (largest chainring).
- Low Limit (L) Screw: Shift the rear derailleur to the largest cog and the front derailleur to the smallest chainring. Adjust the 'L' screw so that the inner cage plate is as close as possible to the chain without rubbing.
- High Limit (H) Screw: Shift the rear derailleur to the smallest cog and the front derailleur to the largest chainring. Adjust the 'H' screw so that the outer cage plate is as close as possible to the chain without rubbing.
Image: A detailed view of the Jstpure FD-M300 Front Derailleur, highlighting the limit screws and cable attachment point. This image assists in identifying adjustment points.
4. Cable Tension Adjustment
Fine-tune the cable tension using the barrel adjuster on your shifter or inline on the cable housing. Shift through all front gears to ensure smooth and precise operation without chain rub in any gear combination.
Operating Instructions
The Jstpure FD-M300 Front Derailleur is designed for 3x7 speed systems, allowing you to select from three front chainrings to optimize your pedaling efficiency for various terrains.
- Shifting Up (Larger Chainring): Push the shifter lever to move the chain to a larger chainring. This provides a harder gear, suitable for higher speeds or downhill riding.
- Shifting Down (Smaller Chainring): Push the release lever to move the chain to a smaller chainring. This provides an easier gear, suitable for climbing or starting from a stop.
- Always pedal lightly when shifting to ensure smooth transitions and prevent damage to the drivetrain components.
Maintenance
Regular maintenance will prolong the life and performance of your front derailleur.
- Cleaning: Periodically clean the derailleur cage, pivots, and springs with a degreaser and brush. Rinse thoroughly and dry.
- Lubrication: Apply a small amount of bicycle-specific lubricant to the pivot points of the derailleur after cleaning. Avoid over-lubricating, as this can attract dirt.
- Inspection: Regularly inspect the derailleur for any signs of damage, wear, or loose bolts. Check the shift cable for fraying or corrosion. Replace worn or damaged parts immediately.
Troubleshooting
Here are solutions to common issues you might encounter with your front derailleur.
| Problem | Possible Cause | Solution |
|---|---|---|
| Chain rubs on derailleur cage | Incorrect limit screw adjustment or cable tension. | Adjust 'L' or 'H' limit screws. Fine-tune cable tension using the barrel adjuster. Ensure derailleur is parallel to chainrings. |
| Slow or hesitant shifting | Insufficient cable tension, dirty/corroded cable, or stiff pivots. | Increase cable tension with barrel adjuster. Clean and lubricate cable and derailleur pivots. Replace cable and housing if necessary. |
| Chain falls off chainrings | Limit screws set too far out. | Adjust 'L' or 'H' limit screws inward to prevent over-shifting. |
Specifications
- Model: FD-M300
- Brand: Jstpure
- Speed Compatibility: 3x7 speed systems
- Mount Type: Clamp-on
- Clamp Diameter: 28.6mm - 34.9mm (with adapters if applicable)
- Cable Pull: Dual Pull (Top or Bottom)
- Color: Silver/Black
Warranty and Support
For warranty information or technical support, please contact Jstpure customer service through the retailer where the product was purchased or visit the official Jstpure website. Please have your product model number (FD-M300) and purchase details ready when contacting support.
