TUXING TXES061 300Bar 12V PCP Air Compressor User Manual

1. Introduction

Thank you for choosing the TUXING TXES061 300Bar 12V PCP Air Compressor. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your compressor. Please read this manual thoroughly before using the product and retain it for future reference.

2. Product Overview and Features

The TUXING TXES061 is a portable high-pressure air compressor designed for filling PCP airguns and small diving scuba tanks. It features a robust design, efficient operation, and versatile power options.

Key Features:

• High Pressure Output: Achieves up to 300Bar (4500Psi) for rapid filling.
• Portable Design: Compact and lightweight with a sturdy carry handle for easy transport.
• Dual Power Capability: Operates on 12V DC (car battery) or 220V AC (with included transformer).
• Over-temperature Protection: Smart auto-shutoff technology prevents permanent damage from overheating.
• Efficient Cooling: Equipped with a fan cooling system for sustained operation.
• Integrated Drain System: Inlet drain valve system automatically removes deposits, reducing maintenance.
• Oil and Water-Free Operation: Designed for convenience, eliminating the need for external oil or water cooling.

Parts Identification:

Familiarize yourself with the components of your compressor:

Image Description: This diagram illustrates the key components of the TUXING TXES061 compressor. Labeled parts include the Pressure Gauge, Handle, Temperature Gauge Display, Fan Switch, Motor Switch, 12V DC Power Socket, Air Outlet, Bleed Valve, and Air Vent.

Image Description: This image highlights several upgraded features of the compressor. It shows a simplified operation with a single compressor ON/OFF switch (the cooling fan runs automatically), a high-quality wider and softer handle, a larger side fan for quieter and more efficient cooling, a 12V DC power socket, and a larger barometer with clearer readings.

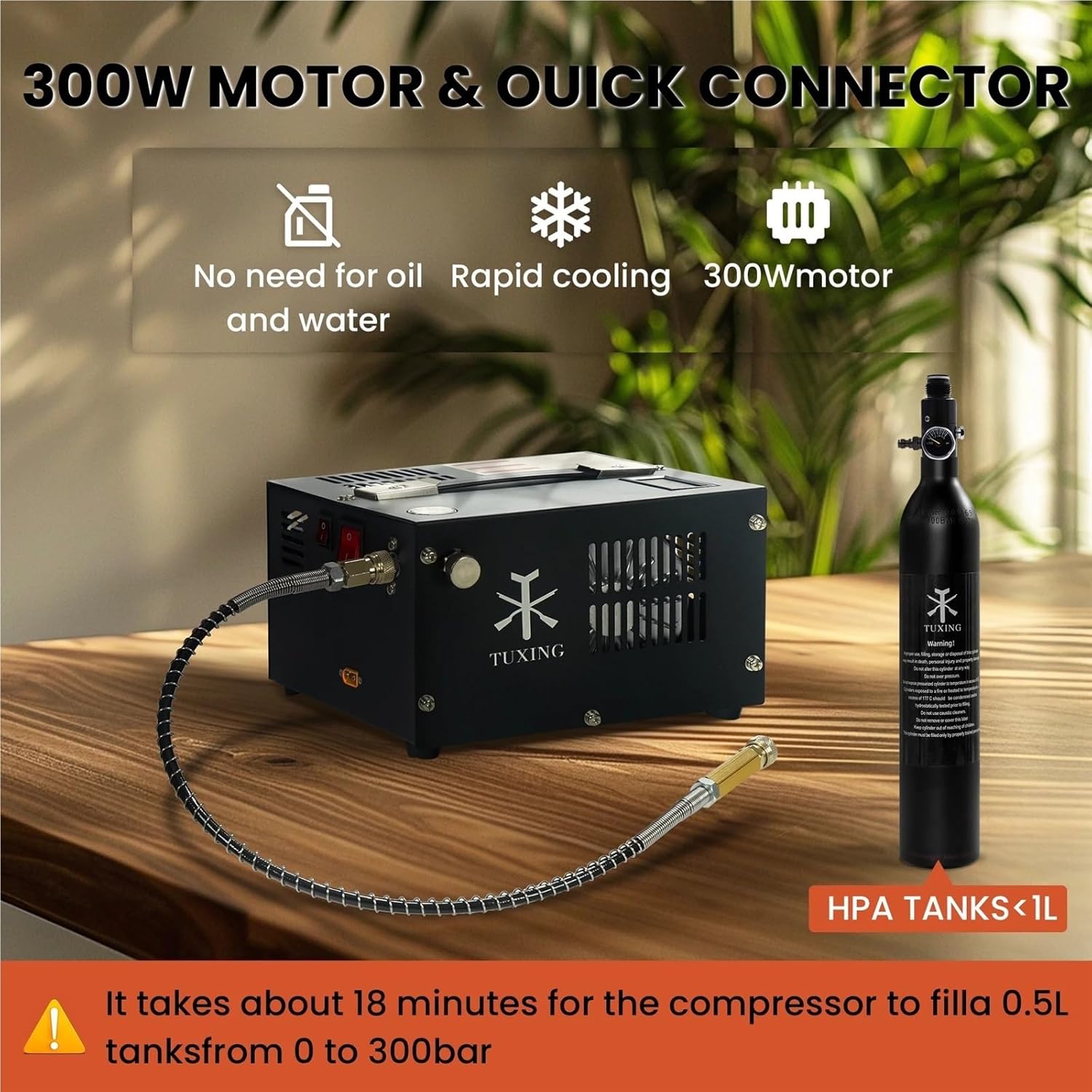

Image Description: This image displays the TUXING TXES061 compressor connected to an HPA tank. It emphasizes key features such as 'No need for oil and water', 'Rapid cooling', and a '300W motor'. A note indicates that it takes approximately 18 minutes to fill a 0.5L tank from 0 to 300 bar.

3. Safety Instructions

WARNING: High-pressure air can be dangerous. Failure to follow these safety instructions may result in serious injury or death.

• Always operate the compressor in a well-ventilated area.
• Ensure the compressor is placed on a stable, level surface.
• Do not operate the compressor near flammable liquids or gases.
• Never point the air outlet at yourself or others.
• Always wear appropriate eye protection when operating the compressor.
• Ensure all connections are secure before starting the compressor.
• Do not exceed the maximum pressure rating of the tank being filled.
• Keep children and unauthorized persons away from the compressor during operation.
• If the compressor overheats, the automatic shut-off will activate. Allow it to cool down before resuming operation.
• Regularly inspect the compressor and hoses for any signs of damage. Do not use if damaged.

4. Setup and Initial Use

Unboxing and Inspection:

1. Carefully remove the compressor and all accessories from the packaging.
2. Inspect all components for any signs of damage during shipping. Contact your retailer immediately if any damage is found.
3. Ensure all listed accessories are present.

Connecting to AC Power (Home Use):

Image Description: This image shows the TUXING TXES061 compressor connected to a wall outlet via its power converter. It illustrates the setup for home use, with the compressor ready to fill an air rifle. A tip highlights the input voltage adjustment paddle (AC 110V or 220V) on the side of the converter, with the factory setting typically being AC 110V.

1. Ensure the input voltage adjustment paddle on the side of the converter is set to the correct AC voltage (110V or 220V) for your region.
2. Connect the power converter to the compressor's AC input port.
3. Plug the power converter into a standard wall outlet.
4. Connect the air hose from the compressor's air outlet to the tank or device you intend to fill. Ensure connections are tight.
5. Ensure the bleed valve on the compressor is tightened to the right (closed position) before starting.

Connecting to DC Power (Field Use):

Image Description: This image illustrates the TUXING TXES061 compressor being powered by a 12V car battery in an outdoor setting. The compressor is connected to the car battery using alligator clips (red to positive, black to negative). It also shows the compressor connected to an HPA tank. A note advises keeping the car idling while the compressor is working to maintain battery charge.

1. Connect the 12V DC power cable to the compressor's 12V DC power socket.
2. Correctly clip the red clamp to the positive (+) terminal of your 12V car battery and the black clamp to the negative (-) terminal.
3. For optimal performance and to prevent battery drain, it is recommended to keep your car idling while the compressor is working.
4. Connect the air hose from the compressor's air outlet to the tank or device you intend to fill. Ensure connections are tight.
5. Ensure the bleed valve on the compressor is tightened to the right (closed position) before starting.

5. Operating Instructions

1. Prepare Connections: Ensure the compressor is properly connected to its power source (AC or DC) and the air hose is securely attached to the tank you wish to fill.
2. Close Bleed Valve: Confirm the bleed valve is fully tightened clockwise (closed).
3. Power On: Flip the main power switch (Motor Switch) to the 'ON' position. The cooling fan will start automatically.
4. Monitor Pressure: Observe the pressure gauge as the tank fills. Do not exceed the maximum working pressure of your tank or the compressor (4500Psi / 300Bar).
5. Monitor Temperature: Keep an eye on the temperature gauge. If the compressor reaches its temperature limit, the over-temperature protection will automatically shut it off. Allow it to cool down before restarting.
6. Shut Down: Once the desired pressure is reached, turn off the main power switch.
7. Bleed System: Slowly open the bleed valve by turning it counter-clockwise to release the pressure in the hose. This is crucial before disconnecting the hose.
8. Disconnect: Once all pressure is released, disconnect the air hose from your tank.

6. Maintenance

Proper maintenance ensures the longevity and reliable performance of your TUXING TXES061 compressor.

• Drain System: The compressor features an inlet drain valve system to automatically remove deposits. Periodically check and ensure this system is functioning correctly.
• No Oil/Water Required: This compressor is designed for oil-free and water-free operation, simplifying maintenance. No need to add or change oil/water.
• Cleaning: Keep the exterior of the compressor clean and free of dust and debris. Ensure the cooling fan vents are unobstructed.
• Storage: Store the compressor in a dry, cool place, away from direct sunlight and extreme temperatures.
• Hose Inspection: Regularly inspect the air hose and connectors for wear, cracks, or damage. Replace any damaged components immediately.

7. Troubleshooting

This section addresses common issues you might encounter with your compressor.

• Compressor Not Starting:
  • Check power connections (AC adapter or 12V battery clips).
  • Ensure the power switch is in the 'ON' position.
  • If using a car battery, ensure the car is idling to provide sufficient power.
• Compressor Shuts Off During Operation:
  • This is likely due to the over-temperature protection. Allow the compressor to cool down for at least 15-30 minutes before attempting to restart.
  • Ensure the cooling fan vents are not blocked.
• Compressor Not Reaching Desired Pressure:
  • Check all air hose connections for leaks. Tighten any loose connections.
  • Ensure the bleed valve is fully closed.
  • Verify the tank being filled is not already at or near its maximum pressure.
• Excessive Noise or Vibration:
  • Ensure the compressor is on a stable, level surface.
  • Check for any loose components or debris.

If you experience issues not covered here, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
