KAKEI 3C368X & Mini Chainsaw User Manual

Product Overview

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your KAKEI 3C368X & Mini Chainsaw. Please read this manual thoroughly before initial use.

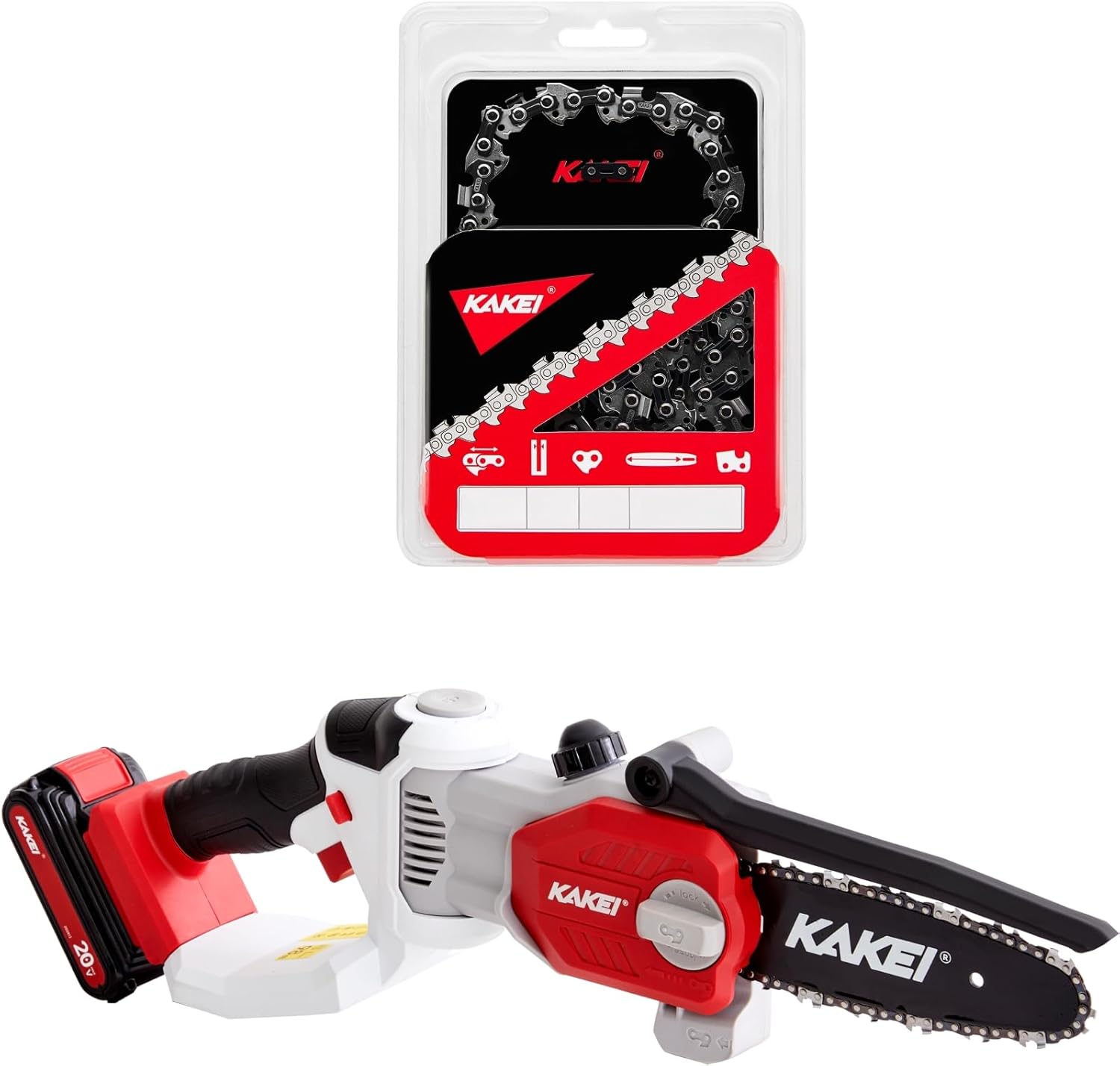

Image: The KAKEI 20V 6" Cordless Mini Chainsaw alongside its accompanying KAKEI Stihl Chainsaw Chain (18 Inch, .325" Pitch, .063" Gauge, 68 Drive Links).

The KAKEI 3C368X & Mini Chainsaw combines a powerful 20V 6" cordless mini chainsaw with a durable 18-inch chainsaw chain. This compact and lightweight tool is designed for efficient tree trimming and gardening tasks.

Image: Key features of the KAKEI 20V 6" Cordless Pruner Saw, including a 45° rotating handle, tool-free chain tension, triple safety design, compact and cordless operation, and ultra-lightweight build.

Key Features:

• 45° Rotating Handle: Provides flexibility for various cutting angles.
• Tool-Free Chain Tension: Allows for quick and easy chain adjustments.
• Triple Safety Design: Includes a chain guard, non-slip grip, and dual switch for enhanced user safety.
• Compact & Cordless: Powered by a 2.0Ah battery for portable use.
• Ultra-Lightweight: Designed for comfortable one-hand operation.
• Automatic Oiler: Ensures consistent lubrication during operation.
• Security Lock: Prevents accidental activation.

Components and Package Contents

The KAKEI 3C368X & Mini Chainsaw package includes the following items:

Image: The KAKEI 20V 6" Cordless Mini Chainsaw, a 2.0Ah battery, a battery charger, and a chain protective cover.

• KAKEI 20V 6" Cordless Mini Chainsaw
• KAKEI Stihl Chainsaw Chain (18 Inch, .325" Pitch, .063" Gauge, 68 Drive Links)
• 2.0Ah Battery
• Battery Charger
• Chain Protective Cover
• User Manual (this document)

Image: Detailed view of the KAKEI Stihl Chainsaw Chain packaging, showing specifications: .325" pitch, .063" gauge, 68 drive links, 18"/45CM length.

Setup

1. Battery Charging

Before first use, fully charge the 2.0Ah battery. Connect the charger to a power outlet and then connect it to the battery. The indicator light on the charger will show the charging status. Ensure the battery is fully charged for optimal performance.

Image: The KAKEI 2.0Ah battery, which powers the cordless mini chainsaw.

2. Chain Installation and Tensioning

Ensure the battery is removed before installing or adjusting the chain. Follow these steps for chain installation:

1. Remove the chain protective cover.
2. Carefully place the chain around the guide bar, ensuring the cutting edges are facing the correct direction.
3. Fit the guide bar and chain onto the chainsaw body.
4. Adjust the chain tension using the tool-free tensioning mechanism. The chain should be snug but still able to be pulled freely around the guide bar by hand.
5. Replace the chain protective cover when not in use.

3. Lubrication

The mini chainsaw features an automatic oiler. Before each use, ensure the oil reservoir is filled with appropriate chainsaw bar and chain oil. Proper lubrication is crucial for chain longevity and efficient cutting.

Image: Demonstrating manual lubrication of the KAKEI Mini Chainsaw, highlighting the oil reservoir for hassle-free maintenance.

Operating Instructions

Safety Precautions:

• Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.
• Ensure a stable footing and clear work area before operating.
• Keep bystanders and pets at a safe distance.
• Never operate the chainsaw with one hand unless specifically designed for it and you maintain proper balance. This model is designed for one-hand use but always prioritize safety.
• Do not operate in wet conditions or near flammable liquids/gases.

Image: Visual representation of the KAKEI Mini Chainsaw's dual-layer safety design, including the dual switch activation, chain safety guard, and anti-slip grip.

Starting and Stopping:

1. Insert the charged battery into the chainsaw.
2. To start, disengage the security lock and press the dual switch activation.
3. To stop, release the dual switch.

Cutting Techniques:

• Always ensure the chain is at full speed before making contact with the material.
• For optimal cutting, apply steady, even pressure. Avoid forcing the saw.
• The maximum cutting diameter for this mini chainsaw is approximately 6 inches (155mm).
• The 45° rotating handle allows for flexible cutting in tight or awkward angles.

Image: The KAKEI Mini Chainsaw in use, demonstrating its maximum cutting diameter of 6 inches (155mm). It can cut 50 times on 100mm logs per charge.

Image: Illustration of the KAKEI Mini Chainsaw's 45° rotating handle, allowing it to adjust for tight angles and awkward cuts.

Maintenance

Regular maintenance ensures the longevity and safe operation of your KAKEI Mini Chainsaw.

• Chain Sharpening: A sharp chain is essential for efficient cutting. Sharpen the chain regularly or replace it when dull.
• Chain Lubrication: Continuously monitor the oil level in the reservoir and refill as needed.
• Cleaning: After each use, clean the chainsaw body, guide bar, and chain to remove sawdust, sap, and debris. The anti-clog dust design helps minimize buildup.
• Storage: Store the chainsaw in a dry, secure place, out of reach of children. Always engage the chain protective cover.
• Battery Care: Store batteries in a cool, dry place. Do not store fully discharged batteries for extended periods.

Troubleshooting

This section addresses common issues you might encounter with your KAKEI Mini Chainsaw.

If the problem persists after attempting these solutions, please contact KAKEI customer support.

Specifications

Warranty and Support

For detailed warranty information and customer support, please refer to the warranty card included with your product or visit the official KAKEI website. Keep your purchase receipt as proof of purchase for any warranty claims.
