YINZHIGUO W11414731 Washer Lid Lock Switch Assembly Instruction Manual

Product Overview

The YINZHIGUO W11414731 Washer Lid Lock Switch Assembly is a direct replacement part designed to restore proper functionality to your washing machine. This component is crucial for the safe operation of your appliance, ensuring the lid remains locked during cycles and preventing issues such as failure to drain or spin.

Image: The W11414731 Washer Lid Lock Switch Assembly, including its packaging and a pair of protective gloves.

This assembly is engineered to address common washer malfunctions, including the lid not locking, the washer failing to drain or spin, continuous clicking noises, or complete cycle failure due to a faulty lid switch.

Compatibility

The W11414731 Washer Lid Lock Switch Assembly is widely compatible with various washing machine models from Whirlpool, Maytag, and Crosley. It is designed as a direct replacement for models utilizing a 3-wire Molex plug system.

Image: A chart detailing compatible washer models for Whirlpool, Crosley, and Maytag, along with original equipment (OE) part numbers that this assembly replaces.

Compatible Models:

• Whirlpool: WTW5010LW1, WTW5057LW0, WTW5010LW0, WTW5015LW1, WTW5015LW0, WTW5057LW1
• Maytag: MVW5430MW0, MVW5035MW0
• Crosley: CAW45125LW1, CAW45125LW0

Replaces OE Part Numbers:

• W11414731
• W11513248
• PS16543458
• PD00073744
• 4964074
• AP7002928
• EAP16543458
• DTL60003
• DTL6000

Setup and Installation

Installing the W11414731 Washer Lid Lock Switch Assembly is a straightforward process that typically requires minimal tools and can be completed in approximately 10 minutes.

Safety Precautions:

• WARNING: Always disconnect the washer from its power supply (unplug it) and turn off the water supply before attempting any repair or replacement.
• Wear appropriate personal protective equipment, such as the included latex gloves, to protect your hands.

Required Tools:

• Screwdriver (appropriate type for your washer's fasteners)

Installation Steps:

1. Prepare the Washer: Disconnect the washer from the electrical outlet and turn off the water supply. Move the washer away from the wall if necessary to access the rear or top panel.
2. Access the Lid Lock Switch: Depending on your washer model, you may need to remove the top panel or the control panel to gain access to the existing lid lock switch assembly. Refer to your washer's specific service manual for detailed instructions on panel removal.
3. Disconnect Old Switch: Carefully disconnect the electrical connector(s) from the old lid lock switch. Note the routing of the wires if multiple connections are present.
4. Remove Old Switch: Unscrew or unclip the old lid lock switch assembly from its mounting location.
5. Install New Switch: Position the new W11414731 Lid Lock Switch Assembly in the same location and secure it with the screws or clips.
6. Connect New Switch: Reconnect the electrical connector(s) to the new switch, ensuring a secure fit.
7. Reassemble Washer: Replace any panels or components that were removed during the process. Ensure all fasteners are tightened.
8. Test Functionality: Reconnect the washer to the power supply and turn on the water. Initiate a test cycle to verify that the lid locks properly and the washer operates as expected.

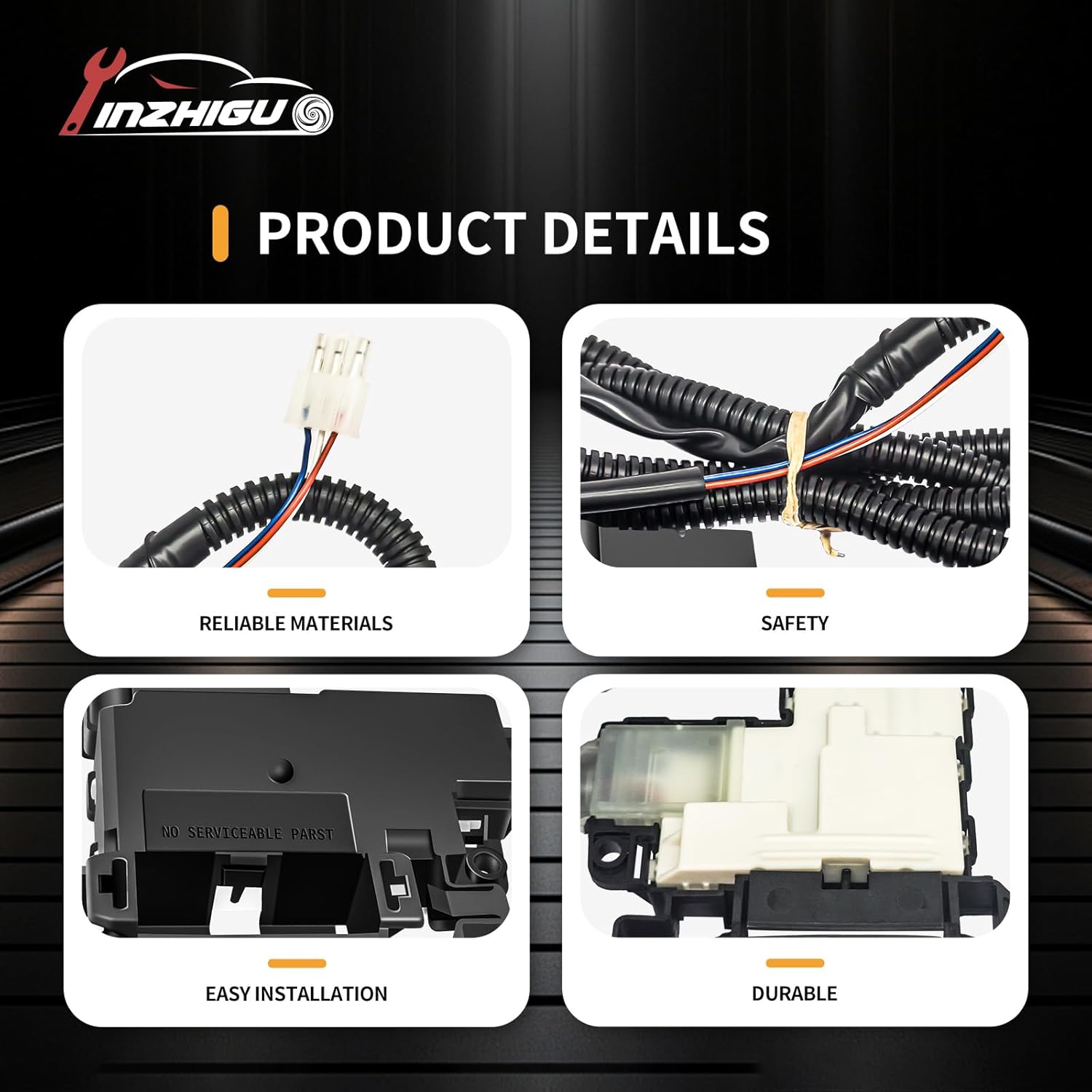

Image: Close-up views highlighting the reliable materials, safety considerations in design, and the straightforward nature of installation for the lid lock switch assembly.

Operating Principles

The washer lid lock switch is a critical safety component. Its primary function is to detect the open or closed status of the washer lid and to ensure the lid is securely locked before and during high-speed operations like the spin cycle. This mechanism prevents accidental injury and water spillage.

When the lid is closed and a wash cycle is initiated, the lid lock switch sends a signal to the washer's control board, indicating that it is safe to proceed. If the switch is faulty, the washer's control board may not receive the correct signal, leading to various operational issues.

Maintenance

The W11414731 Washer Lid Lock Switch Assembly is designed for durability and long-lasting performance. Regular maintenance of the switch itself is generally not required. However, ensuring the area around the lid and the switch mechanism remains clean and free of debris can help prevent premature wear or malfunction.

• Periodically inspect the lid and the area where it meets the washer frame for any foreign objects that might obstruct the lid's closing or the switch's engagement.
• Avoid slamming the washer lid, as this can put undue stress on the lid lock mechanism over time.

Troubleshooting Common Issues

A faulty lid lock switch is a common cause of various washer problems. This replacement part is designed to fix the following symptoms:

• Lid not locking
• Washer won't drain or spin
• Continuous clicking noise during operation
• Inability to start wash cycles
• Cycle failure

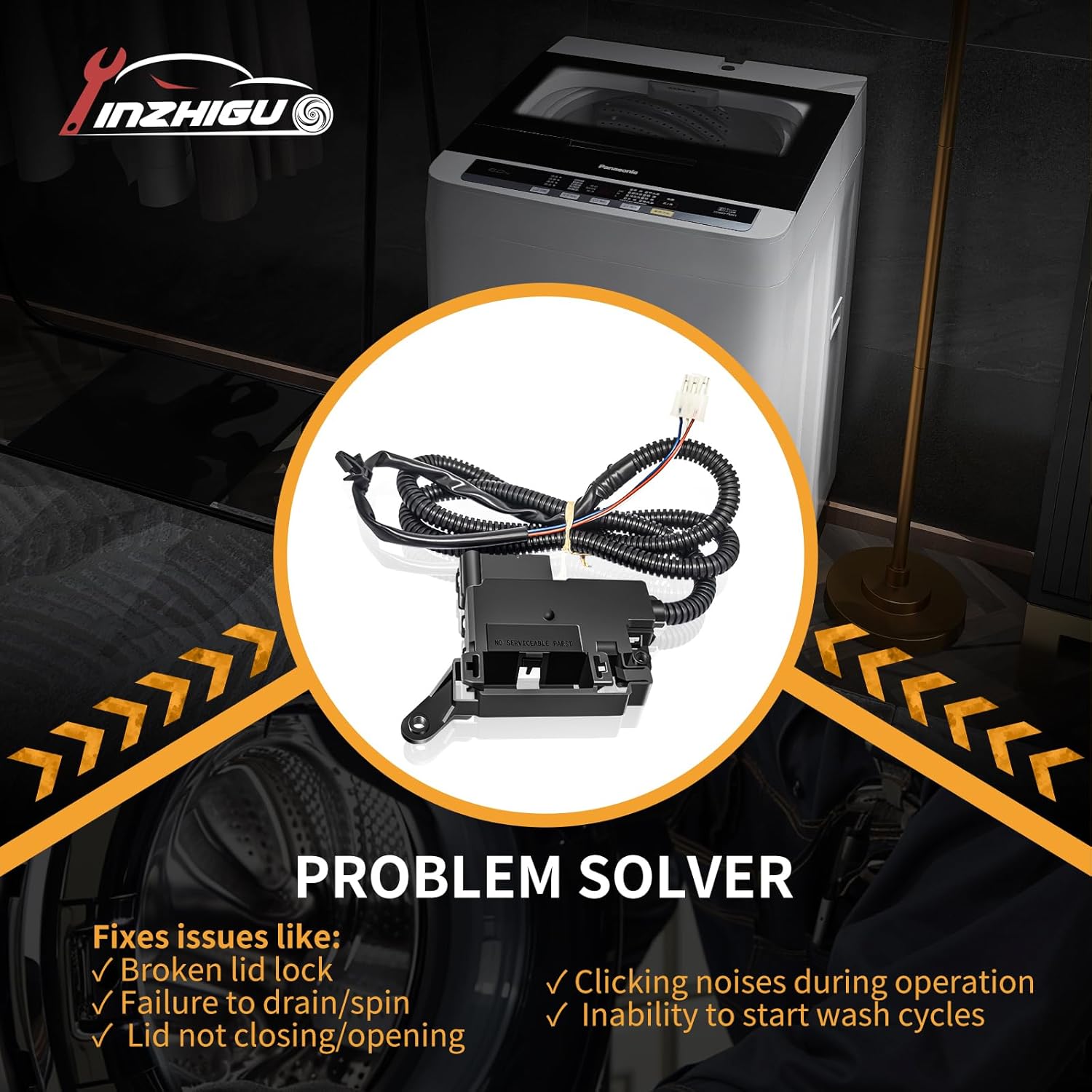

Image: Visual representation of common washer issues such as failure to drain/spin, clicking noises, and inability to start wash cycles, which can be resolved by replacing the lid lock switch.

Diagnosing a Faulty Lid Switch:

Before replacing the switch, you can perform a few diagnostic checks:

Image: A guide illustrating three methods to diagnose a faulty lid switch: visual inspection for damage, a manual test of the spring-loaded tab, and a circuit test using a multimeter for continuity.

1. Visual Inspection:

   With the washer unplugged and the top panel removed (if necessary), visually inspect the lid lock switch for any signs of damage, such as burn marks, physical deformities, or cracked housing. These are clear indicators of a faulty switch.

2. Manual Test:

   Locate the spring-loaded tab or plunger on the lid switch. Manually press it repeatedly to check its movement. A healthy switch should have a smooth spring return motion with no sticking or looseness. If it feels jammed or loose, it may be faulty.

3. Circuit Test (Requires Multimeter):

   For a more definitive diagnosis, use a multimeter to measure electrical continuity across the switch terminals. Refer to your washer's wiring diagram for specific test points.

   • Normal State (Lid Closed/Locked): The circuit should show continuity (closed circuit).
   • Faulty State (Lid Open/Unlocked or Damaged): There will be no continuity (open circuit) when there should be, or vice-versa.

Specifications

Detailed specifications for the YINZHIGUO W11414731 Washer Lid Lock Switch Assembly:

Image: A visual representation of the product's dimensions, indicating a bus length of 115.00 cm (45.28 inches) and a main body length of 10.63 cm (4.18 inches).

Warranty and Support

For information regarding warranty coverage or technical support for your YINZHIGUO W11414731 Washer Lid Lock Switch Assembly, please refer to the product packaging or contact the manufacturer directly through their official channels. You can often find contact information on the brand's Amazon store page or official website.
