WMParts USA Fan Grill Replacement for STIHL BR600, BR550, BR700 (Part No. 4282 760 8101)

1. Introduction

This manual provides essential information for the proper installation, maintenance, and care of your WMParts USA replacement fan grill, designed for STIHL BR600, BR550, and BR700 leaf blowers. The fan grill, also known as a fan screen or fan guard, is a critical component that protects the blower's fan from debris while ensuring optimal airflow for efficient operation.

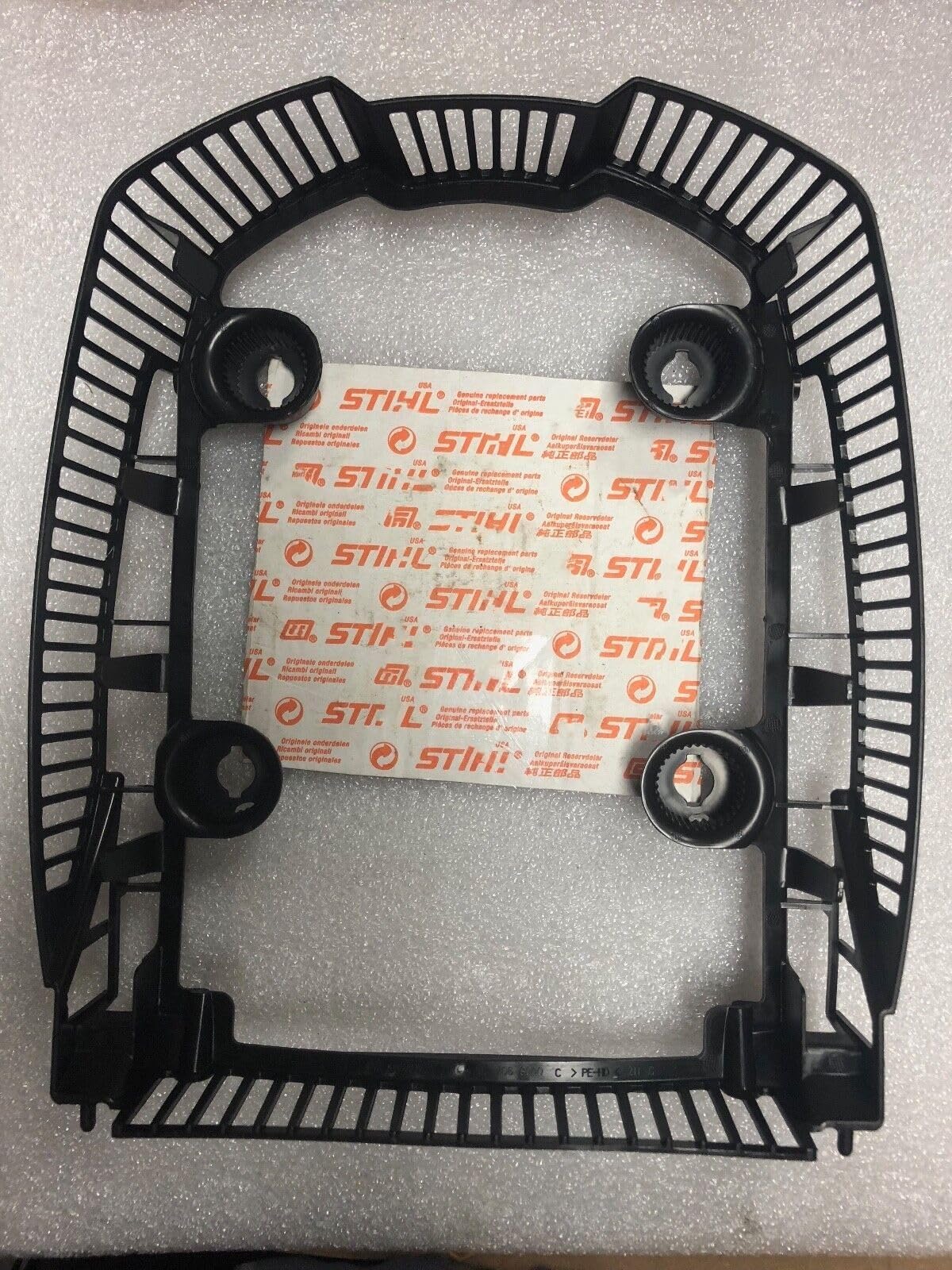

Image 1.1: WMParts USA Replacement Fan Grill. This image displays the fan grill, highlighting its protective mesh and mounting points, ready for installation on compatible STIHL leaf blower models.

2. Safety Information

Always prioritize safety when working with power tools and replacement parts. Failure to follow these safety guidelines may result in injury or damage to equipment.

• Disconnect Power: Before attempting any installation or maintenance, ensure the leaf blower's engine is off and the spark plug wire is disconnected to prevent accidental starting.
• Wear Protective Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to protect against sharp edges or debris.
• Use Correct Tools: Use only the recommended tools for installation to avoid damaging the part or the blower.
• Work in a Well-Ventilated Area: If working with fuel or cleaning agents, ensure adequate ventilation.
• Keep Children and Bystanders Away: Ensure no one is in the immediate work area during installation or maintenance.

3. Package Contents

Verify that all components are present and undamaged upon opening the package.

• One (1) WMParts USA Fan Grill (Part No. 4282 760 8101)

4. Setup and Installation

Follow these steps to replace the fan grill on your STIHL BR600, BR550, or BR700 leaf blower.

Tools Required:

• Screwdriver (appropriate size for existing fasteners)
• Gloves
• Safety Glasses

Installation Steps:

1. Prepare the Blower: Place the leaf blower on a stable, flat surface. Ensure the engine is off and the spark plug wire is disconnected.
2. Locate the Old Fan Grill: Identify the existing fan grill on your STIHL BR600, BR550, or BR700 model. It is typically located at the air intake side of the blower housing.
3. Remove Old Fan Grill: Using a screwdriver, carefully remove any screws or fasteners securing the old fan grill to the blower housing. Once all fasteners are removed, gently detach the old grill.
4. Inspect Area: Clean any debris, dirt, or obstructions from the fan and surrounding housing area before installing the new grill. Ensure the fan blades are intact and free of damage.
5. Position New Fan Grill: Align the WMParts USA replacement fan grill with the mounting points on the blower housing. Ensure it sits flush and correctly covers the fan opening.
6. Secure New Fan Grill: Reinstall the screws or fasteners, tightening them securely but without overtightening to avoid stripping threads or cracking the plastic.
7. Final Check: Once installed, gently tug on the fan grill to ensure it is firmly in place. Reconnect the spark plug wire.

5. Function and Purpose

The fan grill serves as a protective barrier for the leaf blower's internal fan assembly. Its primary functions include:

• Debris Protection: Prevents larger objects such as leaves, twigs, and stones from entering the fan housing, which could damage the fan blades or engine.
• Airflow Management: Designed to allow sufficient airflow into the blower while maintaining structural integrity.
• User Safety: Acts as a guard to prevent accidental contact with the rapidly spinning fan blades during operation.

6. Maintenance

Regular inspection and cleaning of the fan grill will ensure its longevity and the optimal performance of your leaf blower.

• Regular Cleaning: Periodically inspect the fan grill for accumulated debris, dirt, or dust. Use a brush or compressed air to clean the mesh, ensuring unobstructed airflow.
• Damage Inspection: Before each use, check the fan grill for any cracks, bends, or missing sections. A damaged grill compromises both protection and airflow.
• Secure Fasteners: Ensure all mounting screws remain tight. Loose fasteners can lead to vibration and potential damage.

7. Troubleshooting

If you encounter issues after installing the fan grill, consider the following:

• Grill Does Not Fit: Double-check that the part number (4282 760 8101) matches your blower model (STIHL BR600, BR550, BR700). Ensure correct alignment during installation.
• Unusual Noise/Vibration: Verify that the fan grill is securely fastened and not loose. Ensure no debris is trapped between the grill and the fan blades.
• Reduced Airflow: Confirm the grill is clean and free of obstructions. Ensure it is correctly seated and not impeding the fan's rotation.

8. Specifications

9. Warranty and Support

WMParts USA offers a one-year warranty on this replacement fan grill. For warranty claims, technical assistance, or further support, please contact WMParts USA directly through their official channels or the retailer where the product was purchased.

For additional information or to locate a local store, please refer to the contact details provided by WMParts USA.
