Doniks Stainless Steel Utility Sink Instruction Manual
Model: SC-6845
Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Doniks Stainless Steel Utility Sink. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Safety Information
WARNING: Always follow basic safety precautions to reduce the risk of injury or property damage.
- Ensure all connections are secure and leak-free before use.
- Do not overload the sink or shelves beyond their stated capacity.
- Use appropriate tools for assembly and installation.
- Keep children away from the product during assembly and operation.
- If you are unsure about any installation steps, consult a qualified professional.
Package Contents
Verify that all components are present before beginning assembly.
- Stainless Steel Sink Basin
- Freestanding Frame with Adjustable Feet
- Cold and Hot Water Faucet
- Water Hoses
- Drain Kit (including strainer and P-trap)
- Stainless Steel Draining Basket
- Soap Dispenser
- Assembly Hardware

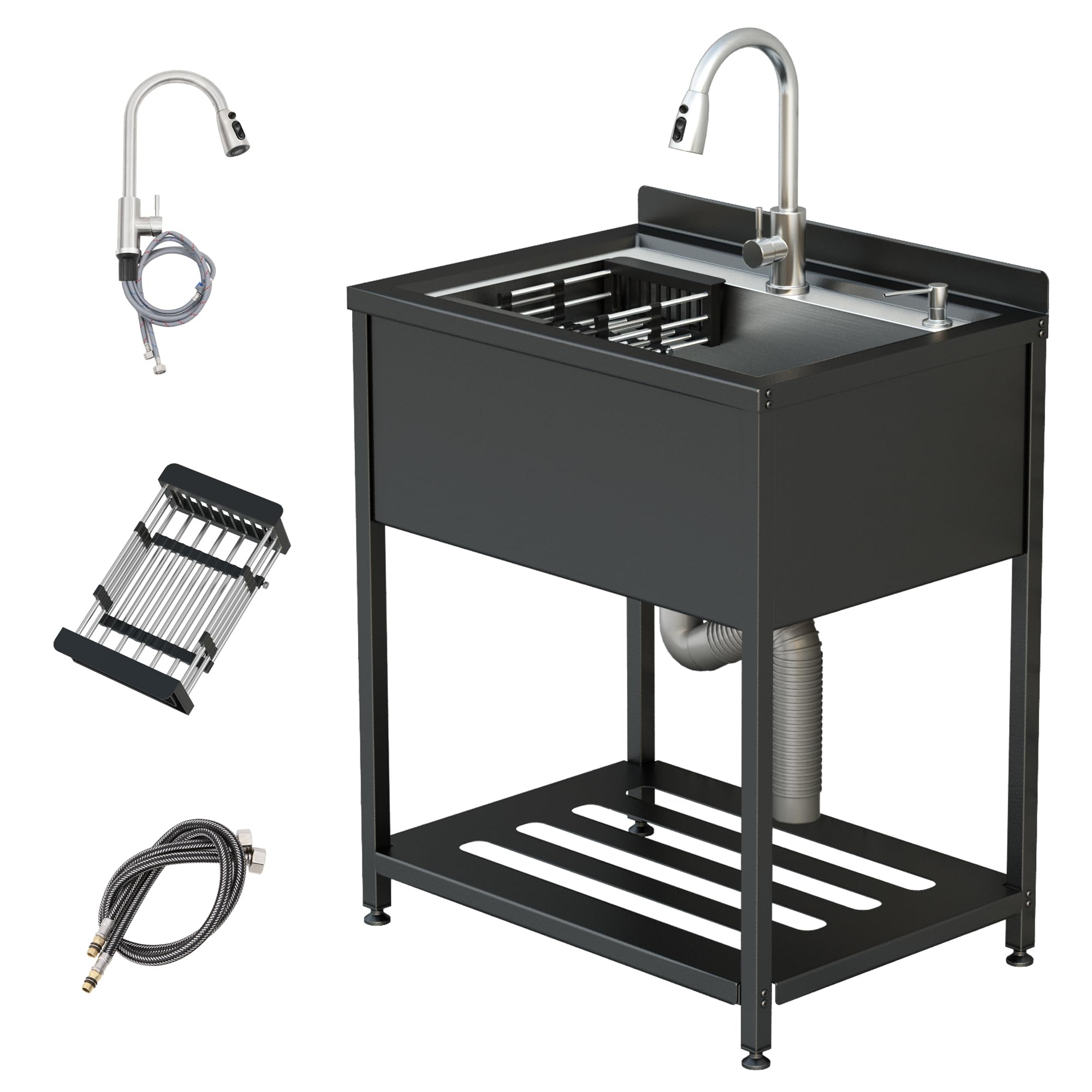

Image: Overview of the Doniks Stainless Steel Utility Sink and its included parts.
Setup and Installation
1. Frame Assembly
Assemble the freestanding frame according to the included diagrams. Ensure all bolts are tightened securely. The bottom shelf provides additional storage and stability.
Image: The utility sink frame with its integrated storage shelf, suitable for various items.
2. Sink Basin Placement
Carefully place the stainless steel sink basin onto the assembled frame. Ensure it sits flush and is stable.
3. Faucet and Drain Kit Installation
Install the cold and hot water faucet into the designated hole on the sink. Connect the water hoses to the faucet and your water supply lines. Install the drain kit, including the strainer and P-trap, ensuring all connections are sealed to prevent leaks. Plumber's putty may be required for the drain collar.
Image: Detailed view of the anti-fouling and deodorizing sewer design, built-in steel wire downpipe, and exquisite brushed craftsmanship of the drain components.
4. Adjustable Feet
Adjust the feet at the bottom of the frame to level the sink and achieve the desired height. This ensures stability and prevents wobbling.
Image: The liftable design with adjustable feet, allowing for height customization and stability.
Operating Instructions
1. Faucet Operation
The faucet features a pull-out sprayer and can switch between hot and cold water. Use the lever to control water temperature and flow. Press the button on the sprayer head to toggle between different water modes (e.g., stream and spray).
Video: Demonstrates the pull-out faucet, its two water modes, and the ability to switch between hot and cold water.
Image: The faucet allows free switching between hot and cold water, and a hand sanitizer dispenser can be installed.
2. Drainage System
The sink features an innovative X-shape flow line design for rapid drainage, preventing water pooling. The R-rounded corners make cleaning easier and prevent dirt accumulation.

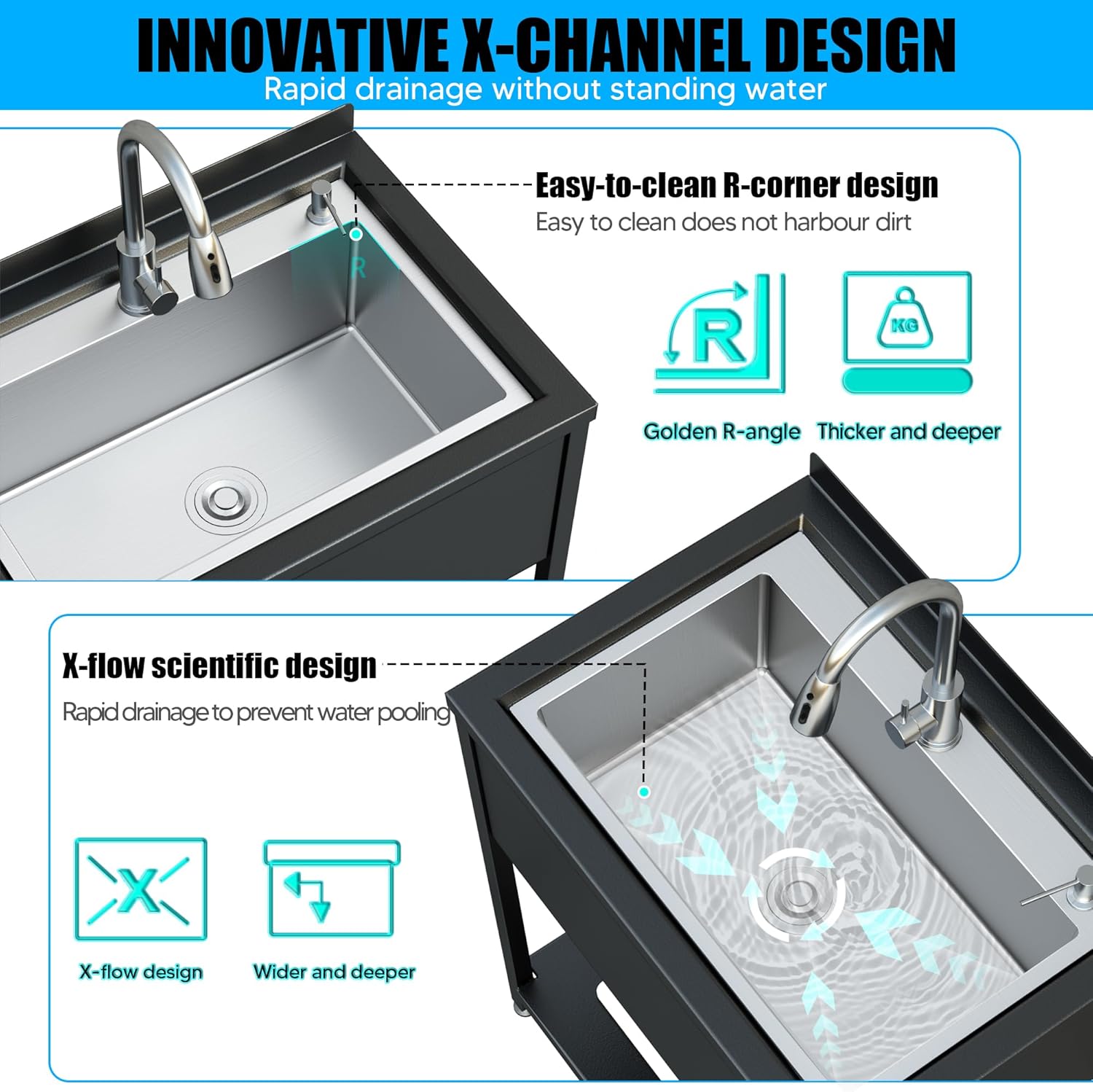

Image: Illustration of the innovative X-channel design for rapid drainage and the easy-to-clean R-corner design.
3. Draining Basket
Utilize the included stainless steel draining basket for washing and drying items. Its length is freely adjustable to fit your needs.
Maintenance
1. Cleaning the Sink
Clean the stainless steel sink regularly with a mild detergent and a soft cloth. Avoid abrasive cleaners or scouring pads that can scratch the surface. Rinse thoroughly and dry to prevent water spots.
2. Drain Maintenance
The multi-layer anti-odor drain system helps prevent clogs and odors. Periodically remove the strainer and clean any accumulated debris. For deeper cleaning, the U-shaped drainage pipes are designed for easy access.
Image: Diagram illustrating the multi-layer anti-odor drain system with smooth drainage, multi-layer sealing, and effective filtration of residues.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage | Loose connections in plumbing or drain kit. | Check and tighten all connections. Ensure plumber's putty is used correctly for the drain collar. |
| Slow Drainage | Debris in the drain strainer or P-trap. | Remove and clean the drain strainer. Inspect and clear any blockages in the P-trap. |
| Sink Wobbles | Uneven floor or improperly adjusted feet. | Adjust the leveling feet at the base of the frame until the sink is stable. |
| Faucet Spray Irregular | Mineral buildup in the sprayer head. | Remove the sprayer head and clean it with a descaling solution or vinegar. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | SC-6845 |
| Dimensions (L x W x H) | 30.8" x 22" x 39.5" |
| Material | 304 Stainless Steel |
| Color | Silver |
| Installation Type | Freestanding |
| Faucet Type | Cold and Hot Water Faucet with Pull-out Sprayer |
| Drain Type | Grid with Anti-odor System |
| Included Components | Sink, Frame, Faucet, Hoses, Drain Kit, Draining Basket, Soap Dispenser |
Image: Visual representation of product dimensions and key features.
Warranty and Support
For warranty information or technical support, please contact Doniks customer service. Keep your purchase receipt for warranty claims.
Contact Information: Refer to your product packaging or the Doniks official website for the most current contact details.
