FGJDFD KFR-50G/BP2DN1Y-PC400(B3) Air Conditioner Main Board Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the FGJDFD KFR-50G/BP2DN1Y-PC400(B3) Air Conditioner Indoor Unit Main Board. This product is a high-quality replacement circuit board designed for compatible Midea air conditioning indoor units, specifically models like KFR-50G/BP2DN1Y-PC400(B3). It is intended to restore or improve the functionality and efficiency of your HVAC system.

2. Safety Information

WARNING: Installation and servicing of this product should only be performed by qualified and certified HVAC technicians. Improper installation or repair can result in electric shock, fire, property damage, or personal injury.

• Always disconnect power to the air conditioning unit at the main circuit breaker before attempting any installation, maintenance, or repair.
• Ensure all electrical connections are secure and comply with local electrical codes.
• Do not operate the air conditioner with damaged wiring or components.
• Wear appropriate personal protective equipment (PPE), such as insulated gloves and safety glasses, during installation.
• Keep the main board dry and free from moisture.

3. Package Contents

Upon opening the package, verify that all components are present and undamaged. The package should contain:

• 1 x FGJDFD KFR-50G/BP2DN1Y-PC400(B3) Air Conditioner Indoor Unit Main Board
• (No other accessories are typically included with a replacement main board unless specified by the seller.)

4. Setup and Installation

This main board is a direct replacement for the original board in compatible Midea air conditioner indoor units. Professional installation is strongly recommended.

4.1 Pre-Installation Checks

• Confirm that the new main board model (KFR-50G/BP2DN1Y-PC400(B3)) matches the original board being replaced.
• Ensure the air conditioning unit is completely powered off at the circuit breaker.
• Have necessary tools ready (e.g., screwdrivers, multimeter, wire cutters/strippers).

4.2 Installation Steps (General Guide)

1. Access the Indoor Unit: Carefully open the indoor unit casing to expose the existing main board. Refer to your specific Midea air conditioner's service manual for detailed access instructions.
2. Document Connections: Before disconnecting anything, take clear photographs or make detailed diagrams of all wiring connections to the old main board. This is crucial for correct re-connection.
3. Disconnect Wiring: Systematically disconnect all wires and connectors from the old main board. Pay attention to their labels and positions.
4. Remove Old Board: Unscrew and carefully remove the old main board from its mounting points.
5. Install New Board: Position the new FGJDFD KFR-50G/BP2DN1Y-PC400(B3) main board in the same location and secure it with screws.
6. Reconnect Wiring: Using your documented photos/diagrams, carefully reconnect all wires and connectors to the new main board. Ensure each connection is firm and correctly seated.
7. Visual Inspection: Double-check all connections for accuracy and ensure no wires are pinched or loose.
8. Close Unit: Carefully reassemble the indoor unit casing.
9. Restore Power: Once the unit is fully reassembled and all safety checks are complete, restore power at the main circuit breaker.
10. Test Functionality: Power on the air conditioner and test its various functions (cooling, heating, fan speeds, modes) to ensure the new board is operating correctly.

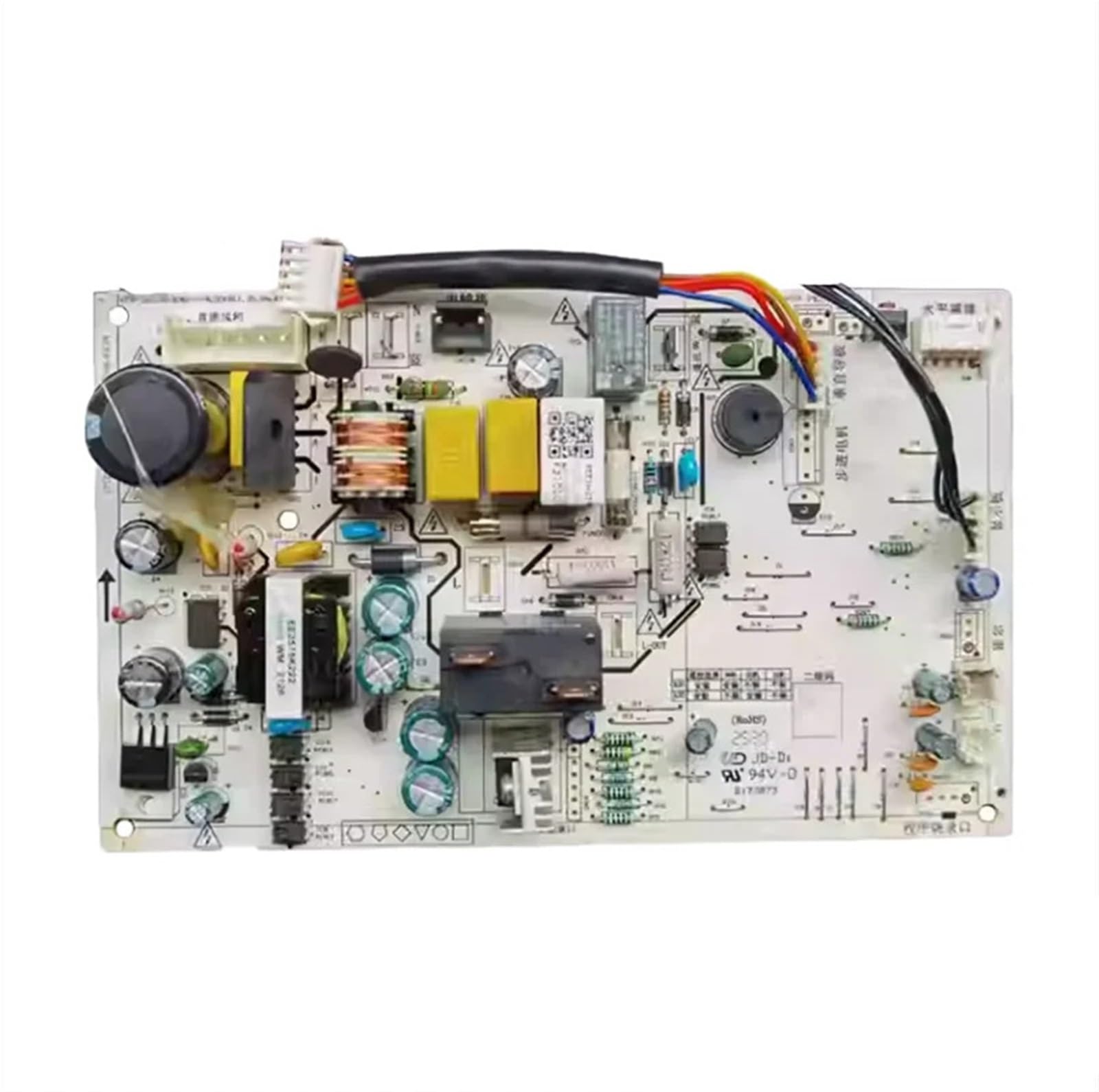

Figure 1: FGJDFD KFR-50G/BP2DN1Y-PC400(B3) Air Conditioner Indoor Unit Main Board. This image shows the replacement circuit board with various connectors and components.

5. Operating Instructions

The FGJDFD KFR-50G/BP2DN1Y-PC400(B3) main board is an internal component that controls the functions of your Midea air conditioner indoor unit. It does not have direct user-operable controls. Once correctly installed, the air conditioner should operate as intended by its original design. Refer to your Midea air conditioner's user manual for instructions on how to operate the air conditioning unit itself (e.g., setting temperature, changing modes, using the remote control).

6. Maintenance

The main board itself requires minimal maintenance. To ensure its longevity and proper function:

• Keep Dry: Ensure the indoor unit environment remains dry and free from excessive humidity or water leaks, which can damage electronic components.
• Cleanliness: Periodically, during routine air conditioner maintenance (e.g., filter cleaning), a qualified technician may gently clean dust accumulation from the main board using compressed air or a soft brush. Always disconnect power before cleaning.
• Professional Inspection: Include the main board in regular professional HVAC system inspections to check for any signs of wear or damage.

7. Troubleshooting

If your air conditioner experiences issues after the main board replacement, consider the following general troubleshooting steps. For complex issues, always consult a qualified technician.

• No Power:
  • Check if the main circuit breaker for the air conditioner is ON.
  • Verify all power connections to the main board are secure.
  • Ensure the indoor unit's power supply is functioning correctly.
• Incorrect Operation/Error Codes:
  • Refer to your Midea air conditioner's user manual for specific error code interpretations.
  • Re-check all wiring connections to the main board against your diagrams/photos. A loose or incorrect connection can cause malfunctions.
  • Ensure all sensors connected to the main board are properly seated and functional.
• Unit Not Responding to Remote:
  • Check the remote control batteries.
  • Ensure the infrared receiver on the indoor unit is not obstructed.
  • Verify the connection of the infrared receiver to the main board.

If troubleshooting steps do not resolve the issue, it is recommended to contact a professional HVAC technician for diagnosis and repair.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage or technical support for your FGJDFD KFR-50G/BP2DN1Y-PC400(B3) Air Conditioner Indoor Unit Main Board, please refer to the purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.
