1. Introduction
Thank you for choosing the AFLAMO 3D Electric Fireplace. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new electric fireplace. Please read this manual thoroughly before installation and use, and keep it for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using this fireplace.
- Do not operate any fireplace with a damaged cord or plug, or if the fireplace has malfunctioned or been dropped/damaged in any manner.
- Do not use outdoors.
- Avoid placing the power cord under carpeting or covering it with throw rugs.
- To disconnect, turn all controls to the OFF position, then remove the plug from the outlet.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fireplace.
- Always plug fireplaces directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap.
- This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
- Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the fireplace.
3. Package Contents
Upon unpacking, ensure all items listed below are present and undamaged. If any parts are missing or damaged, contact customer service.
- AFLAMO 3D Electric Fireplace Unit
- Remote Control
- Hearth Options: Decorative Logs, Crystals, and Stones
- Mounting Hardware (for wall-mounted or built-in installation)
- User Manual
Image: Various hearth options, including decorative logs and crystals, are included to customize the fireplace's appearance.
Image: An alternative hearth option featuring decorative stones, providing a different aesthetic for the fireplace interior.
4. Specifications
| Brand | AFLAMO |
| Model Number | AV-INSERT-3D-60X40 |
| Dimensions (W x H x D) | 60 cm x 40 cm x 20 cm (23.6 x 15.7 x 7.9 inches) |
| Weight | 15 kg (33 lbs) |
| Material | Metal |
| Power Source | Electric |
| Heating Function | 2-stage heating (750W/1500W), Built-in thermostat |
| Flame Technology | LED 3D, Low energy consumption (12W) |
| Flame Colors | Multiple (e.g., orange, blue, yellow-orange, green, purple, red) |
| Flame Brightness Levels | 5 levels |
| Flame Speed Levels | 5 speeds |
| Control Options | Remote control, Mobile App, Alexa compatibility |
| Special Features | Realistic sound effects, Multicolor LED flame effect |

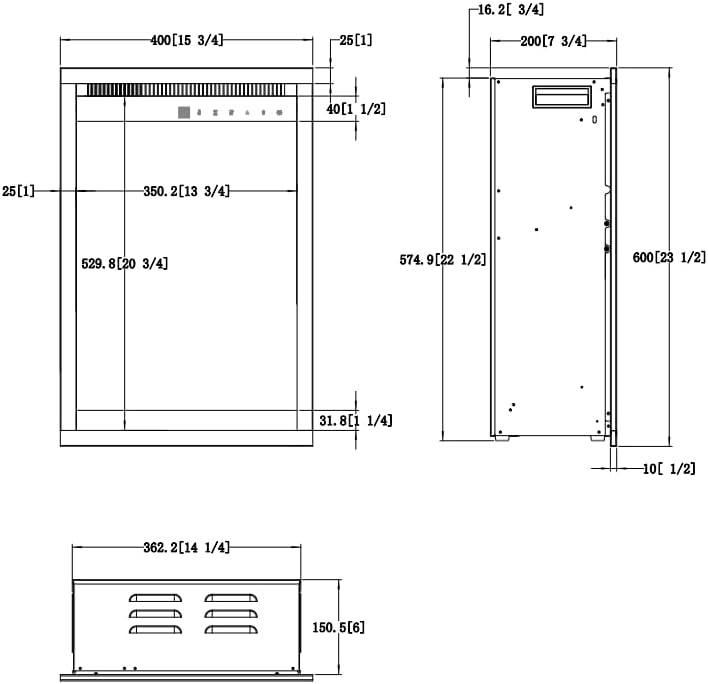

Image: Detailed technical drawing showing the dimensions and internal components of the fireplace unit.
Image: Front view of the electric fireplace, showcasing its sleek design and flame display.
5. Setup & Installation
The AFLAMO 3D Electric Fireplace offers versatile installation options to suit your space.
5.1 Mounting Options
This fireplace can be installed in three ways:
- Wall-Mounted: Hung directly on the wall.
- Partially Built-In: Recessed into a wall or cabinet, with a portion extending outwards.
- Fully Built-In: Completely recessed into a wall or custom enclosure for a flush finish.
5.2 Installation Steps
- Choose Location: Select a suitable location that meets safety requirements (e.g., distance from combustible materials). Ensure there is a standard electrical outlet nearby.
- Prepare Opening (for built-in options): Create an opening in the wall or cabinet according to the fireplace dimensions (60 cm width x 40 cm height x 20 cm depth). Refer to the technical drawing in the Specifications section for precise measurements.
- Mount Hanger: Securely attach the provided mounting hanger to the wall or inside the prepared opening using appropriate fasteners.
- Hang Fireplace: Carefully lift and hang the electric fireplace unit onto the mounted hanger. Ensure it is level and securely seated.
- Connect Power: Plug the fireplace into a standard 220-240V electrical outlet.
- Install Hearth Material: Place your preferred hearth material (logs, crystals, or stones) onto the designated area within the fireplace.
Image: The electric fireplace seamlessly integrated into a living room, demonstrating a typical installation scenario.
6. Operating Instructions
Your AFLAMO electric fireplace can be controlled via the included remote, a mobile application, or voice commands through Alexa.
6.1 Basic Operation (Remote Control)
The remote control allows you to manage all functions of the fireplace.
- Power Button: Press to turn the fireplace ON or OFF.
- Flame Button: Cycle through different flame colors and effects. There are multiple color options including orange, blue, yellow-orange, green, purple, and red.
- Brightness Button: Adjust the flame brightness through 5 levels.
- Speed Button: Adjust the flame speed through 5 levels.
- Heater Button: Activate the heating function. Press once for low heat (750W), press again for high heat (1500W), and a third time to turn off the heater. The built-in thermostat will maintain the set temperature.
- Sound Button: Turn the realistic sound effects ON or OFF.
6.2 Smart Control (App & Alexa)
For enhanced convenience, control your fireplace using the dedicated mobile application or integrate it with Amazon Alexa.
- Mobile App: Download the "Tuya" app from Google Play Store or Apple App Store. Follow the in-app instructions to pair your fireplace. The app allows for comprehensive control over flame effects, heating, and scheduling.
- Alexa Integration: Enable the "Tuya Smart" skill in your Alexa app. Link your Tuya account. You can then use voice commands to control basic functions like turning the fireplace on/off, adjusting heat, or changing flame settings.
Image: Display of logos for Tuya, Amazon Alexa, Google Play, and Apple App Store, highlighting the fireplace's smart home integration and app availability.
6.3 Visual and Heating Demonstrations
Video: This video demonstrates the innovative features and highlights of the KAMINIO LUCA electric fireplace, showcasing its realistic flame effects and heating capabilities.
Video: Experience the ambiance and visual effects of the KAMINIO LUCA electric fireplace, illustrating how it enhances a living space.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric fireplace.
- Cleaning:
- Always disconnect power before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or sprays.
- Gently clean the glass panel with a soft cloth and glass cleaner.
- Periodically vacuum the air intake and exhaust vents to prevent dust buildup.
- Storage: If storing the fireplace for an extended period, unplug it and store it in a dry, dust-free location.
- No User-Serviceable Parts: Do not attempt to open or repair the fireplace yourself. Refer all servicing to qualified service personnel.
8. Troubleshooting
If you encounter any issues with your fireplace, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace does not turn on. | No power, loose connection, tripped circuit breaker. | Ensure the unit is plugged in securely. Check the wall outlet and circuit breaker. |
| No flame effect. | Flame effect is turned off, LED lights malfunction. | Press the flame button on the remote or app. If still no effect, contact customer service. |
| No heat output. | Heater is off, thermostat setting too low, air vents blocked. | Ensure the heater is on and the thermostat is set to a desired temperature. Check for obstructions in the air vents. |
| Remote control not working. | Dead batteries, obstruction, remote out of range. | Replace batteries. Ensure no obstructions between remote and fireplace. Operate within range. |
9. Warranty and Support
Specific warranty details for the AFLAMO 3D Electric Fireplace are not provided in the product data. For warranty claims, technical support, or replacement parts, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
For further assistance, you may visit the AFLAMO Brand Store on Amazon.
