Himimi 5-Tier Storage Shelf Wire Shelving Unit User Manual

Introduction

Thank you for choosing the Himimi 5-Tier Storage Shelf Wire Shelving Unit. This adjustable heavy-duty metal shelving unit is designed for versatile organization in various environments such as kitchens, garages, basements, and more. Featuring a robust steel construction, side hooks, and convenient wheels, it offers both strength and mobility. This manual provides comprehensive instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and efficient use of your new storage shelf.

Image: The Himimi 5-Tier Storage Shelf, fully assembled and loaded with various kitchen appliances and storage containers, demonstrating its capacity and utility.

Safety Information

WARNING: Failure to follow these safety instructions could result in injury or damage to the product.

• Weight Limit: Do not exceed the maximum weight capacity of 180 lbs per shelf or a total weight capacity of 900 lbs for the entire unit. Overloading can cause the shelf to collapse, leading to injury or damage.
• Stable Surface: Always place the shelving unit on a flat, stable, and level surface to prevent tipping.
• Assembly: Follow all assembly instructions carefully. Ensure all parts are securely connected before loading the shelf. Do not attempt to modify the unit.
• Children and Pets: Keep children and pets away from the unit during assembly. Do not allow children to climb on or play with the shelving unit.
• Moving the Unit: When moving the unit, especially when loaded, ensure all casters are unlocked and move it slowly and carefully to prevent items from falling or the unit from tipping. Lock casters once in desired position.
• Maintenance: Regularly inspect the unit for any loose parts, damage, or signs of wear. Tighten connections as needed.

Package Contents

Before assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact Himimi customer support.

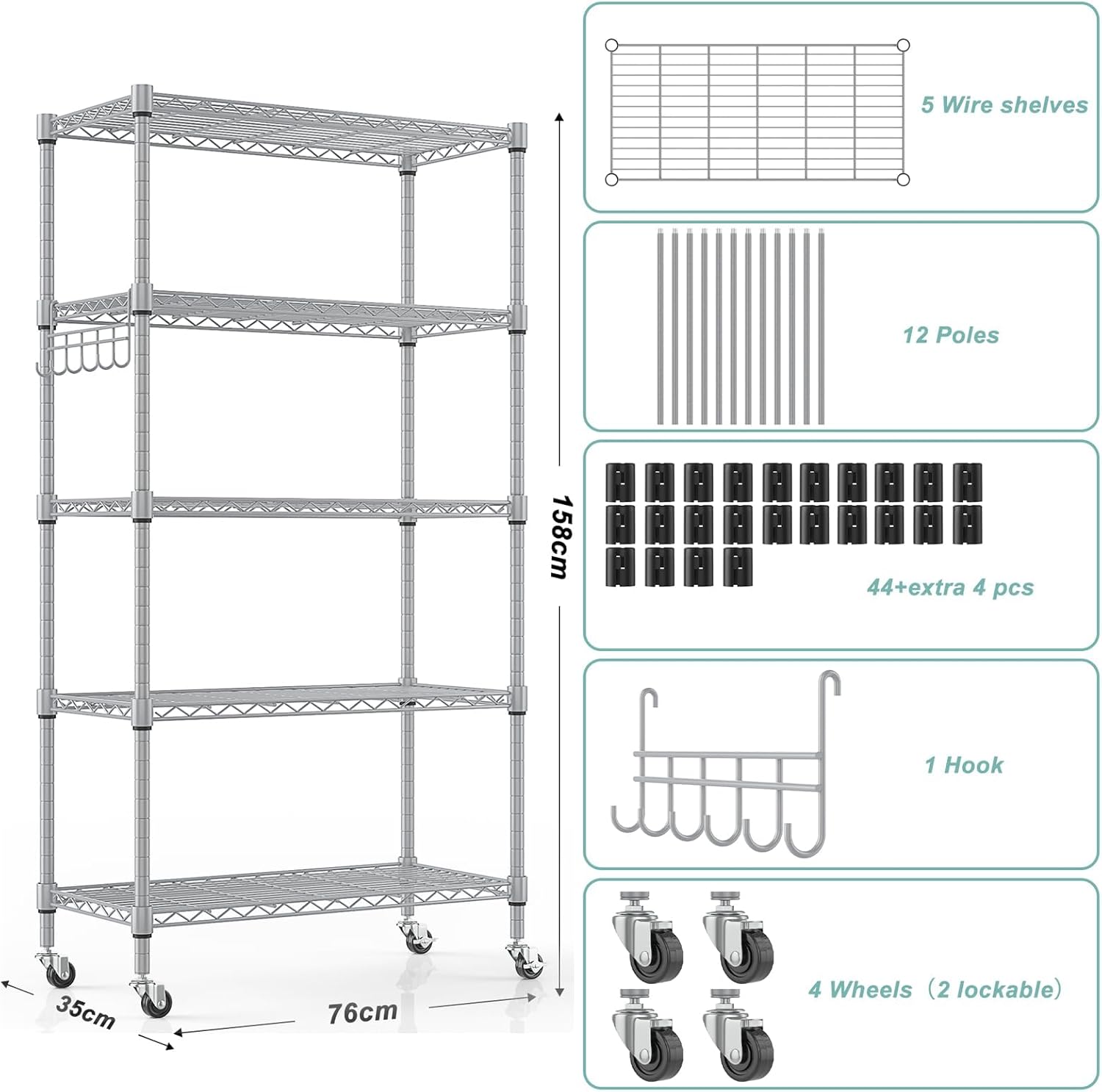

Image: An exploded diagram showing all the individual components included in the Himimi 5-Tier Storage Shelf package, including shelves, poles, plastic clips, side hook, and wheels.

Setup and Assembly

The Himimi 5-Tier Storage Shelf is designed for tool-free assembly. Please follow these steps carefully.

1. Attach Wheels: Screw the four wheels into the bottom of the lower poles. Ensure the two lockable wheels are placed on the same side for easier access.
2. Assemble Poles: Connect the pole sections (upper, middle, lower) by screwing them together. Ensure they are tightly secured.
3. Install Plastic Sleeves: Snap the two-part plastic sleeves around the grooves on the poles at your desired height for the bottom shelf. Ensure they click securely into place and are at the same height on all four poles. The "TOP" arrow on the sleeve should point upwards.


Image: A close-up view demonstrating how to properly install the two-part plastic sleeves onto the shelving poles, ensuring they snap into the grooves.

4. Place First Shelf: Slide a wire shelf down over the poles until it rests firmly on the installed plastic sleeves. Gently tap the shelf corners with a rubber mallet (not included) if needed to ensure it is fully seated.
5. Repeat for Remaining Shelves: Determine the desired height for each subsequent shelf. Install plastic sleeves at the chosen height on all four poles, then slide the next wire shelf into place. Repeat until all five shelves are installed.

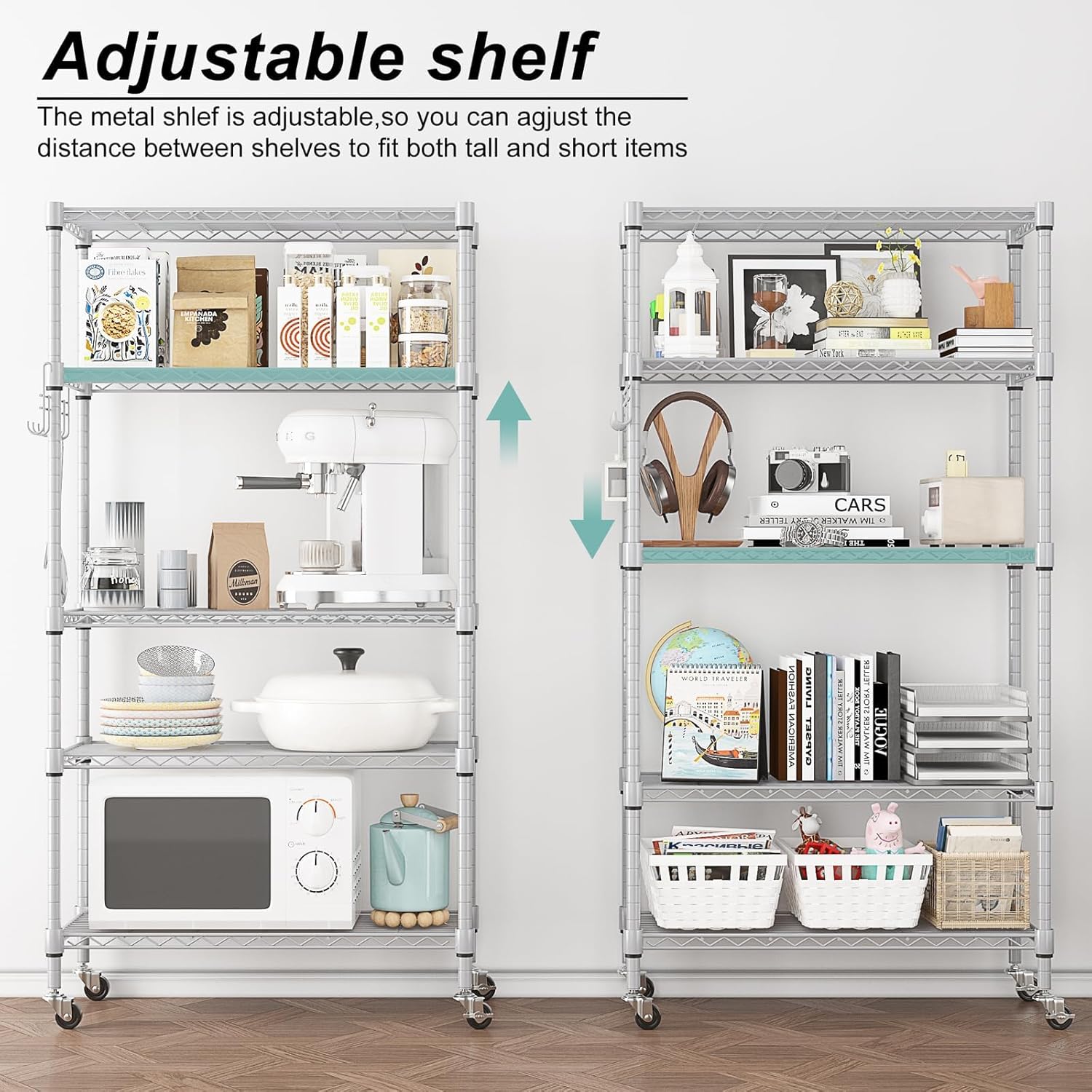

Image: A visual representation of the adjustable shelf feature, showing how shelves can be repositioned along the poles to accommodate items of different heights.

6. Attach Side Hook: If desired, attach the side hanging hook to one of the wire shelves for additional storage.


Image: A close-up showing the side hanging hook accessory attached to the wire shelf, useful for hanging small items like utensils or bags.

Your Himimi 5-Tier Storage Shelf is now assembled and ready for use.

Operating Instructions

Adjusting Shelf Height

The shelves can be adjusted to fit items of various sizes:

1. Empty the shelf you wish to adjust.
2. Lift the shelf off the plastic sleeves.
3. Remove the plastic sleeves from the poles.
4. Re-attach the plastic sleeves at the new desired height, ensuring they are level on all four poles.
5. Place the shelf back onto the new position of the plastic sleeves.

Using the Wheels

The shelving unit is equipped with four wheels for easy mobility, two of which are lockable.

• To Move: Ensure the locking levers on the two lockable wheels are in the "unlocked" position. Gently push the unit to its new location.
• To Secure: Once the unit is in its desired position, push down the locking levers on the two lockable wheels to engage the brakes. This will prevent the unit from rolling.

Image: A close-up view of one of the shelving unit's caster wheels, highlighting its 360-degree rotation capability and the locking mechanism for stability.

Maintenance

To ensure the longevity and optimal performance of your Himimi storage shelf, follow these simple maintenance guidelines:

• Cleaning: Wipe the shelves and poles with a dry cloth to remove dust and debris. For stubborn dirt, use a slightly damp cloth with mild soap, then dry immediately to prevent water spots or rust. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically check all connections, especially the plastic sleeves and pole joints, to ensure they remain tight and secure. Re-tighten if necessary.
• Rust Prevention: The unit features a powder-coated finish for corrosion resistance. However, prolonged exposure to moisture or highly humid environments can still lead to rust. Ensure the unit remains dry.
• Weight Distribution: Distribute weight evenly across the shelves to prevent warping or stress on specific areas.

Troubleshooting

Specifications

Warranty and Support

Himimi is committed to providing professional service and top-notch solutions. If you encounter any issues with missing parts, assembly, or product performance, please do not hesitate to contact us.

• Customer Support: For assistance, please contact Himimi via Buyer Message on the platform where you purchased the product. We aim to address all inquiries and provide solutions within 24 hours.
• Warranty: Please refer to your purchase documentation or contact customer support for specific warranty details applicable to your product.

We appreciate your business and are always here to assist you.
