1. Introduction
This manual provides instructions for the installation and maintenance of the RATION Carburetor Service Kit. This kit is designed as a replacement and tune-up solution for STIHL MS251 and MS251C chainsaws that utilize the Zama C1Q-S23 carburetor model. Proper installation and maintenance are essential for the safe and efficient operation of your chainsaw.
2. Safety Information
WARNING: Always prioritize safety when working with power tools and their components. Failure to follow safety instructions can result in serious injury or property damage.
- Ensure the chainsaw engine is turned off and cooled down before beginning any service or installation.
- Disconnect the spark plug wire to prevent accidental starting.
- Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Work in a well-ventilated area.
- Handle fuel and carburetor cleaner with care, as they are flammable and can cause skin irritation.
- If you are unsure about any step, consult a qualified service technician.
3. Kit Contents
The RATION Carburetor Service Kit typically includes the following components:
- Carburetor (Zama C1Q-S23 compatible)
- Spark Plug (CM5H compatible)
- Fuel Filter
- Fuel Line
- Carburetor Gasket
- Air Filter

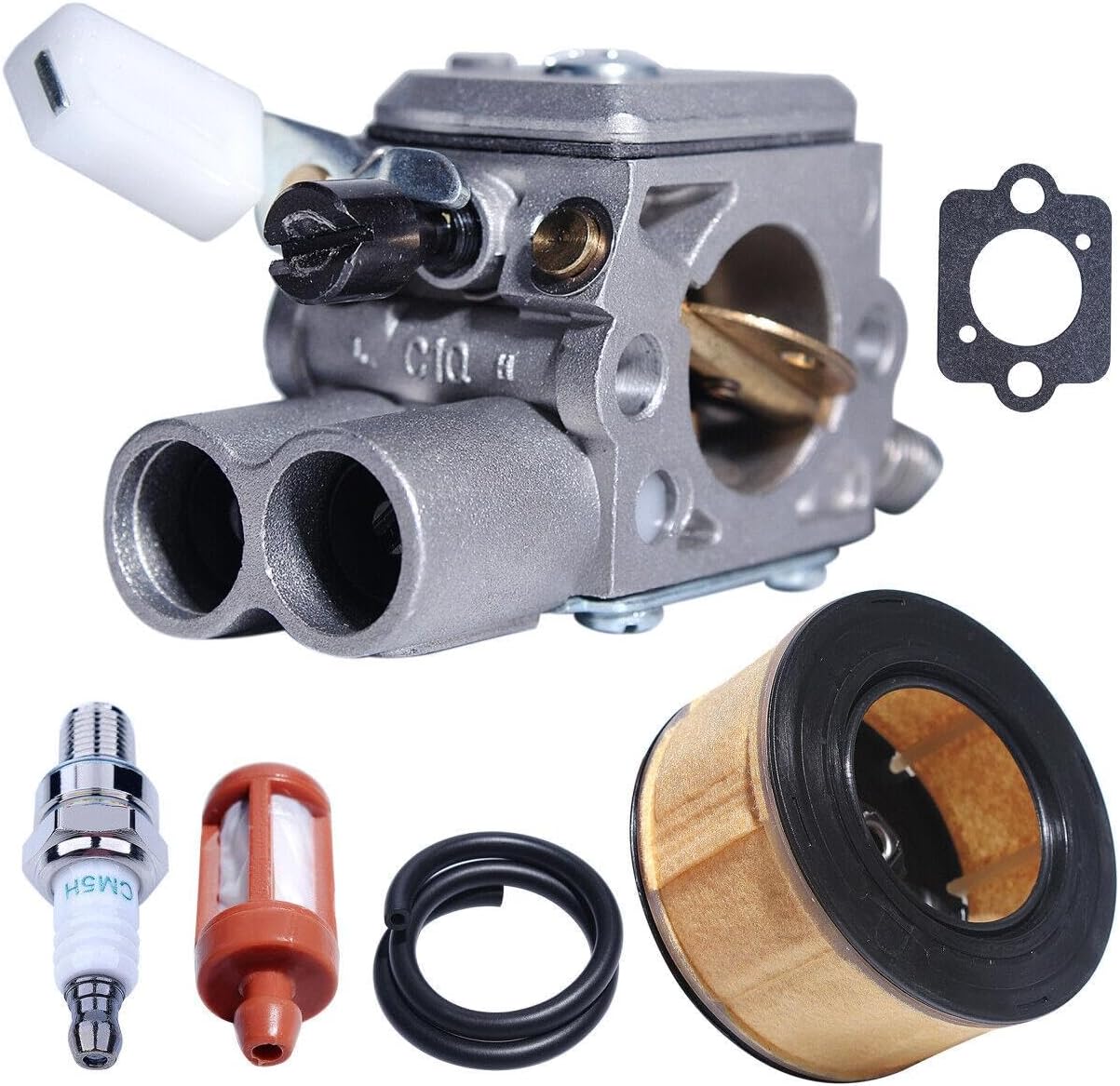

Image 1: Components of the RATION Carburetor Service Kit. This image displays the main carburetor unit, a spark plug, a fuel filter, a section of fuel line, and a carburetor gasket, all essential for a complete tune-up.
4. Installation Guide
This section outlines the general steps for replacing the carburetor and associated components. Specific procedures may vary slightly depending on your chainsaw model. Refer to your STIHL chainsaw's original service manual for detailed disassembly and reassembly instructions.
4.1. Preparation
- Ensure the chainsaw is off, cool, and the spark plug wire is disconnected.
- Drain any remaining fuel from the fuel tank.
- Clean the area around the carburetor to prevent debris from entering the engine.
4.2. Removing the Old Carburetor
- Remove the air filter cover and air filter.
- Carefully disconnect the throttle linkage from the carburetor.
- Disconnect the fuel lines from the carburetor. Note their positions for reinstallation.
- Unbolt the carburetor from the engine manifold.
- Remove the old carburetor and gasket.
4.3. Installing the New Carburetor Kit Components
- Install the new carburetor gasket onto the engine manifold.
- Mount the new RATION carburetor, ensuring it aligns correctly with the manifold and throttle linkage. Secure with bolts.
- Reconnect the throttle linkage to the new carburetor. Ensure smooth operation.
- Replace the old fuel lines with the new fuel line provided in the kit, if necessary. Connect them securely to the carburetor and fuel tank.
- Replace the old fuel filter with the new fuel filter. This typically involves pulling the old filter out of the fuel tank opening and inserting the new one.
- Install the new spark plug. Hand-tighten, then use a spark plug wrench for a final snug turn (do not overtighten).
- Install the new air filter and replace the air filter cover.
Important: Double-check all connections for tightness and ensure no fuel leaks are present before proceeding.
5. Initial Operation and Adjustment
After installation, perform the following steps for initial start-up and basic adjustments.
- Reconnect the spark plug wire.
- Refill the fuel tank with the appropriate fuel mixture for your STIHL chainsaw.
- Prime the carburetor if your chainsaw has a primer bulb, until fuel is visible.
- Follow your chainsaw's manufacturer's instructions for starting the engine.
- Once the engine is running, allow it to warm up for a few minutes.
- Idle Speed Adjustment: If the engine idles too high or too low, locate the idle speed screw on the carburetor (usually marked "LA" or "T"). Turn it clockwise to increase idle speed or counter-clockwise to decrease it until the chain stops moving and the engine runs smoothly.
- High/Low Speed Adjustment (if applicable): The replacement carburetor is typically pre-set. If further adjustments are needed for optimal performance under load, refer to your chainsaw's service manual for specific high (H) and low (L) speed screw adjustment procedures. Incorrect adjustments can damage the engine.
6. Maintenance
Regular maintenance ensures the longevity and performance of your chainsaw and its carburetor system.
- Air Filter: Inspect and clean the air filter regularly (e.g., every 5-10 operating hours or as needed in dusty conditions). Replace if damaged or excessively dirty.
- Fuel Filter: Inspect the fuel filter periodically (e.g., every 25 operating hours). Replace if clogged or damaged to prevent fuel delivery issues to the carburetor.
- Spark Plug: Inspect the spark plug after every 25-30 operating hours. Clean off carbon deposits or replace if electrodes are worn or fouled. Ensure the correct gap.
- Fuel Lines: Check fuel lines for cracks, hardening, or leaks. Replace immediately if any damage is observed.
- Carburetor Cleaning: If the chainsaw experiences performance issues due to fuel contamination, the carburetor may need cleaning. This typically involves disassembly and cleaning with carburetor cleaner. This should only be performed by individuals familiar with carburetor service.
7. Troubleshooting Common Issues
If your chainsaw experiences problems after installing the service kit, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, fouled spark plug, incorrect spark plug wire connection, fuel lines kinked or disconnected. | Check fuel level, ensure spark plug wire is secure, inspect fuel lines for proper connection and flow, check spark plug for spark. |
| Engine starts but dies quickly | Improper idle adjustment, clogged fuel filter, air leak around carburetor. | Adjust idle speed, check fuel filter for blockage, inspect carburetor mounting and gaskets for air leaks. |
| Poor engine performance (lack of power, rough running) | Clogged air filter, incorrect carburetor adjustment, old or stale fuel. | Clean or replace air filter, verify carburetor adjustments (H/L screws), use fresh fuel. |
| Fuel leaks | Loose fuel line connections, damaged fuel line, improperly seated gasket. | Tighten all fuel line clamps, replace damaged fuel lines, ensure carburetor gasket is correctly installed and sealed. |
If problems persist after attempting these solutions, it is recommended to consult a professional chainsaw service technician.
8. Specifications
- Product: Carburetor Service Kit
- Brand: RATION
- Compatibility: STIHL MS251, STIHL MS251C Chainsaws
- Carburetor Model: Zama C1Q-S23 (compatible replacement)
- Kit Includes: Carburetor, Spark Plug, Fuel Filter, Fuel Line, Carburetor Gasket, Air Filter
Image 2: RATION brand logo, identifying the manufacturer of this service kit.
9. Warranty and Support
For information regarding the warranty of this RATION Carburetor Service Kit, please refer to the specific warranty terms provided by your retailer or the manufacturer at the time of purchase. Warranty coverage typically addresses manufacturing defects.
For technical support or inquiries not covered in this manual, please contact the seller or RATION customer service through the contact information provided with your purchase or on the official RATION website.
