MOZA Racing FSR2 Formula Wheel User Manual

1. Introduction

Welcome to the user manual for the MOZA Racing FSR2 Formula Wheel. This document provides comprehensive instructions for setting up, operating, and maintaining your new racing wheel. The FSR2 Formula Wheel is designed to deliver an immersive and precise racing experience, featuring a 280mm diameter, a 6-paddle design, and customizable RGB signal lights. Please read this manual carefully before using the product to ensure optimal performance and longevity.

2. Product Overview

The MOZA Racing FSR2 Formula Wheel is a high-performance racing peripheral crafted for serious sim racers. It integrates advanced features and robust construction to enhance your virtual driving experience.

2.1 Key Features

280mm Diameter: Optimized size for formula-style racing.
6-Paddle Design: Includes magnetic shifters, clutch paddles, and auxiliary paddles for versatile control.
RGB Signal Lights: Customizable RPM and flag indicator lights for real-time feedback.
Integrated Display Screen: High-resolution screen for displaying telemetry data, lap times, and other crucial information.
High-Quality Construction: Features carbon fiber front plate and durable materials for longevity.
Ergonomic Grips: Designed for comfort and secure handling during intense racing sessions.
Quick Release System: Allows for easy and secure attachment to compatible MOZA wheelbases.

2.2 Components

The FSR2 Formula Wheel typically includes the following components:

MOZA Racing FSR2 Formula Wheel
USB Cable (for data/power if not directly powered by wheelbase)
Mounting Screws (if applicable for quick release)
User Manual (this document)

2.3 Product Views

Figure 2.3.1: Front view of the MOZA Racing FSR2 Formula Wheel, showcasing the integrated display, buttons, rotary encoders, and RGB light bar.

Angled view of the MOZA Racing FSR2 Formula Wheel showing the 6-paddle design

Figure 2.3.2: Angled view of the FSR2 Formula Wheel, highlighting the ergonomic grips and the six paddle shifters located behind the wheel.

Rear view of the MOZA Racing FSR2 Formula Wheel showing the quick release mechanism

Figure 2.3.3: Rear view of the FSR2 Formula Wheel, displaying the quick release hub for easy attachment to a wheelbase and the paddle shifter mechanisms.

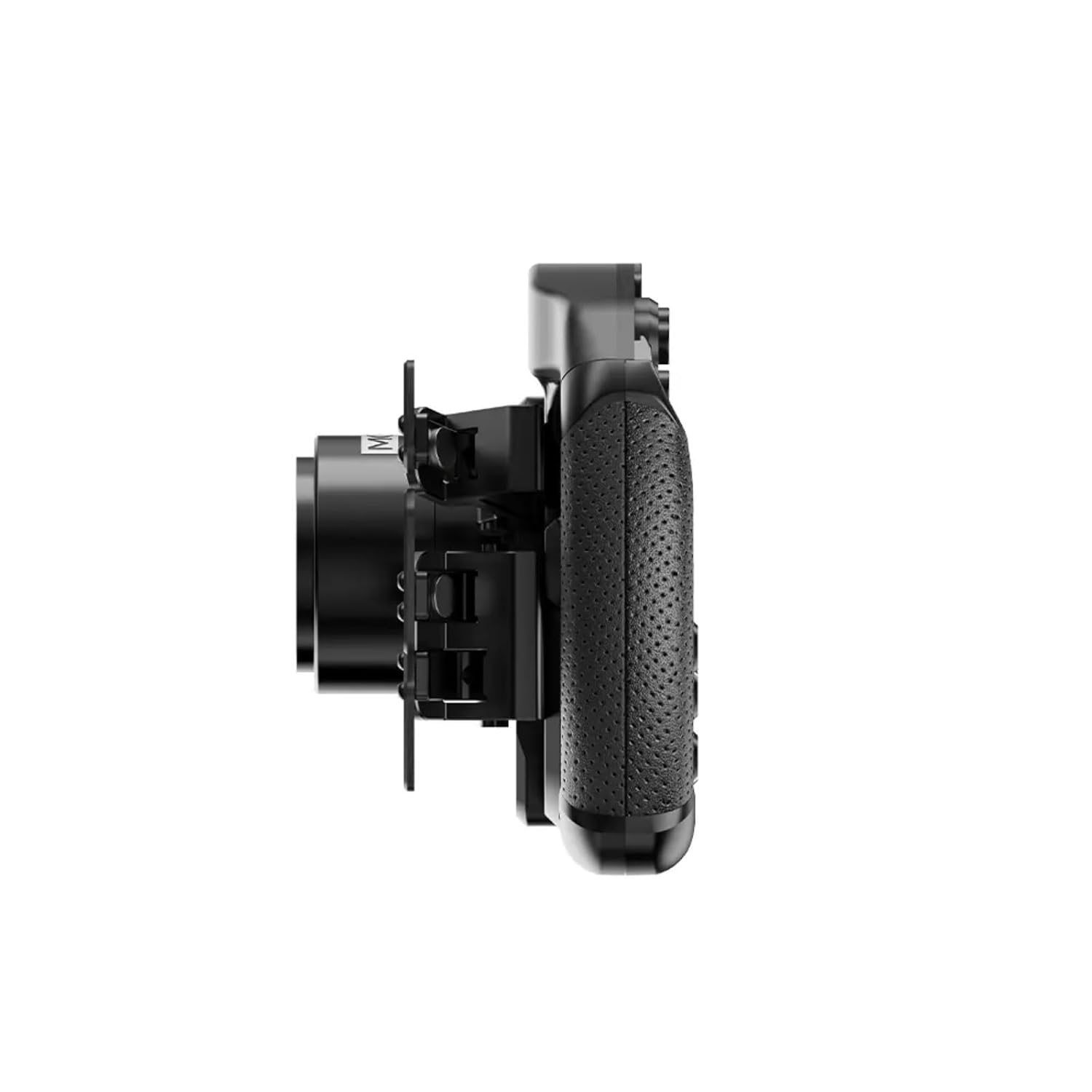

Figure 2.3.4: Side profile view of the FSR2 Formula Wheel, illustrating its slim design and the depth of the grips and button clusters.

3. Setup

Follow these steps to properly set up your MOZA Racing FSR2 Formula Wheel.

3.1 Attaching to Wheelbase

Ensure your MOZA wheelbase is powered off.
Align the quick release mechanism on the FSR2 Formula Wheel with the quick release on your MOZA wheelbase.
Push the wheel firmly onto the wheelbase until it clicks into place. A secure connection is indicated by the quick release collar fully engaging.
Gently pull on the wheel to confirm it is securely attached and does not wobble.

3.2 Software Installation

Download the latest version of the MOZA Pit House software from the official MOZA Racing website (mozaracing.com/downloads).
Install the MOZA Pit House software on your PC by following the on-screen instructions.
Connect your MOZA wheelbase to your PC via the provided USB cable.
Launch MOZA Pit House. The software should automatically detect your wheelbase and the attached FSR2 Formula Wheel.
If prompted, update the firmware for both your wheelbase and the FSR2 Formula Wheel to the latest version. This ensures compatibility and access to new features.

4. Operating Instructions

This section details the basic operation and customization of your FSR2 Formula Wheel.

4.1 Button and Encoder Functions

The FSR2 Formula Wheel features numerous buttons and rotary encoders. Their specific functions can often be mapped within your racing simulation software or customized via MOZA Pit House.

Buttons: Use for various in-game actions such as DRS, KERS, pit limiter, brake bias, etc.
Rotary Encoders: Typically used for fine-tuning settings like traction control, ABS, engine mapping, or navigating menus.
Magnetic Shifters: For upshifts and downshifts.
Clutch Paddles: For clutch control, often configurable as dual-clutch for race starts.

4.2 Integrated Display Screen

The integrated display screen provides real-time telemetry data. You can configure the displayed information through MOZA Pit House.

Default Displays: RPM, current gear, lap time, delta time, fuel level, tire temperatures, etc.
Customization: Use MOZA Pit House to select which data points are displayed and their layout.

4.3 RGB Signal Lights

The RGB light bar at the top of the wheel provides visual cues for RPM and other in-game events.

RPM Indicator: Lights illuminate progressively as RPM increases, indicating optimal shift points.
Flag Indicators: Can be configured to display various flag warnings (e.g., yellow, blue, green) from the simulation.
Customization: Adjust colors, brightness, and trigger points for the RGB lights within MOZA Pit House.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your FSR2 Formula Wheel.

5.1 Cleaning

Use a soft, dry, lint-free cloth to wipe down the wheel's surfaces.
For stubborn marks, slightly dampen the cloth with water. Avoid harsh chemicals or abrasive cleaners.
Do not spray cleaning solutions directly onto the wheel, especially near buttons, encoders, or the display.
Clean the grips regularly to remove sweat and oils, which can degrade the material over time.

5.2 Storage

When not in use, store the wheel in a clean, dry environment away from direct sunlight and extreme temperatures.
If detaching the wheel from the wheelbase, store it in a protective bag or case to prevent dust accumulation and accidental damage.

5.3 Firmware Updates

Regularly check for firmware updates via the MOZA Pit House software.
Firmware updates often include performance improvements, bug fixes, and new features.
Always follow the update instructions provided by MOZA Pit House carefully to avoid interruption during the update process.

6. Troubleshooting

If you encounter issues with your FSR2 Formula Wheel, refer to the following common problems and solutions.

Problem	Possible Cause	Solution
Wheel not detected by PC/MOZA Pit House	Loose USB connection, outdated drivers, wheelbase not powered on.	Ensure USB cable is securely connected to both PC and wheelbase. Verify wheelbase is powered on. Restart MOZA Pit House and your PC. Reinstall MOZA Pit House software and drivers.
Buttons/Encoders not responding	Incorrect mapping in game, software glitch, physical damage.	Check button assignments in your racing simulation software. Verify button functionality in MOZA Pit House's calibration section. Restart MOZA Pit House and the game. Ensure firmware is up to date.
Display screen is blank or frozen	Software issue, power interruption, firmware problem.	Restart MOZA Pit House. Power cycle your wheelbase (turn off, wait 10 seconds, turn on). Check for and apply any pending firmware updates.

If the problem persists after trying these solutions, please contact MOZA Racing customer support for further assistance.

7. Specifications

Feature	Detail
Model Name	FSR2 Formula Wheel
Diameter	280mm
Paddle Design	6-paddle (magnetic shifters, clutch paddles, auxiliary paddles)
Display	Integrated high-resolution screen
Lighting	Customizable RGB signal lights
Construction Material	Carbon fiber front plate, aluminum alloy, high-quality grips
Connectivity	Directly connects to MOZA wheelbases via quick release
Item Weight	5.65 pounds (approx. 2.56 kg)
Package Dimensions	12.8 x 8.86 x 4.84 inches
ASIN	B0F4CP6MGZ
Date First Available	April 10, 2025

8. Warranty and Support

MOZA Racing products are covered by a limited warranty. For detailed warranty terms and conditions, please refer to the official MOZA Racing website or the warranty card included with your product.

For technical support, troubleshooting assistance, or warranty claims, please contact MOZA Racing customer support through their official website:

MOZA Racing Support Page

When contacting support, please have your product model (FSR2 Formula Wheel) and ASIN (B0F4CP6MGZ) ready to expedite the process.
