1. Introduction
This manual provides essential information for the installation, maintenance, and general use of the Generic replacement air filter, model nvduq2803-21972. This air filter is designed for compatibility with the Legend-Force LF20212RTG 212cc Gas Rear Tine Tiller. Please read these instructions carefully before proceeding with installation or maintenance to ensure proper function and longevity of your equipment.
2. Product Overview
The air filter is a critical component of your tiller's engine, responsible for preventing dust, dirt, and debris from entering the carburetor and engine cylinders. A clean air filter ensures optimal engine performance, fuel efficiency, and extends engine life. This replacement part is manufactured to provide effective filtration for the specified tiller model.

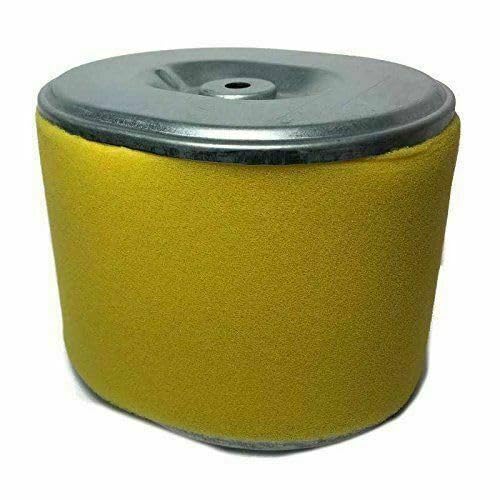

Image 1: Generic Replacement Air Filter. This image displays the yellow foam air filter with a gray metal top, designed to fit the Legend-Force LF20212RTG 212cc Gas Rear Tine Tiller.
Key Features:
- Designed for Legend-Force LF20212RTG 212cc Gas Rear Tine Tiller.
- Helps protect the engine from harmful contaminants.
- Contributes to maintaining engine performance and fuel efficiency.
Note: This is a replacement part. Always verify the item's appearance and dimensions against your original part before installation. Model numbers are for reference, and minor adjustments may sometimes be needed for proper fitment.
3. Setup and Installation
Proper installation of the air filter is crucial for its effectiveness. Refer to your tiller's original owner's manual for specific instructions regarding air filter access and replacement procedures. The following are general steps:
- Safety First: Ensure the tiller engine is off and cool. Disconnect the spark plug wire to prevent accidental starting.
- Locate Air Filter Housing: Identify the air filter housing, typically a plastic or metal cover on the side of the engine.
- Remove Housing Cover: Unlatch or unscrew the fasteners securing the air filter housing cover.
- Remove Old Filter: Carefully remove the old air filter. Note its orientation for correct installation of the new filter.
- Clean Housing: Inspect and clean any debris from inside the air filter housing. Avoid letting debris fall into the carburetor intake.
- Install New Filter: Place the new Generic replacement air filter (model nvduq2803-21972) into the housing, ensuring it seats properly.
- Reattach Cover: Securely reattach the air filter housing cover.
- Reconnect Spark Plug: Reconnect the spark plug wire.
Important: If you encounter any difficulties or are unsure about the installation process, consult a qualified service technician or your tiller's comprehensive service manual.
4. Usage Considerations
While the air filter itself does not have "operating" instructions, its presence and condition directly impact the operation of your tiller. Ensure the air filter is always properly installed before starting the engine. Operating the tiller without an air filter or with a damaged air filter can lead to severe engine damage from ingested dirt and debris.
5. Maintenance
Regular maintenance of your air filter is essential for the longevity and performance of your Legend-Force LF20212RTG tiller. The frequency of maintenance depends on operating conditions (e.g., dusty environments require more frequent checks).
- Inspection: Visually inspect the air filter every 10-25 hours of operation or before each major use. Look for excessive dirt, tears, or damage.
- Cleaning (if applicable): For foam filters, light cleaning may be possible by washing with warm, soapy water, rinsing thoroughly, and allowing it to air dry completely. Apply a small amount of foam filter oil if recommended by your tiller's manufacturer. However, if the filter is heavily soiled or damaged, replacement is recommended.
- Replacement: Replace the air filter at least once per season or more frequently if operating in very dusty conditions, or if the filter appears clogged or damaged. A clogged filter restricts airflow, leading to reduced engine power and increased fuel consumption.
6. Troubleshooting
Issues related to the air filter often manifest as engine performance problems:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine loses power or runs rough | Clogged or dirty air filter | Inspect, clean, or replace the air filter. |
| Increased fuel consumption | Restricted airflow due to dirty filter | Replace the air filter. |
| Engine difficult to start | Severely clogged air filter | Replace the air filter. |
| Visible dirt or debris in carburetor area | Damaged or improperly installed air filter | Inspect filter for damage, ensure proper installation, replace if damaged. |
If troubleshooting steps do not resolve the issue, further inspection by a qualified technician may be necessary.
7. Specifications
- Product Type: Replacement Air Filter
- Brand: Generic
- Model Number: nvduq2803-21972
- Compatibility: Legend-Force LF20212RTG 212cc Gas Rear Tine Tiller
- Manufacturer: Nvduq_Parts
- ASIN: B0F493CC6M
Note: Specifications are subject to change without notice. Always refer to the product packaging or original equipment manufacturer's documentation for the most accurate and up-to-date information.
8. Warranty and Support
As a generic replacement part, specific warranty information is typically provided by the seller at the time of purchase. Please retain your proof of purchase for any warranty claims.
For technical support regarding the installation or function of this replacement air filter, it is recommended to consult the original manufacturer's manual for your Legend-Force LF20212RTG tiller or contact a certified small engine mechanic.
For inquiries related to your purchase, please contact the retailer or seller directly.
