OGMOYT XL Electric Fireplace (78.7-inch) Instruction Manual

1. Introduction

This manual provides essential instructions for the safe installation, operation, and maintenance of your OGMOYT XL Electric Fireplace (78.7-inch). Please read this manual thoroughly before installation and use, and retain it for future reference. This electric fireplace is designed to provide a decorative flame effect and is suitable for various home decoration styles.

2. Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following safety precautions:

Ensure the power supply voltage matches the rating label on the appliance.
Do not operate the fireplace with a damaged cord or plug, or if the fireplace malfunctions or has been dropped or damaged in any manner.
Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front of the fireplace.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fireplace.
This fireplace is not intended for use in bathrooms, laundry areas, or similar indoor locations. Never locate fireplace where it may fall into a bathtub or other water container.
Always disconnect the power supply before performing any cleaning or maintenance.
The flame effect is decorative and does not produce heat. Do not attempt to touch the flame effect directly.
Ensure proper ventilation around the unit as specified in the installation section.
This appliance uses water for its 3D flame effect. Use only clean, distilled water to prevent mineral buildup.
The unit features automatic water inlet and water shortage protection. Do not bypass these safety features.

3. Package Contents

Upon unpacking, please ensure all items are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

OGMOYT XL Electric Fireplace Unit (78.7-inch)
Remote Control
Power Cord
Instruction Manual (this document)

4. Product Features

3D Simulation Flame Effect: Creates a realistic and visually warm atmosphere without actual heat.
Recessed Mounting: Designed for seamless integration into walls or custom cabinetry.
Durable Construction: Features a stainless steel body and a black frosted stainless steel panel.
LED Light Source: Long-lasting and energy-efficient illumination for the flame effect.
Integrated Vents: Panel includes vents, eliminating the need to reserve separate air inlets during installation.
Dual Control: Operates via both on-unit buttons and a convenient remote control.
Automatic Water Inlet: Simplifies the process of maintaining the water level for the flame effect.
Water Shortage & Power Failure Protection: Enhances safety by automatically shutting off in case of low water or power interruption.

5. Specifications

Product Name	XL Electric Fireplace
Brand	OGMOYT
Model	78.7-inch Recessed Electric Fireplace
ASIN	B0F47BLQ7V
Material	Stainless steel body, Black frosted stainless steel panel
Dimensions (Approx.)	2000mm (Length) x 240mm (Width) x 203mm (Height)
Power	450W/M (Wattage per meter of length)
Operation Mode	Button Control, Remote Control
Function	Decorative Ornamental Flame Effect

OGMOYT XL Electric Fireplace with dimensions

Image 1: OGMOYT XL Electric Fireplace showing approximate dimensions (2000mm length, 240mm width, 203mm height).

6. Installation and Setup

The OGMOYT XL Electric Fireplace is designed for recessed installation. Careful planning and execution are required for proper integration into your wall or custom furniture.

6.1 Site Preparation

Choose a suitable location for recessed installation, ensuring adequate structural support for the fireplace unit.
Create an opening in the wall or furniture that matches the dimensions specified in Section 5 (approximately 2000mm L x 240mm W x 203mm H). Allow for slight clearance for ease of installation.
Ensure a standard electrical outlet (120V AC) is available within reach of the power cord and can be safely accessed.
Ventilation: The fireplace panel includes integrated vents, meaning there is no need to reserve additional air inlets in your wall structure. Ensure these panel vents are not obstructed after installation.

6.2 Mounting the Fireplace

Carefully slide the fireplace unit into the prepared opening.
Secure the unit using appropriate mounting hardware (not included, as specific hardware depends on wall material) to ensure it is stable and flush with the surrounding surface.
Connect the power cord to the electrical outlet.

6.3 Water Filling for Flame Effect

This fireplace uses water to create its 3D flame effect. The unit features an automatic water inlet system.

Locate the water inlet port on the unit.
Connect a clean water supply line to the automatic water inlet.
The system will automatically fill the internal reservoir to the required level. The unit has water shortage protection and will indicate when water is low or shut off if empty.
Use only clean, distilled water to prevent mineral buildup and ensure optimal flame effect performance.

Image 2: The OGMOYT XL Electric Fireplace unit, ready for recessed installation.

7. Operating Instructions

The fireplace can be operated using the control buttons located on the unit or via the included remote control.

7.1 Control Panel Buttons

Refer to the control panel on the unit for specific button functions. Typically, these include:

Power Button: Turns the fireplace on/off.
Flame Effect Button: Adjusts flame intensity or cycles through flame patterns (if applicable).
Water Fill Indicator: Lights up when water level is low.

7.2 Remote Control

The remote control provides convenient operation from a distance. Ensure batteries are correctly installed.

Power Button: Same function as the unit's power button.
Flame Button: Controls the flame effect.
Other buttons may be present for additional features (e.g., timer, brightness adjustment), refer to the remote's specific markings.

OGMOYT XL Electric Fireplace with 3D flame effect

Image 3: The electric fireplace operating, displaying its realistic 3D flame effect.

Close-up of LED light strip for flame effect

Image 4: A close-up view of the LED light source responsible for creating the dynamic flame simulation.

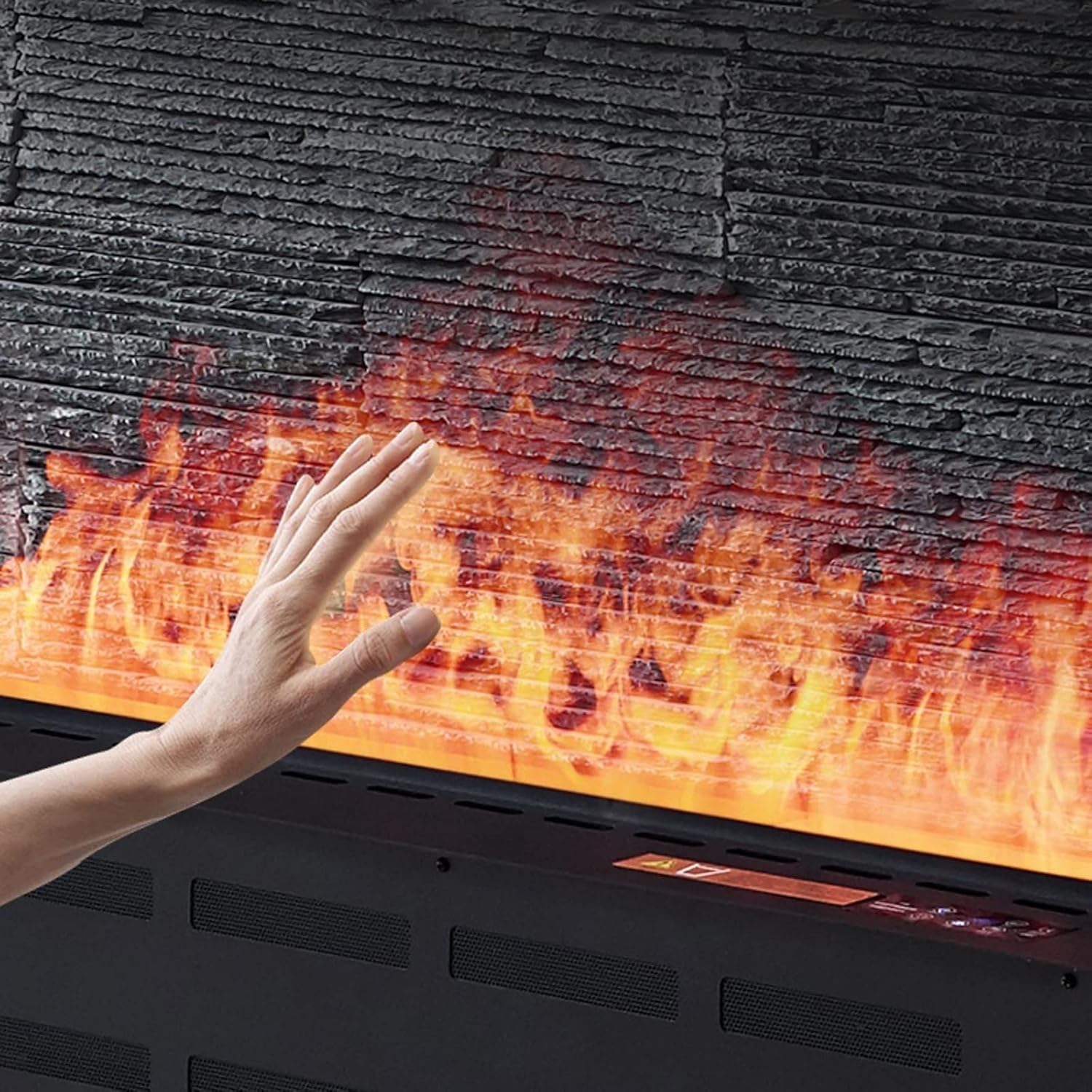

Hand near the electric fireplace flame, indicating no heat

Image 5: A hand placed near the flame effect, demonstrating that the 3D simulation produces no heat and is safe to touch.

8. Maintenance

Regular maintenance ensures the longevity and optimal performance of your electric fireplace.

Cleaning:
- Always disconnect power before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Gently clean the flame effect viewing area with a soft, lint-free cloth.
Water Reservoir:
- Periodically check the water reservoir for mineral buildup, especially if not using distilled water.
- If mineral deposits are present, carefully drain the reservoir and clean it according to manufacturer guidelines (if provided, otherwise use a mild descaling solution and rinse thoroughly).
- Ensure the automatic water inlet system is free from blockages.

9. Troubleshooting

If you encounter issues with your fireplace, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Fireplace does not turn on.	No power, power cord loose, unit off.	Check power outlet, ensure cord is securely plugged in, press power button on unit or remote.
No flame effect.	Water reservoir empty, flame effect off, internal malfunction.	Check water level (ensure automatic fill is working), press flame effect button, contact support if issue persists.
Remote control not working.	Dead batteries, remote out of range, obstruction.	Replace batteries, ensure clear line of sight to unit, move closer to the fireplace.
Water leakage.	Improper connection of water inlet, damaged reservoir.	Ensure water inlet connection is secure, inspect reservoir for cracks. Disconnect water supply and power immediately. Contact support.

10. Warranty and Customer Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact OGMOYT customer service directly. Keep your purchase receipt as proof of purchase.

For technical assistance or service inquiries, please visit the official OGMOYT website or contact their support team through the contact information provided with your product.
