1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the WCXNFXDQ PCB05-510-V04 Inverter Drive Control Board. This component is designed as a replacement part for Hisense AS-18TR4RGSCD00 air conditioner outdoor units.
The control board is a critical component responsible for managing the various functions of the air conditioner, including compressor operation, fan speed, and overall system efficiency. Proper handling and installation are crucial for the safe and effective functioning of your appliance.
Important Safety Information:
- Always disconnect power to the air conditioner unit before attempting any installation or maintenance.
- Installation should only be performed by a qualified and experienced technician.
- Failure to follow these instructions may result in electric shock, injury, or damage to the equipment.
2. Setup and Installation
This section outlines the general procedure for replacing the inverter drive control board. Specific wiring diagrams and detailed steps for your Hisense AS-18TR4RGSCD00 model should be referenced from the official Hisense service manual.
2.1 Pre-Installation Checks
- Ensure the air conditioner's main power supply is completely disconnected. Verify with a voltage tester.
- Confirm that the replacement board (PCB05-510-V04) matches the original board's specifications and is compatible with your Hisense AS-18TR4RGSCD00 unit.
- Prepare necessary tools, including screwdrivers, pliers, and a multimeter.
2.2 Physical Installation
- Access the outdoor unit's control panel. This typically involves removing screws and panels.
- Carefully disconnect all wiring harnesses and connectors from the old control board. Take photos or label wires to ensure correct re-connection.
- Remove the mounting screws securing the old control board.
- Position the new WCXNFXDQ PCB05-510-V04 board in place and secure it with the mounting screws.
- Reconnect all wiring harnesses and connectors to their corresponding ports on the new board. Refer to your labeled photos or the Hisense service manual. Ensure all connections are firm and secure.
- Visually inspect all connections for proper seating and ensure no wires are pinched or damaged.
Figure 1: Top view of the WCXNFXDQ PCB05-510-V04 Inverter Drive Control Board. This image shows the main components, including the heat sink, capacitors, and various connectors for wiring.

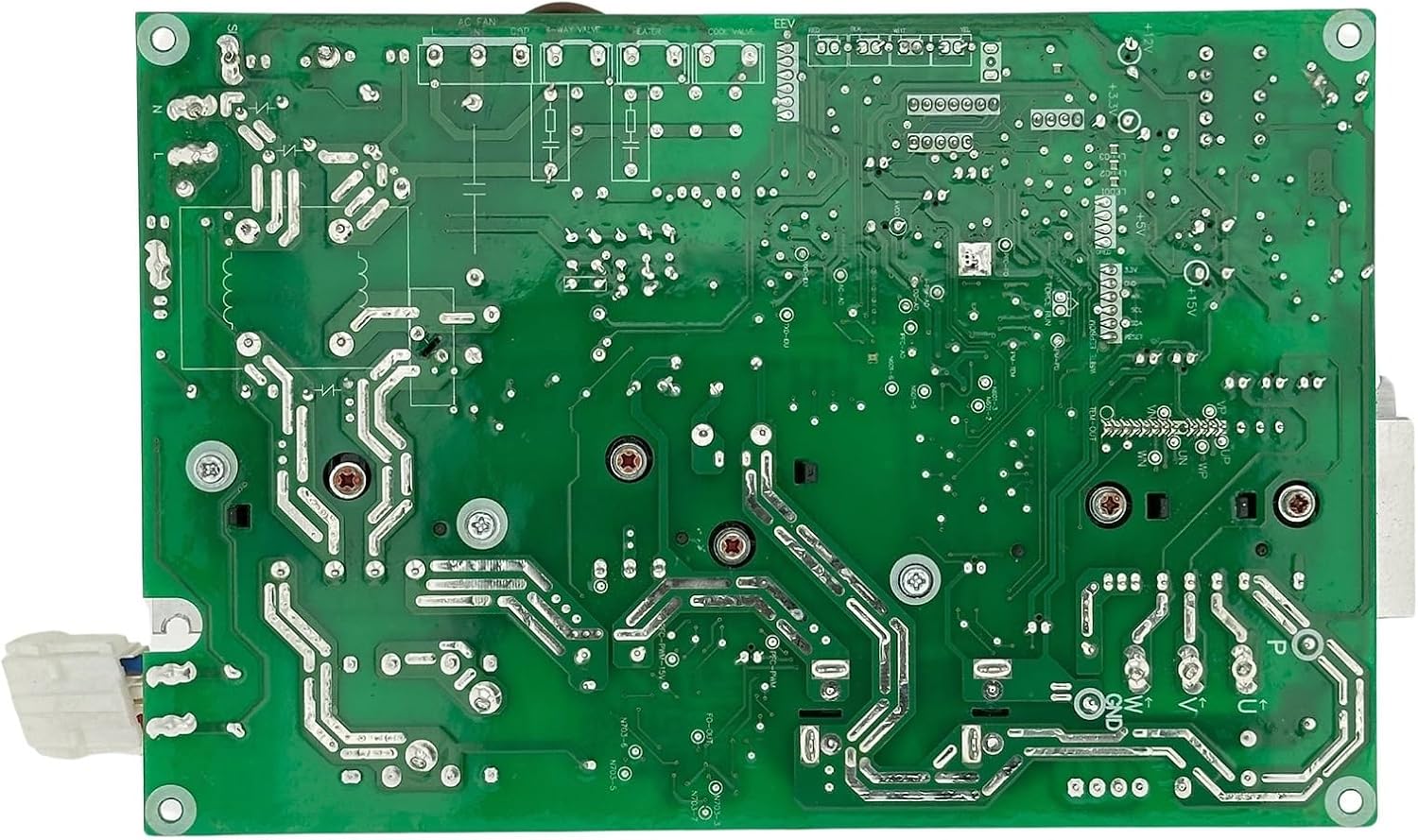

Figure 2: Bottom view of the WCXNFXDQ PCB05-510-V04 Inverter Drive Control Board. This image displays the intricate solder points and circuit traces on the reverse side of the board.
2.3 Post-Installation
- Replace the outdoor unit's control panel cover and secure it.
- Restore power to the air conditioner unit.
- Initiate a test run of the air conditioner to confirm proper operation (cooling/heating, fan functions).
3. Operating Instructions
The WCXNFXDQ PCB05-510-V04 Inverter Drive Control Board is an internal component of the air conditioner outdoor unit. It does not have direct user-operable controls.
Once correctly installed, the control board will manage the air conditioner's functions automatically based on commands received from the indoor unit and its sensors. Operate your Hisense AS-18TR4RGSCD00 air conditioner as per its original user manual.
Expected functional improvements after successful installation of a new board include:
- Restored normal function of the air conditioner.
- Improved operating efficiency and reduced energy consumption.
- Enhanced stability of the air conditioner's operation.
4. Maintenance
The inverter drive control board itself requires minimal direct maintenance. However, general care for the air conditioner outdoor unit contributes to the longevity of all its components, including the control board.
- Keep Dry: Ensure the outdoor unit's enclosure remains sealed to protect the control board from moisture and environmental elements.
- Cleanliness: Periodically clean the outdoor unit's coils and fan blades to maintain optimal airflow and prevent overheating, which can stress electronic components.
- Professional Inspection: It is recommended to have a qualified technician inspect the air conditioner system annually. They can check electrical connections, component integrity, and overall system health, which includes the control board.
- Avoid Physical Impact: Protect the outdoor unit from physical damage that could affect internal components.
5. Troubleshooting
If the air conditioner exhibits issues after the control board replacement, consider the following troubleshooting steps. Always ensure power is disconnected before inspecting internal components.
Common Issues and Solutions:
- Air Conditioner Fails to Start:
- Check if the main power supply to the unit is on.
- Verify all wiring connections to the control board are secure and correctly seated.
- Inspect for any blown fuses within the outdoor unit (if applicable).
- Poor Cooling/Heating Performance:
- Ensure the outdoor unit's fan is operating correctly.
- Check for obstructions around the outdoor unit that might impede airflow.
- This could indicate issues beyond the control board, such as refrigerant levels or compressor problems. Professional diagnosis is recommended.
- Abnormal Noises or Vibrations:
- Ensure the control board is securely mounted and not vibrating against other components.
- Inspect the outdoor fan for balance or obstructions.
- Error Codes Displayed on Indoor Unit:
- Refer to your Hisense air conditioner's user manual or service manual for the meaning of specific error codes. These codes can help pinpoint the exact issue.
If troubleshooting steps do not resolve the issue, it is strongly advised to contact a certified HVAC technician for further diagnosis and repair.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | WCXNFXDQ |
| Model Number | PCB05-510-V04 (2033233.D) |
| Compatibility | Hisense AS-18TR4RGSCD00 Air Conditioner Outdoor Unit |
| Item Weight | 1.76 ounces (approximately 50 grams) |
| Product Dimensions | 3 x 2 x 1 inches (approximately 7.6 x 5.1 x 2.5 cm) |
| Type | Air Conditioner Outdoor Unit Inverter Drive Control Board |
7. Warranty and Support
For specific warranty information regarding the WCXNFXDQ PCB05-510-V04 Inverter Drive Control Board, please refer to the purchase documentation or contact the seller directly. Warranty terms may vary depending on the retailer and region of purchase.
For technical support or assistance with installation and troubleshooting beyond the scope of this manual, it is recommended to:
- Consult a qualified HVAC professional.
- Contact the original seller or manufacturer of the control board.
- Refer to the official service manual for your Hisense AS-18TR4RGSCD00 air conditioner.
