Introduction
This instruction manual provides guidance for the installation and replacement of components included in the Generic Service Kit for McCulloch CS340 and CS380 chainsaws. This kit is designed to help maintain the performance and longevity of your chainsaw by replacing essential wear parts.
The kit includes high-quality replacement parts such as air filters, a carburetor kit, a fuel filter, a fuel line, and a primer bulb, all designed to match the original equipment for optimal performance.
Safety Information
Always prioritize safety when working with power tools and their components. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Disconnect Spark Plug: Before performing any maintenance or replacement, always disconnect the spark plug wire to prevent accidental starting.
- Wear Protective Gear: Use appropriate personal protective equipment (PPE) including gloves and eye protection.
- Work in a Well-Ventilated Area: Ensure adequate ventilation, especially when dealing with fuel.
- Refer to Chainsaw Manual: Consult your specific McCulloch CS340 or CS380 chainsaw owner's manual for detailed disassembly and reassembly procedures. This kit provides replacement parts, not a complete chainsaw repair guide.
- Fuel Handling: Handle fuel with extreme care. Avoid spills and ensure no open flames or ignition sources are nearby.
- Professional Assistance: If you are unsure about any step, seek assistance from a qualified service technician.
Package Contents
The Generic Service Kit for McCulloch CS340 CS380 chainsaws typically includes the following components:
- 2 x Air Filters
- 1 x Carburetor Kit (includes gaskets and diaphragms)
- 1 x Fuel Filter
- 1 x Fuel Line
- 1 x Primer Bulb
- 1 x Spark Plug
Image: All components included in the Generic McCulloch CS340 CS380 Chainsaw Service Kit.
Compatibility
This service kit is specifically designed for use with:
- McCulloch CS340 Chainsaw
- McCulloch CS380 Chainsaw
Please verify your chainsaw model before installation to ensure proper fitment. The replacement part numbers are 545 06 18-01 and 530 05 78-69.
Installation Guide
The following sections provide general guidance for replacing the components. Always refer to your chainsaw's specific service manual for detailed instructions and diagrams.
1. Air Filter Replacement
A clean air filter is crucial for engine performance and longevity. Replace the air filter regularly or when it appears dirty.
- Ensure the chainsaw is off and the spark plug wire is disconnected.
- Locate and open the air filter cover, usually found on the top or side of the engine housing.
- Remove the old air filter. Note its orientation.
- Clean any debris from the air filter housing.
- Install the new air filter (included in the kit) in the correct orientation.
- Securely close the air filter cover.
Image: New air filter from the service kit.
2. Fuel Filter Replacement
The fuel filter prevents contaminants from reaching the carburetor. Replace it if the chainsaw experiences fuel delivery issues or during routine maintenance.
- Ensure the chainsaw is off and the spark plug wire is disconnected.
- Drain the fuel tank into an approved container in a well-ventilated area.
- Carefully reach into the fuel tank with a hook or pliers to retrieve the fuel line and filter assembly.
- Disconnect the old fuel filter from the fuel line.
- Attach the new fuel filter (included in the kit) to the fuel line.
- Carefully place the fuel line and new filter back into the fuel tank.
- Refill the fuel tank with the appropriate fuel mixture.
3. Fuel Line Replacement
Fuel lines can become brittle or crack over time, leading to fuel leaks or air leaks. Replace them if any damage is observed.
- Ensure the chainsaw is off and the spark plug wire is disconnected.
- Drain the fuel tank.
- Carefully disconnect the old fuel lines from the fuel tank, carburetor, and primer bulb (if applicable). Note the routing of each line.
- Install the new fuel line (included in the kit), ensuring correct routing and secure connections to prevent leaks.
- Refill the fuel tank and check for leaks.

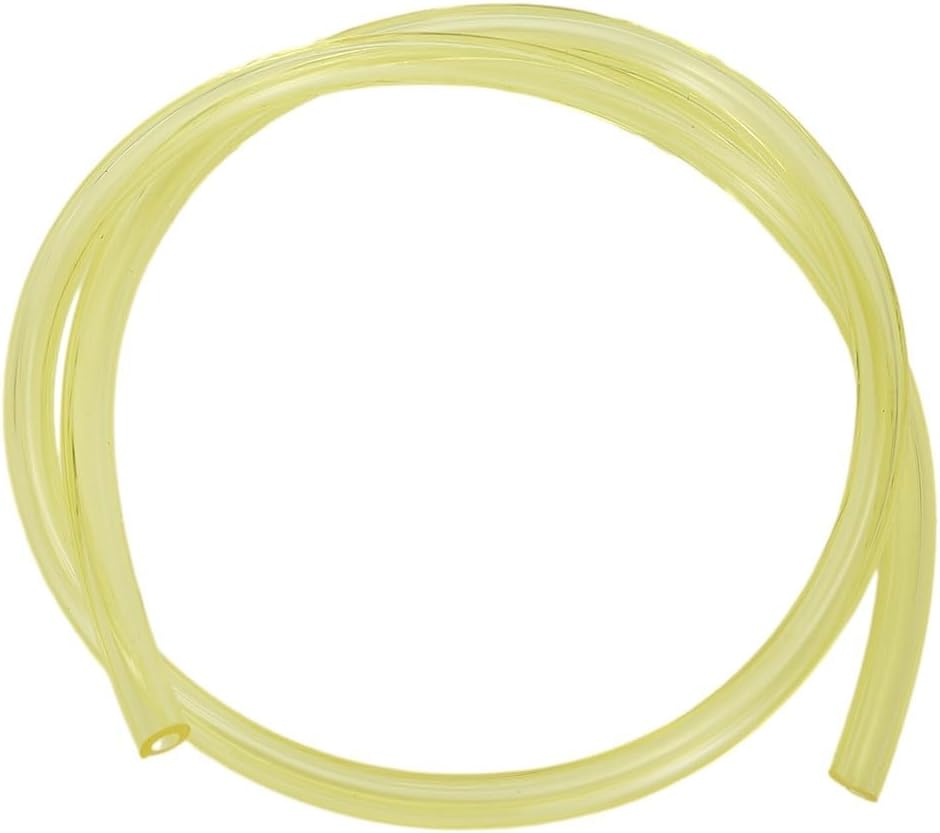

Image: New fuel line from the service kit.
4. Primer Bulb Replacement
A damaged or cracked primer bulb can prevent the chainsaw from starting easily. Replace it if it's not priming fuel effectively.
- Ensure the chainsaw is off and the spark plug wire is disconnected.
- Locate the primer bulb assembly.
- Carefully disconnect the fuel lines attached to the primer bulb.
- Remove the old primer bulb from its housing.
- Install the new primer bulb (included in the kit), ensuring it seats correctly.
- Reconnect the fuel lines to the new primer bulb in their original configuration.
- Check for proper priming action and fuel leaks.
5. Carburetor Kit Installation (Gaskets and Diaphragms)
The carburetor kit includes essential gaskets and diaphragms that can wear out, affecting fuel mixture and engine performance. This is a more advanced procedure.
- Ensure the chainsaw is off and the spark plug wire is disconnected.
- Remove the carburetor from the chainsaw. This typically involves disconnecting fuel lines, throttle linkage, and mounting bolts.
- Carefully disassemble the carburetor, paying close attention to the order and orientation of all gaskets and diaphragms. Take photos if necessary.
- Replace the old gaskets and diaphragms with the new ones from the carburetor kit (included in the service kit).
- Reassemble the carburetor, ensuring all components are correctly seated and screws are tightened to specification (refer to your chainsaw manual).
- Reinstall the carburetor onto the chainsaw, reconnecting all linkages and fuel lines.
- After installation, the carburetor may require adjustment. Refer to your chainsaw manual for carburetor tuning procedures.
Image: Carburetor kit components (gaskets and diaphragms).
6. Spark Plug Replacement
A worn or fouled spark plug can cause starting difficulties and poor engine performance. Replace it as part of routine maintenance.
- Ensure the chainsaw is off and the spark plug wire is disconnected.
- Remove the spark plug boot from the spark plug.
- Use a spark plug wrench to carefully unscrew and remove the old spark plug.
- Inspect the new spark plug (included in the kit) and ensure the gap is correct (refer to your chainsaw manual for the specified gap).
- Thread the new spark plug into the cylinder head by hand to avoid cross-threading.
- Tighten the spark plug with the wrench, but do not overtighten.
- Reconnect the spark plug boot.
Operating (After Installation)
After replacing any components, perform the following checks before operating the chainsaw:
- Check for Leaks: Inspect all fuel lines and connections for any signs of fuel leakage.
- Secure Components: Ensure all covers, bolts, and fasteners are securely tightened.
- Test Start: Follow your chainsaw's starting procedure. If the chainsaw does not start or runs poorly, refer to the troubleshooting section.
Maintenance (General)
While this kit provides replacement parts, regular maintenance of your chainsaw is essential for its performance and safety. Always refer to your chainsaw's owner's manual for a complete maintenance schedule.
- Regularly clean the air filter and replace it when heavily soiled.
- Inspect fuel lines for cracks or hardening.
- Check the spark plug for wear and proper gap.
- Keep the chainsaw clean and free of sawdust and debris.
Troubleshooting
If your chainsaw experiences issues after installing the service kit, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chainsaw won't start | Incorrect fuel line connection, fouled spark plug, carburetor issues, air leak. | Verify fuel line routing, check spark plug gap/condition, ensure carburetor gaskets are sealed, check for air leaks around carburetor. |
| Engine runs poorly/stalls | Dirty air filter, fuel delivery issues (filter/line), carburetor adjustment needed. | Ensure air filter is clean, check fuel filter and lines for blockages, adjust carburetor settings as per chainsaw manual. |
| Fuel leaks | Loose fuel line connections, damaged fuel line, improperly seated primer bulb. | Tighten all fuel line clamps, replace damaged fuel lines, ensure primer bulb is correctly installed. |
If problems persist, it is recommended to consult a professional chainsaw technician.
Specifications
- Product Dimensions: 3.94 x 3.15 x 1.18 inches
- Item Weight: 2.57 ounces
- Manufacturer: ZWDZ
- Compatible Models: McCulloch CS340, CS380 Chainsaws
- Replacement Part #: 545 06 18-01, 530 05 78-69
Warranty and Support
Information regarding specific warranty terms for this Generic service kit is not provided in the product details. For any support or warranty inquiries, please contact the seller or manufacturer directly through your purchase platform.
