Afantti Pyrography Machine AF-PM100 Instruction Manual

1. Introduction

The Afantti AF-PM100 Pyrography Machine is a professional-grade tool designed for wood burning, leather arts, and various crafts. Featuring a dual-pen design and adjustable temperature control, it offers precision and versatility for users of all skill levels. This manual provides essential information for safe setup, operation, and maintenance of your pyrography machine.

Image: Afantti Pyrography Machine highlighting its dual-pen design and included carry bag.

2. Safety Instructions

Always prioritize safety when operating the pyrography machine. Failure to follow these instructions may result in injury or damage to the device.

• High Temperature: The pen nibs reach temperatures up to 800°C (1472°F). Avoid direct contact with skin or flammable materials.
• Ventilation: Use the machine in a well-ventilated area to avoid inhaling fumes from burning materials.
• Hot Wires: The wires connecting the pens to the station can become extremely hot. Ensure they do not touch bare skin or other heat-sensitive surfaces. Consider wearing long-sleeved clothing or protective armbands.
• Cool Down: Always allow nibs to cool completely before changing them or storing the device.
• Unplug When Not in Use: Disconnect the power cord from the outlet when the machine is not in use or during maintenance.
• Keep Away from Children: This is not a toy. Keep the pyrography machine and all its components out of reach of children.

3. Package Contents

Your Afantti AF-PM100 Pyrography Machine package includes the following items:

• Wood Burning Station (with digital display)
• 2 Pyrography Pens (Dual Pen Design)
• 30 Special Nibs (various shapes for different lines and patterns)
• 2 Plastic Pen Stands
• 2 Cleaning Sponges
• Screwdriver (for changing nibs)
• 5 Stencils
• 5 Wood Pieces (for practice)
• Convenient Storage Bag

Image: A selection of 30 high-impedance nibs for various pyrography techniques.

Image: Five stencils with various patterns and five blank wood pieces for practice.

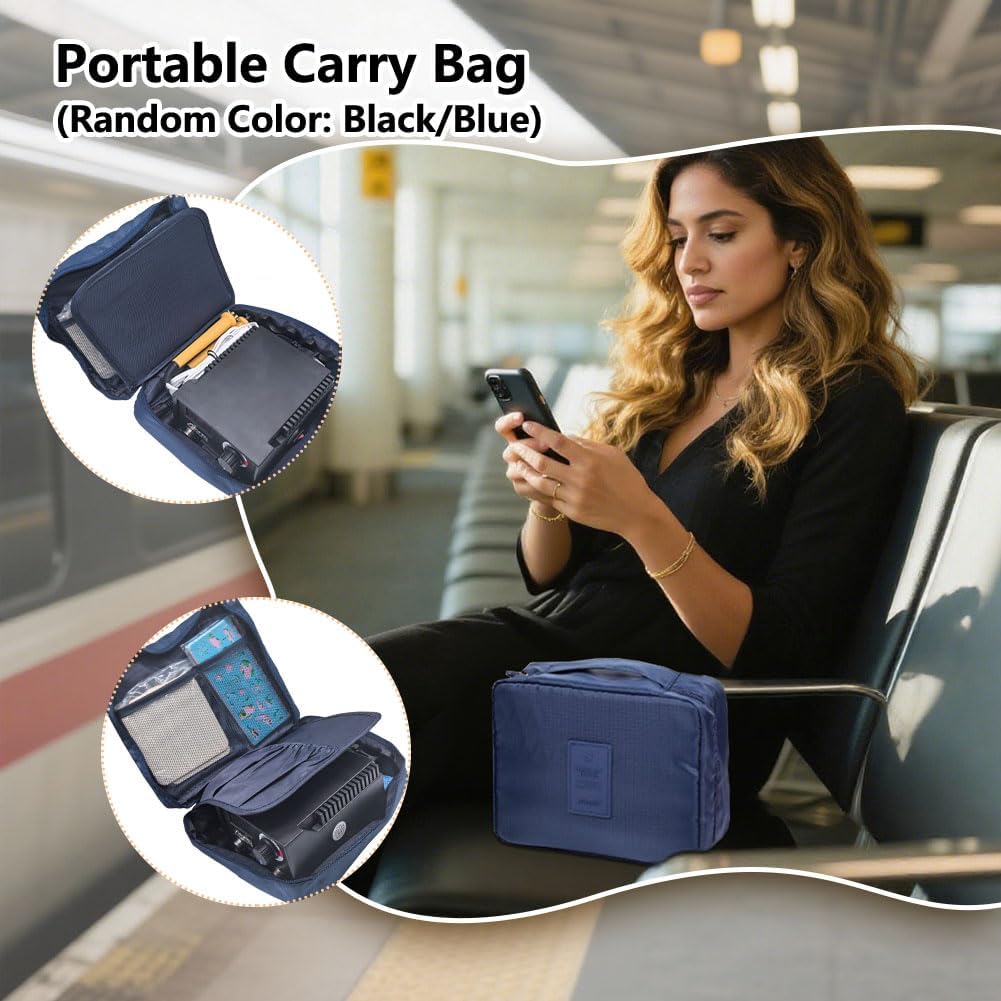

Image: A portable carry bag designed to organize and protect all components of the pyrography kit.

4. Setup

Follow these steps to set up your pyrography machine:

1. Place the Station: Position the wood burning station on a stable, heat-resistant surface in a well-ventilated area.
2. Connect Pyrography Pens: Plug the connectors of the two pyrography pens into the designated ports on the front of the station. Ensure they are securely fastened.
3. Install Nibs: Using the provided screwdriver, loosen the screws on the pen's tip holder. Carefully insert your desired nib into the slots and tighten the screws to secure it. Ensure the nib is properly seated for optimal heating.
4. Set Up Pen Stands: Place the plastic pen stands on your workspace. Wet the cleaning sponges and place them in the designated sponge holders on the stands.
5. Power Connection: Plug the power cord into a standard electrical outlet.

Image: Detailed view of a pyrography pen, showing the nib installation area.

5. Operating Instructions

Operating your Afantti pyrography machine is straightforward:

1. Power On: Flip the main power switch on the front of the station to the 'ON' position. The digital display will illuminate.
2. Adjust Temperature: Use the rotary knob to set the desired temperature. The digital display shows the current working temperature, which can be adjusted from 200°C to 800°C (392°F to 1472°F). Start with lower temperatures and gradually increase as needed for your material and desired effect.
3. Dual Pen Operation: The machine supports two pens simultaneously. If one pen becomes too hot during extended use, you can switch to the other pen without waiting for it to cool down, ensuring uninterrupted crafting.
4. Pyrography Techniques: Experiment with the 30 different nibs to achieve various effects. Use fine-point nibs for detailed lines, broader nibs for shading, and specialized nibs for textures. Practice on the included wood pieces to master different strokes and pressure levels.
5. Power Off: When finished, turn the power switch to 'OFF' and unplug the machine. Allow the nibs to cool completely before handling.

Image: The pyrography station's digital display showing temperature and the rotary knob for adjustment.

Image: A hand demonstrating the use of the pyrography pen on a wood surface, illustrating the high temperature capability.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your pyrography machine:

• Cleaning Nibs: Regularly clean the nibs by gently wiping them on the wet sponge provided. For stubborn residue, allow the nib to cool and carefully scrape off any carbon buildup.
• Storage: After use and once all components have cooled, store the machine and accessories in the provided carry bag. The bag features a special layer for accessories to keep everything organized and protected.
• General Care: Keep the machine and pens free from dust and debris. Avoid dropping the pens or station.

7. Troubleshooting

If you encounter any issues, refer to the following troubleshooting tips:

• Pen Not Heating: Ensure the pen connector is fully inserted and tightened. Check if the power switch is on and the temperature is set above the minimum. Verify the nib is correctly installed and secured.
• Uneven Burning: This can be due to inconsistent pressure, incorrect temperature setting for the material, or a dirty nib. Adjust pressure, temperature, or clean the nib.
• Machine Not Powering On: Check the power cord connection to both the machine and the electrical outlet. Ensure the power switch is in the 'ON' position.
• Nibs Becoming Too Hot: Utilize the dual-pen feature to switch between pens, allowing one to cool while you continue working with the other.

8. Specifications

9. Warranty and Support

The Afantti AF-PM100 Pyrography Machine comes with a 1-Year Warranty.

For any product inquiries, technical support, or warranty claims, please contact Afantti US customer service through your original purchase platform.
