1. Product Overview
The WinZo SM8009 Smart Toilet with Bidet is designed to provide enhanced comfort and hygiene. This unit features a 17-inch comfort seat height, automatic lid opening and closing, foot-kick flush, heated seat, LED night light, and multiple cleaning modes with a 1.28 GPF (Gallons Per Flush) efficiency.

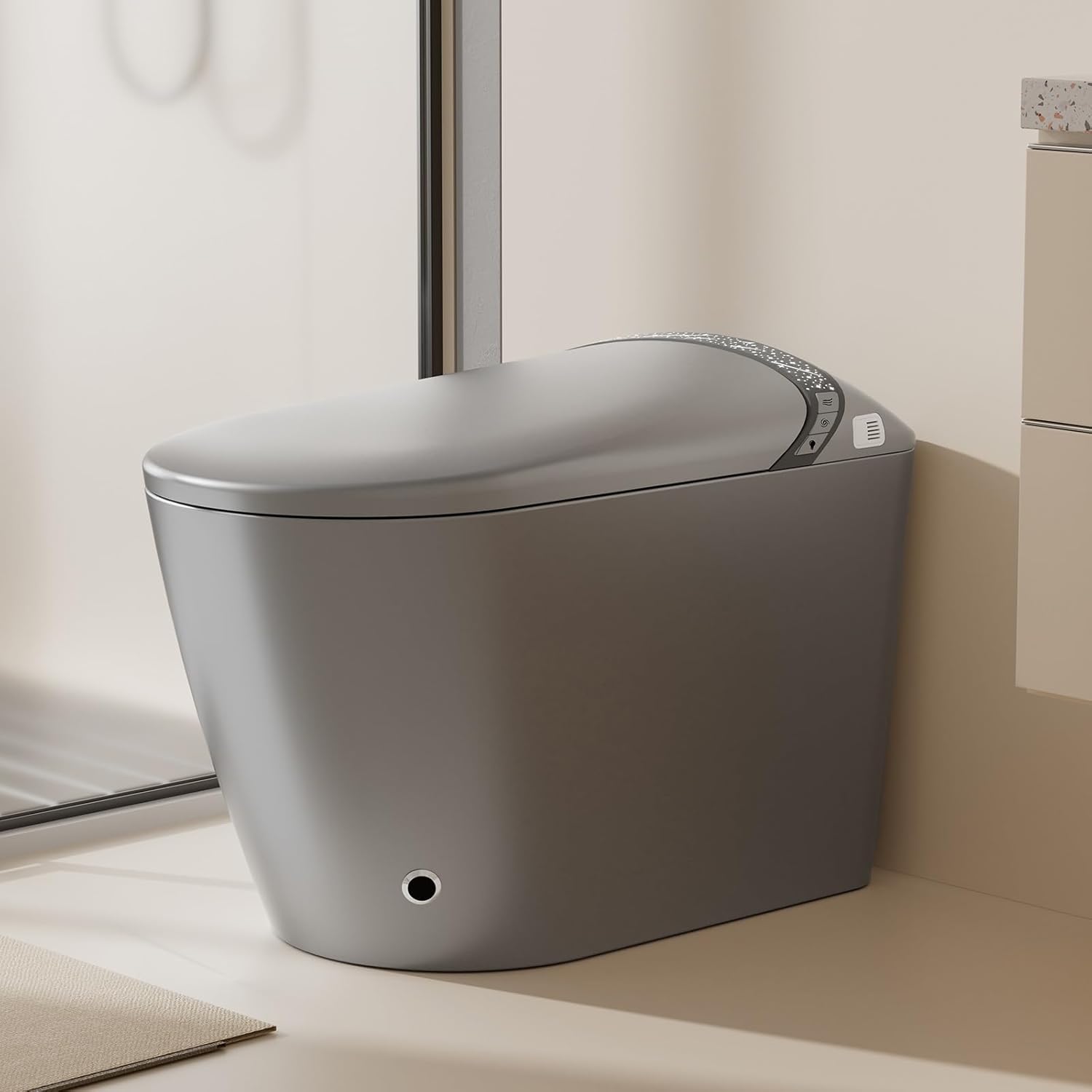

Image 1.1: The WinZo SM8009 Smart Toilet in Matte Grey, showcasing its sleek, modern design.
2. Safety Instructions
- Read all instructions before installation and use.
- Ensure the electrical outlet is a 110V AC power source and is properly grounded.
- Do not immerse the product in water or spray water directly onto electrical components.
- Disconnect power before performing any maintenance or cleaning.
- This product is UTL Certified for safety and has an IPX4 waterproof rating.
- Keep children and individuals with reduced physical, sensory, or mental capabilities under supervision when using the toilet.
3. Included Components
Verify that all components are present before beginning installation:
- WinZo SM8009 Smart Toilet with Bidet
- Remote Control
- Angle Valve
- Floor Mounting Bolts
- Wax Ring
- Installation Manual (this document)
4. Setup and Installation
4.1 Pre-Installation Checks
- Ensure your bathroom has a standard 12-inch rough-in measurement.
- Confirm a 110V AC power outlet is available within reach of the toilet's power cord.
- Turn off the main water supply to the toilet area.
4.2 Installation Steps
- Remove the old toilet and clean the flange area thoroughly.
- Install the new wax ring onto the toilet's waste outlet.
- Carefully position the WinZo SM8009 toilet over the flange, aligning the floor mounting bolts.
- Secure the toilet to the floor using the provided mounting bolts. Do not overtighten.
- Connect the water supply line to the angle valve and then to the toilet's water inlet.
- Plug the toilet into the 110V AC power outlet.
- Turn on the main water supply and check for leaks.
Image 4.1: Key dimensions for installation, including the 12-inch rough-in requirement.
5. Operating Instructions
5.1 Automatic Lid and Foot Kick Flush
- Auto Open/Close: The lid will automatically open when approached and close after use.
- Foot Kick Flush: A sensor at the base allows for hands-free flushing by gently tapping your foot near it.
Image 5.1: Visual guide for automatic lid operation and foot-kick flush functionality.
5.2 Bidet Functions
Use the remote control or side panel buttons to activate bidet functions:
- Hips Wash: Provides a posterior cleansing spray.
- Female Wash: Offers a gentle anterior cleansing spray.
- Stop: Halts any active bidet or drying function.
- Adjustable Settings: Water temperature and pressure can be customized via the remote control.
Image 5.2: Control panel buttons for various bidet and toilet functions.
5.3 Heated Seat and Warm Air Dry
- Heated Seat: The seat offers three temperature settings (Room Temperature, 93°F, 97°F, 104°F) for personalized comfort. Adjust using the remote control.
- Warm Air Dry: After cleansing, activate the warm air dryer to reduce the need for toilet paper. Air temperature is adjustable.
Image 5.3: Visual representation of the heated seat's temperature settings.
Image 5.4: The warm air drying feature in operation.
5.4 LED Night Light
The integrated LED night light provides soft illumination, guiding users during nighttime without harsh brightness. It can be activated or deactivated via the remote control or side panel.
Image 5.5: The LED night light providing gentle illumination.
5.5 Emergency Battery Backup
In the event of a power outage, the toilet is equipped with a battery backup to allow for emergency flushing, ensuring continued functionality.
6. Maintenance
6.1 Cleaning the Nozzle
The bidet features a self-cleaning nozzle. It automatically rinses before and after each use. For deeper cleaning, manually extend the nozzle (refer to remote control instructions) and wipe with a soft cloth and mild cleaner.
Image 6.1: The bidet nozzle undergoing its self-cleaning cycle.
6.2 General Cleaning
- Use a soft cloth and mild, non-abrasive cleaning agents.
- Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the surface.
- Wipe down the exterior and seat regularly.
- The toilet incorporates UV-Tech for sanitation, which helps maintain hygiene.
Image 6.2: The UV-Tech sanitation feature actively cleaning the toilet bowl.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/functions unresponsive | Power cord unplugged, circuit breaker tripped, remote control battery low. | Check power connection, reset breaker, replace remote batteries. |
| Water leakage | Loose water supply connection, faulty wax ring. | Tighten connections, inspect and replace wax ring if necessary. |
| Bidet spray weak or inconsistent | Water pressure too low, nozzle clogged. | Check water supply valve, clean bidet nozzle. |
| Heated seat not warming | Heated seat function not activated, temperature setting too low. | Activate heated seat via remote, increase temperature setting. |
| Auto lid not opening/closing | Sensor obstructed or dirty. | Clean the sensor area on the toilet. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | SM8009 |
| Color | Matte Grey |
| Product Dimensions (D x W x H) | 28.5" x 15" x 20.5" |
| Seat Height | 17 inches (ADA Compliant) |
| Rough-In | 12 inches |
| Material | Ceramic (Toilet), Plastic (Seat) |
| Item Weight | 95 Pounds |
| Installation Type | Floor Mounted |
| Shape | Oval |
| Flush Volume | 1.28 GPF (Gallons Per Flush) |
| Power Requirement | 110V AC |
| Certifications | UTL Certified Safety, IPX4 Waterproof |
9. Warranty and Support
WinZo products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official WinZo website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact WinZo customer service through the contact information provided in your product packaging or on the WinZo brand store page on Amazon.
WinZo Customer Support: Visit the WinZo Store on Amazon
