Generic LED Light Bulb Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your new Generic LED Light Bulb. Please read this manual thoroughly before installation and retain it for future reference. This LED light bulb is designed as a replacement for various Kenmore and Frigidaire appliance models.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage:

• Disconnect Power: Before attempting any installation, removal, or maintenance, ensure the power supply to the appliance is completely disconnected at the circuit breaker or fuse box.
• Handle with Care: LED bulbs are electronic components. Avoid dropping or subjecting the bulb to excessive force.
• Correct Base Type: Ensure the bulb's base type (GX53 E5) matches the socket in your appliance. Incorrect base types can cause electrical hazards or damage.
• Indoor Use Only: This bulb is intended for indoor use in compatible appliances. Do not expose to water or extreme temperatures unless specified by the appliance manufacturer.
• Disposal: Dispose of old bulbs and packaging materials responsibly, following local regulations.

3. Product Overview

The Generic LED Light Bulb is designed for energy-efficient illumination in compatible appliances. It features a standard screw-in base and an array of LED chips for bright, long-lasting light.

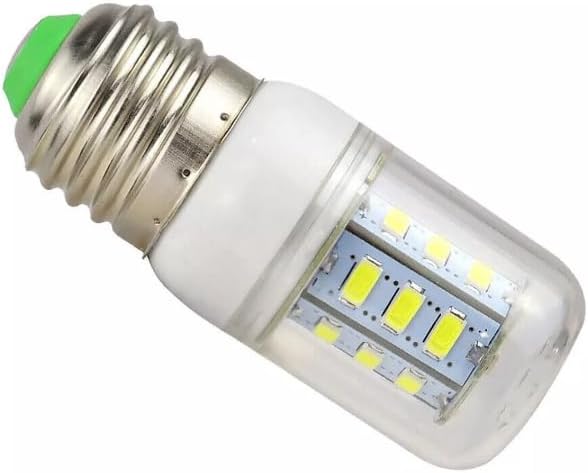

Image 1: Generic LED Light Bulb. This image shows the compact design of the LED bulb, featuring a clear casing that reveals the internal LED array and a metallic screw-in base (GX53 E5) with a green tip.

4. Setup and Installation

Follow these steps to install your new LED light bulb:

1. Step 1: Disconnect Power. Locate the circuit breaker or fuse box that controls the power to your appliance and turn it off. Verify that the power is off before proceeding.
2. Step 2: Access the Bulb Socket. Open the appliance door or access panel to reach the existing light bulb. Refer to your appliance's specific user manual for instructions on accessing the bulb if necessary.
3. Step 3: Remove the Old Bulb. Carefully unscrew the old bulb counter-clockwise until it is free from the socket. Allow the old bulb to cool if it was recently in use.
4. Step 4: Install the New LED Bulb. Gently screw the new Generic LED Light Bulb into the socket clockwise until it is snug. Do not overtighten.
5. Step 5: Restore Power. Close the appliance door or access panel. Restore power to the appliance at the circuit breaker or fuse box.
6. Step 6: Test. Turn on the appliance and verify that the new LED bulb illuminates correctly.

5. Operating Instructions

The Generic LED Light Bulb operates in conjunction with your appliance's existing lighting controls. Once installed, the bulb will illuminate when the appliance's light function is activated (e.g., opening a refrigerator door, pressing a light switch).

6. Maintenance

This LED light bulb requires minimal maintenance:

• Cleaning: If the bulb becomes dusty, ensure power is disconnected, then gently wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Replacement: LED bulbs have a long lifespan. Replace the bulb only when it ceases to function. Follow the installation steps in Section 4 for replacement.

7. Troubleshooting

If your LED light bulb is not functioning as expected, consider the following:

• Bulb Not Lighting:
  • Ensure the power to the appliance is on.
  • Check if the bulb is securely screwed into the socket. Disconnect power, then re-tighten.
  • Verify that the appliance's light switch or door sensor is functioning correctly.
  • Test the socket with a known working bulb, if available, to rule out an issue with the appliance's wiring or socket.
• Bulb Flickering:
  • Ensure the bulb is fully tightened in the socket.
  • Confirm that the bulb is compatible with any dimmer switches or electronic controls in the appliance (though this bulb is generally for on/off applications).

If issues persist after troubleshooting, contact the seller or a qualified technician.

8. Specifications

9. Compatibility

This Generic LED Light Bulb is designed to be compatible with a wide range of Kenmore and Frigidaire appliance models. Some compatible models include, but are not limited to, those listed in the product description. Always verify the bulb base type (GX53 E5) and voltage requirements of your specific appliance before purchase and installation.

10. Warranty and Support

For warranty information and customer support, please refer to the details provided by your retailer or the manufacturer at the time of purchase. Keep your proof of purchase for any warranty claims.
