1. Introduction
Thank you for choosing the Nitehop 200W RGBWA UV 6in1 COB Par Light. This manual provides essential information for the safe and efficient operation of your new stage lighting fixture. Please read this manual thoroughly before installation and use, and retain it for future reference.
Safety Information
- Always connect the fixture to a grounded circuit.
- Ensure proper ventilation to prevent overheating.
- Do not look directly into the light source when operating.
- Disconnect power before any maintenance or cleaning.
- This product is designed for indoor and outdoor use, but ensure connections are protected from moisture when used outdoors.
2. Product Features
The Nitehop 200W RGBWA UV 6in1 COB Par Light offers advanced features for versatile lighting applications:
- High-Performance Stage Lighting: Powerful 200W 6-in-1 RGBWA+UV COB par light with 8000-10000LM luminous flux for stunning visual effects.
- Versatile Control Options: Supports DMX512, RDM, automatic, voice control, and master-slave modes for customized lighting.
- Flexible Light Projection: Unique 4-leaf barn door design allows for flexible 180° adjustment for precise light direction.
- Intelligent Temperature Management: Features an intelligent temperature control system for optimal performance and an impressive average lifespan of 50,000 hours.
- Durable and Aluminum Design: Robust all-aluminum chassis provides excellent heat dissipation, suitable for various events including DJ, wedding, church, parties, club, bar, family, show, performance, and theater.
Figure 2.1: Nitehop 200W RGBWA UV 6in1 COB Par Light with adjustable barn doors.
3. What's in the Box
Upon opening the package, please verify that all the following items are included:
- 1 x 200W COB LED Par Light
- 1 x Power Cable
- 2 x Mounting Screws
- 1 x Mounting Bracket/Stand
- 1 x Instruction Manual (this document)
Figure 3.1: Package contents including the light, cable, screws, stand, and manual.
4. Setup
4.1 Attaching the Mounting Bracket
- Locate the mounting bracket and the two screws provided.
- Align the holes on the bracket with the screw holes on the sides of the light fixture.
- Insert the screws and tighten them securely. The bracket allows for versatile positioning, either as a floor stand or for truss mounting.
Figure 4.1: The light fixture with its adjustable barn doors and mounting points.
4.2 Power Connection
- Connect the provided power cable to the "POWER IN" port on the back of the fixture. Ensure it clicks securely into place.
- Plug the other end of the power cable into a standard grounded electrical outlet (AC 100-240V, 50/60Hz).
- The fixture also features a "POWER OUT" port for daisy-chaining multiple units.
Figure 4.2: Rear panel connections and controls.
5. Operating Modes
The Nitehop 200W Par Light offers several operating modes, selectable via the control panel on the rear of the unit or through DMX control.
Figure 5.1: Visual representation of available operating modes.
5.1 Control Panel Navigation
Use the MENU, UP, DOWN, and ENTER buttons on the rear display to navigate and select modes and settings. The 4-alphanumeric display will show the current mode or parameter value.
5.2 Available Modes
- DMX512 Mode: For professional control using a DMX controller. Connect DMX IN/OUT ports to your DMX chain. Refer to the DMX channel chart in the full manual for detailed channel assignments.
- RDM (Remote Device Management): Allows for remote addressing and configuration of DMX fixtures.
- Automatic Mode: Pre-programmed light shows that run continuously. Use the control panel to cycle through different auto programs.
- Sound Activated Mode: The light reacts to ambient sound, changing colors and patterns in sync with music or audio.
- Master-Slave Mode: Link multiple fixtures together. One unit acts as the master, controlling all other slave units.
- Strobe Mode: Produces rapid flashes of light. Adjustable speed and intensity may be available depending on the selected program.
- Fade Mode: Smooth transitions between colors.
- Jump Mode: Abrupt changes between colors.
Video 5.1: Demonstration of 6in1 RGBWAUV stage light effects and various operating modes.

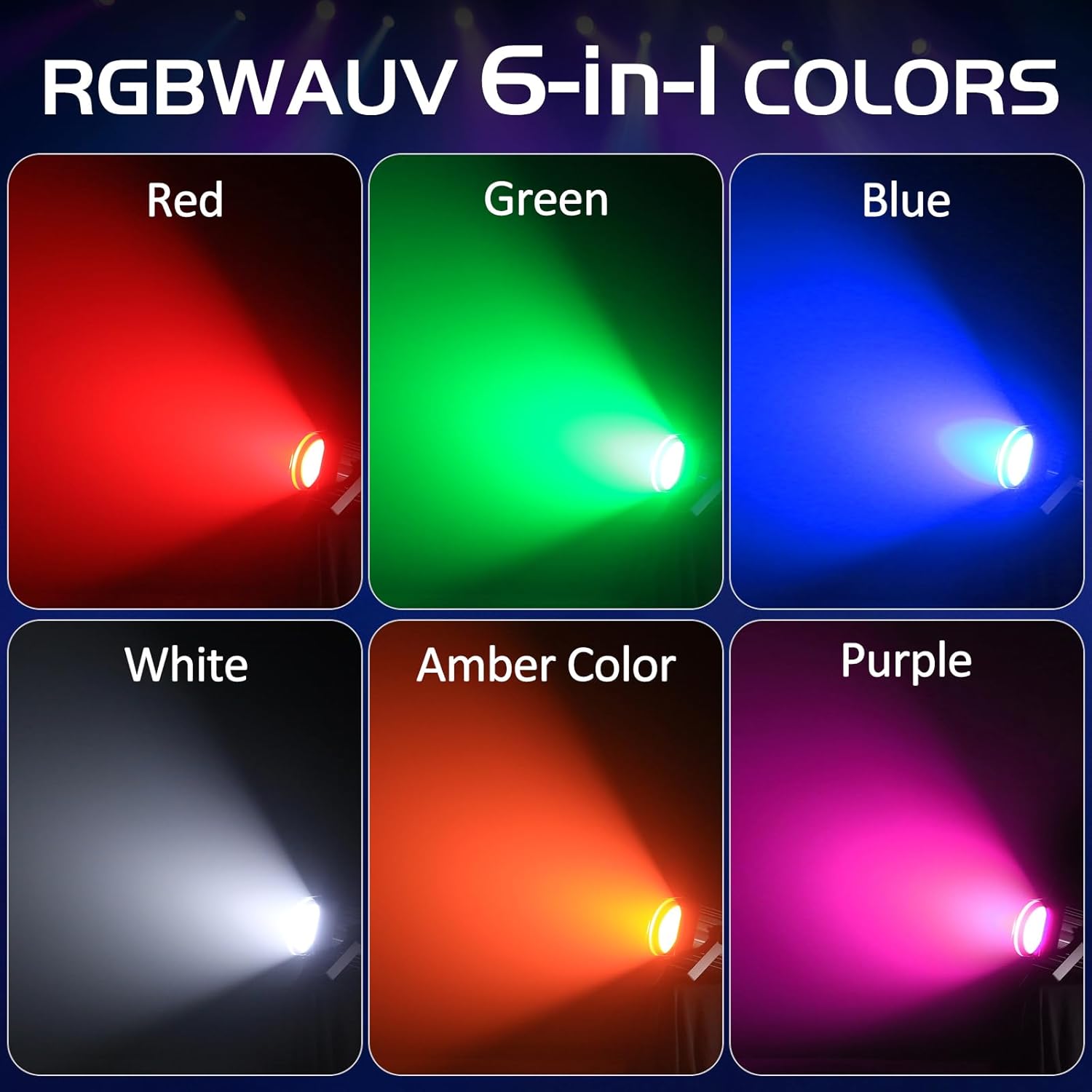

Figure 5.2: The 6-in-1 RGBWAUV color capabilities of the light.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Nitehop Par Light.
- Cleaning: Periodically clean the lens and exterior with a soft, lint-free cloth. Do not use abrasive cleaners or solvents.
- Inspection: Regularly check power cables, DMX cables, and mounting hardware for any signs of wear or damage. Replace damaged components immediately.
- Ventilation: Ensure that the ventilation openings are clear of dust and debris to maintain proper airflow and prevent overheating.
- Storage: When not in use, store the fixture in a dry, dust-free environment, ideally in its original packaging or a protective case.
7. Troubleshooting
If you encounter issues with your Nitehop Par Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, faulty cable, or internal issue. | Check power connection and outlet. Test with a different power cable. If problem persists, contact support. |
| No DMX control. | Incorrect DMX address, faulty DMX cable, or incorrect mode. | Verify DMX address and mode settings. Check DMX cable connections. Ensure DMX controller is functioning correctly. |
| Light flickers or behaves erratically. | Unstable power, DMX interference, or internal fault. | Ensure stable power supply. Check DMX connections for proper termination. If issue continues, contact support. |
| Overheating. | Blocked ventilation or prolonged use in high temperatures. | Ensure ventilation openings are clear. Operate in a well-ventilated area. Allow fixture to cool down if necessary. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | ZQ09013 |
| Power | 200 Watts |
| Light Source Type | RGBWA+UV 6in1 COB LED |
| Brightness | 8000-10000 Lumens |
| Beam Angle | 65 Degrees |
| Control Modes | DMX512, RDM, Automatic, Sound Activated, Master-Slave |
| Dimming | 0-100% Linear Dimming |
| Material | Aluminum Chassis |
| Color | Black |
| Product Dimensions | 1"L x 1"W x 1"H |
| Item Weight | 12.03 pounds |
| Lifespan | 50,000 hours (average) |
Figure 8.1: Physical dimensions and rear panel layout of the light fixture.
9. Warranty & Support
For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official Nitehop website. Keep your proof of purchase for warranty claims.
For additional resources and product information, visit the Nitehop Store on Amazon.
