Generic A1698206510 Car Master Power Window Switch User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Generic A1698206510 Car Master Power Window Switch. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Overview

The A1698206510 Car Master Power Window Switch is a replacement component designed for the front driver side of compatible vehicles. It integrates controls for power windows, mirror adjustment, and door locking/unlocking functions. Constructed from durable plastic and metal, this switch is engineered for reliable performance and a precise fit.

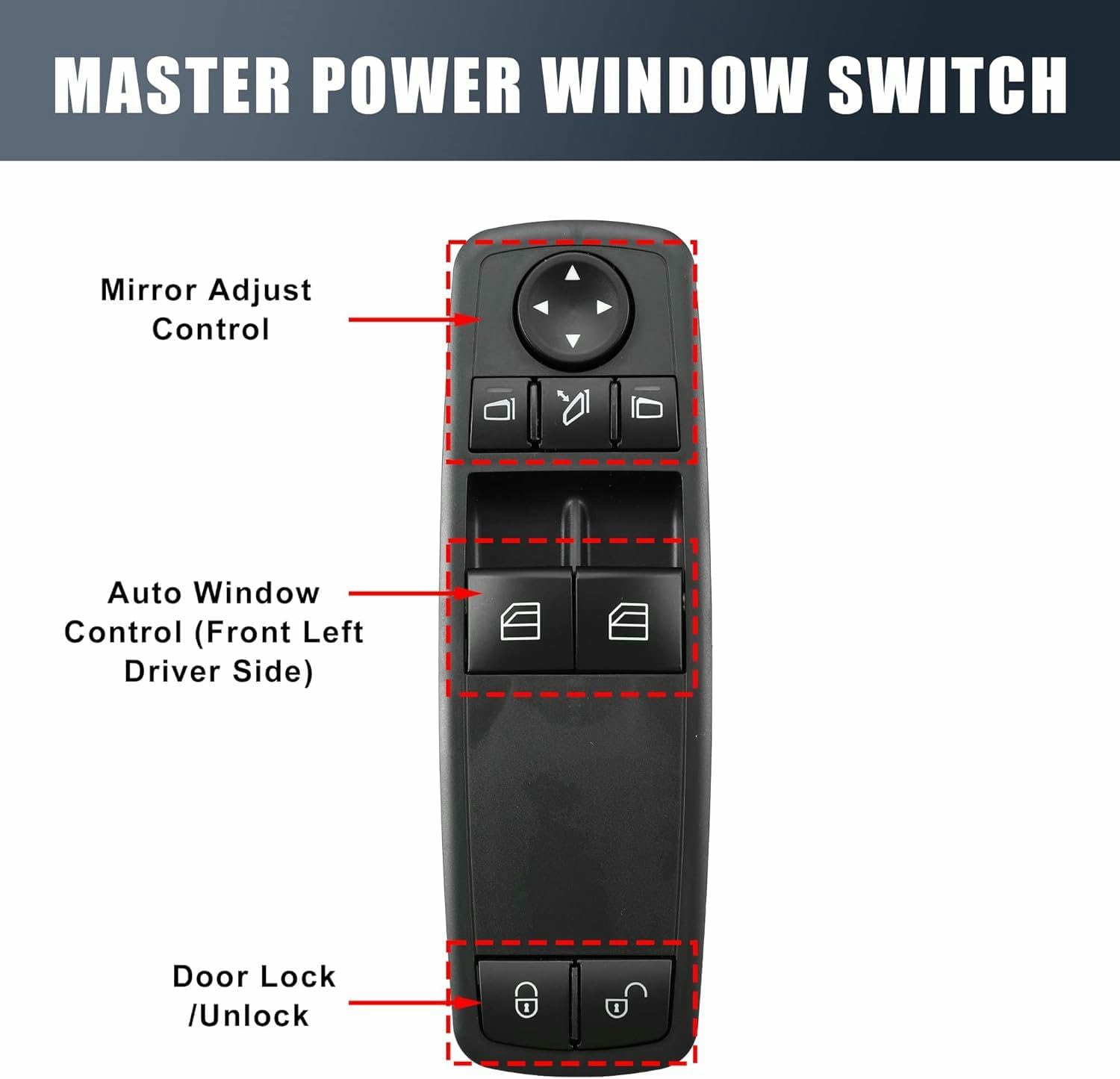

Figure 2.1: Overview of the Master Power Window Switch controls, indicating Mirror Adjust Control, Auto Window Control (Front Left Driver Side), and Door Lock/Unlock buttons.

3. Specifications

Figure 3.1: Rear view of the switch, showing the 3-pin connector for electrical connection.

4. Fitment Information

This power window switch is designed for specific Mercedes-Benz models. Please verify the OE number A1698206510 matches your original part before installation.

• For Mercedes-Benz W169 A150 A160 A170 A180 A200 (2004-2012)
• For Mercedes-Benz W245 B150 B160 B170 B180 B200 (2005-2011)

Figure 4.1: The switch is specifically for the Front Driver Side, with OE Number A1698206510.

5. Installation Instructions

Follow these steps for proper installation of the master power window switch. Professional installation is recommended if you are unfamiliar with automotive electrical systems.

1. Inspect Fuses: Before beginning, inspect the vehicle's fuse box for any faulty or open fuses that might affect window operation. Replace as necessary.
2. Remove Old Switch: Carefully use a pry tool or skid to remove the old power window switch from the door panel.
3. Disconnect Wiring: Pull out the electrical plug(s) from the old switch. Depending on your vehicle's make and model, you may need to remove the entire door panel to access the cabling.
4. Install New Switch: Insert the new power window switch into the opening in the door panel.
5. Reconnect Wiring: Connect the vehicle's wiring harness to the new switch. Ensure all connections are secure.
6. Test Operation: Before fully reassembling the door panel, test the operation of the windows, mirror adjustments, and door locks using the new switch.
7. Reinstall Door Panel: Once confirmed functional, reinstall the door panel and restore power to the vehicle.

Figure 5.1: Installation reference showing the steps: 1. Pry out old switch, 2. Pull out plug, 3. Connect new switch, 4. Install into bezel bracket.

6. Operating Instructions

The master power window switch provides control over various functions from the driver's side:

• Window Control: Use the designated buttons to raise or lower the vehicle's windows. Typically, a single press or pull will operate the window, with some models offering an 'auto' function for full opening/closing with one touch.
• Mirror Adjustment: Utilize the directional control pad to adjust the position of the side mirrors. Select the mirror to be adjusted (left or right) if applicable, then use the arrows to move the mirror glass.
• Door Lock/Unlock: Press the lock or unlock buttons to secure or open the vehicle's doors.

7. Maintenance

To ensure the longevity and proper function of your power window switch, consider the following maintenance guidelines:

• Keep Clean: Periodically wipe the surface of the switch with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
• Avoid Moisture: Prevent liquids from entering the switch mechanism, as this can cause electrical shorts or corrosion.
• Gentle Operation: Operate the buttons with appropriate force; excessive pressure is unnecessary and can lead to premature wear.

8. Troubleshooting

If you experience issues with your power window switch, consider these basic troubleshooting steps:

• Check Fuses: Verify that the relevant fuses in your vehicle's fuse box are intact and not blown. A blown fuse can prevent the switch or windows from operating.
• Inspect Connections: If accessible, ensure that the electrical connector to the switch is securely attached and free from corrosion.
• Test Other Windows: If only one window is affected, the issue might be specific to that window's motor or wiring, not the master switch. If all windows are unresponsive from the master switch, the switch itself or a main power supply issue is more likely.
• Professional Diagnosis: If basic troubleshooting does not resolve the issue, it is recommended to consult a qualified automotive technician for diagnosis and repair.
