EROMMY 20x30 FT Outdoor Party Tent Instruction Manual

Introduction

This manual provides detailed instructions for the safe and efficient assembly, operation, and maintenance of your EROMMY 20x30 FT Outdoor Party Tent. Please read this manual thoroughly before attempting to set up or use the tent. Proper assembly and care will ensure the longevity and optimal performance of your product.

Important Safety Information

WARNING:

• Do not use this tent in extreme weather conditions.
• Take protective measures when wind speeds reach 25 mph or higher.
• Ensure all connections are securely fastened before and during use.
• Always anchor the tent securely to the ground using all provided ropes and stakes.
• Keep all flame and heat sources away from the tent fabric.

Setup Instructions

The EROMMY 20x30 FT Outdoor Party Tent is designed for straightforward assembly. It is recommended to have multiple people for assembly due to the size and weight of the components.

1. Unpacking and Part Identification

Carefully unpack all components from the 3 included 600D Oxford bags. Lay out all poles, connectors, and fabric parts on a flat, clear area. Refer to the parts list in your packaging to ensure all components are present.

Figure 1: Product Dimensions and Capacity Overview.

2. Frame Assembly

Begin by assembling the base frame on the ground. The upgraded galvanized frame features 1.5-inch diameter powder-coated steel pipes and 1.65-inch diameter metal connectors for enhanced durability and rust resistance. Connect the poles using the provided screws and tools, ensuring each connection is secure.

Figure 2: Detailed view of the upgraded frame components.

3. Canopy Installation

Once the frame is assembled, carefully drape the 480GSM high-density PVC fabric roof over the frame. This premium fabric is 100% waterproof, 99% UV-resistant, and tear-resistant. Secure the canopy to the frame using the integrated straps and ties. Ensure the canopy is evenly distributed and taut across the frame.

4. Securing the Tent

Utilize the wind protection system by attaching the wider wind ropes to the designated points on the tent frame. Drive the strong ground nails into the ground through the base of the poles and secure the wind ropes. A reinforced steel wire at the top should be tightened during installation for additional stability.

Figure 3: Components of the tent's wind protection system.

5. Installation Video Guide

For a visual guide on the assembly process, please refer to the official EROMMY installation video:

Operating the Tent

Your EROMMY party tent is a versatile shelter suitable for a variety of outdoor activities. Its spacious interior makes it ideal for:

• Weddings and other formal events
• Parties and backyard gatherings
• Commercial use and outdoor markets
• Temporary carports or storage

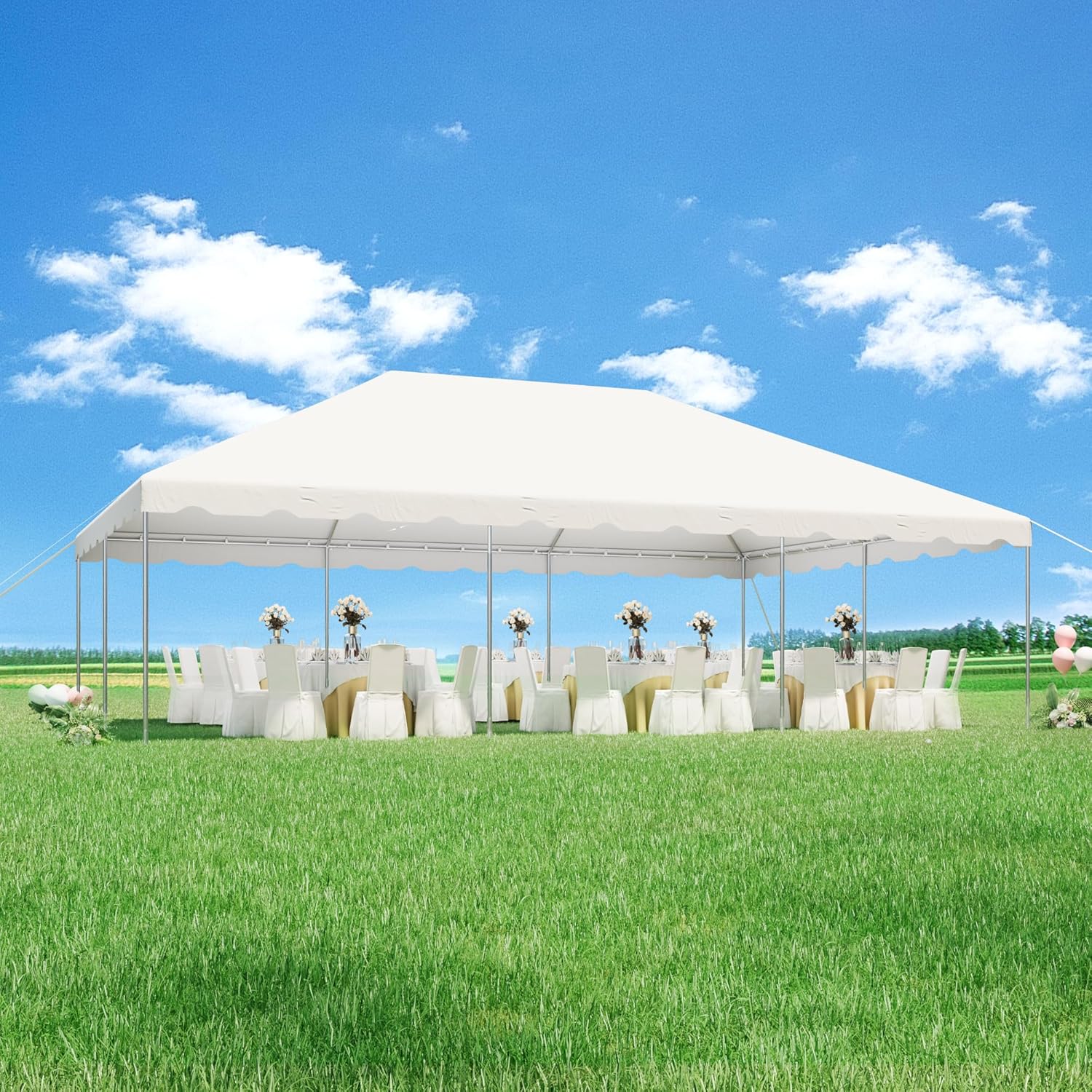

Figure 4: The EROMMY tent configured for an outdoor event.

Always ensure the tent is properly anchored and secured, especially in changing weather conditions. Monitor wind speeds and take necessary precautions as outlined in the safety section.

Maintenance

Regular maintenance will extend the life of your EROMMY party tent:

• Cleaning: Clean the PVC fabric with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material. Rinse thoroughly and allow to air dry completely before storage.
• Frame Care: Inspect the galvanized steel frame periodically for any signs of rust or damage. Clean any dirt or debris from the poles and connectors.
• Storage: When not in use, disassemble the tent and store all components in the provided 600D Oxford carry bags in a dry, cool place away from direct sunlight and extreme temperatures.
• Rope and Stake Inspection: Regularly check the condition of all ropes and ground nails. Replace any worn or damaged components to maintain tent stability.

Troubleshooting

• Tent Instability: Ensure all frame connections are tightened. Verify that all ground nails are fully inserted and all wind ropes are taut and properly anchored. High winds (above 25 mph) can compromise stability; consider disassembling the tent in such conditions.
• Water Leakage: While the PVC fabric is 100% waterproof, ensure the canopy is properly stretched and secured to prevent pooling of water, which can lead to leaks or damage. Check for any tears or punctures in the fabric.
• Difficulty Assembling: Refer to the step-by-step instructions and the installation video. Ensure you have enough people to assist with the assembly, as it requires coordinated effort. Verify that all parts are correctly identified and matched according to the manual.

Specifications

Warranty and Support

For information regarding product warranty, returns, or technical support, please contact EROMMY customer service directly. Refer to the contact information provided with your purchase or visit the official EROMMY website.
