Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Bellemave Triple Bunk Bed. Please read this manual thoroughly before assembly and use to ensure safe and proper operation. This metal twin over twin & twin bunk bed is designed as an excellent space saver, ideal for accommodating three children, extended family, guests, or sleepovers. It features a shelf on the upper bed for storage and a small table between the lower beds for convenience.

Important Safety Information

Your safety is paramount. Please adhere to the following guidelines:

• Always use the guardrails on the upper bunk to prevent falls.
• Assemble the bed strictly according to the provided instructions to ensure stability and structural integrity.
• Do not exceed the maximum weight capacity: 250 lbs for the top bunk and 350 lbs for each bottom bunk.
• Ensure all connections are securely tightened before use and periodically check for looseness.
• Keep children away from the assembly area until the bed is fully assembled.
• Only use mattresses of the specified size and thickness to ensure proper guardrail effectiveness.
• Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed, e.g., but not limited to, hooks, belts, or ropes.

(Source: Product Important Information)

Components and Parts List

Before beginning assembly, ensure all parts are present and undamaged. Refer to the included hardware pack for specific fasteners.

• Upper Bunk Frame (Twin XL)
• Lower Bunk Frames (Twin, x2)
• Guardrails (for upper bunk)
• Ladder
• Support Slats (22 sturdy slats)
• Connecting Hardware (bolts, nuts, washers, etc.)
• Upper Bunk Shelf
• Lower Bunk Middle Table

Note: The bunk bed comes in two separate packages, which may arrive at different times. Please ensure both packages have arrived before starting assembly.

Setup and Assembly

Assembly is straightforward and can typically be completed by two people in under 90 minutes. Follow the step-by-step instructions provided in the separate assembly guide included with your product. All necessary tools are included.

Key Assembly Steps:

1. Unpack all components and verify against the parts list.
2. Assemble the two lower twin bed frames first.
3. Attach the middle table component between the two lower beds.
4. Assemble the upper Twin XL bunk frame, including the shelf.
5. Carefully lift and secure the upper bunk frame onto the lower bed structure.
6. Install the guardrails on the upper bunk.
7. Attach the ladder securely to the upper bunk.
8. Insert all support slats into their designated positions.
9. Ensure all bolts and fasteners are fully tightened before use.

Image: Overview of the Triple Bunk Bed highlighting key features like guardrails and detachable design.

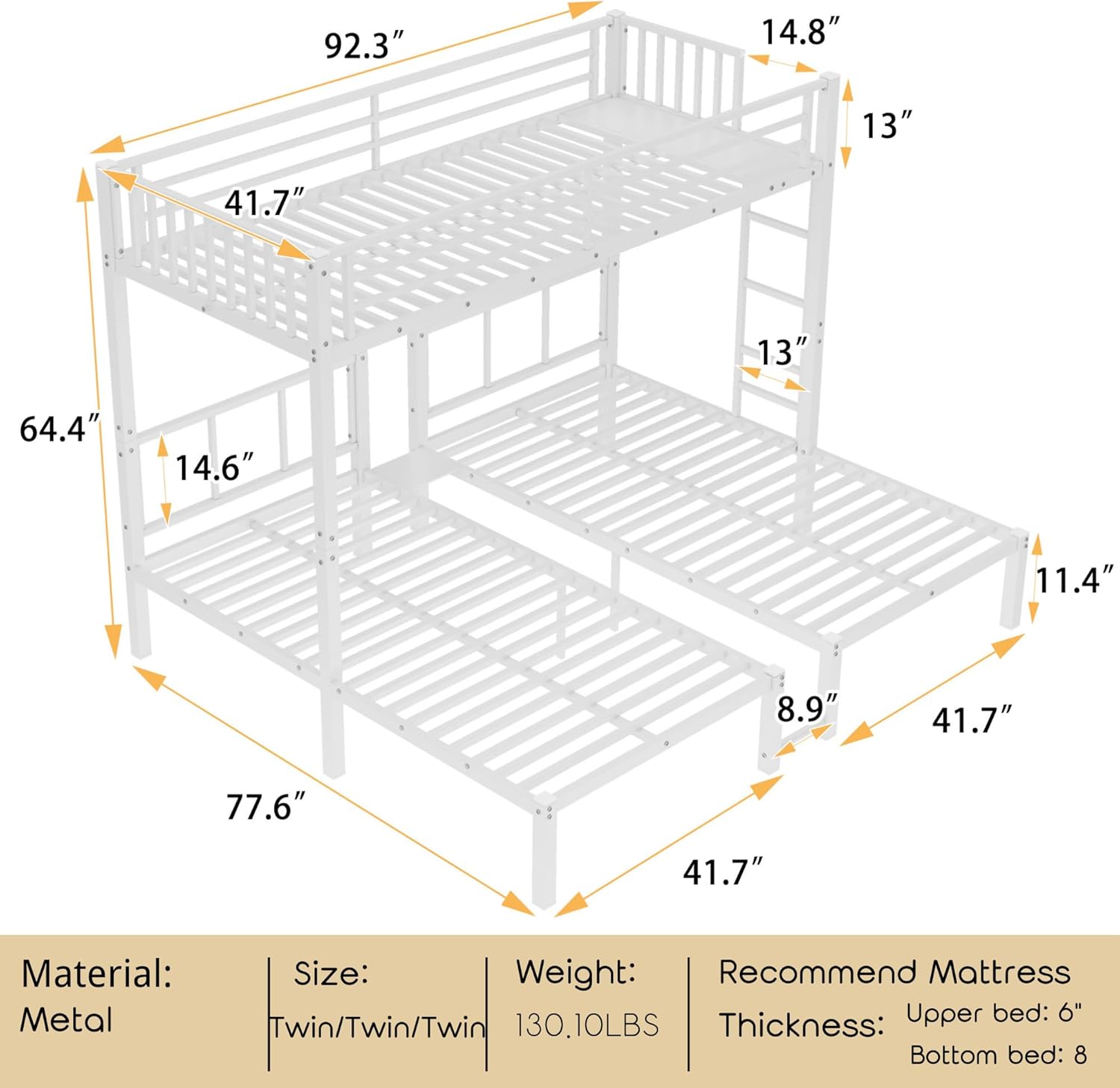

Image: Detailed dimensions of the assembled bunk bed.

Image: Illustration of the bed's convertible design, allowing it to be separated into three individual twin beds.

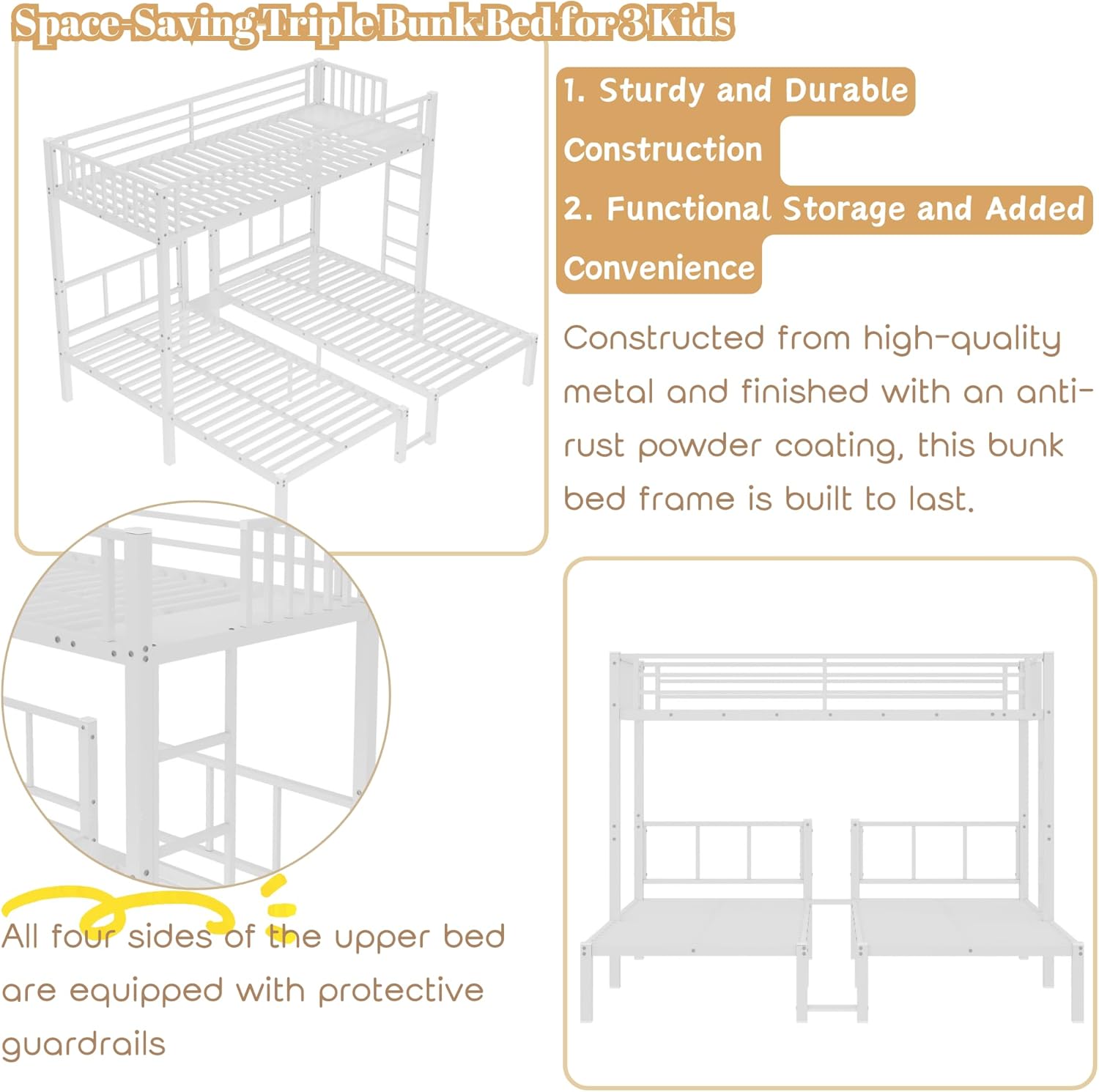

Image: Details of the sturdy construction, including slats and guardrails.

Operating and Usage

The Bellemave Triple Bunk Bed is designed for versatile use and maximum space efficiency.

• Triple Bunk Configuration: Use as a twin XL over two twin beds for three occupants. The upper bunk is accessed via the integrated ladder.
• Convertible Design: The bed can be easily transformed into three separate twin-size beds as needed. This provides flexibility for different room layouts or changing sleeping arrangements.
• Upper Bunk Shelf: Utilize the integrated shelf on the upper bunk for storing small items like books, glasses, or personal accessories.
• Lower Bunk Middle Table: The small table positioned between the two lower beds is convenient for placing drinks, snacks, or reading materials.
• Under-Bed Clearance: The design allows for ample space underneath the lower bunks, which can be used for additional storage of toys, boxes, or other items.

Image: The Triple Bunk Bed in its primary configuration, showcasing its space-saving design.

Image: The bunk bed disassembled into three separate beds, illustrating its versatility.

Maintenance

Proper maintenance will extend the life and appearance of your bunk bed.

• Cleaning: Wipe down metal surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the anti-rust powder coating.
• Tightening Fasteners: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they remain tight. Loose fasteners can compromise the bed's stability and safety.
• Inspection: Regularly inspect the bed frame for any signs of wear, damage, or rust. Address any issues promptly.
• Mattress Care: Follow the mattress manufacturer's guidelines for cleaning and rotation to ensure proper support and hygiene.

Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common solutions:

Specifications

Warranty and Support

For any questions regarding assembly, missing parts, or product issues, please contact Bellemave customer support. Refer to your purchase documentation for specific warranty details.

You can visit the official Bellemave store on Amazon for more information: Bellemave Store

Protection plans are also available for extended coverage. Please check the product page for details on 2-Year and 3-Year Protection Plans.
