Robot Vacuum Cleaner Wheel User Manual
Compatible with LIECTROUX C30B/XR500 Models
Brand: FGFHTFH | Model: gewgew55
1. Product Overview
This manual provides essential information for the FGFHTFH Robot Vacuum Cleaner Wheel, designed as a replacement part for LIECTROUX C30B and XR500 robotic vacuum cleaner models. This wheel ensures smooth and efficient movement of your robot vacuum across various floor surfaces, maintaining optimal cleaning performance.
Figure 1: Front view of the FGFHTFH Robot Vacuum Cleaner Wheel.
2. Installation (Setup)
Replacing the robot vacuum cleaner wheel is a straightforward process. Ensure the robot vacuum is powered off and disconnected from any charging source before beginning the installation.
- Prepare the Vacuum: Turn the robot vacuum upside down to access the wheel assembly.
- Remove Old Wheel: Carefully locate the screws or clips holding the existing wheel module in place. Unscrew or unclip them to detach the old wheel. Disconnect any wiring if present.
- Install New Wheel: Align the new FGFHTFH wheel module with the mounting points on the vacuum. Connect any necessary wiring. Secure the new wheel module using the screws or clips removed earlier. Ensure it is firmly seated.
- Test Functionality: Once installed, turn the vacuum right-side up and power it on to verify that the new wheel moves freely and correctly.

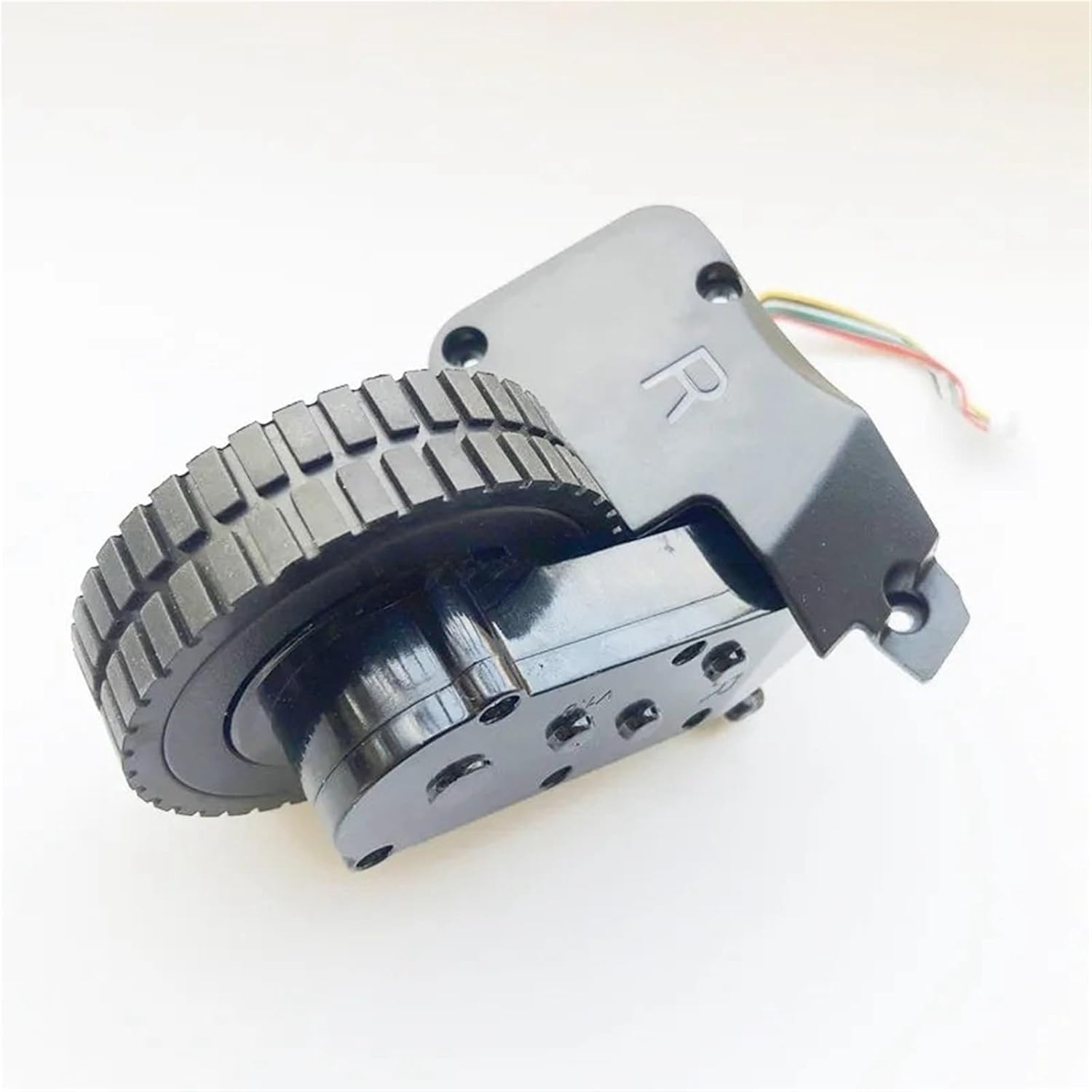

Figure 2: Side view of the wheel assembly, showing the wheel and housing.
Figure 3: Underside view of the wheel assembly, indicating mounting points.
Figure 4: Internal view showing the motor and circuitry connected to the wheel.
3. Operating Principles
The FGFHTFH Robot Vacuum Cleaner Wheel is designed to provide reliable and smooth locomotion for your LIECTROUX C30B/XR500 robot vacuum. Its robust construction allows the vacuum to navigate various floor types, including hard floors and low-pile carpets, ensuring consistent cleaning coverage.
Properly installed wheels enable the robot to:
- Move forward, backward, and turn effectively.
- Overcome small obstacles and transitions between different floor surfaces.
- Maintain stable movement during cleaning cycles.
4. Maintenance
Regular maintenance of your robot vacuum's wheels is crucial for prolonging their lifespan and ensuring optimal cleaning performance. Timely replacement of damaged or worn parts is recommended.
- Regular Inspection: Periodically inspect the wheels for any signs of wear, damage, or debris accumulation (e.g., hair, dust, threads).
- Cleaning: Use a soft brush or cloth to remove any tangled hair or debris from around the wheel axle and tread. Ensure the wheel spins freely.
- Replacement: If the wheels show significant wear, are damaged, or no longer move smoothly, they should be replaced to maintain the vacuum's navigation and cleaning efficiency.
Figure 5: Individual left wheel, showing tread for traction.
Figure 6: A pair of robot vacuum wheels (left and right).
5. Troubleshooting
If your robot vacuum experiences issues related to movement after wheel replacement, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Wheel not moving or stuck. | Debris tangled around the axle; incorrect installation; faulty motor. | Clean debris from the wheel and axle. Re-install the wheel ensuring proper alignment and connection. If issues persist, the motor might be faulty. |
| Vacuum moves unevenly or in circles. | One wheel is not functioning correctly; uneven wear on wheels. | Inspect both wheels for smooth rotation and debris. Ensure both wheels are properly installed. Consider replacing both wheels if one is significantly worn. |
| Unusual noise from wheels. | Debris in the wheel mechanism; worn bearings. | Clean the wheel area thoroughly. If noise persists, the internal mechanism might be worn, requiring replacement. |
6. Specifications
| Attribute | Detail |
|---|---|
| Product Name | Robot Vacuum Cleaner Wheel |
| Compatibility | LIECTROUX C30B/XR500 Robotic Vacuum Cleaners |
| Brand | FGFHTFH |
| Model Number | gewgew55 |
| Color | Large (as per variant) |
| Item Weight | 1.76 ounces (approx. 50 Grams) |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Country of Origin | China |
7. Warranty and Support
This product is typically covered by a standard return policy. For specific warranty details, returns, or technical support, please refer to the purchase platform or contact the seller directly. The manufacturer is listed as gewgew55.
Please retain your proof of purchase for any warranty claims or support inquiries.
- Return Policy: Typically 30 days from purchase, subject to seller's terms.
- Manufacturer: gewgew55
