Introduction
This manual provides essential information for the proper installation and maintenance of the 5170044-41 Idle Down Valve and Cable Replacement Kit. This kit is designed to replace the complete engine throttle cable with an attached idle down valve for specific DeWalt pressure washers utilizing an automatic idle control system. Proper installation is crucial for optimal performance and longevity of your equipment.
This replacement kit is compatible with the following DeWalt pressure washer models:
- DeWalt DXPW3224I Pressure Washer (Item Number 61109)
- DeWalt DXPW61337 Pressure Washer (Item Number 61337)
Safety Information
Always prioritize safety when working with power equipment and replacement parts. Read and understand all instructions before beginning installation. Failure to follow these instructions may result in equipment damage or personal injury.
- Torque Specifications: Adhere strictly to the specified torque values for all bolts. Over-tightening, especially the Banjo Bolt, can cause breakage.
- Tools Required: A torque wrench and digital tachometer are required for proper installation.
- Personal Protective Equipment: Wear appropriate safety gear, including gloves and eye protection, during installation.
- Power Disconnection: Ensure the pressure washer is turned off and disconnected from any power source before attempting any installation or maintenance.
Installation Instructions

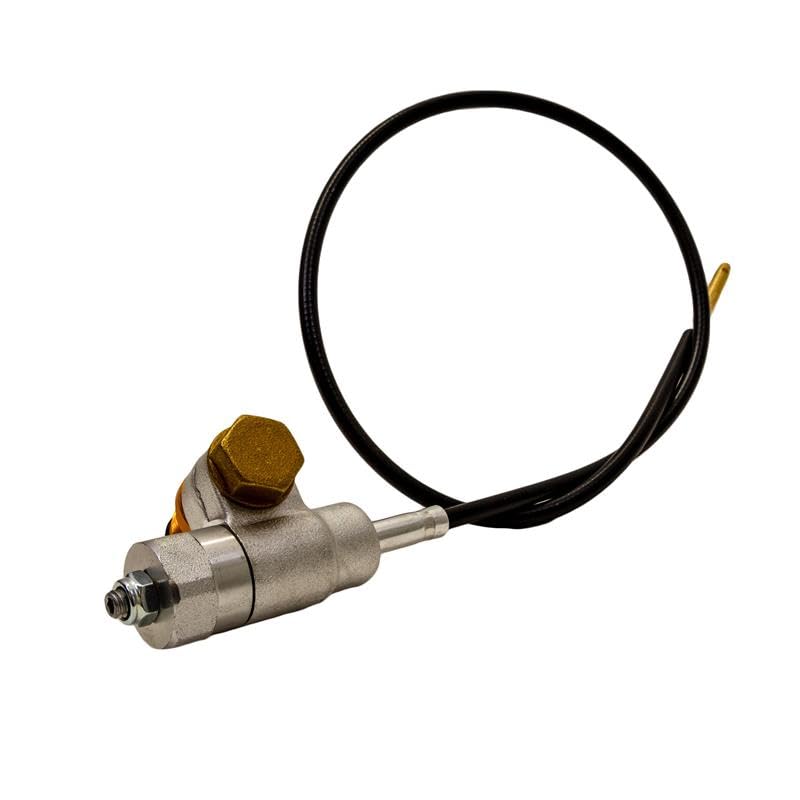

Image: The complete 5170044-41 Idle Down Valve and Cable Replacement Kit.
The 5170044-41 kit includes the idle down valve, cable, and mounting Banjo Bolt. Follow these steps carefully for proper installation:
- Preparation: Ensure the pressure washer is stable and all power is disconnected. Remove the old idle down valve and cable assembly.
- Install New Valve Cap: Install the new Valve Cap. Torque to a maximum of 13 Ft lbs. / 159 In Lbs. / 18 N-M.
- Install New Banjo Bolt: Install the new Banjo Bolt. Torque to a maximum of 7-8 Ft lbs. / 88-96 In Lbs. / 10-11 N-M. Caution: Over-tightening this bolt will result in breakage.
- Re-install Cable Retention Bolts: Re-install the previously removed cable retention bolts. Torque to a maximum of 7.3 Ft lbs. / 87.6 In Lbs. / 9.9 N-M.
- Final Check: Verify all connections are secure and the cable moves freely without obstruction.
Image: A detailed view of the idle down valve and cable components.
Image: A close-up view of the idle down valve, highlighting the Banjo Bolt connection point.
Image: An underside view of the idle down valve, showing internal components and cable attachment.
Operation
Once installed, the idle down valve system automatically controls the engine's idle speed, reducing fuel consumption and noise when the pressure washer is not actively spraying. This system is designed to engage when the spray gun trigger is released and disengage when the trigger is pulled, allowing the engine to return to full operating speed.
Maintenance
Regular maintenance ensures the longevity and proper function of your idle down valve and pressure washer. Inspect the cable and valve assembly periodically for signs of wear, corrosion, or damage. Ensure the cable moves freely and is not kinked or obstructed. Keep the area around the valve clean from debris.
- Check all bolted connections for proper torque, especially the Banjo Bolt, to prevent loosening or breakage.
- Clean any dirt or grime from the valve and cable to ensure smooth operation.
- If the idle down function becomes erratic, inspect the cable for binding or the valve for internal obstruction.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Idle down valve not functioning correctly (e.g., engine idles high constantly or stalls) | Cable binding or damaged; valve obstructed; incorrect installation torque. | Inspect cable for kinks or obstructions. Clean valve. Verify installation torque values, especially for the Banjo Bolt. |
| Banjo Bolt breaks during or after installation | Over-tightening of the Banjo Bolt. | Ensure a torque wrench is used and the specified torque (7-8 Ft lbs.) is not exceeded. Replace broken bolt. |
| Missing O-rings or damaged components upon arrival | Shipping damage or packaging error. | Contact Allparts Equipment & Accessories customer support for replacement parts. |
Specifications
- Model Number: 5170044-41
- Material: Metal
- Dimensions (L x W x H): 24 x 0.75 x 0.5 inches
- Item Weight: 1 pound
- Inlet Connection Type: Flange
- Number of Ports: 2
- Color: Silver
- Included Components: Banjo Bolt Kit
- Manufacturer: AAA Simpson by FNA Group
- UPC: 676737699673
Warranty and Support
Allparts Equipment & Accessories stands behind the quality of its OEM replacement components. For specific warranty details or technical support, please refer to the official Allparts Equipment & Accessories website or contact their customer service directly. They offer USA-based technical support to assist with any questions or issues.
