Panasonic EH-NE6M-C452
Panasonic EH-NE6M-C452 Ionity Hair Dryer User Manual
Model: EH-NE6M-C452
1. Important Safety Instructions
Read all instructions before using this appliance. When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:
- Do not use while bathing or in a shower.
- Do not place or store appliance where it can fall or be pulled into a tub or sink.
- Do not place in or drop into water or other liquid.
- Do not reach for an appliance that has fallen into water. Unplug immediately.
- Always unplug this appliance from electrical outlet immediately after using.
- Unplug this appliance before cleaning.
DANGER: Any appliance is electrically live even when the switch is off. To reduce the risk of death or injury by electric shock:
- Always unplug this appliance immediately after using.
- Do not use while bathing or in a shower.
- Do not place or store appliance where it can fall or be pulled into a tub or sink.
- Do not place in or drop into water or other liquid.
- If an appliance falls into water, unplug it immediately. Do not reach into the water.
2. Product Overview

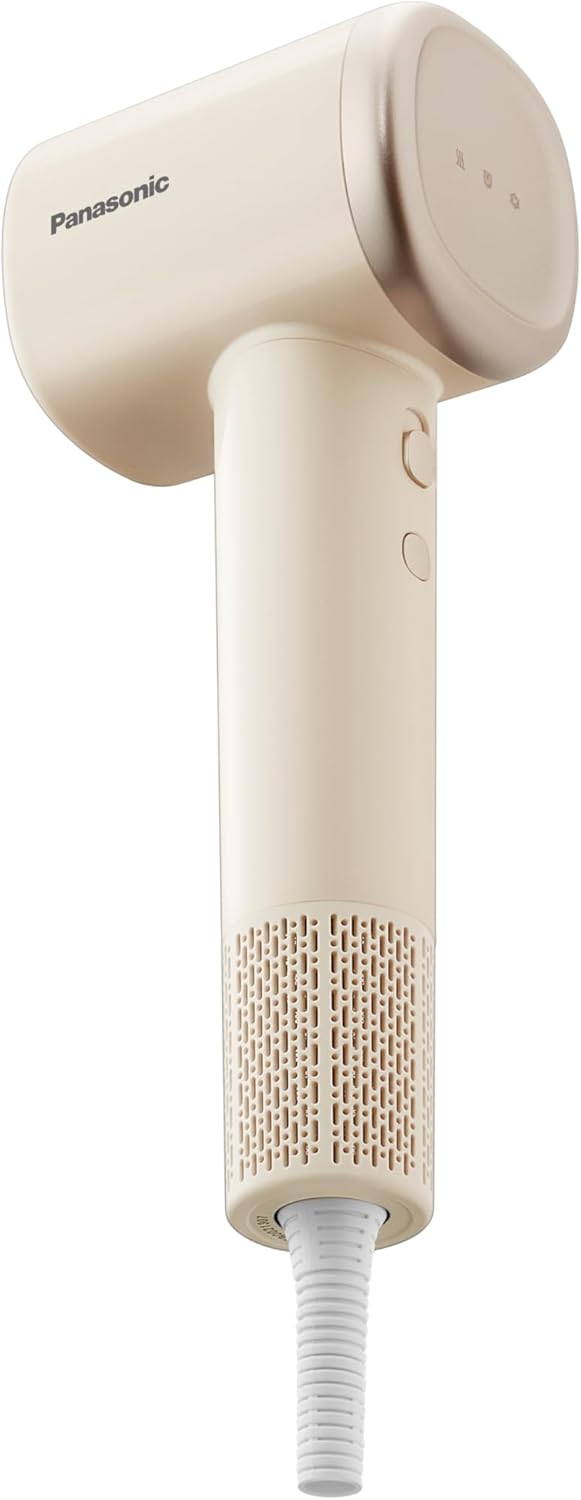

The Panasonic EH-NE6M-C452 Ionity Hair Dryer is designed for efficient and gentle hair drying, featuring advanced temperature control and powerful airflow.
3. Setup and First Use
3.1 Unpacking
Carefully remove the hair dryer and all accessories from the packaging. Retain the packaging for future storage or transport.
3.2 Power Connection
Ensure your hands are dry before plugging the hair dryer into a suitable electrical outlet. The appliance operates on 240 Volts.
3.3 Initial Inspection
Before first use, inspect the power cord and the appliance for any signs of damage. Do not use if damaged.
4. Operating Instructions
4.1 Powering On/Off
To turn on the hair dryer, slide the power switch to the desired speed setting. To turn off, slide the switch to the 'OFF' position.
4.2 Temperature and Speed Settings
The Panasonic EH-NE6M-C452 offers multiple temperature and speed settings for customized drying.
- Temperature Modes: Select from Hot/Cold Alternating, Cold, Hot, or Heat Protection modes using the temperature control button.
- Speed Settings: Choose between Gentle Airflow (I) and Fast Airflow (II) using the speed switch.
4.3 Linear Airflow Technology
This hair dryer features Linear Airflow technology, providing a uniform airflow for smoother hair.
4.4 Intelligent Temperature Control (NTC Detection)
The hair dryer is equipped with NTC detection, which senses the air temperature 100 times per second to prevent overheating and maintain consistent temperature.
- NTC Detection: A sensitive NTC chip detects air temperature 100 times per second, adjusting power output to maintain consistent temperature.
- Smart Temperature Control System: Stops current to blow cool air if temperature is too hot, resuming warm air once temperature falls.
- Overheat Protection: The heater automatically stops if the air temperature becomes too hot.
4.5 Memory Retention Mode
The hair dryer features a memory retention mode, allowing you to save your preferred drying settings for effortless use.
4.6 Low Noise Operation
Designed for quiet operation, the hair dryer produces less than 66dB of noise, making it suitable for use at any time.
5. Maintenance and Care
5.1 Cleaning the Air Intake Filter
Regularly clean the air intake filter to ensure optimal performance and prevent dust buildup. A double-layered anti-hair suction mesh is designed to reduce hair entanglement.
To clean: Unplug the hair dryer. Gently remove any accumulated dust or lint from the mesh using a soft brush or cloth. Do not use water or harsh chemicals.
5.2 General Cleaning
Wipe the exterior of the hair dryer with a soft, damp cloth. Do not immerse the appliance in water or any other liquid.
5.3 Storage
When not in use, store the hair dryer in a cool, dry place, away from direct sunlight and moisture. Do not wrap the power cord tightly around the appliance, as this can damage the cord.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Hair dryer does not turn on. | No power supply; power cord damaged; internal fault. | Check if plugged in correctly. Try a different outlet. Inspect power cord for damage. If damaged, do not use and contact customer support. |
| Airflow is weak. | Air intake filter is blocked with dust/lint. | Unplug the hair dryer and clean the air intake filter as described in the Maintenance section. |
| Hair dryer stops working during use. | Overheat protection activated. | Unplug the hair dryer and allow it to cool down for several minutes. Check for any blockages in the air intake or outlet. Re-plug and try again. |
| Unusual noise or smell. | Internal component issue; foreign object inside. | Immediately unplug the hair dryer. Do not attempt to repair. Contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | EH-NE6M-C452 |
| Brand | Panasonic |
| Color | Light Beige |
| Wattage | 1500 watts |
| Voltage | 240 Volts |
| Item Weight | 500 Grams |
| Product Dimensions | 9.4D x 7W x 24H centimetres |
| Noise Level | Less than 66dB |
| Airflow Speed | Up to 66m/s (Cold mode) / 67.08 m/s (Hot mode) |
| Motor Speed | 104,800 rpm (digital motor) |
| Temperature Detection | NTC detection (100 times/s) |
8. Warranty and Support
This Panasonic EH-NE6M-C452 Ionity Hair Dryer comes with a 1 Year Manufacturer Warranty.
For warranty claims, technical support, or service inquiries, please contact Panasonic customer service. Keep your proof of purchase for warranty validation.
For more information, you may visit the official Panasonic website or refer to the contact details provided with your product packaging.
