Bellemave WL000039-3TB-1-1 Triple Bunk Bed Instruction Manual

1. Safety Information

Please read and understand all instructions before assembly and use of this product. Failure to follow these instructions may result in serious injury.

• Exercise caution around sharp edges and potential pinch points during assembly and use.
• Ensure all connections are securely fastened before use. Periodically check and tighten all bolts and screws.
• The top bunk is not recommended for children under 6 years of age.
• Do not allow more than one person on the upper bunk at any time.
• Always use the provided ladder for access to the upper bunk. Do not use alternative climbing methods.
• Do not attach or hang items on any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.
• Mattress thickness should not exceed 6 inches for the upper bunk to ensure adequate guardrail height.

2. Product Overview

The Bellemave Triple Bunk Bed is designed to provide sleeping arrangements for up to three individuals in a compact space. This metal bunk bed features a twin upper bunk and two twin lower beds, offering versatility and functionality.

Key Features:

• Triple Sleeping Capacity: Accommodates one twin mattress on the upper bunk and two twin mattresses on the lower level.
• Detachable Design: The bunk bed can be separated into three individual twin beds for flexible room arrangements.
• Sturdy Construction: Constructed from premium metal with a powder-coated finish for durability and rust resistance. Features solid steel slats for mattress support, eliminating the need for a box spring.
• Integrated Safety: Equipped with guardrails on the upper bunk and a built-in ladder for secure access.
• Smart Storage: Includes a shelf adjacent to the upper bunk and a small desk area between the two lower beds.

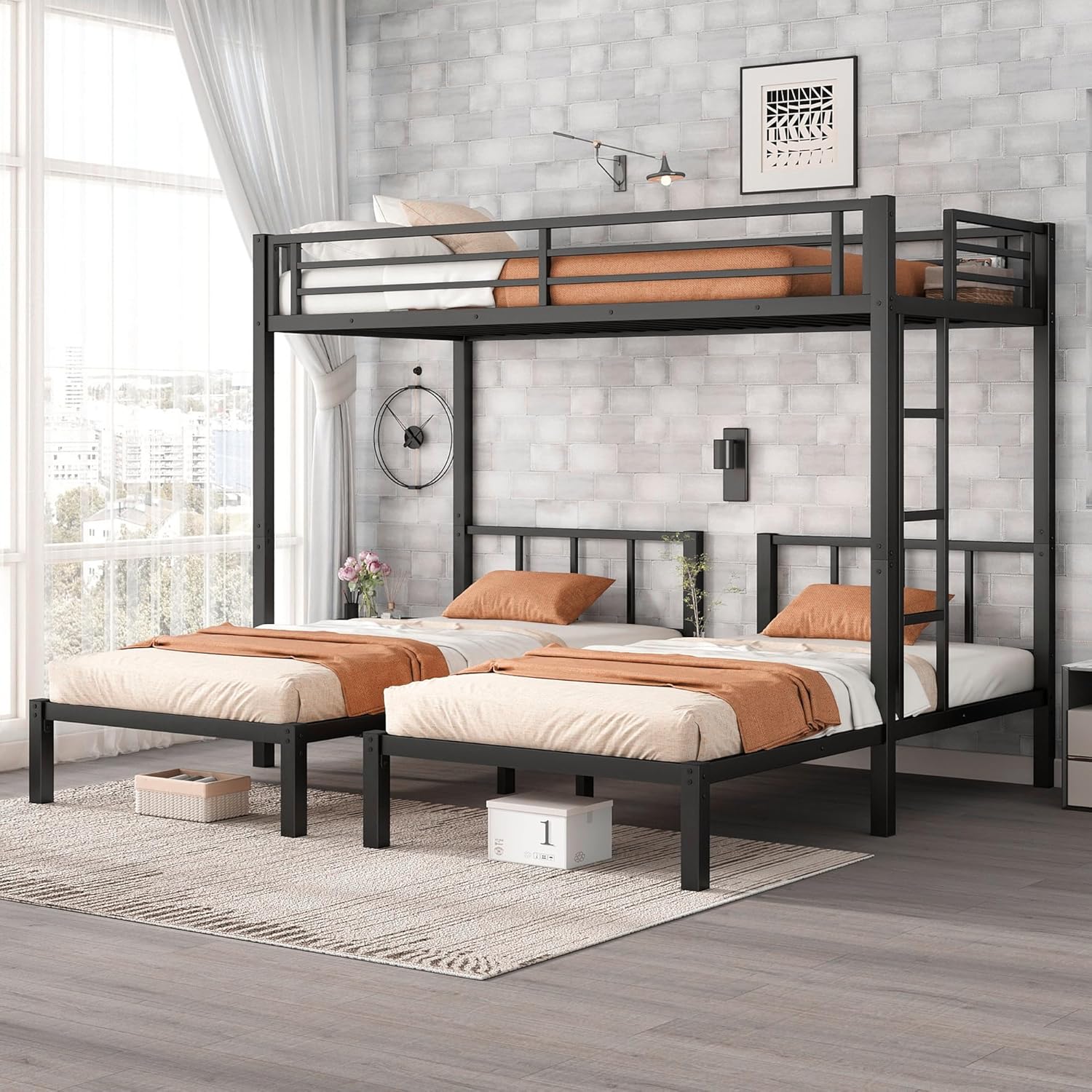

Image 2.1: Fully assembled Bellemave Triple Bunk Bed in a bedroom setting.

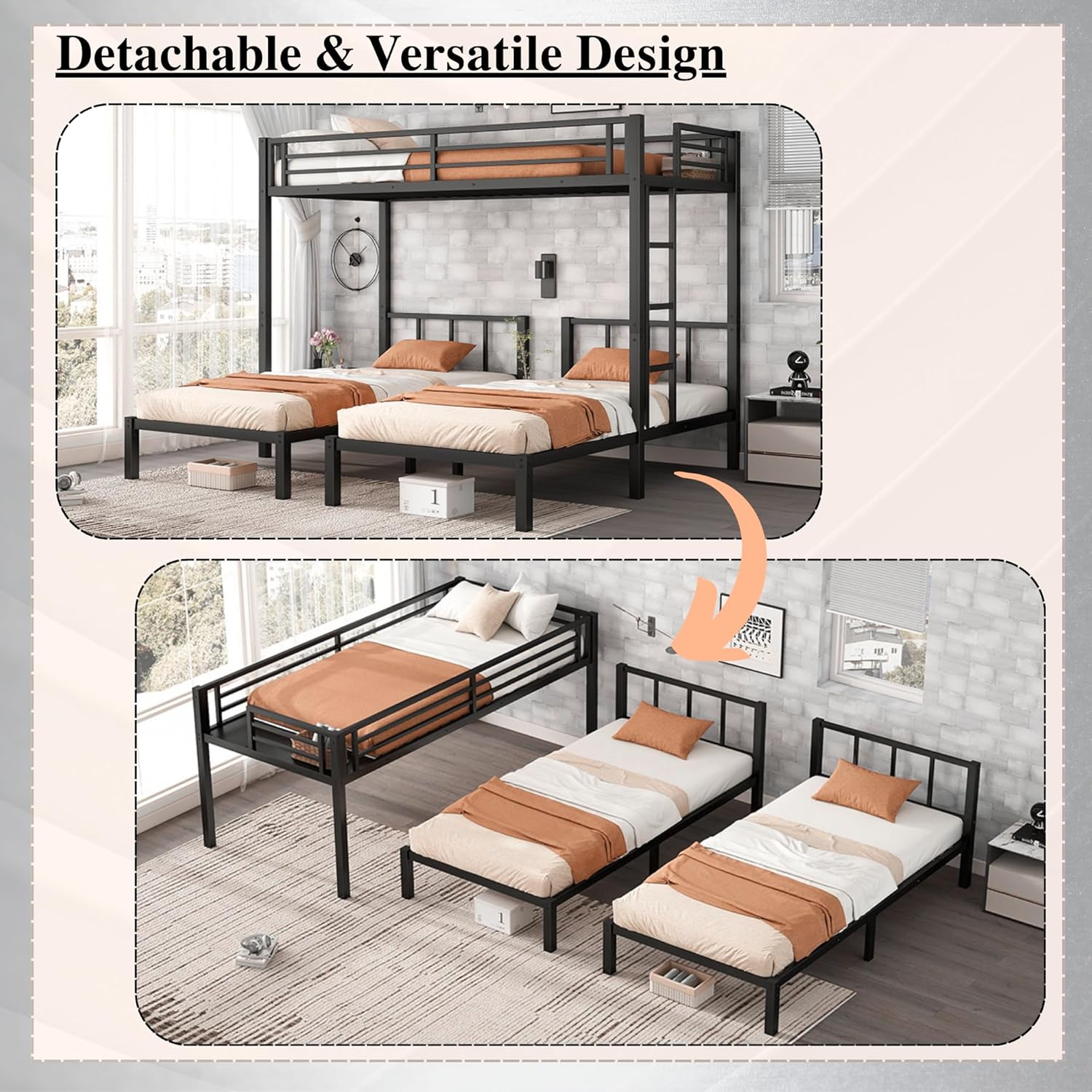

Image 2.2: Illustration of the bunk bed's detachable feature, converting into three separate twin beds.

Image 2.3: Detailed view of the integrated shelf on the upper bunk and the small desk between the lower beds.

3. Setup and Assembly

The Bellemave Triple Bunk Bed requires assembly. It is recommended that two adults assemble this product. The product ships in two separate boxes, which may arrive at different times.

Before You Begin:

• Unpack All Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches.
• Verify Parts: Compare the contents with the included parts list to ensure all components are present. If any parts are missing or damaged, contact customer support before proceeding.
• Gather Tools: Ensure you have all necessary tools as specified in the separate assembly instructions provided with the product.

Assembly Steps:

1. Refer to the detailed step-by-step assembly instructions included in your product packaging.
2. Follow the diagrams and numbered parts carefully.
3. Do not fully tighten all bolts until the entire structure is assembled, unless otherwise specified. This allows for easier alignment of parts.
4. Once assembled, ensure all bolts are securely tightened.

Note: The assembly instructions provided in the product packaging contain specific diagrams and part identifiers crucial for correct assembly. Please consult those documents for precise guidance.

4. Operating Instructions

This section outlines the proper use of your Bellemave Triple Bunk Bed.

General Use:

• Place twin-sized mattresses on each bed frame. Ensure mattresses fit snugly within the frame.
• For the upper bunk, ensure the mattress height does not compromise the effectiveness of the guardrails.
• Use the built-in ladder for safe access to and from the upper bunk.
• Utilize the integrated shelf for small items like books or personal accessories.
• The small desk area between the lower bunks can be used for light activities or storage.

Detachable Configuration:

To convert the triple bunk bed into three separate twin beds:

1. Carefully remove the upper bunk from its supports. This process may require two adults.
2. Disassemble any connecting components between the lower beds if they are joined.
3. Position the three twin beds as desired. Ensure all beds are stable and level.

5. Maintenance

Regular maintenance will help prolong the life and ensure the safety of your bunk bed.

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Structural Integrity: Regularly check for any signs of wear, damage, or bending in the metal frame or slats. Discontinue use if significant damage is observed and contact customer support.

6. Troubleshooting

This section addresses common issues you might encounter with your Bellemave Triple Bunk Bed.

• Bed feels unstable or wobbly:
  Ensure all bolts and screws are fully tightened. Check that the bed is placed on a level surface. If the issue persists, disassemble and reassemble, paying close attention to the alignment of parts.
• Squeaking noises:
  Tighten all hardware. Apply a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points if tightening does not resolve the issue.
• Difficulty during assembly:
  Review the provided assembly instructions carefully, focusing on diagrams and part numbers. Some parts may appear similar but have subtle differences in orientation. If instructions are unclear, refer to the manufacturer's support resources.
• Slats or frame bending/breaking:
  Ensure the bed's weight capacity is not exceeded. Avoid excessive force or jumping on the bed. If parts are damaged, contact customer support for replacement parts.

7. Specifications

Detailed specifications for the Bellemave WL000039-3TB-1-1 Triple Bunk Bed.

Image 7.1: Dimensional diagram of the Bellemave Triple Bunk Bed.

8. Warranty and Support

For information regarding product warranty, please refer to the documentation included with your purchase or contact the seller directly. Bellemave offers customer support for product inquiries and assistance.

For customer support, please visit the Bellemave Store on Amazon or contact the seller, Belle-Direct, through your purchase platform.
