1. Introduction
This manual provides essential information for the proper use, installation, and maintenance of your TEHAUX M10 Brass Lamp Rod Connectors. Please read these instructions carefully before beginning any installation or repair work to ensure safety and optimal performance.
2. Product Overview
The TEHAUX M10 Brass Lamp Rod Connectors are designed for various lighting and DIY projects, offering a reliable solution for extending or connecting threaded rods in chandeliers, light fixtures, and other applications. Each connector features a hollow interior to facilitate the passage of electrical wires or cables.
Figure 2.1: An 8-piece set of TEHAUX M10 Brass Lamp Rod Connectors, showcasing their golden finish and threaded design.
Key Features:
- Material: Constructed from durable copper (brass) for longevity and strength.
- Thread Type: M10 standard metric threads for precise and compatible connections.
- Design: Hollow interior allows for easy routing of wires and cables.
- Versatility: Suitable for chandeliers, light fixtures, and various DIY repair projects.
- Dimensions: Approximately 2.00 cm (0.79 inches) in length and 1.00 cm (0.39 inches) in diameter.
Figure 2.2: Detailed dimensions of a single M10 Brass Lamp Rod Connector, indicating its length and diameter.

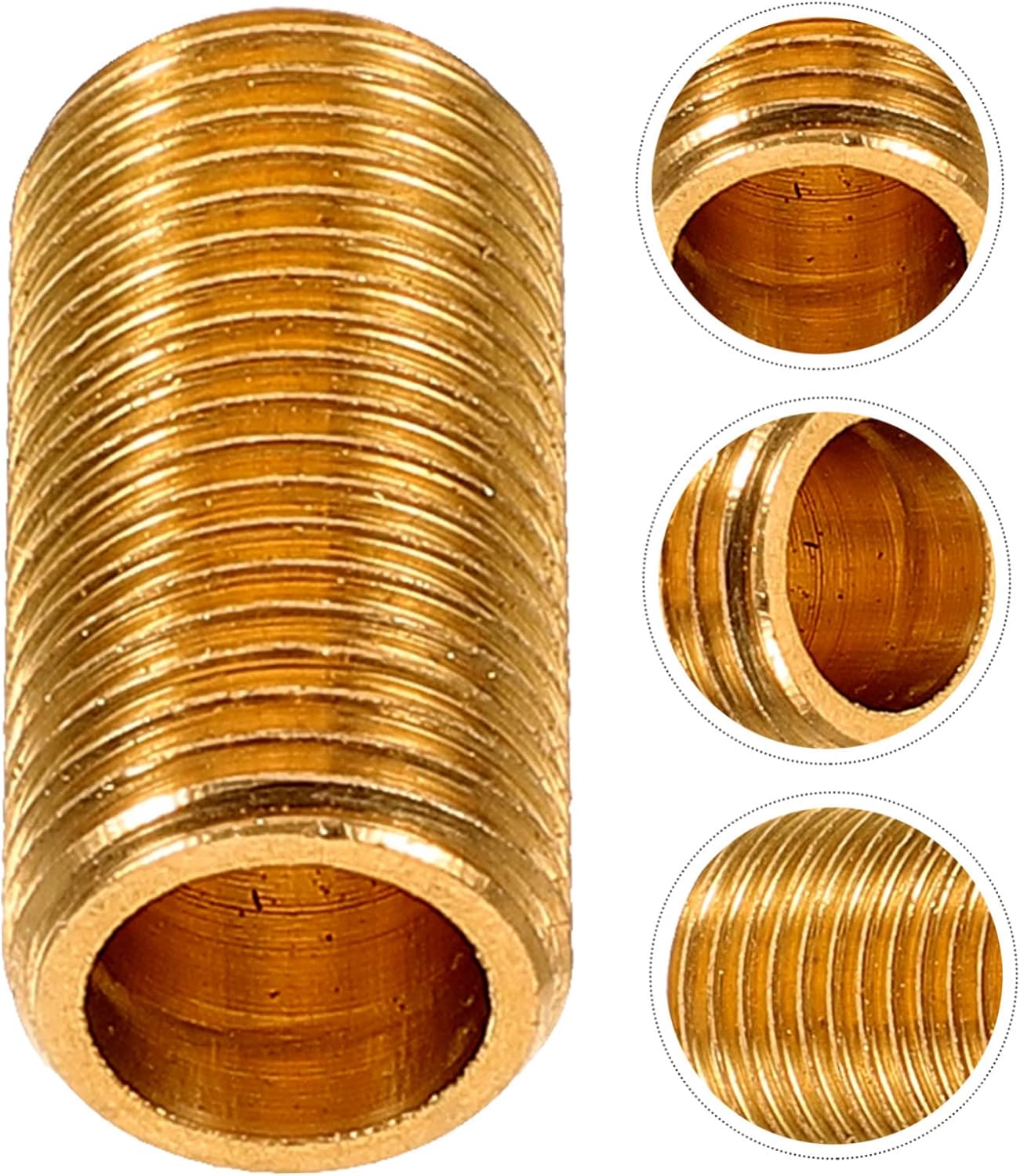

Figure 2.3: A close-up image illustrating the precise external threading and the hollow channel of the connector, designed for wire passage.
3. Setup and Installation
These connectors are designed for straightforward integration into existing or new lighting assemblies. Always ensure power is disconnected before working on electrical fixtures.
- Preparation: Identify the threaded rods or components you intend to connect. Ensure they have M10 threading for compatibility.
- Wire Routing (if applicable): If electrical wires need to pass through the connection, feed them through the hollow interior of the connector before threading.
- Connection: Carefully thread one end of the connector onto the first rod until snug. Then, thread the second rod onto the other end of the connector. Ensure threads are aligned to prevent cross-threading.
- Tightening: Hand-tighten the connection. For a more secure fit, a wrench may be used gently, taking care not to over-tighten and damage the threads or components.
- Verification: After installation, ensure all connections are stable and secure.

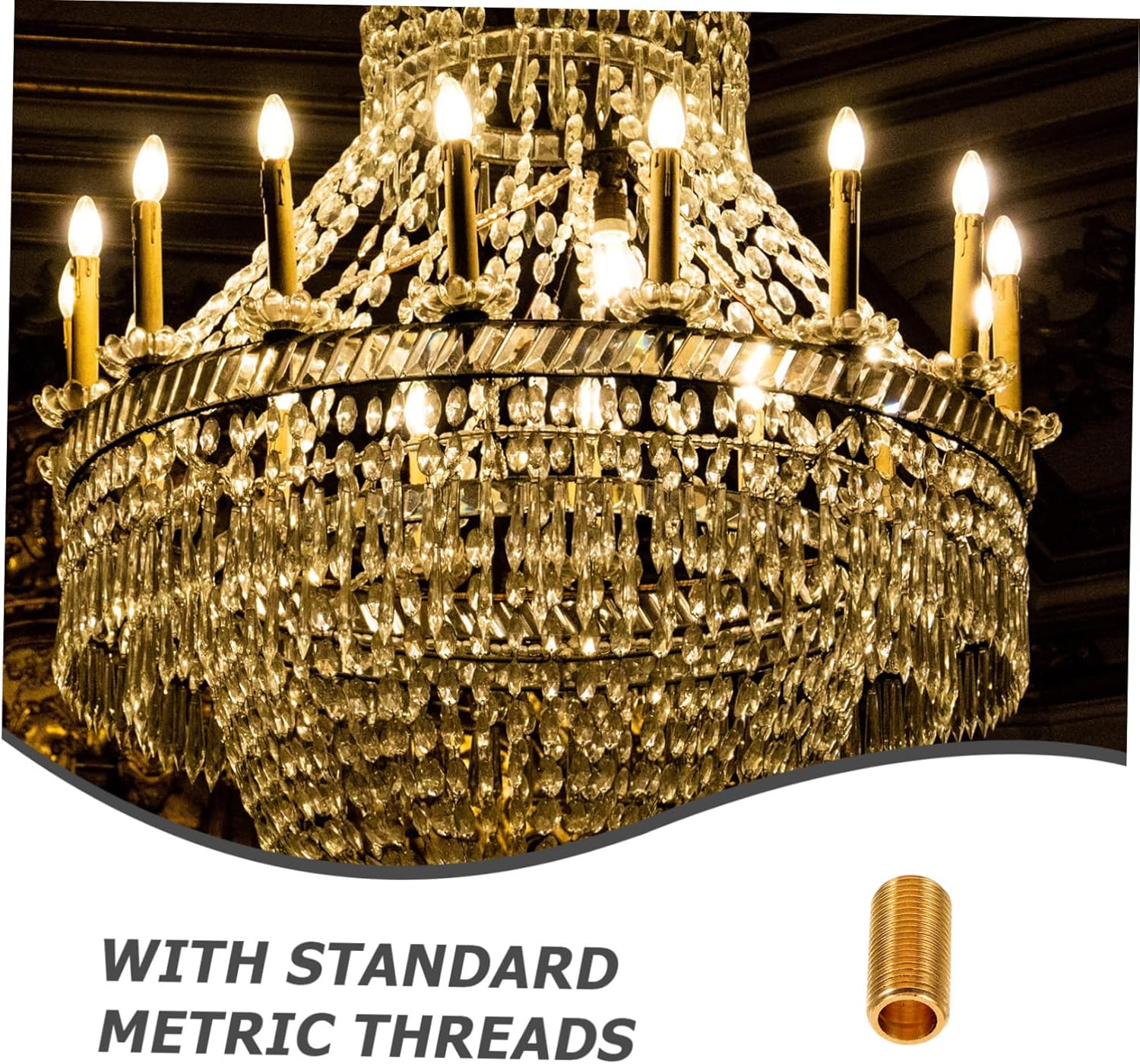

Figure 3.1: An example of a chandelier application, emphasizing the standard metric threads of the connector for seamless integration.
4. Operating Instructions
Once installed, the TEHAUX M10 Brass Lamp Rod Connectors function as a permanent or semi-permanent extension or coupling for threaded rods. No specific operational steps are required beyond ensuring a secure and stable connection during installation.
5. Maintenance
These brass connectors require minimal maintenance.
- Cleaning: If necessary, wipe the connectors with a soft, dry cloth to remove dust or debris. Avoid abrasive cleaners or chemicals that could damage the brass finish.
- Inspection: Periodically inspect connections in lighting fixtures to ensure they remain tight and secure.
6. Troubleshooting
If you encounter issues during installation or use, consider the following:
- Difficulty Threading: Ensure the rods you are connecting have M10 metric threads. Incorrect thread sizes will prevent proper connection. Do not force the connection, as this can damage the threads.
- Loose Connection: Verify that both rods are fully threaded into the connector and tightened appropriately. If the connection remains loose, inspect the threads on both the connector and the rods for damage.
- Wire Passage Issues: Ensure wires are not kinked or too thick for the hollow interior. Trim insulation if necessary, but always ensure proper electrical safety.
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | TEHAUX |
| Model Number | KX054C30XL64NY33SE2 |
| Material | Copper (Brass) |
| Color | Golden |
| Size (Length) | 2.00 cm (0.79 inches) |
| Size (Diameter) | 1.00 cm (0.39 inches) |
| Item Weight (per piece) | Approximately 1.28 ounces (for the 8-piece set) |
| Included Components | 8 x M10 Brass Lamp Rod Connectors |
8. Warranty and Support
Specific warranty information for the TEHAUX M10 Brass Lamp Rod Connectors is not provided in the product details. For any questions regarding warranty, product support, or technical assistance, please contact the manufacturer or your point of purchase directly.
