Carburetor Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your new Spkagy carburetor, specifically designed for Craftsman Lawn Tractor models 917250830 and 917.250830. Proper installation and regular maintenance are crucial for ensuring optimal engine performance and longevity of your lawn tractor.

Safety Information

Always prioritize safety when working with fuel systems and engine components. Failure to follow these safety guidelines may result in personal injury or damage to equipment.

• Ensure the engine is cool and the spark plug wire is disconnected before beginning any work to prevent accidental starting.
• Work in a well-ventilated area to avoid inhaling fuel fumes.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Keep open flames, sparks, and other ignition sources away from fuel and fuel system components.
• Dispose of old fuel and parts according to local regulations.
• If you are unsure about any step, consult a qualified technician.

Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• 1x Spkagy Carburetor
• 1x Fuel Line
• 2x Fuel Line Clamps
• 1x Mounting Gasket

Image: The Spkagy carburetor assembly, showing the main carburetor unit, a black fuel line, two metal hose clamps, and a gray mounting gasket.

Setup and Installation

Follow these steps carefully to install the new carburetor on your Craftsman Lawn Tractor.

1. Preparation:
   • Park the lawn tractor on a level surface and engage the parking brake.
   • Turn off the engine and allow it to cool completely.
   • Disconnect the spark plug wire to prevent accidental starting.
   • Locate the fuel shut-off valve (if present) and turn it to the OFF position. If no valve, drain the fuel tank.
2. Remove Old Carburetor:
   • Carefully disconnect the fuel line from the old carburetor. Be prepared for some fuel spillage.
   • Disconnect any throttle linkage, choke linkage, and spring connections. Take photos if necessary to remember connections.
   • Unbolt the old carburetor from the engine manifold. Remove and discard the old gasket.


   Image: Side view of the carburetor, highlighting the mounting holes and fuel inlet connection.

3. Install New Carburetor:
   • Ensure the mounting surface on the engine is clean and free of debris.
   • Place the new gasket onto the mounting studs.
   • Carefully position the new Spkagy carburetor onto the studs, aligning it with the gasket and manifold.
   • Secure the carburetor with the appropriate nuts, tightening them evenly to prevent warping.

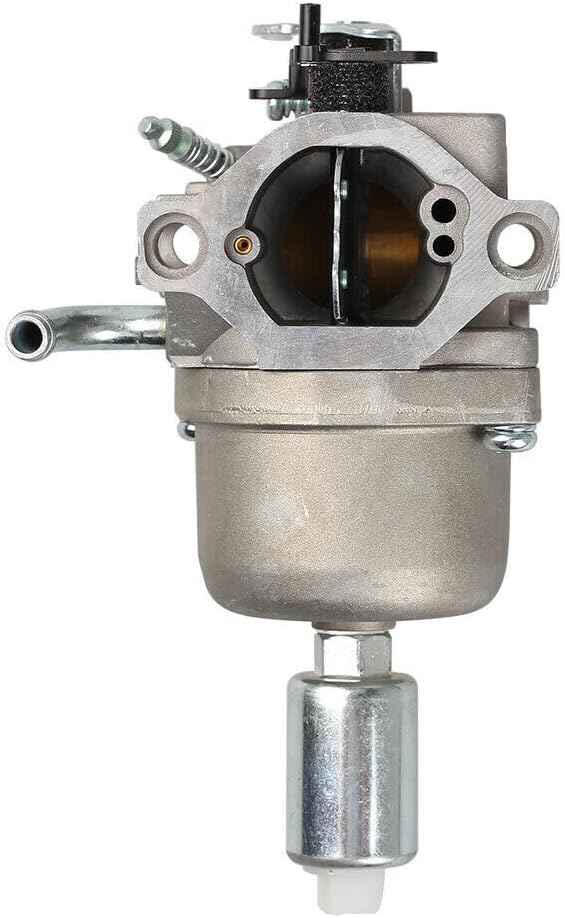

   Image: Front view of the carburetor, showing the air intake opening and throttle plate.
4. Reconnect Components:
   • Connect the new fuel line to the carburetor's fuel inlet and secure it with a clamp.
   • Reconnect the throttle and choke linkages, ensuring they move freely and without binding.
   • Double-check all connections for tightness and proper routing.


   Image: Rear view of the carburetor, illustrating the various linkage attachment points for throttle and choke.

5. Final Steps:
   • Reconnect the spark plug wire.
   • Refill the fuel tank (if drained) and open the fuel shut-off valve.
   • Check for any fuel leaks before attempting to start the engine.

Operation

Once installed, the carburetor is designed to provide precise fuel mixture control for optimal engine performance. It ensures stable idle and smooth acceleration.

• Starting: Follow your lawn tractor's manufacturer instructions for starting. The new carburetor should facilitate easier starting due to its precise fuel delivery.
• Running: The carburetor automatically adjusts the fuel-air mixture based on engine demand, ensuring efficient combustion.
• Shutting Down: Turn off the engine as per your tractor's manual. For long-term storage, it is recommended to run the engine until it runs out of fuel or use a fuel stabilizer to prevent fuel degradation within the carburetor.

Maintenance

Regular maintenance helps prolong the life of your carburetor and ensures consistent engine performance.

• Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer, especially during off-season storage.
• Fuel Filter: Regularly inspect and replace the fuel filter (if present on your tractor) to prevent debris from reaching the carburetor.
• Air Filter: A clean air filter is essential for proper air-fuel mixture. Clean or replace the air filter as recommended by your tractor's manufacturer.
• Cleaning: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This task is best performed by experienced individuals or a professional.

Image: Angled view of the carburetor, highlighting the fuel bowl at the bottom, which can be removed for cleaning.

Troubleshooting

If you encounter issues after installation, refer to the following common problems and their potential solutions.

Image: An additional angled view of the carburetor, useful for identifying various components during troubleshooting.

Specifications

Warranty and Support

For specific warranty information or technical support regarding your Spkagy carburetor, please refer to the seller's information or contact Spkagy customer service directly. Keep your purchase receipt as proof of purchase.
