Introduction
This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your CRAFTLZ Bell-206-V3 470-Class Remote Control Helicopter. Please read this manual thoroughly before operating the helicopter to ensure proper function and to prevent damage or injury.
Image: The CRAFTLZ Bell-206-V3 470-Class RC Helicopter, a detailed scale model with a red and white livery.
What's in the Box (RTF Version)
The Ready-To-Fly (RTF) version of the Bell-206-V3 helicopter includes the following components:
- Assembled Fuselage (1)
- Handcrafted Painted Integrated Shell (1)
- Handcrafted Painted Head Cover (1)
- Battery (1)
- Digital Display Charger (1)
- Remote Control Transmitter (1)
- Quick Start Guide (1)
- Tools and USB Cable (as pictured)

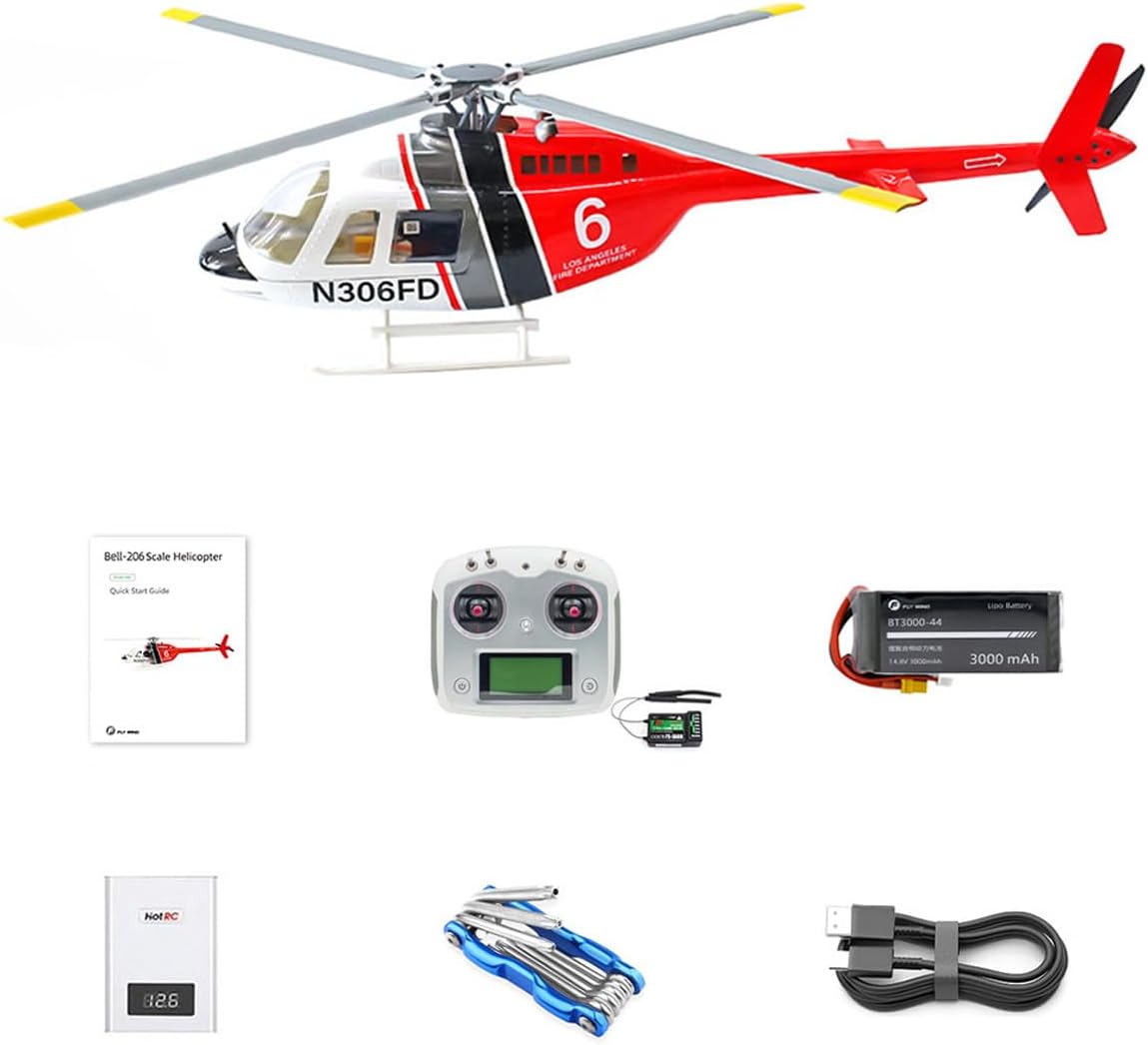

Image: All components included in the RTF package, laid out for inspection.
Setup
1. Initial Inspection
Upon unpacking, carefully inspect all components for any signs of damage. Ensure all parts listed in the "What's in the Box" section are present.
2. Blade Installation
The main rotor blades may need to be fixed or installed upon receipt due to packaging requirements. Refer to the Quick Start Guide for detailed instructions on securely attaching the main rotor blades.
3. Battery Charging
Use the provided digital display charger to fully charge the 4S 3000mAh battery before the first flight. Follow the charger's instructions carefully. Always charge in a safe, fire-resistant area and never leave charging batteries unattended.
4. Transmitter Preparation
Install the required batteries (not included) into the remote control transmitter. Ensure the transmitter is powered on and properly bound to the helicopter. The Bell-206-V3 supports Mode 1 and Mode 2 switching; configure as per your preference.
Image: The main components of the RTF package, highlighting the helicopter, transmitter, battery, and charger.
Operating Instructions
Safety Guidelines
- Operate in open areas, away from people, animals, buildings, and power lines.
- Always maintain visual line of sight with the helicopter.
- Do not operate in strong winds or adverse weather conditions.
- Ensure the battery is fully charged and securely installed before each flight.
- Perform pre-flight checks on all controls and mechanical parts.
- Recommended for ages 16 and above.
Flight Modes
The Bell-206-V3 features advanced flight control systems with multiple modes:
- GPS Stabilized Mode: Utilizes omnidirectional positioning technology and BeiDou satellite positioning for stable flight and precise hovering. This mode allows for point-to-point hovering in forward/backward flight.
- 3D Manual Mode: For experienced pilots, allowing full manual control for advanced aerobatics and stunts. Switch to this mode after GPS positioning for emergency maneuvers or advanced flying.
- One-Key Return: Automatically brings the helicopter back to its takeoff point.
- Low Battery Return: The helicopter will automatically initiate a return to home when the battery level is critically low.
- Loss of Control Return: If the signal is lost, the helicopter will attempt to return to its takeoff point.
- One-Key Inverted Flight: Allows for quick inversion for advanced maneuvers.
- Semi-Autonomous Assisted Flight: Includes pre-programmed flight patterns such as Circular Motion and Figure-8 Route.

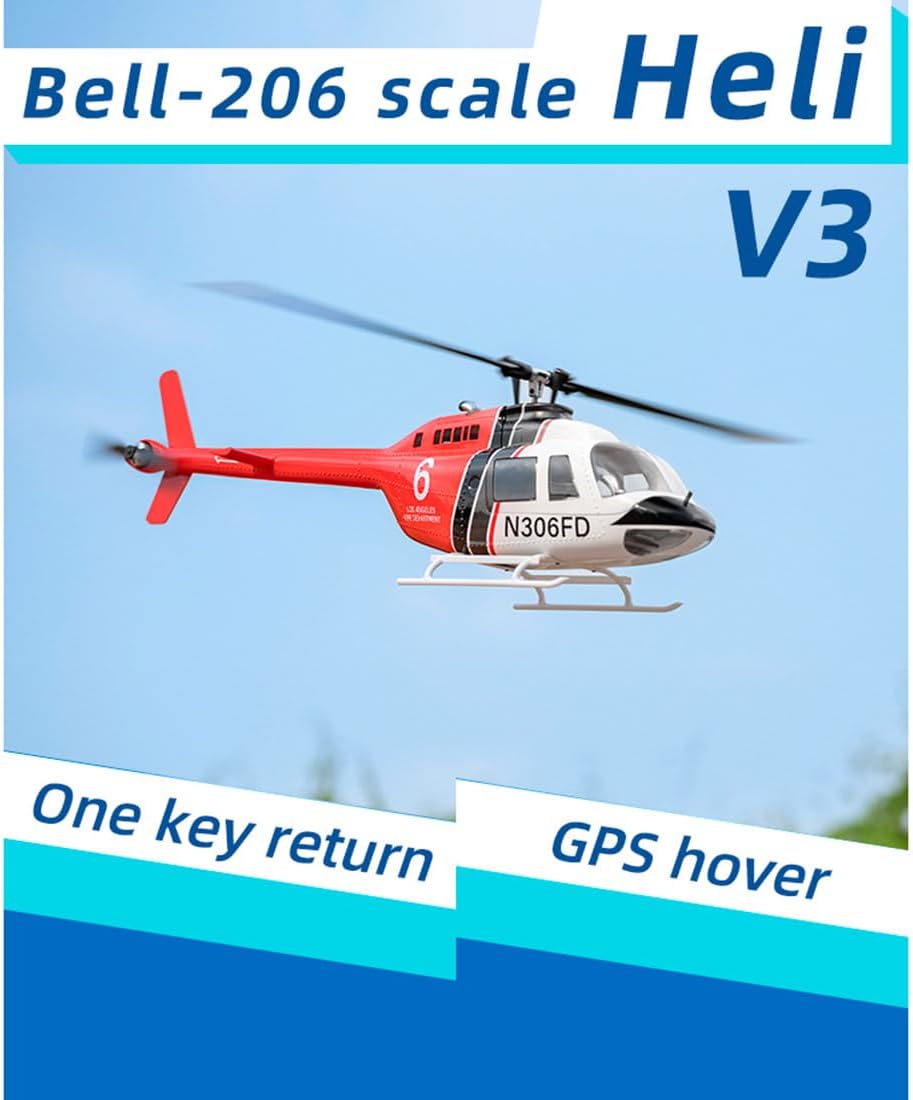

Image: The Bell-206-V3 helicopter demonstrating GPS hover and one-key return features.
Pre-Flight Checklist
- Ensure main and tail rotor blades are securely fastened.
- Verify battery is fully charged and properly installed in the helicopter.
- Confirm transmitter batteries are installed and the transmitter is powered on.
- Check for clear flight path and safe operating environment.
- Perform a brief control check (throttle, rudder, aileron, elevator) before takeoff.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Bell-206-V3 helicopter.
- Cleaning: After each flight, gently clean the helicopter body and rotors with a soft, dry cloth. Avoid using solvents or harsh chemicals.
- Rotor Blades: Inspect main and tail rotor blades for cracks, chips, or deformation. Replace damaged blades immediately.
- Gears and Belts: Check the full-metal large gear and M3 arc gear transmission belt for wear or damage. The torsion spring tensioner allows for quick belt replacement.
- Motor and ESC: Ensure the 2816 brushless motor and 60A Dual Brushless ESC are free from debris and show no signs of overheating.
- Battery Care: Store batteries in a cool, dry place. Do not overcharge or over-discharge. Disconnect from the helicopter when not in use.
- Fasteners: Periodically check all screws and fasteners for tightness.
Image: Detailed views of the helicopter's mechanical components, useful for maintenance checks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Helicopter does not power on. | Battery not charged or improperly connected. | Ensure battery is fully charged and securely connected. Check battery polarity. |
| No response from controls. | Transmitter not powered on or not bound to helicopter. Transmitter batteries low. | Power on transmitter. Re-bind if necessary (refer to Quick Start Guide). Replace transmitter batteries. |
| Helicopter drifts during hover. | Improper trim settings. GPS signal weak or unavailable. | Adjust trim settings on the transmitter. Ensure flight in an open area with clear sky for optimal GPS signal. |
| Reduced flight time. | Battery degradation. Over-discharge. | Ensure proper charging practices. Consider replacing the battery if it's old or damaged. |
| Unusual noises or vibrations. | Damaged rotor blades, loose components, or debris in gears. | Inspect blades for damage and replace if necessary. Check all fasteners. Clean gears. |
Specifications
| Feature | Detail |
|---|---|
| Model | Bell-206-V3 (Item Model Number: 17DY5120B7O) |
| Material | Metal + Electronic Components |
| Fuselage Length (without paddles) | 700mm (approx. 27.56 inches) |
| Fuselage Height | 195mm (approx. 7.68 inches) |
| Fuselage Width | 120mm (approx. 4.72 inches) |
| Weight (without battery) | 790g |
| Main Rotor Diameter (Wingspan) | 805mm (approx. 31.69 inches) |
| Main Rotor Length (Single) | 360mm |
| Tail Rotor Diameter (Wingspan) | 164mm |
| Motor | 2816 Brushless Motor (16V high-voltage) |
| Tail Drive Motor | 2008 Brushless Motor |
| ESC | 60A Dual Brushless ESC (32-bit dual-processing, all-metal) |
| Battery | 4S 3000mAh (Included in RTF version) |
| Flight Time | Over 20 minutes (with 4S 3000mAh battery) |
| Satellite Positioning Module | GPS/GLONASS with Omni-Directional Positioning |
| Hovering Accuracy (Horizontal) | ±1.5m (under normal GPS positioning mode) |
| Hovering Accuracy (Vertical) | ±0.5m (under normal GPS positioning mode) |
| Recommended Age | 16+ years |
Image: The helicopter illustrating its 80cm wingspan.
Image: Detailed dimensions and a summary table of key specifications.
Warranty Information
Specific warranty details for the CRAFTLZ Bell-206-V3 helicopter are typically provided at the point of purchase or within the product packaging. Please refer to your purchase documentation for information regarding warranty coverage, duration, and claims process. Keep your proof of purchase for any warranty-related inquiries.
Optional protection plans may be available from your retailer. For example, 2-Year and 3-Year Protection Plans are often offered separately.
Customer Support
For technical assistance, spare parts, or further inquiries regarding your CRAFTLZ Bell-206-V3 helicopter, please contact your retailer or the manufacturer directly. Refer to the contact information provided in your product packaging or on the official CRAFTLZ website.
When contacting support, please have your model number (17DY5120B7O) and proof of purchase readily available.
