Bagandcute X13 Hidden Camera Detector User Manual

1. Introduction

Thank you for choosing the Bagandcute X13 Hidden Camera Detector. This device is designed to help you maintain your privacy and security by detecting various types of surveillance equipment, including hidden cameras, listening devices, GPS trackers, and RF signals. This manual provides detailed instructions on how to use your detector effectively.

Image 1.1: The Bagandcute X13 Hidden Camera Detector, showcasing its two main parts and various detection capabilities represented by icons.

2. Safety Information

• Do not expose the device to extreme temperatures, direct sunlight, or high humidity.
• Keep the device away from water and other liquids.
• Do not attempt to disassemble or repair the device yourself. Contact customer support if service is required.
• Use only the provided charging cable and adapter to prevent damage.
• Keep out of reach of children.

3. Product Features and Components

The Bagandcute X13 detector is equipped with multiple features for comprehensive surveillance detection:

• 4 Professional Modes: Magnetic Field Detection, Camera Lens Finder, Wireless Signal Detection, and Flashlight.
• Wide Frequency Range: Detects signals from 1MHz to 8GHz, including GSM, 3G, 4G, 5G, Bluetooth, and Wi-Fi (2.4G and 5.8G).
• Adjustable Sensitivity: 6 levels of sensitivity for precise detection.
• Dual Working Modes: Sound and Vibration alerts.
• Portable Design: Lightweight and compact for easy carrying.
• Rechargeable Battery: Built-in 800mAh battery for extended working time.

Image 3.1: Detailed view of the detector's components, including the flashlight, signal strength lights, function switching button, signal strength adjustment button, ON/OFF button, view finder, and AI infrared lights. Dimensions are also indicated.

Image 3.2: The compact size of the detector, shown fitting easily into a pocket, highlighting its ultra-portable design with a weight of 26g and dimensions of 3.2 x 0.8 x 0.5 inches.

4. Setup

4.1 Charging the Device

Before first use, fully charge the device. The built-in 800mAh battery provides approximately 25 hours of working time and up to 30 hours of standby time on a full charge.

1. Connect the provided USB charging cable to the charging port on the device.
2. Plug the other end of the cable into a compatible USB power adapter (not included) or a computer's USB port.
3. The charging indicator light will illuminate during charging.
4. Charging typically takes approximately 1 hour for a full charge.

Image 4.1: The detector connected to a charging cable, illustrating its 800mAh battery capacity, 1-hour full charge time, 25-hour working time, and 30-hour standby time.

4.2 Powering On/Off

Press and hold the ON/OFF button located on the device to power it on or off.

5. Operating Instructions

The device offers four primary detection modes:

5.1 Wireless Signal Detection (RF Signal Detector)

This mode detects wireless signals from mobile phones, wireless spy cameras, Wi-Fi, Bluetooth, and other RF transmitting devices.

1. Power on the device. The signal strength lights will indicate the presence of RF signals.
2. Use the Signal Strength Adjustment Button to cycle through 6 levels of sensitivity. Lower sensitivity (fewer lights) is suitable for pinpointing a signal source, while higher sensitivity (more lights) is for broader scanning.
3. Move the device slowly around the area of concern. As you approach a signal source, more indicator lights will illuminate, and the device will emit a sound or vibrate (depending on the selected mode).
4. To switch between Sound and Vibration modes, press the Function Switching button.

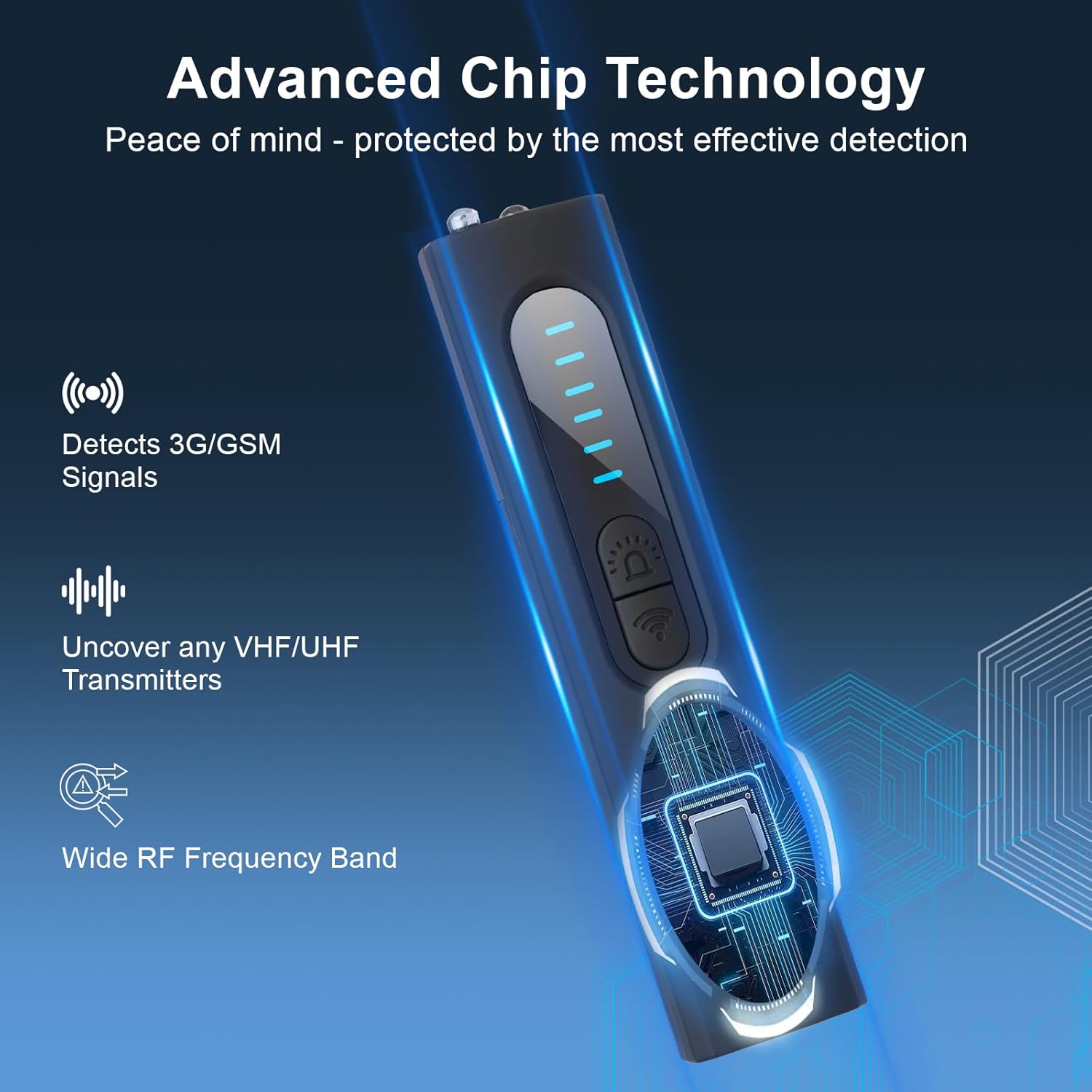

Image 5.1: The detector actively scanning for 3G/GSM signals and other VHF/UHF transmitters, demonstrating its wide RF frequency band detection capability.

5.2 Camera Lens Finder (Infrared Laser Scanning)

This mode helps locate hidden pinhole cameras through visual inspection using infrared laser scanning. Note: This mode provides visual detection only and does not trigger audio or vibration alerts.

1. Press the Function Switching button until the Camera Lens Finder mode is active (indicated by a specific light or icon, refer to Image 3.1).
2. Look through the View Finder on the device.
3. Slowly scan the area, paying close attention to objects, walls, and ceilings. Hidden camera lenses will appear as bright red dots when illuminated by the device's infrared lights and viewed through the finder.

Image 5.2: The detector's advanced infrared scanning feature in use within a bedroom, showing red reflections from potential hidden camera lenses.

5.3 Magnetic Field Detection (GPS Tracker Detector)

This mode is designed to find magnetized GPS trackers commonly attached to vehicles or other objects.

1. Press the Function Switching button to activate the Magnetic Field Detection mode.
2. Move the device close to surfaces where a magnetic tracker might be hidden, such as under a car, inside upholstery, or behind panels.
3. The device will alert you with sound or vibration when a magnetic field is detected.

Image 5.3: The detector performing precise magnetic GPS detection on a car, indicating the presence of a strong magnetic locator and an RFID tracker.

5.4 Flashlight

The built-in flashlight can be activated for use in dark environments.

1. Press the Function Switching button to activate the flashlight mode.
2. Press again to turn off the flashlight.

6. Maintenance

6.1 Cleaning

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents.

6.2 Battery Care

To prolong battery life, avoid fully discharging the battery frequently. Recharge the device when the battery indicator is low. If storing the device for an extended period, charge it to approximately 50% every few months.

6.3 Storage

Store the device in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

• Device not turning on: Ensure the device is fully charged. If the issue persists, contact customer support.
• Inaccurate or false detections (e.g., beeping near hand/phone):
  • Adjust the sensitivity level using the Signal Strength Adjustment Button. High sensitivity in areas with many electronic devices (like mobile phones, Wi-Fi routers) can lead to false positives.
  • Move away from known signal sources (your own phone, Wi-Fi router) when performing scans.
  • Ensure you are using the correct mode for the type of detection you are performing.
• Camera Lens Finder shows no alarm: The Camera Lens Finder mode is designed for visual detection only. It will not trigger audio or vibration alerts. You must look through the View Finder to spot reflections from hidden camera lenses.
• Short battery life: Ensure the device is fully charged before use. Battery performance can degrade over time with repeated charge cycles.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please contact the manufacturer, Bagandcute, through your original point of purchase or their official customer service channels. Please have your model number (X13) and purchase details ready when contacting support.
