Suplanet K96210 V8 Engine Model Kit User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Suplanet K96210 V8 Engine Model Kit. This realistic building block set simulates a V8 engine with functional pistons, valves, and features such as lighting, spray effects, and engine sounds. Designed for enthusiasts aged 14 and above, it offers an engaging and educational experience in mechanical engineering.

2. Safety Information

• WARNING: Choking Hazard - Small Parts. Not for children under 3 years of age.
• Keep all small parts away from young children to prevent accidental ingestion.
• Do not expose the model to extreme temperatures or direct sunlight for prolonged periods.
• Ensure batteries (not included) are inserted correctly according to polarity markings. Remove batteries if the model will not be used for an extended period.
• Use only clean water for the spray function. Do not use any other liquids.
• Avoid disassembling the model beyond the intended assembly steps to prevent damage.

3. Package Contents

Your Suplanet K96210 V8 Engine Model Kit includes the following components:

• 1394 Building Blocks (various shapes and sizes)
• LED Strip
• Electroplated Bricks (for metallic appearance)
• Spray Combinations (components for spray effect)
• Master Control Unit
• Extended Line (wiring)
• Instruction Manual (this document)
• Note: Batteries are not included.

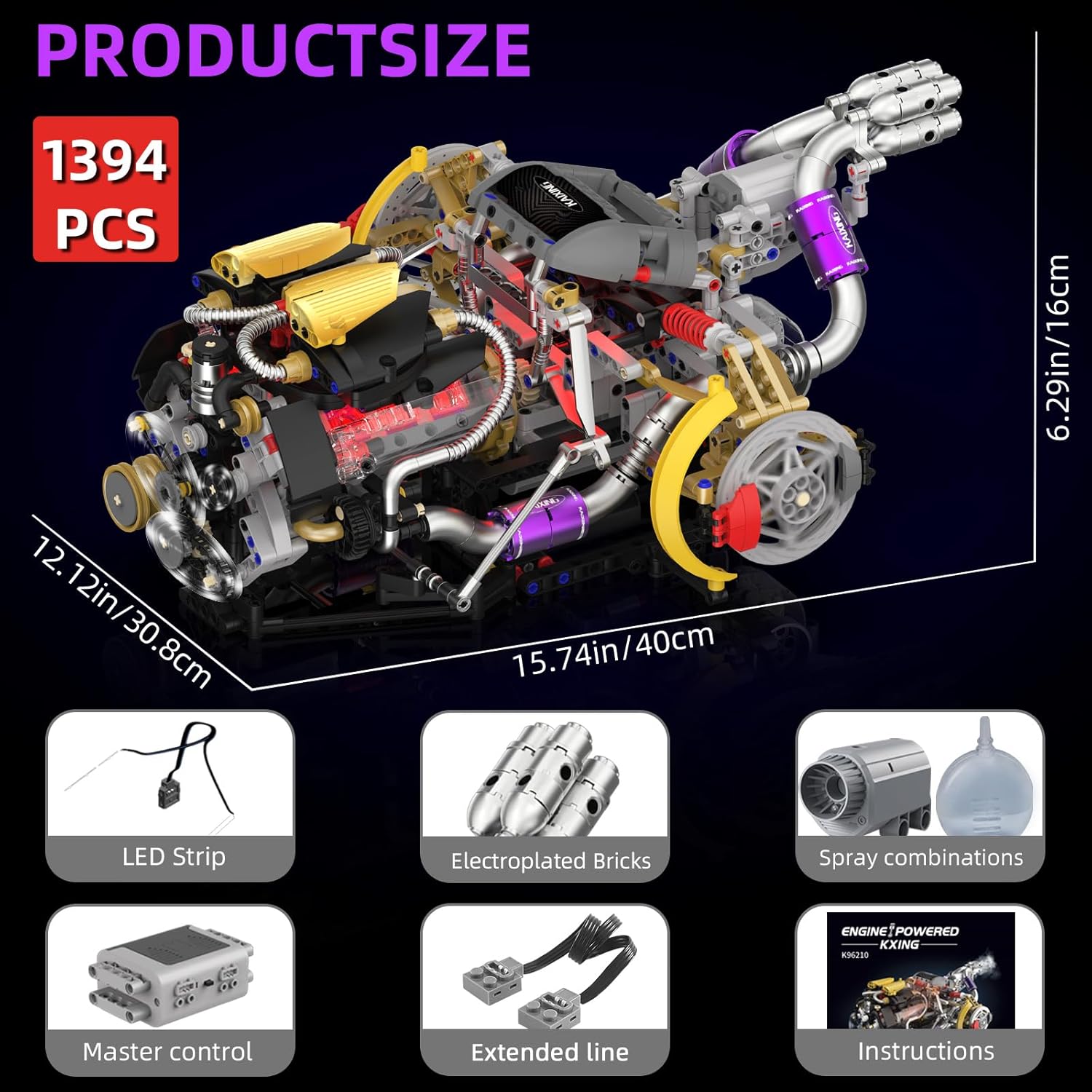

Image: Overview of the Suplanet K96210 V8 Engine Model Kit components, including 1394 pieces, LED strip, electroplated bricks, spray combinations, master control, extended line, and instructions.

4. Setup and Assembly

Follow the step-by-step instructions provided in the included printed manual for detailed assembly. The process involves connecting various building blocks to form the V8 engine structure. Pay close attention to the placement of the LED strip, spray components, and master control unit.

1. Unpack Components: Carefully open the packaging and sort the building blocks by type or color as suggested in the printed manual.
2. Initial Structure Assembly: Begin by assembling the main engine block following the numerical sequence in the manual.
3. Piston and Valve Mechanism: Assemble the internal piston and valve components. The transparent cylinder head design allows for observation of their synchronized operation.
4. Electrical Components: Integrate the LED strip and connect it to the master control unit. Ensure all connections are secure.
5. Spray Device Installation: Attach the spray device components. This system simulates engine exhaust.
6. Power Source: Insert the required batteries (not included) into the designated battery compartment of the master control unit.
7. Final Touches: Complete the exterior detailing with electroplated bricks and other decorative elements.

Image: Close-up of the V8 engine model showing the transparent cylinder head design and the unique valve mechanism with red arrows indicating piston movement.

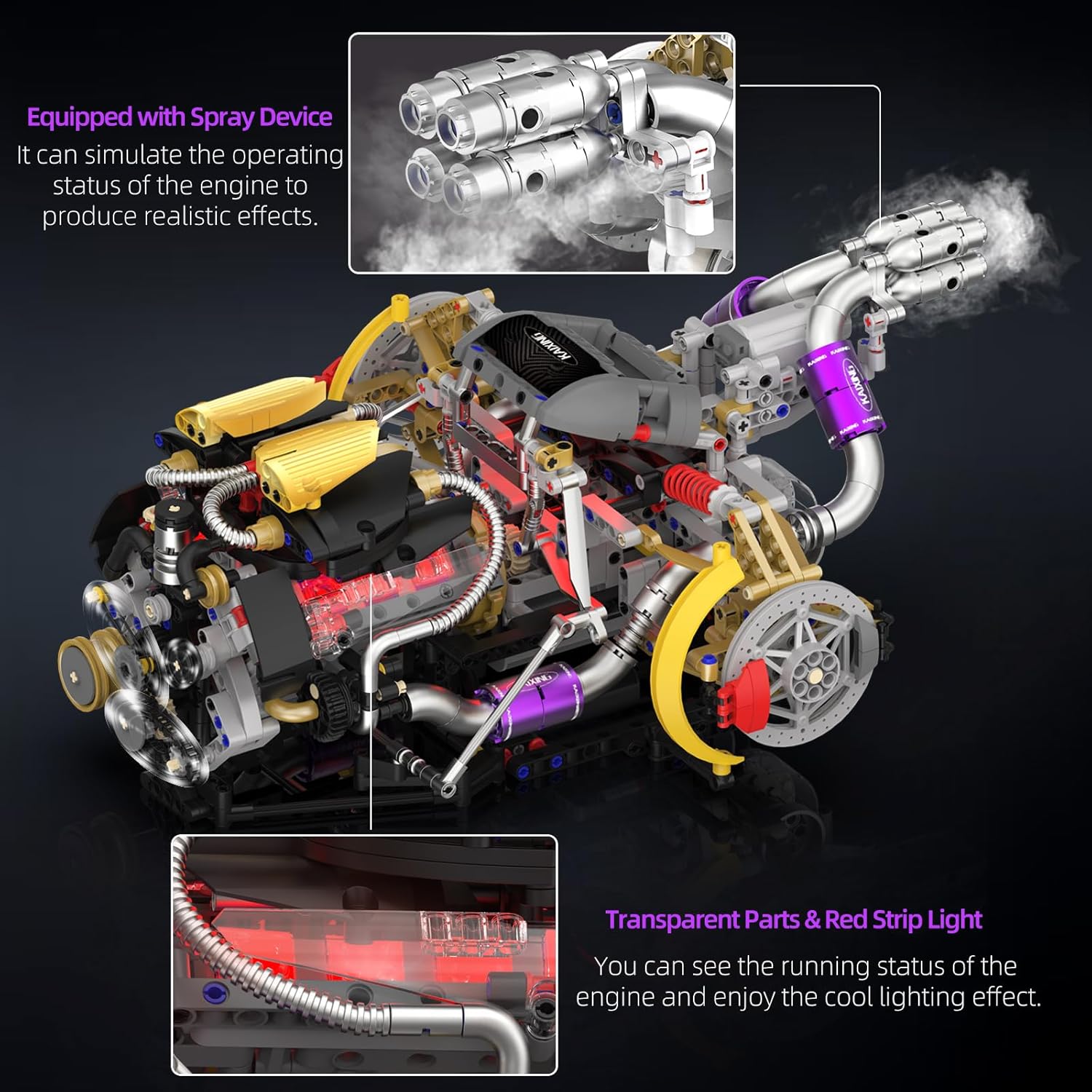

Image: The assembled V8 engine model demonstrating the spray effect from the exhaust and the illuminated red light strip within the transparent engine block.

5. Operating Instructions

Once assembled and powered, your V8 engine model can simulate realistic engine functions.

1. Power On: Locate the power switch on the master control unit and turn it to the "ON" position.
2. Activate Movement: The engine's internal components, such as pistons and valves, will begin to move in sync, simulating a real V8 engine.
3. Lighting Effects: The integrated LED strip will illuminate, showcasing the internal workings with a cool lighting effect.
4. Spray Function: To activate the spray effect, ensure the spray device has been filled with a small amount of clean water (refer to the printed manual for specific filling instructions). The model will then emit a realistic spray, mimicking exhaust.
5. Sound Effects: The model is designed to produce engine sounds, enhancing the realistic experience.

6. Maintenance

• Cleaning: Use a soft, dry cloth to gently wipe down the model. Avoid using harsh chemicals or abrasive materials.
• Dust Removal: For hard-to-reach areas, use a soft brush or compressed air to remove dust.
• Battery Care: Remove batteries if the model is not in use for extended periods to prevent leakage.
• Storage: Store the model in a cool, dry place away from direct sunlight and excessive humidity.

7. Troubleshooting

8. Specifications

• Model Number: K96210
• Brand: Suplanet
• Material: Plastic
• Number of Pieces: 1394
• Product Dimensions (L x W x H): 30.8 x 40 x 16 cm (12.12 x 15.74 x 6.29 inches)
• Weight: 1.62 kg
• Recommended Age: 14 - 60 years
• Educational Objective: Construction Skills, Engineering Skills, STEM
• Power Source: Electric (Batteries not included)
• Special Features: Realistic V8 engine simulation, working pistons and valves, LED lighting, spray effect, engine sound.

Image: The Suplanet K96210 V8 Engine Model Kit with dimensions indicated: 12.12 inches / 30.8 cm (width), 15.74 inches / 40 cm (length), and 6.29 inches / 16 cm (height).

9. Warranty and Support

This product comes with a return policy allowing for refunds or replacements within 45 days of purchase. For further assistance, please contact Suplanet customer support through the retailer where the product was purchased.

For additional information or to explore other products, visit the Suplanet brand store.
