1. Important Safety Instructions
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
2. Product Overview
The Cafelffe MK-609S is a versatile 4-in-1 capsule coffee machine designed for both home and office use. It features 19 bar pressure for optimal extraction, 7 adjustable water levels, and hot/cold brewing capabilities. It is compatible with Nes Original, Dolce Gusto, 44mm ESE pods, and ground coffee.
Key Features:
- 4-in-1 Compatibility: Brews Nes Original, Dolce Gusto, 44mm ESE pods, and ground coffee.
- 19 Bar Professional Pressure: Ensures rich flavor and golden crema.
- Adjustable Water Levels: 7 presets from 50ml to 300ml for personalized brewing.
- Hot & Cold Brew: Versatile for various coffee and tea beverages.
- Temperature Regulation: 25 adjustable temperature settings (85-99°C).
- Compact Design: Space-saving and lightweight for easy placement.
- Smart Auto-Cleaning: 120-second self-cleaning cycle and pre-infusion technology.
3. Setup
3.1 Water Tank Usage
- Remove the water tank from the back of the machine.
- Fill the water tank with purified water up to the MAX line (600ml capacity).
- Install the water tank back into the machine, ensuring it is securely in place.
Image: Water Tank Usage
A person is shown removing, filling, and reinstalling the 600ml water tank on the Cafelffe MK-609S coffee machine.
Video: Water Tank Usage
This video demonstrates how to properly fill and install the water tank on the Cafelffe MK-609S coffee machine, highlighting the 600ml maximum capacity.
4. Operating Instructions
4.1 Capsule and Coffee Powder Usage
The Cafelffe MK-609S supports various brewing methods using dedicated adapters.
Nes Original Capsule Adapter
- Place a Nes Original capsule into its dedicated adapter.
- Insert the loaded adapter into the machine.
- Select your desired water volume. It is recommended to use below level 2 for rich crema.
Image: Nes Original Capsule Adapter
A Nes Original capsule is shown being placed into its adapter, ready for brewing.
Dolce Gusto (DG) Capsule Adapter
- Place a Dolce Gusto capsule into its dedicated adapter.
- Insert the loaded adapter into the machine.
- Select your desired water volume.
Image: Dolce Gusto Capsule Adapter
A Dolce Gusto capsule is shown being placed into its adapter, ready for brewing.
Ground Coffee Adapter
- Add approximately 15g of ground coffee into the ground coffee adapter.
- Use the provided tamper to flatten the coffee powder evenly.
- Insert the loaded adapter into the machine.
- Select your desired water volume.
Image: Ground Coffee Adapter
Ground coffee is being added and tamped into the dedicated adapter for the Cafelffe MK-609S coffee machine.
ESE Pod Adapter
- Remove the powder filter from the ground coffee adapter base.
- Insert the ESE filter into the adapter base.
- Place a 44mm ESE pod into the adapter.
- Insert the loaded adapter into the machine.
- Select your desired water volume.
Image: ESE Pod Adapter
An ESE pod is shown being placed into its adapter for the Cafelffe MK-609S coffee machine.
Video: Coffee Machine Usage Overview
This video provides a comprehensive overview of how to use the Cafelffe MK-609S coffee machine with various capsule types and ground coffee, including steps for inserting adapters and selecting water volume.
4.2 Brewing Modes

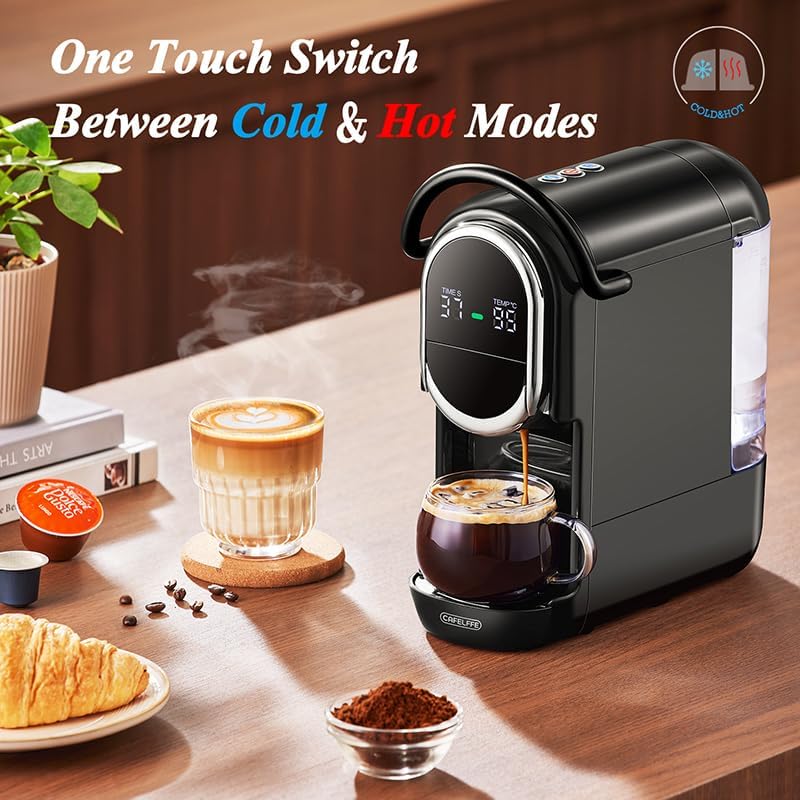

Hot Brewing Mode
Quickly press the ON/OFF button to enter the hot brewing mode. The indicator light will display in RED.
Cold Brewing Mode
Press and hold the ON/OFF button for 5 seconds to enter the cold brewing mode. The indicator light will display in BLUE. To switch back to hot brewing mode from cold brew, quickly press the ON/OFF button twice.
4.3 Programmable Settings
Temperature Regulation (85°C - 99°C)
- Long press the Coffee button for 3 seconds to enter the temperature regulation mode. The temperature indicator will flash.
- Click the Water Volume button to switch between desired temperatures.
- Wait for 3 seconds until the flashing stops, indicating the temperature setting is successful.
Water Volume Regulation
Click the Water Volume button to choose the desired water volume for your brew.
Customizable Pre-infusion Mode
Press and hold the Water Volume button and the Coffee button simultaneously for 5 seconds to toggle the pre-infusion function on or off. When the Coffee button indicator light is ON, pre-infusion is active (defaults to 3 seconds). When the light is OFF, pre-infusion is deactivated, and the machine will extract coffee directly.
Custom Energy-Saving Mode
Press and hold the Water Volume button and the Coffee button simultaneously for 5 seconds to enter the energy-saving adjustment mode. The Water Volume button indicator light OFF cancels the energy-saving mode, while ON activates it.
Restore Factory Settings
Press and hold the ON/OFF button and Water Volume button at the same time. The indicator lights will light up and flash twice, indicating that the machine has been restored to default mode.
Video: Programmable Settings
This video demonstrates how to adjust various programmable settings on the Cafelffe MK-609S, including hot/cold brewing modes, temperature, water volume, pre-infusion, energy-saving, and restoring factory settings.
5. Cleaning & Maintenance
5.1 Cleaning Needle Usage
Use the provided cleaning needle to clean the piercing pin on the Dolce Gusto (DG) adapters. This helps prevent clogging and ensures consistent coffee flow.
5.2 Washing Adapters
The coffee adapters can be washed with water. After washing, ensure they are thoroughly dried before re-inserting them into the machine.
5.3 Descaling Mode
Regular descaling is crucial for maintaining machine performance and longevity. It is recommended to descale every 3 months.
- Fill the water tank with water and add a descaling agent (not included).
- Insert an empty adapter (without any capsule or powder) into the machine.
- Place an empty cup under the dispenser.
- Press and hold the Coffee button first, then press and hold the ON/OFF button for 5 seconds. The machine will beep twice.
- Once the Coffee button and ON/OFF button lights are lit up, press the Coffee button to activate the descaling function. The descaling process takes approximately 120 seconds.
5.4 Pump Pipe Usage (for long-term storage)
If the machine will not be used for a long period, use the black pump pipe to pump out any remaining water from the internal circuit.
- Insert the pump pipe into the water entrance.
- Fill water into the pipe.
- Inject the water from the pipe into the machine until the internal circuit is filled with water. This helps prevent internal components from drying out.
Video: Cleaning & Maintenance
This video demonstrates essential cleaning and maintenance procedures for the Cafelffe MK-609S, including cleaning the piercing pin, washing adapters, performing a descaling cycle, and using the pump pipe for long-term storage.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on | No power supply | Check if the power cord is properly plugged into the outlet and the machine. |
| No coffee/water dispensed | Water tank empty | Fill the water tank with purified water. |
| Adapter clogged | Clean the piercing pin using the cleaning needle. Ensure the capsule/pod is correctly inserted. | |
| Coffee is too weak/strong | Incorrect water volume setting | Adjust the water volume setting to your preference. |
| Coffee grounds/capsule issue | Ensure fresh coffee grounds are used and tamped correctly, or that capsules/pods are not deformed. | |
| Water leaks from machine | Water tank not properly installed | Ensure the water tank is securely seated in its position. |
| Drip tray full | Empty and clean the drip tray. | |
| Machine not heating up | Heating element issue | Contact customer support if the issue persists after checking power. |
7. Specifications
- Brand: CAFELFFE
- Model: MK-609S
- Color: Black
- Product Dimensions: 28 x 14 x 26.5 cm
- Capacity: 600 Milliliters
- Power / Wattage: 1450 watts
- Voltage: 220 Volts
- Material: Metal, Polypropylene
- Auto Shutoff: Yes (after 15 minutes idle)
- Special Features: Auto Clean Function, Auto Shut-Off, Lightweight, Removable Tank, Single Cup Brew, Hot/Cold Brew, 19 Bar Pressure, Adjustable Water Levels, Temperature Control
- Item Weight: 3.17 Kilograms
8. Warranty and Support
This product comes with a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the warranty card included in your product packaging or visit the official CAFELFFE website. Please retain your proof of purchase for any warranty claims.
