Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your chikura GX50 4-Stroke 5-in-1 String Trimmer. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.
The chikura GX50 is a versatile 4-stroke gasoline-powered tool designed for various lawn care tasks, including string trimming, brush cutting, and other applications with its interchangeable attachments.
Safety Information
Always prioritize safety when operating power equipment. Failure to follow safety instructions can result in serious injury or property damage.
- Read the Manual: Understand all instructions and warnings before use.
- Personal Protective Equipment (PPE): Always wear eye protection, hearing protection, gloves, long pants, and sturdy footwear.
- Fuel Handling: Handle gasoline with extreme care. Store in approved containers, away from ignition sources. Refuel outdoors in a well-ventilated area with the engine off and cool.
- Work Area: Keep the work area clear of bystanders, children, and pets. Clear debris from the work area before starting.
- Inspection: Before each use, inspect the trimmer for loose parts, damage, or wear. Do not operate if damaged.
- Engine Off: Always turn off the engine before making adjustments, changing attachments, or performing maintenance.
Package Contents
Verify that all components are present upon unpacking:
- GX50 4-Stroke Engine Unit
- Main Shaft Assembly
- String Trimmer Head
- Blade Set (for brush cutting)
- Chainsaw Head Attachment
- Hedge Trimmer Head Attachment
- Handlebar Assembly
- Shoulder Strap
- Tool Kit
- User Manual

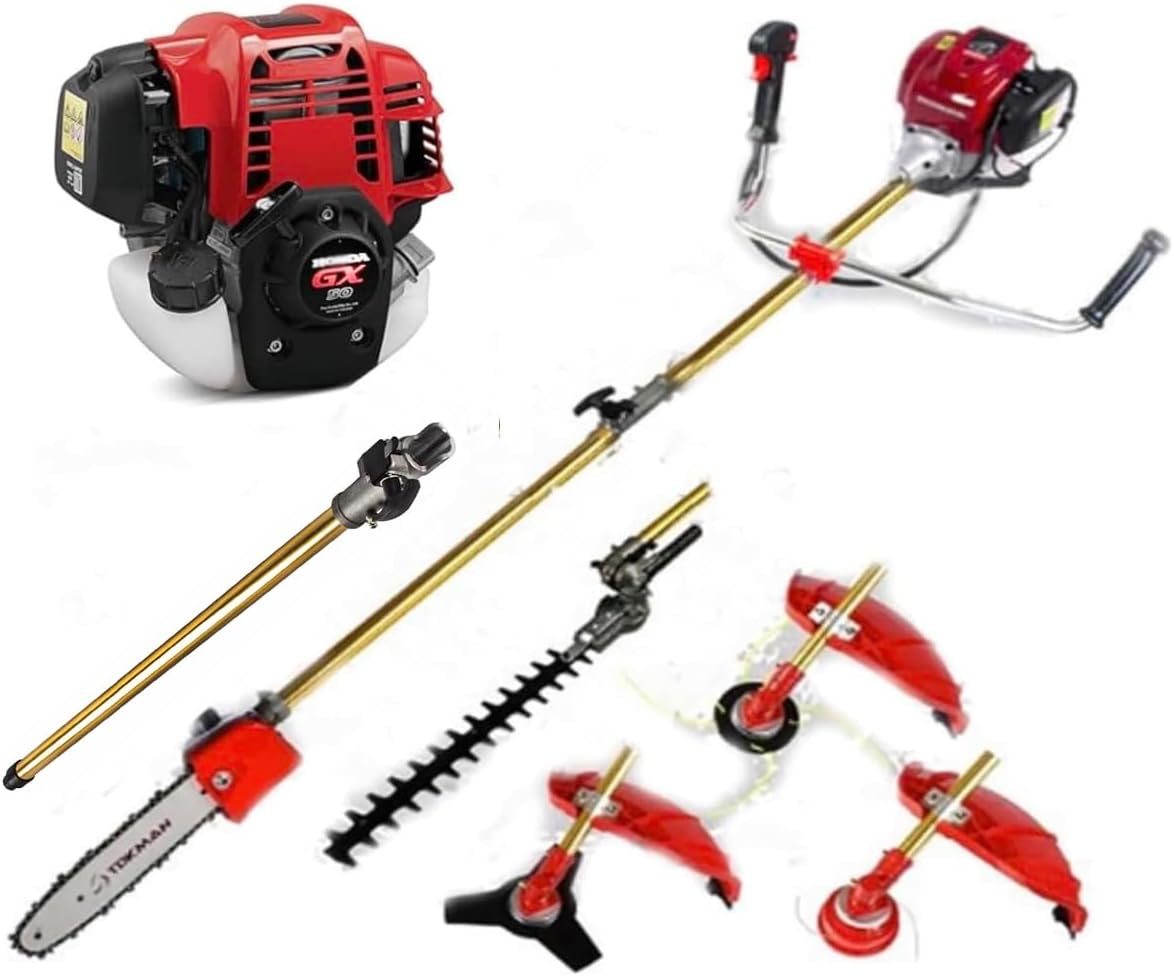

Image: Overview of the chikura GX50 4-Stroke 5-in-1 String Trimmer showing the engine unit and various interchangeable attachments.
Setup
1. Handlebar Assembly
- Attach the handlebar assembly to the main shaft using the provided clamps and bolts. Ensure it is securely fastened and positioned for comfortable operation.
- Connect the throttle cable from the engine unit to the throttle lever on the handlebar.
2. Attaching the Desired Head
The GX50 system allows for quick interchangeability of various heads. For example, to attach the string trimmer head:
- Align the attachment shaft with the main shaft coupling.
- Insert the attachment shaft into the coupling until it clicks into place or the locking pin engages.
- Secure the attachment with the locking knob or bolt, ensuring there is no wobble.
Image: The chikura GX50 assembled with a string trimmer head, alongside illustrations of other available attachments like the chainsaw head and blade set.
3. Fueling the Engine
- Ensure the engine is off and cool.
- Use fresh, unleaded gasoline with an octane rating of 87 or higher. This is a 4-stroke engine, so no oil mixing is required for the fuel.
- Carefully remove the fuel cap and fill the fuel tank (capacity: 1000ml) to approximately 90% capacity to allow for expansion.
- Securely replace the fuel cap. Wipe up any spilled fuel immediately.
Operating Instructions
Starting the Engine (Smart Starting Technology)
- Place the trimmer on a flat, stable surface.
- Ensure the ON/OFF switch is in the "ON" position.
- If the engine is cold, move the choke lever to the "CLOSED" or "START" position. If warm, leave it in the "OPEN" or "RUN" position.
- Press the primer bulb several times until fuel is visible in the clear return line.
- Pull the starter rope with a smooth, steady motion until the engine fires (usually 1-3 pulls). Do not pull the rope to its full extension or let it snap back.
- Once the engine fires, move the choke lever to the "OPEN" or "RUN" position.
- Allow the engine to warm up for a few moments before engaging the throttle.
Using the Trimmer
- Adjust the shoulder strap for comfortable balance and control.
- Maintain a firm grip on the handlebars.
- Keep the cutting attachment away from your body and obstacles.
- For string trimming, use a sweeping motion, cutting from right to left for optimal debris deflection.
- The trimmer offers a reach of up to 68 inches, allowing access to high or difficult-to-reach areas without ladders.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your equipment.
After Each Use:
- Clean the exterior of the engine and attachments. Remove grass, dirt, and debris.
- Inspect the cutting line/blade for wear or damage. Replace as needed.
- Check for loose fasteners and tighten if necessary.
Periodically:
- Air Filter: Clean or replace the air filter. A dirty air filter can reduce engine performance.
- Spark Plug: Inspect and clean the spark plug. Replace if worn or fouled.
- Fuel Filter: Check and replace the fuel filter if clogged.
- Gearbox Lubrication: Refer to the specific attachment manual for lubrication requirements of gearboxes (e.g., chainsaw head).
Storage:
- For long-term storage, drain the fuel tank or use a fuel stabilizer. Run the engine until it stops to clear the carburetor of fuel.
- Clean the entire unit thoroughly.
- Store in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel; ON/OFF switch in "OFF" position; Choke incorrect; Fouled spark plug; Clogged fuel filter. | Add fuel; Move switch to "ON"; Adjust choke; Clean/replace spark plug; Clean/replace fuel filter. |
| Engine runs, but lacks power | Dirty air filter; Incorrect fuel mixture (not applicable for 4-stroke fuel); Worn spark plug. | Clean/replace air filter; Inspect/replace spark plug. |
| Excessive vibration | Loose attachment; Damaged cutting line/blade; Bent shaft. | Tighten attachment; Replace cutting line/blade; Inspect shaft for damage. |
Specifications
- Model: GX50
- Brand: chikura
- Engine Type: Air-cooled, 4-stroke, single cylinder gasoline
- Engine Power: 0.95 kW / 7500 r/min
- Carburetor: Pump-film type
- Idling Speed: 2600-2800 r/min
- Fuel Tank Capacity: 1000 ml (1 Liter)
- Pipe Diameter: 26 mm
- Power Source: Gas Powered
- Item Weight: Approximately 32 Pounds (14.5 kg)
- Cutting Width: 5 Inches (for string trimmer head)
- Product Dimensions (assembled): Approximately 55"L x 56"W (dimensions may vary with attachments)
- UPC: 768825841030
Warranty and Support
The chikura GX50 4-Stroke 5-in-1 String Trimmer comes with a 1-year warranty from the date of purchase.
For any issues, replacement parts, or technical assistance, please contact chikura customer service. Our support team is available 24 hours online to assist you. We are committed to resolving any problems and arranging for necessary parts without additional charge under warranty.
For spare parts or additional poles (to extend reach beyond 68 inches), please contact customer support directly.
Contact Information: Refer to your purchase documentation or the official chikura website for the most current contact details.
