1. Introduction
This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Panasonic RU 7-in-1 Convertible 1.5 Ton 3-Star Inverter Split Air Conditioner, Model CS/CU-RU18BKY-1. Please read this manual thoroughly before using the appliance and retain it for future reference.
2. Important Safety Information
To prevent personal injury, injury to others, or property damage, observe the following safety precautions. Incorrect operation due to ignoring instructions may cause harm or damage.
- Professional Installation: Installation, relocation, and maintenance of this air conditioner must be performed by a qualified service technician. Improper installation can lead to electric shock, fire, or water leakage.
- Electrical Safety: Ensure the power supply matches the specifications of the unit. Do not use damaged power cords or plugs. Do not operate with wet hands.
- Ventilation: Ensure proper ventilation in the room, especially if other heating appliances are used.
- No Self-Repair: Do not attempt to repair, disassemble, or modify the unit yourself. Contact authorized service personnel for all repairs.
- Children and Pets: Keep children and pets away from the unit. Do not allow them to play with the remote control.
- Flammable Materials: Do not place flammable materials or spray aerosols near the indoor or outdoor units.
3. Package Contents
Upon unpacking, please verify that all the following items are included:
- Indoor Unit
- Outdoor Unit
- Remote Control
- User Manual (this document)
If any items are missing or damaged, please contact your dealer immediately.
4. Product Features
The Panasonic RU 7-in-1 Convertible 1.5 Ton 3-Star Inverter Split AC is equipped with advanced features for optimal cooling performance and energy efficiency:
- 7-in-1 Convertible Modes: Offers flexible cooling capacity adjustments to suit varying needs and save energy.
- 3-Star Energy Rating: Designed for energy efficiency, reducing electricity consumption.
- 100% Copper Condenser: Ensures superior durability, efficient heat exchange, and minimal maintenance.
- PM 0.1 Filter: Captures microscopic dust particles and pollutants for cleaner, healthier indoor air.
- 2-Way Swing: Provides uniform airflow distribution for consistent cooling throughout the room.
- Crystal Clean Technology: Helps keep the heat exchanger and condenser clean, enhancing efficiency and lifespan.
- Shield Blue+ Coating: Protects the evaporator from rust and corrosion, extending the unit's durability.
- Eco-friendly R32 Refrigerant: Utilizes a refrigerant with low global warming potential, minimizing environmental impact.
- Silent Operation: Engineered to operate quietly, ensuring a peaceful environment.

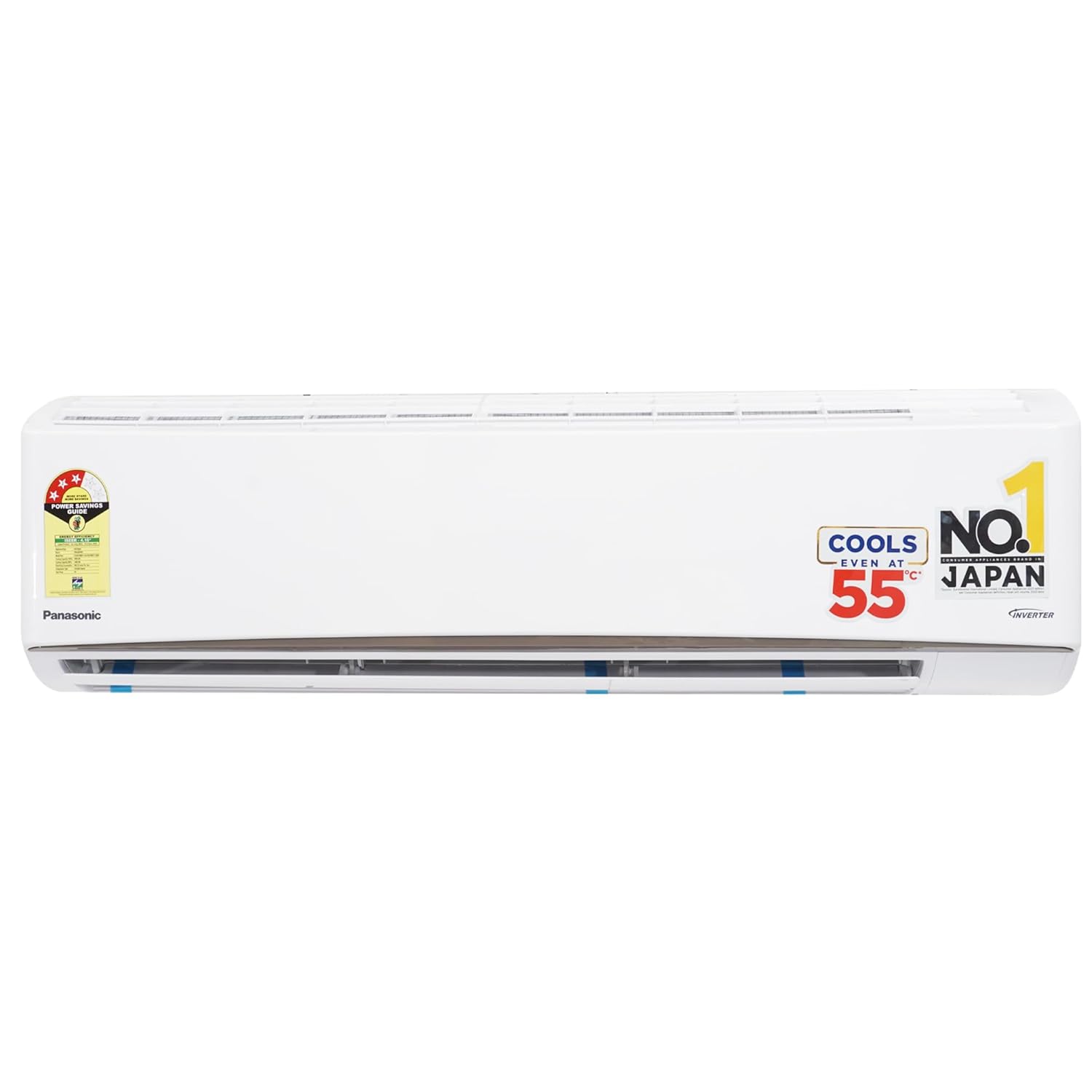

Figure 4.1: Front view of the Panasonic RU Indoor Unit. This image shows the sleek white design of the indoor unit with the Panasonic logo and energy rating sticker visible on the left side.
Figure 4.2: The outdoor unit of the Panasonic RU Split AC. The image displays the grey metallic casing with the Panasonic logo and the fan grille.
Figure 4.3: Energy Savings Guide label for the Panasonic RU AC, indicating a 3-star energy rating and an ISEEER of 4.10.
5. Setup and Installation
Installation of this air conditioning unit requires specialized skills and tools. For safety and optimal performance, it is mandatory that the installation be performed by a qualified and authorized service technician.
5.1. Pre-Installation Checks
- Ensure the installation site for both indoor and outdoor units is structurally sound and can support the weight.
- Verify that the electrical supply meets the unit's requirements (230 Volts, 1595 Watts).
- Ensure adequate space around the outdoor unit for proper airflow and maintenance.
5.2. Unit Dimensions
Refer to the diagram below for the dimensions of the indoor unit to assist with placement planning.
Figure 5.1: Dimensional diagram of the indoor unit, showing approximate measurements of 100 cm (width), 29.5 cm (height), and 23 cm (depth).
5.3. Post-Installation
After installation, the technician will perform a test run to ensure proper operation and explain basic functions.
6. Operating Instructions
Your Panasonic AC is operated primarily using the provided remote control. Ensure the remote control has working batteries.
6.1. Basic Operation
- Power On/Off: Press the ON/OFF button on the remote control to start or stop the unit.
- Mode Selection: Use the MODE button to cycle through available modes:
- Cool: For cooling the room.
- Fan: Circulates air without cooling.
- Dry: Reduces humidity in the room.
- Auto: Automatically selects the appropriate mode based on room temperature.
- Temperature Adjustment: Use the TEMP ▲ / ▼ buttons to set your desired temperature.
- Fan Speed: Adjust the fan speed using the FAN SPEED button.
- Swing Function: Activate the SWING button for automatic vertical airflow direction. The 2-Way Swing feature ensures even cooling.
6.2. 7-in-1 Convertible Modes
The 7-in-1 Convertible feature allows you to adjust the cooling capacity of the AC to optimize energy consumption based on the number of people in the room or the ambient temperature. Refer to your remote control's specific buttons or the display for activating and selecting these modes. This feature helps in saving energy by not always running the AC at its maximum capacity.
Figure 6.1: The indoor unit with its front panel and air outlet flap open, demonstrating the operational state for air circulation.
7. Maintenance
Regular maintenance ensures the longevity and efficient operation of your air conditioner. Always turn off the power supply before performing any maintenance.
7.1. Air Filter Cleaning
The PM 0.1 filter and other air filters should be cleaned regularly (e.g., every two weeks or as needed) to maintain air quality and cooling efficiency.
- Open the front panel of the indoor unit.
- Carefully remove the air filters.
- Clean the filters using a vacuum cleaner or wash them with lukewarm water and a mild detergent.
- Allow the filters to dry completely in a shaded area before reinserting them.
- Close the front panel securely.
7.2. Crystal Clean Technology
This technology helps keep the heat exchanger clean. For optimal performance, ensure regular filter cleaning as described above, which supports the effectiveness of Crystal Clean Technology.
7.3. Outdoor Unit Maintenance
Periodically check the outdoor unit for any obstructions (leaves, debris) around the fan and coils. Gently remove any blockages. Do not attempt to clean the internal components yourself. Professional cleaning of the outdoor unit is recommended annually.
7.4. General Cleaning
Wipe the indoor unit's exterior with a soft, dry cloth. For stubborn stains, use a damp cloth with a neutral detergent, then wipe dry. Do not use harsh chemicals, abrasives, or solvents.
8. Troubleshooting
Before contacting service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate. | No power supply. Batteries in remote control are dead. Timer function is active. | Check power connection and circuit breaker. Replace remote control batteries. Cancel timer setting. |
| Insufficient cooling. | Dirty air filters. Windows/doors open. Temperature setting too high. Outdoor unit obstructed. | Clean air filters. Close windows and doors. Lower the temperature setting. Remove obstructions from outdoor unit. |
| Strange noises. | Expansion/contraction of plastic parts (normal). Gurgling sound (refrigerant flow, normal). | These sounds are usually normal during operation. If unusual or loud, contact service. |
| Water dripping from indoor unit. | Blocked drain pipe. Improper installation. | Turn off unit and contact service immediately. |
If the problem persists after attempting these solutions, or if you encounter an error code on the display, please contact authorized service personnel.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Panasonic |
| Model | CS/CU-RU18BKY-1 |
| Capacity | 1.5 Tons |
| Energy Efficiency (ISEER) | 4.1 (3-Star Rating) |
| Annual Energy Consumption | 905.23 Kilowatt Hours Per Year |
| Noise Level (Indoor Unit) | 48 dB |
| Installation Type | Split System |
| Refrigerant | R32 |
| Voltage | 230 Volts |
| Wattage | 1595 Watts |
| Material | Plastic (Indoor Unit) |
| Colour | White |
| Indoor Unit Dimensions (Approx.) | 100 cm (Width) x 29.5 cm (Height) x 23 cm (Depth) |
| Item Weight (Indoor Unit) | 15 kg |
| Included Components | Remote, User Manual, Indoor and Outdoor Units |
10. Warranty and Support
Your Panasonic RU 7-in-1 Convertible 1.5 Ton 3-Star Inverter Split AC comes with comprehensive warranty coverage:
- 1 Year Comprehensive Warranty on the entire unit.
- 5 Years Warranty on the PCB (Printed Circuit Board).
- 5 Years Warranty on the ODU Casing (Outdoor Unit Casing).
- 10 Years Warranty on the Compressor.
For warranty claims, technical support, or service requests, please contact Panasonic customer service. Keep your purchase receipt and product model information handy when contacting support.
You can find contact information for Panasonic customer service on their official website or in the warranty card provided with your product.
