1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and care of your CHIPEL 20L Commercial Dough Mixer. Please read these instructions thoroughly before using the appliance for the first time and keep this manual for future reference.
The CHIPEL Commercial Dough Mixer is designed for commercial use, featuring a 20L stainless steel bowl, a 1.1kW pure copper motor, and three adjustable speeds. It comes with a spiral dough hook, a whisk, and a mixing paddle, making it suitable for various food preparation tasks such as kneading dough, mixing ingredients, and whipping eggs.
Image 1.1: The CHIPEL 20L Commercial Dough Mixer, showcasing its robust design, control panel, and included dough scraper. Key features like easy water washing, all-copper motor, and strong safety performance are highlighted.
2. Safety Instructions
- Placement: Do not place the mixer in a humid or hot environment. Ensure the mixer is placed firmly on a level, stable surface.
- Cleanliness: Keep the mixer and its surroundings clean to prevent contamination and ensure proper operation.
- Safety Guard: The mixer is equipped with a stainless steel bowl guard. This guard prevents foreign objects from falling into the bowl during operation and contains splashes.
- Automatic Shut-off: For your safety, the machine will automatically stop running if the safety guard above the bowl is opened during operation. Always ensure the guard is properly closed before starting the mixer.
- Power Supply: Ensure the voltage matches the mixer's requirements (110V).
- Children and Unauthorized Personnel: Keep children and unauthorized personnel away from the mixer during operation.
- Maintenance: Always unplug the mixer from the power outlet before cleaning, assembling, or disassembling parts.
3. Product Components and Features
The CHIPEL Commercial Dough Mixer includes the following main components and features:
- 20L Stainless Steel Bowl: Large capacity for mixing up to 5 kg (11 lbs) of flour. The bowl is removable for easy cleaning.
- Adjustable Bowl Height: A hand wheel allows you to adjust the height of the bowl for optimal mixing and easy access.
- 1.1kW Pure Copper Motor: Provides powerful and consistent mixing performance.
- Three Adjustable Speeds: Allows for precise control over mixing intensity for different ingredients and tasks.
- Stainless Steel Safety Guard: Protects users and prevents ingredients from splashing out.
- Three Mixing Tools:
- Spiral Dough Hook: Ideal for kneading dough.
- Mixing Paddle: Suitable for general mixing and stirring.
- Whisk: Designed for whipping eggs and light mixtures.
- Additional Accessories: Includes a dough knife/stainless steel scraper and a digital pocket scale.
4. Setup
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
- Placement: Position the mixer on a stable, level, and non-slip surface. Ensure there is adequate space around the mixer for ventilation and operation. Avoid humid or hot locations.
- Cleaning: Before first use, clean the mixing bowl and all mixing tools with warm soapy water, rinse thoroughly, and dry completely.
- Bowl Installation: Place the stainless steel mixing bowl onto the mixer's base, ensuring it is securely seated. Use the hand wheel to adjust the bowl height if necessary.
- Tool Attachment: Select the appropriate mixing tool (dough hook, mixing paddle, or whisk) for your task. Insert the tool into the attachment shaft and rotate until it locks into place.
- Power Connection: Plug the mixer into a grounded 110V power outlet.
5. Operating Instructions
Always ensure the safety guard is closed before starting the mixer.
- Add Ingredients: Place your ingredients into the mixing bowl.
- Close Safety Guard: Ensure the stainless steel safety guard is fully closed. The mixer will not operate if the guard is open.
- Select Speed: The mixer offers three adjustable speeds: Low, Medium, and High. Choose the appropriate speed based on the mixing tool and ingredients.
- Start Mixer: Turn the power switch to the 'ON' position.
- Monitor Mixing: Observe the mixing process through the safety guard. If necessary, stop the mixer, adjust ingredients, or change speed.
- Stop Mixer: Once mixing is complete, turn the power switch to the 'OFF' position.
- Remove Bowl and Tool: Open the safety guard, detach the mixing tool, and remove the mixing bowl.
Image 5.1: The mixer's control panel indicating the three speed settings: Low, Medium, and High, which can be adjusted according to mixing needs.
5.1. Using the Mixing Tools
- Spiral Dough Hook (Low Speed):
Use the dough hook for kneading heavy doughs, such as bread dough, pizza dough, or pasta dough. The low speed simulates hand kneading, making the dough flexible and powerful.
Image 5.2: The spiral dough hook, designed for low-speed kneading to create flexible dough for various baked goods.
- Mixing Paddle (Medium Speed):
The mixing paddle is suitable for general mixing and stirring tasks, such as batters, frostings, vegetable purees, and ground meat. It ensures ingredients are evenly mixed, eliminating the need for manual stirring.

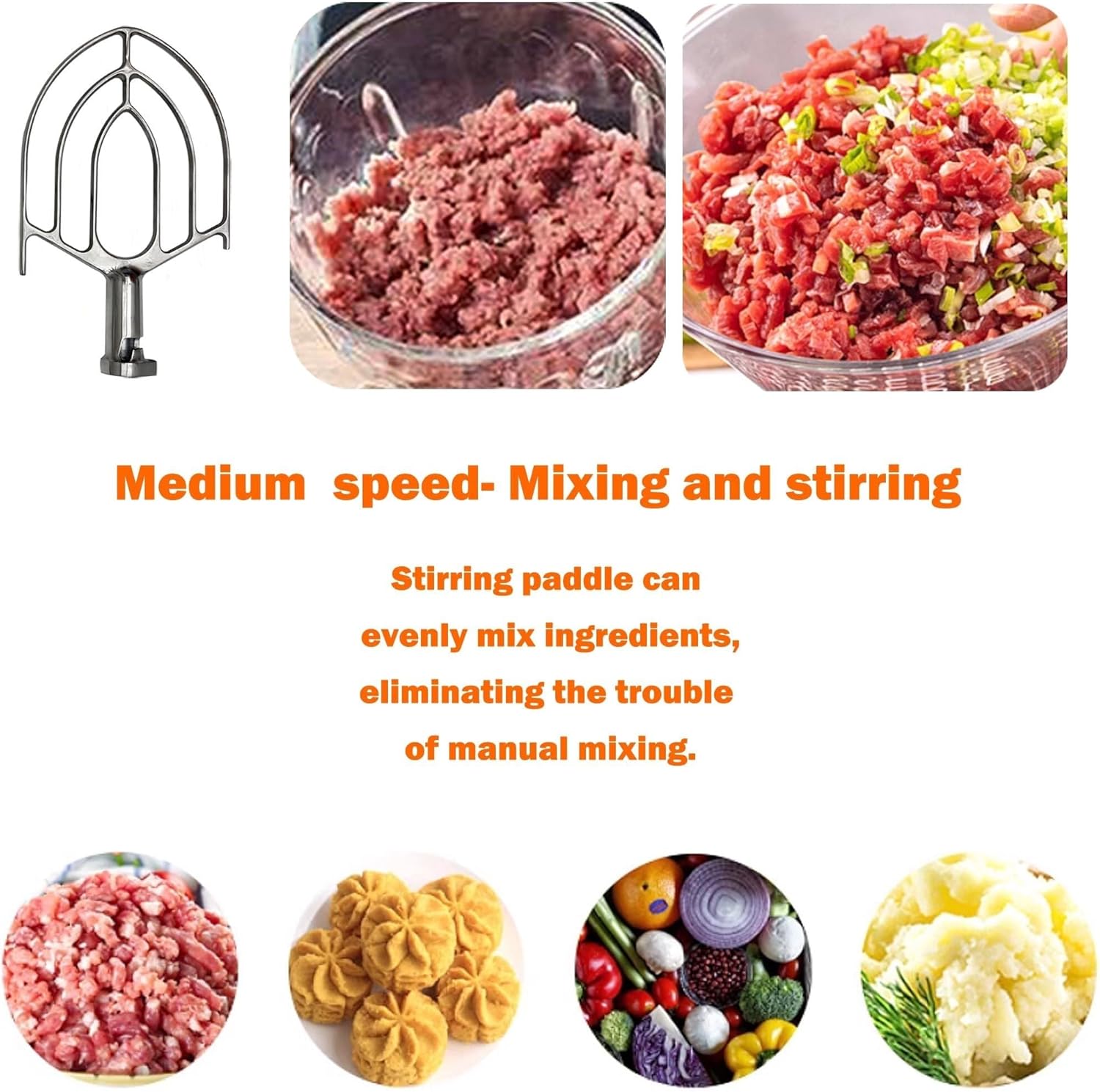

Image 5.3: The mixing paddle, used at medium speed for evenly combining ingredients like ground meat or batters.
- Whisk (High Speed):
Use the whisk for aerating and whipping ingredients, such as egg whites, cream, and light batters. The high speed quickly creates a rich and delicate effect, ideal for soft pastries and meringues.

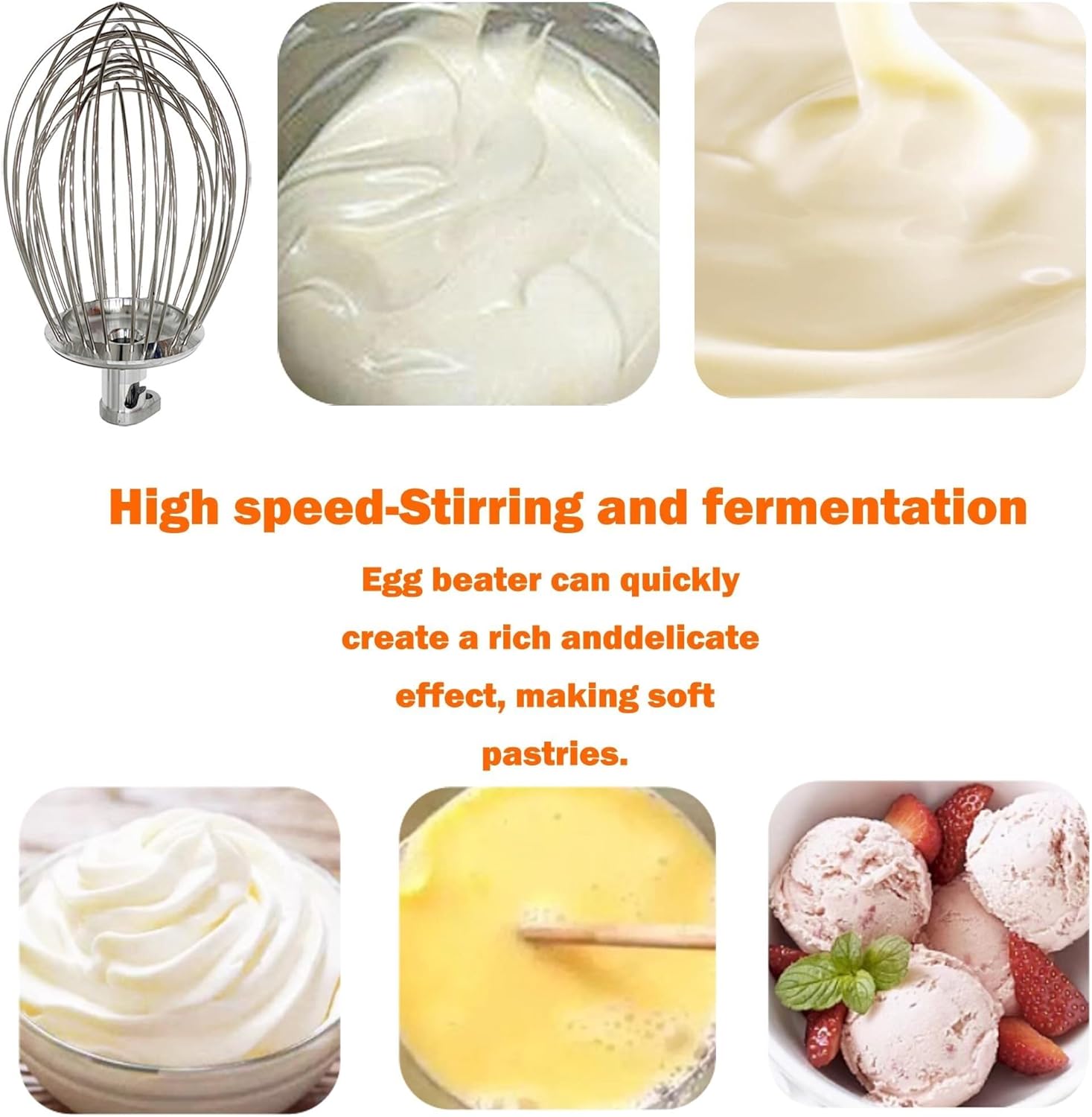

Image 5.4: The whisk attachment, used at high speed for whipping eggs, cream, and other light mixtures to achieve a delicate texture.
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your mixer.
- Unplug: Always unplug the mixer from the power outlet before cleaning.
- Detachable Bowl: The stainless steel mixing bowl is detachable, making it easy to clean. Wash the bowl and mixing tools with warm soapy water, rinse thoroughly, and dry completely after each use.
- Wipe Down Main Unit: Use a damp cloth to wipe down the exterior of the mixer. Do not immerse the main unit in water or spray it directly with water.
- Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surfaces.
- Storage: Store the mixer in a clean, dry place when not in use.

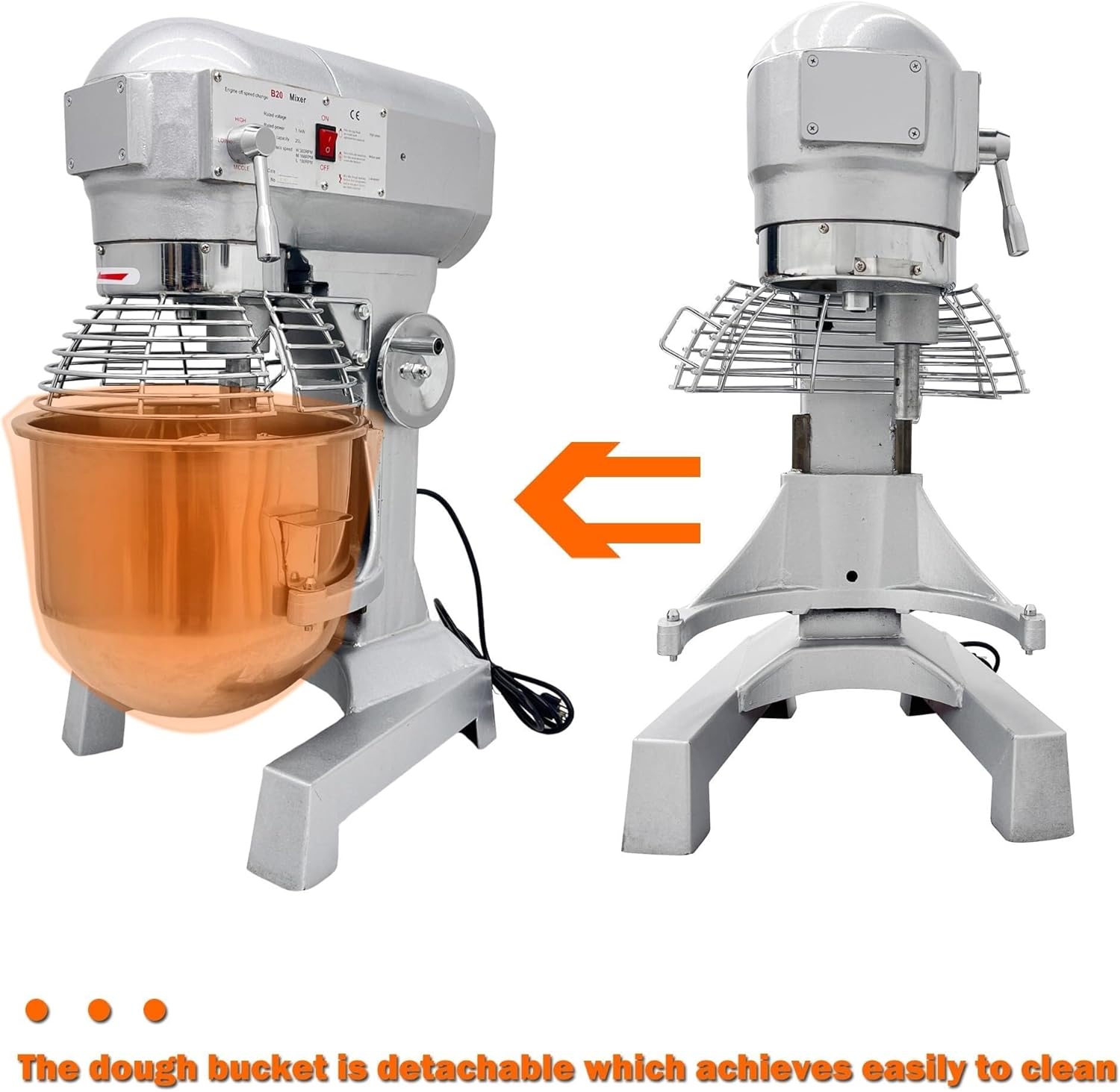

Image 6.1: The mixing bowl can be easily detached from the mixer for thorough cleaning.
7. Specifications
Refer to the following specifications for your CHIPEL Commercial Dough Mixer:
Image 7.1: Detailed product parameters including capacity, voltage, power, speed, and physical dimensions.
| Parameter | Value |
|---|---|
| Capacity | 20 Liters |
| Maximum Flour Capacity | 5 kg (11 lbs) |
| Voltage | 110V |
| Power | 1.1 kW |
| Speed Settings | Three adjustable speeds |
| Dimensions (L x W x H) | 19.39 in x 16.93 in x 30.31 in (49 cm x 43 cm x 77 cm) |
| Bowl Diameter | 12.6 in |
| Bowl Depth | 11.81 in |
| Item Weight | Approximately 50 Grams (Note: This weight seems incorrect based on product type, likely refers to a small accessory. Actual mixer weight is significantly higher.) |
| Manufacturer | CHIPEL |
8. Troubleshooting
This section provides general guidance for common issues. For more complex problems or issues not listed here, please contact customer support.
- Mixer does not start:
- Ensure the power cord is securely plugged into a working 110V outlet.
- Verify that the safety guard is fully closed. The mixer has an automatic shut-off feature if the guard is open.
- Check the power switch is in the 'ON' position.
- Unusual noise during operation:
- Ensure the mixing bowl and chosen mixing tool are correctly installed and locked into place.
- Reduce the load if the mixer is struggling with very heavy dough.
- Ingredients not mixing evenly:
- Ensure the correct mixing tool is being used for the type of ingredients.
- Adjust the speed setting as appropriate for the consistency of the ingredients.
