Amenitlif 3-in-1 Portable Air Conditioner User Manual

1. Introduction

Thank you for choosing the Amenitlif 3-in-1 Portable Air Conditioner. This unit is designed to provide efficient cooling, dehumidification, and air circulation for rooms up to 350 sq. ft. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

This portable AC unit features an 8,000 BTU ASHRAE cooling capacity, a 45-pint/day dehumidifier, and a fan mode. It includes a remote control and a 24-hour timer for convenient operation.

Image 1.1: The Amenitlif Portable Air Conditioner in operation, highlighting its cooling capacity and suitable room size.

2. Safety Information

WARNING: To reduce the risk of fire, electrical shock, or injury, always follow these basic precautions:

• Read all instructions before using this appliance.
• Plug into a grounded 3-prong outlet. Do not remove the grounding prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Do not use this appliance near water or in excessively damp environments.
• Keep the air intake and exhaust vents clear of obstructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

3. Package Contents

Verify that all components listed below are included in your package:

• Portable Air Conditioner Unit
• Exhaust Hose
• Window Sealing Kit (Window Slider Kit, Adapter)
• Remote Control
• Drain Hose
• User Manual

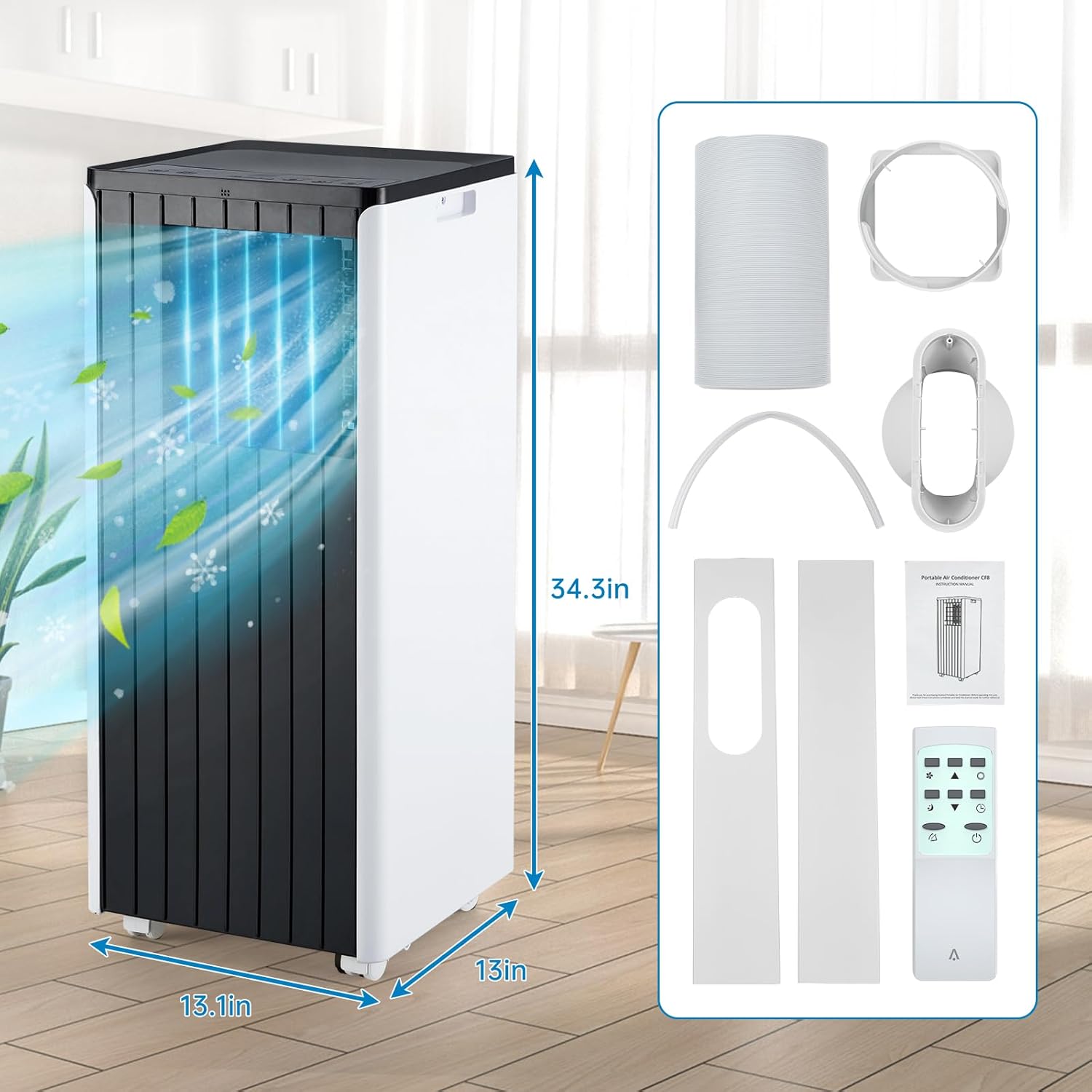

Image 3.1: All components included with the Amenitlif Portable Air Conditioner.

4. Product Features

• 3-in-1 Functionality: Offers Cooling, Dehumidifier, and Fan modes for versatile climate control.
• Powerful Cooling: 8000 BTU ASHRAE capacity effectively cools rooms up to 350 sq. ft.
• Efficient Dehumidification: Removes up to 45 pints of moisture per day, improving air quality.
• Quiet Operation: Sleep Mode operates at approximately 50 dB for minimal disturbance.
• Smart Controls: Features a 24-hour timer and a full-function remote control for convenience.
• Portability: Equipped with built-in wheels and handles for easy movement between rooms.
• Easy Installation: Comes with a complete window kit for quick and hassle-free setup.
• Active Carbon Filter: Helps to purify the air by trapping dust and odors.

5. Setup and Installation

Proper installation is crucial for the efficient operation of your portable air conditioner. Follow these steps carefully:

5.1 Positioning the Unit

• Place the unit on a flat, stable surface.
• Ensure there is at least 20 inches (50 cm) of space around the unit for proper airflow.
• Avoid placing the unit in direct sunlight or near heat sources.

5.2 Window Kit Installation

The window sealing kit is designed for most standard sliding and single-hung windows.

1. Assemble the window slider kit to fit your window opening. Extend or retract the panels and secure them with screws.
2. Open the window and place the assembled window kit into the window frame. Close the window firmly against the kit.
3. Attach one end of the exhaust hose to the unit's exhaust outlet.
4. Attach the other end of the exhaust hose to the window kit adapter.
5. Ensure all connections are secure to prevent air leakage.

Image 5.1: Visual guide for installing the window kit and exhaust hose.

5.3 Power Connection

• Plug the power cord into a grounded 3-prong electrical outlet (115V/60Hz).
• Do not use extension cords or power strips.

6. Operating Instructions

Your portable air conditioner can be operated using the control panel on the unit or the included remote control.

6.1 Control Panel Overview

Image 6.1: The intuitive touch control panel on the top of the unit.

• Power Button: Turns the unit ON or OFF.
• Mode Button: Cycles through Cool, Dehumidify (Dry), and Fan modes.
• Up/Down Buttons: Adjust temperature settings (61°F-88°F / 16°C-31°C) or timer duration.
• Speed Button: Selects fan speed (Low, High).
• Timer Button: Sets the auto ON/OFF timer (1-24 hours).
• Sleep Button: Activates Sleep Mode for quiet operation and energy saving.
• Child Lock: Locks the control panel to prevent accidental changes.

6.2 Operating Modes

• Cool Mode: Provides powerful cooling. Set your desired temperature using the Up/Down buttons.
• Dehumidify (Dry) Mode: Reduces humidity in the room (up to 45 pints/day). The fan speed is fixed in this mode.

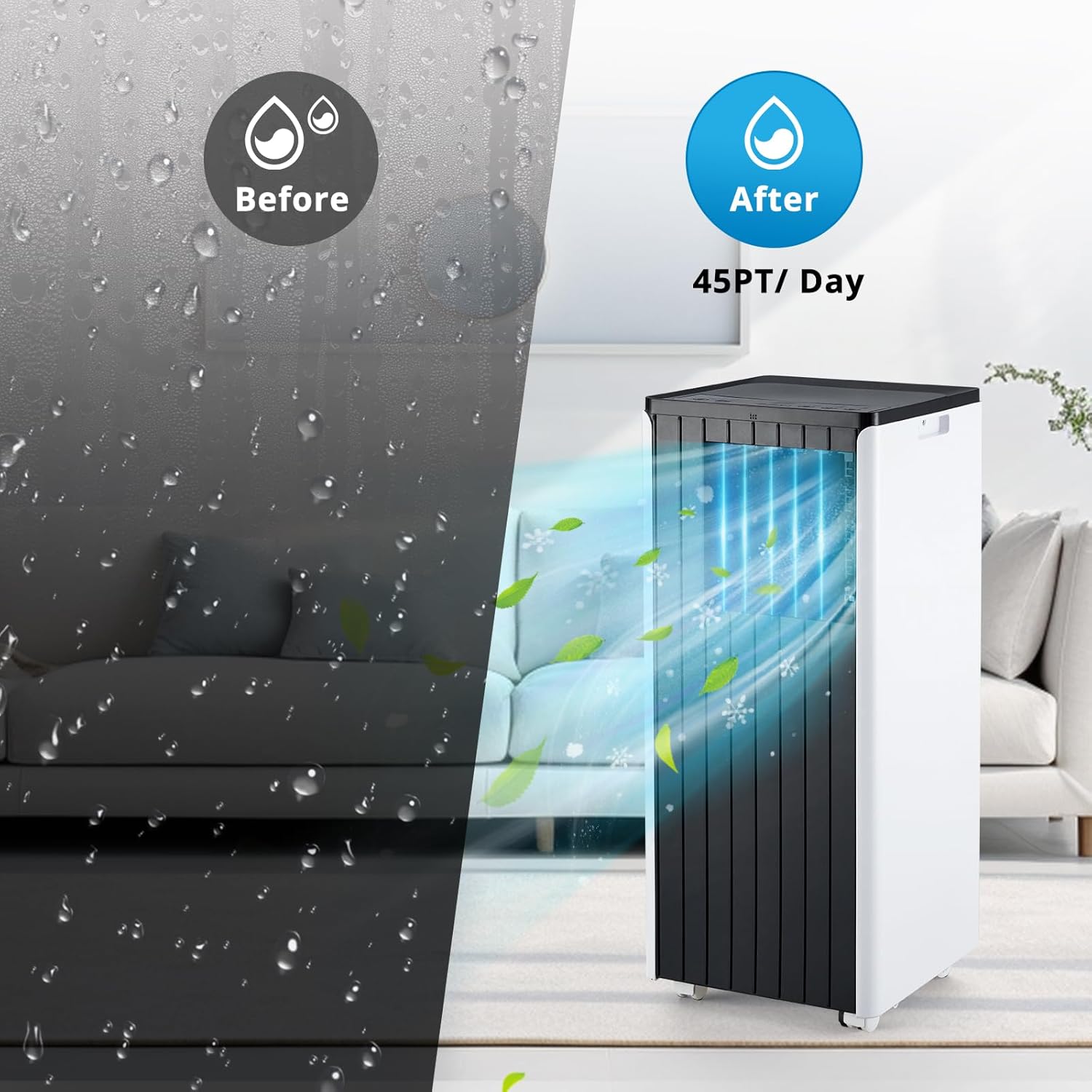

Image 6.2: The unit's dehumidification capability.

• Fan Mode: Circulates air without cooling. Select desired fan speed (Low, High).

6.3 Sleep Mode

Activate Sleep Mode for quieter operation (approx. 50 dB) and energy efficiency during nighttime. The unit will gradually increase the set temperature over several hours to maintain comfort while you sleep.

Image 6.3: The unit's quiet operation in Sleep Mode.

6.4 Remote Control

The remote control provides full functionality from a distance. Ensure the remote is pointed towards the unit's receiver when pressing buttons.

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your air conditioner.

7.1 Air Filter Cleaning

• The air filter should be cleaned every two weeks or more frequently depending on usage and air quality.
• Turn off and unplug the unit before cleaning.
• Remove the air filter from the back of the unit.
• Wash the filter with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinstalling.
• Do not operate the unit without the filter.

7.2 Water Drainage

The unit has a self-evaporative system, but in high humidity conditions, the internal water tank may fill up. When this happens, the unit will stop operating and display an error code (e.g., "FL" for Full Water).

• Turn off and unplug the unit.
• Place a shallow pan or tray under the drain port at the bottom rear of the unit.
• Remove the drain plug to allow water to flow out.
• Once drained, replace the drain plug securely.

7.3 Storage

If storing the unit for an extended period:

• Drain all water from the unit.
• Clean the air filter.
• Run the unit in Fan mode for a few hours to dry the interior.
• Unplug the unit and coil the power cord.
• Store the unit in a cool, dry place, covered to protect it from dust.

8. Troubleshooting

Before contacting customer support, refer to the following table for common issues and solutions:

9. Specifications

Image 9.1: Dimensions of the Amenitlif Portable Air Conditioner.

10. Warranty and Support

For warranty information and customer support, please refer to the contact details provided with your purchase or visit the official Amenitlif website.

• Return Policy: This product is eligible for a 30-day return/replacement policy.
• Protection Plans: Extended protection plans (3-Year, 4-Year) may be available for purchase.

Please retain your proof of purchase for any warranty claims.
