vinamass TV-3 Wireless Headphones User Manual

1. Introduction

Thank you for choosing the vinamass TV-3 Wireless Headphones. This manual provides essential information for the safe and efficient operation of your new headphones. Please read it thoroughly before use and retain it for future reference.

Image: vinamass TV-3 Wireless Headphones resting on their charging base, showcasing the sleek design and integrated display.

2. Safety Information

• Do not expose the headphones or transmitter to extreme temperatures, moisture, or corrosive substances.
• Avoid dropping or subjecting the device to strong impacts.
• Clean the headphones with a soft, dry cloth. Do not use liquid cleaners.
• Keep out of reach of children and pets.
• Dispose of the product and its components responsibly according to local regulations.

3. Package Contents

Verify that all items are present in your package:

• Bluetooth Headphones & Transmitter / Charging Dock * 1
• Power Cable for Transmitter * 1
• Optical Audio Cable * 1
• AUX 3.5mm Audio Cable * 1
• 3.5mm to RCA Audio Cable * 1

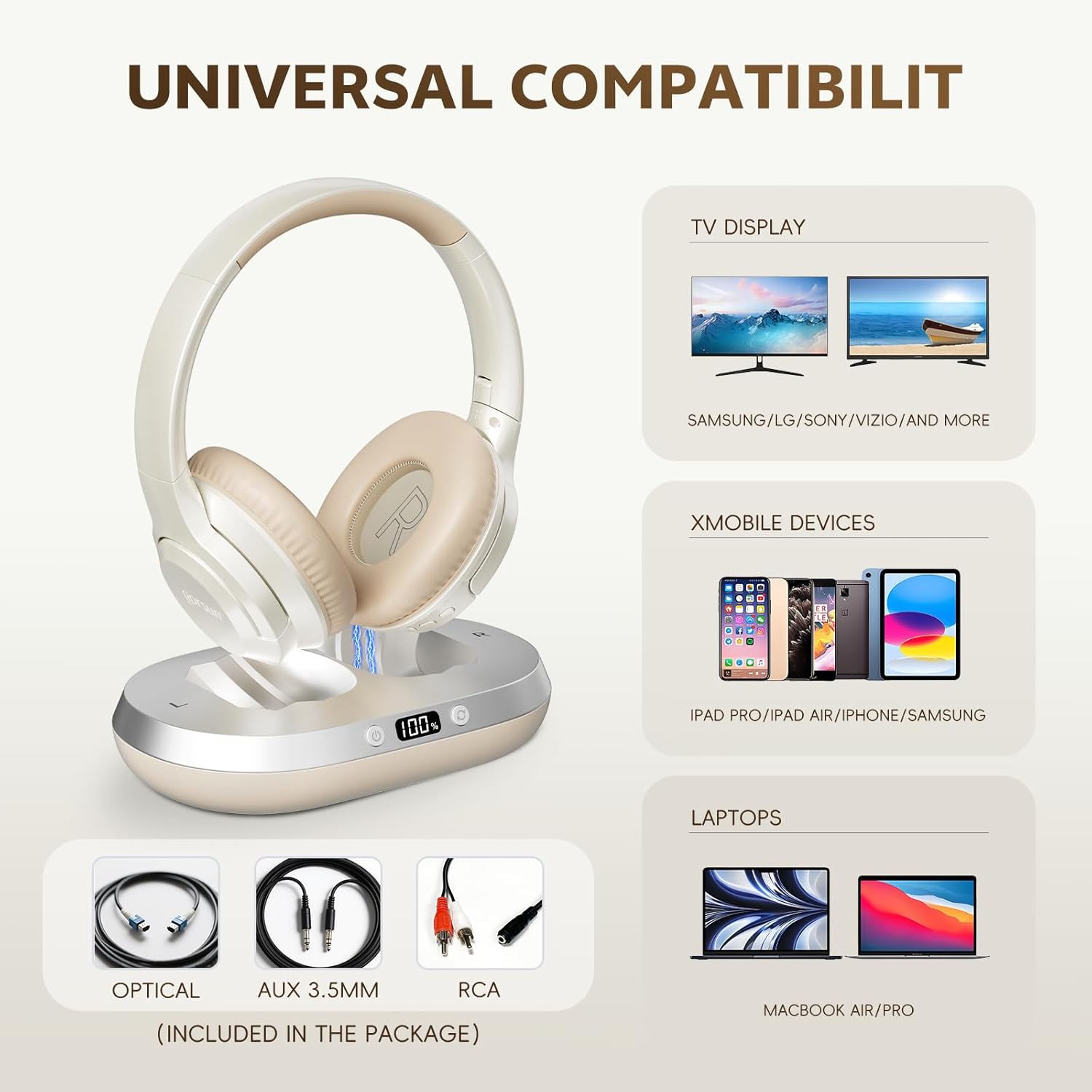

Image: Overview of the vinamass TV-3 Wireless Headphones, charging dock, and various connection cables (Optical, AUX, RCA) included in the package.

4. Product Overview

4.1 Headphone Features

• Adjustable Headband: For a comfortable fit.
• Soft Over-Ear Pads: Made with premium protein leather and memory sponge for extended wear.
• Foldable Design: For easy storage and portability.
• Controls: Integrated buttons for power, volume, and mode selection.

Image: Detailed view of the soft, adjustable over-ear pads and the flexible headband of the vinamass TV-3 headphones, highlighting comfort features.

Image: The vinamass TV-3 Wireless Headphones shown in their folded configuration, demonstrating their compact design for portability.

4.2 Transmitter/Charging Base

• Charging Dock: Provides convenient charging for the headphones.
• Input Ports: Optical (TOSLINK), 3.5mm AUX, and RCA.
• Display: Shows charging status and battery level.

Image: The rear view of the vinamass TV-3 charging base, clearly showing the power input, Digital Optical input, and AUX input ports.

5. Setup Instructions

5.1 Powering the Transmitter

1. Connect the provided Power Cable for Transmitter to the USB port on the charging dock.
2. Plug the other end of the power cable into a suitable USB power source (e.g., TV USB port, USB wall adapter).
3. The display on the charging dock will illuminate.

5.2 Connecting to Your TV

The vinamass TV-3 headphones offer multiple connection options:

5.2.1 Optical (TOSLINK) Connection (Recommended for best audio quality)

1. Connect one end of the Optical Audio Cable to the "Digital Optical" port on the charging dock.
2. Connect the other end of the Optical Audio Cable to the Optical Audio Output port on your TV.
3. On your TV's audio settings, select "Optical Out" or "Digital Audio Out" as the audio output.
4. Ensure your TV's audio format is set to PCM (Pulse Code Modulation) if necessary, as some TVs require this for optical output.

5.2.2 AUX (3.5mm) Connection

1. Connect one end of the AUX 3.5mm Audio Cable to the "AUX" port on the charging dock.
2. Connect the other end of the AUX 3.5mm Audio Cable to the 3.5mm Audio Output (headphone jack) on your TV.
3. On your TV's audio settings, select "Headphone" or "Audio Out" as the audio output.

5.2.3 RCA Connection

1. Connect the 3.5mm end of the 3.5mm to RCA Audio Cable to the "AUX" port on the charging dock.
2. Connect the red and white RCA plugs to the corresponding "Audio Out" RCA ports on your TV.
3. On your TV's audio settings, select "RCA Audio Out" as the audio output.

Image: Step-by-step visual guide for connecting the vinamass TV-3 headphones to a TV using various audio output options, including power-on and sound check.

5.3 Bluetooth Connection (for mobile phones/computers)

1. Ensure the headphones are powered on and not connected to the transmitter via 2.4GHz.
2. Press and hold the Bluetooth pairing button on the headphones until the indicator light flashes blue and red, indicating pairing mode.
3. On your mobile phone or computer, enable Bluetooth and search for "vinamass TV-3" (or similar name).
4. Select the headphones to pair. Once connected, the indicator light will turn solid blue.

6. Operating Instructions

6.1 Powering On/Off

• Power On: Press and hold the Power button on the headphones for 3 seconds.
• Power Off: Press and hold the Power button on the headphones for 3 seconds.

6.2 Volume Control

• Increase Volume: Press the Volume Up button (+).
• Decrease Volume: Press the Volume Down button (-).

6.3 Mode Switching

The headphones support 2.4GHz wireless (for TV transmitter) and Bluetooth modes. Use the Mode button to switch between them.

6.4 Charging the Headphones

Place the headphones on the charging dock, ensuring the metal contacts on the headphones align with the pins on the dock. The display on the dock will show the charging status. A full charge provides up to 65 hours of playtime.

7. Maintenance

• Cleaning: Use a soft, dry, lint-free cloth to clean the headphones and charging dock. Do not use abrasive cleaners or solvents.
• Storage: When not in use, store the headphones on the charging dock or in a cool, dry place away from direct sunlight. The foldable design allows for compact storage.
• Battery Care: To prolong battery life, avoid fully discharging the headphones frequently. Charge them regularly.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official vinamass website. Keep your proof of purchase for warranty claims.
