ROVSUN 30" Electric Countertop Flat Top Griddle Instruction Manual

1. Introduction

Thank you for choosing the ROVSUN 30" Electric Countertop Flat Top Griddle. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read all instructions carefully before use and retain this manual for future reference.

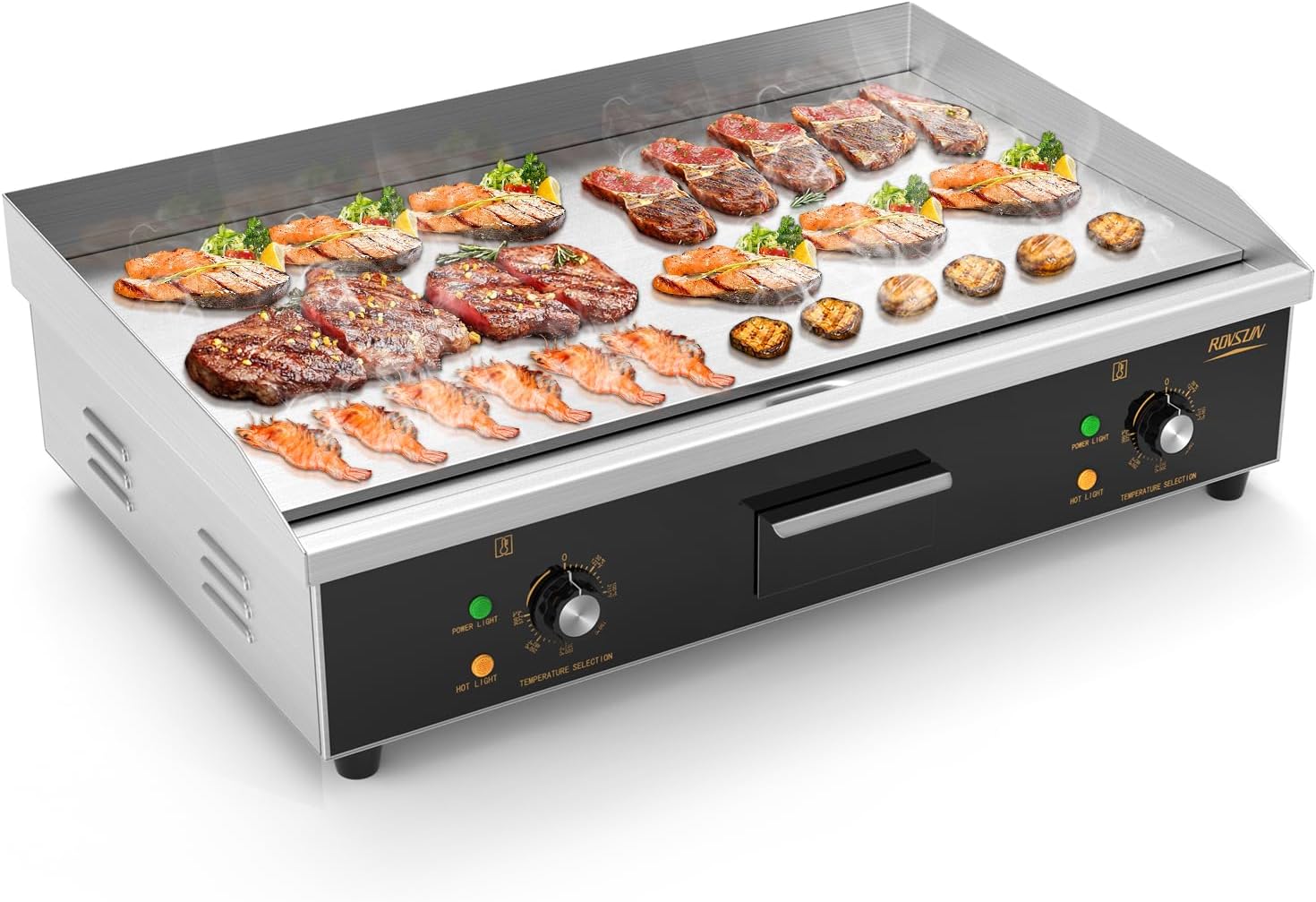

Image 1.1: The ROVSUN 30-inch Electric Countertop Flat Top Griddle in operation, cooking a variety of meats and vegetables.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Electrical Connection: This electric griddle requires a user-installed plug connection. A plug is not pre-attached. Consult a qualified electrician if you are unfamiliar with wiring to ensure proper and safe installation. Incorrect wiring can lead to electric shock or fire.
• Read all instructions before operating the griddle.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Product Features

The ROVSUN Electric Countertop Flat Top Griddle is designed for both commercial and home use, offering robust performance and user-friendly features.

• Professional-Grade Performance: Features an expansive 28.5" x 16" cooking surface and a powerful 3000W heating element for consistent performance.
• Premium Construction: Crafted with food-grade stainless steel and a thick cooking plate for superior heat retention and distribution.
• Smart Design: Includes a removable drip tray and splash guards on three sides to maintain a clean cooking area. Raised edges prevent food from sliding off.
• Precise Temperature Control: Adjustable temperature from 122°F to 572°F (50°C to 300°C) with independent dual heating zones for versatile cooking.
• Effortless Cleaning: Non-stick cooking surface and removable grease catch pan facilitate quick and easy cleanup. Corrosion-resistant stainless steel ensures durability.

Image 3.1: Key features of the griddle, including high-quality stainless steel construction, rapid heating capability, and a uniformly heated cooking surface.

Image 3.2: Detailed view of the griddle's components, including the oil outlet, oil catcher, raised splash-proof edge, status light, non-slip foot mat, and heat dissipation holes.

Image 3.3: The griddle's versatility for various applications, including restaurants, terraces, home kitchens, and canteens.

4. Setup and Installation

1. Unpacking: Carefully remove the griddle from its packaging. Inspect for any damage during transit. Retain packaging for future transport if needed.
2. Placement: Place the griddle on a stable, heat-resistant, and level surface. Ensure adequate clearance around the appliance for ventilation.
3. Electrical Connection (Crucial): This griddle is supplied without a pre-attached plug. It requires a user-installed plug connection. It is imperative that this installation is performed by a qualified electrician to ensure compliance with local electrical codes and safety standards. The griddle operates at 120 Volts (DC) and has a wattage of 3000W.
4. Grease Tray Installation: Slide the removable grease drip tray into its designated slot at the front of the griddle.
5. Initial Cleaning: Before first use, wipe down the cooking surface and exterior with a damp cloth and mild detergent. Rinse thoroughly and dry.

5. Operating Instructions

1. Power On: Ensure the griddle is properly connected to a suitable power outlet. Turn the temperature selection knob(s) to the desired setting. The "Power Light" will illuminate.
2. Temperature Control: The griddle features independent dual heating zones. Each zone has a temperature selection knob allowing adjustment from 122°F (50°C) to 572°F (300°C).


   Image 5.1: The temperature control dial, illustrating the adjustable range from 122°F to 572°F for precise cooking.

   • Use lower temperatures (e.g., 122°F-250°F) for warming or delicate items.
   • Use medium temperatures (e.g., 250°F-400°F) for pancakes, eggs, and vegetables.
   • Use higher temperatures (e.g., 400°F-572°F) for searing meats like steaks and burgers.
3. Preheating: Allow the griddle to preheat for approximately 10-15 minutes, or until the "Hot Light" indicates the desired temperature has been reached.
4. Cooking: Apply a thin layer of cooking oil to the griddle surface before placing food. Cook food as desired, utilizing the splash guards to contain splatter.
5. Grease Management: Excess grease will drain into the removable drip tray. Periodically check and empty the drip tray during extended cooking sessions.
6. Power Off: After cooking, turn the temperature selection knob(s) to the "OFF" position. Unplug the griddle from the power outlet and allow it to cool completely before cleaning.

6. Cleaning and Maintenance

Regular cleaning and maintenance will extend the life of your ROVSUN griddle and ensure optimal performance. Always ensure the griddle is unplugged and completely cool before cleaning.

1. Griddle Surface:
   • Scrape off any food residue with a griddle scraper or spatula.
   • Wipe the surface with a damp cloth and mild, non-abrasive detergent.
   • For stubborn stains, a specialized griddle cleaner can be used, following the product's instructions.
   • Rinse thoroughly with a clean, damp cloth to remove all detergent residue.
   • Dry the surface completely to prevent water spots or rust.


   Image 6.1: Demonstrating the easy cleaning process of the griddle surface, where oil stains can be wiped off with a cloth.

2. Grease Drip Tray: Remove the grease drip tray and empty its contents. Wash the tray with warm, soapy water. Rinse and dry thoroughly before reinserting.
3. Exterior: Wipe down the stainless steel exterior with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads, which can scratch the finish. Dry with a soft cloth.
4. Do Not Immerse: Never immerse the entire griddle unit in water or any other liquid.
5. Storage: Store the griddle in a clean, dry place when not in use.

7. Troubleshooting

If you encounter issues with your griddle, please refer to the following common troubleshooting steps.

8. Product Specifications

Image 8.1: Dimensional specifications of the griddle, indicating length, width, and height measurements.

9. Warranty Information

Specific warranty details for the ROVSUN 30" Electric Countertop Flat Top Griddle are not provided in the available product information. Please refer to the product packaging or contact ROVSUN customer support for warranty terms and conditions.

10. Customer Support

For technical assistance, parts, or service inquiries, please contact ROVSUN customer support. Contact information may be available on the product packaging or the official ROVSUN website.
