Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your NCOEN Portable Cordless Pressure Washer XS-MINI. Please read this manual thoroughly before first use and retain it for future reference.
Safety Information
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions before using the appliance.
- Do not direct the water jet at people, animals, electrical devices, or the unit itself.
- Keep children and pets away from the operating area.
- Use only clean water. Do not use corrosive or flammable liquids.
- Ensure the charging port is dry before connecting the Type-C cable.
- Do not operate the unit if any part is damaged.
- Disconnect the power source before performing any maintenance.
Package Contents
Verify that all items are present:
- NCOEN Portable Pressure Washer (12L Tank)
- High-Pressure Water Gun
- 2-meter Hose
- 25° Spray Nozzle
- Atomizing Nozzle (Mist Nozzle)
- Type-C Charging Cable

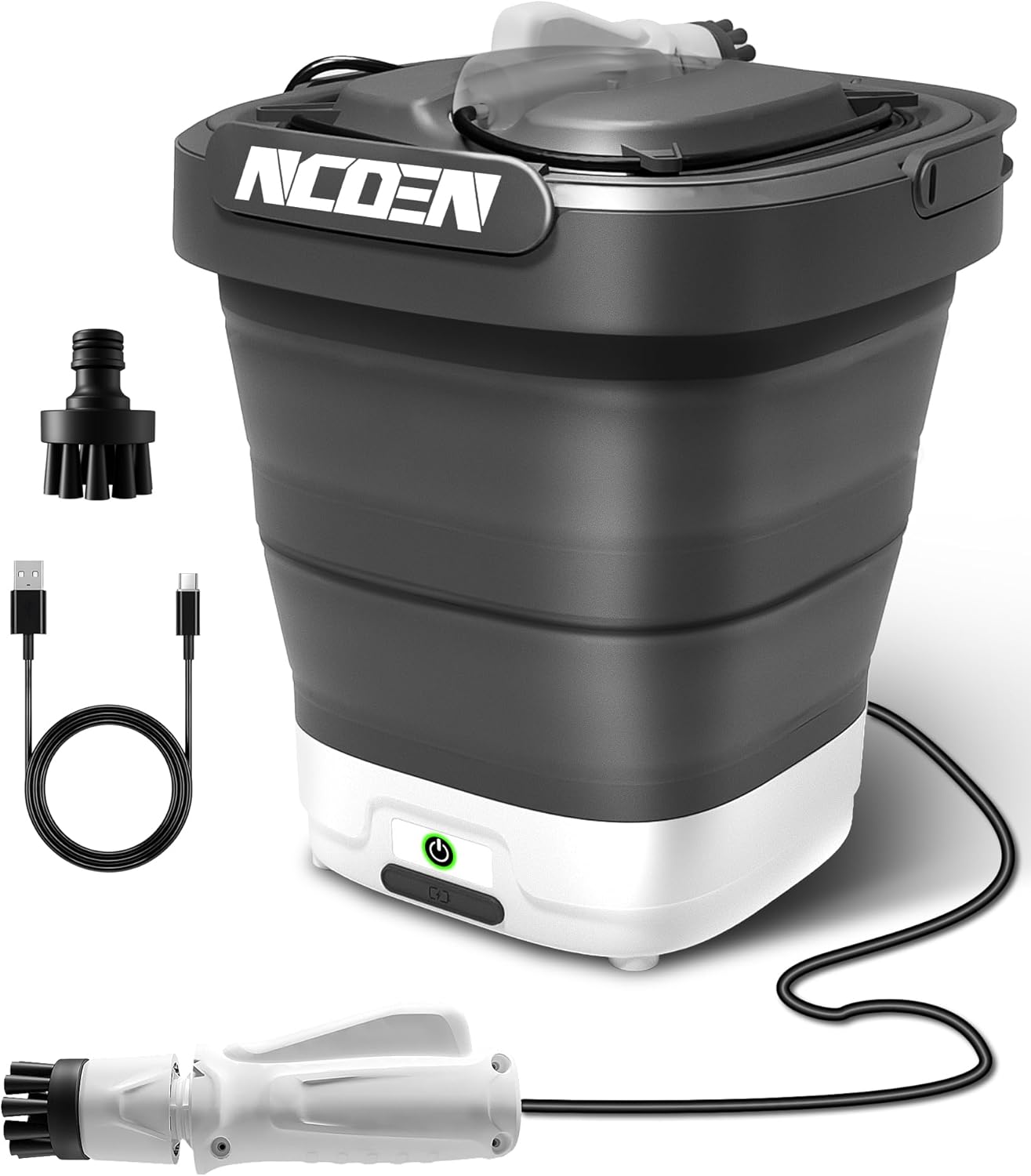

Image: Main components of the NCOEN Portable Pressure Washer.
Product Overview
Familiarize yourself with the main parts of your pressure washer:
- 12L Water Tank: Foldable design for compact storage and portability.
- Power Button & Charging Port: Located on the base for easy access.
- High-Pressure Water Gun: Ergonomic handle for comfortable use.
- 2M Hose: Connects the water gun to the tank.
- 25° Spray Nozzle: For strong jet stream cleaning.
- Atomizing Nozzle: For gentle mist spray.
Image: Detailed product components.
Setup
- Unpack and Expand: Carefully remove all components from the packaging. Gently push the bottom of the 12L tank and lift the outer shell to expand it to its full size.
- Charge the Battery: Before first use, fully charge the internal lithium battery using the provided Type-C charging cable. Connect the cable to the charging port on the unit's base and to a compatible USB power adapter (not included) or power bank. The charging indicator will show progress. A full charge takes approximately 2-3 hours and provides up to 35 minutes of runtime.
- Connect the Hose: Attach one end of the 2-meter hose to the outlet on the pressure washer unit and the other end to the inlet on the high-pressure water gun. Ensure connections are secure to prevent leaks.
- Attach Nozzle: Select either the 25° Spray Nozzle or the Atomizing Nozzle and securely attach it to the front of the water gun.
Image: Foldable design for compact storage and expansion.
Operating Instructions
- Fill the Tank: Open the lid of the 12L tank and fill it with clean water. Ensure the black tube inside the tank is properly connected to the yellow sticker connector at the bottom to draw water effectively.
- Power On: Press the power button on the base of the unit. The indicator light will illuminate.
- Begin Cleaning: Aim the water gun at the desired surface and press the trigger to start spraying.
- Change Spray Mode: The unit comes with two nozzles:
- 25° Spray Nozzle: Provides a strong, concentrated jet for stubborn dirt on vehicles, bikes, driveways, and house cleaning.
- Atomizing Nozzle (Mist Mode): Delivers a gentle spray suitable for watering plants, cleaning pets, or delicate surfaces.
- Power Off: Release the trigger and press the power button again to turn off the unit.
Image: Illustration of the two spray modes: Power Jet and Gentle Mist.
Image: Versatile cleaning applications.
Charging
The NCOEN Portable Pressure Washer features a built-in lithium battery with up to 35 minutes of runtime. It supports fast Type-C charging, compatible with standard phone adapters and power banks.
- Connect the provided Type-C cable to the charging port on the unit and to a suitable USB power source.
- The charging indicator will show the charging status.
- Ensure the charging port is dry before connecting the cable.
Image: Type-C charging in an outdoor environment.
Maintenance
- Cleaning: After each use, empty any remaining water from the tank. Rinse the tank and hose with clean water. Wipe down the exterior of the unit with a damp cloth.
- Storage: Ensure the unit is completely dry before folding and storing. Fold the tank down to its compact size (approximately 5 inches). Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: For optimal battery life, avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to about 50-70% every few months.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Battery is discharged. | Charge the battery fully using the Type-C cable. |
| No water spray or weak pressure. | Tank is empty or water intake tube is not properly connected. Nozzle is clogged. | Refill the tank. Ensure the black tube is securely connected to the yellow sticker at the bottom of the tank. Clean the nozzle. |
| Water leakage. | Hose or nozzle connections are loose. | Tighten all connections. Ensure O-rings are properly seated. |
| Unit automatically shuts off. | Idle for 30 minutes (safety feature) or battery low. | Press the power button to restart. Recharge the battery if low. |
Specifications
- Model: XS-MINI
- Brand: NCOEN
- Power Source: Battery Powered (Lithium-ion)
- Battery Life: Up to 35 minutes
- Charging: Type-C (approx. 2-3 hours for full charge)
- Tank Volume: 12 Liters
- Hose Length: 2 Meters
- Product Dimensions (Expanded): 12"L x 12"W x 13"H
- Product Dimensions (Folded): Approximately 12"L x 12"W x 5"H
- Item Weight: 5.5 Pounds
- Nozzles: 25° Fan Nozzle, Atomizing (Mist) Nozzle
Warranty and Support
For warranty information or technical support, please refer to the purchase platform or contact NCOEN customer service directly. Keep your purchase receipt as proof of purchase.
