Hejctze Circuit Breaker Finder Model 2222-20 User Manual

1. Introduction

This manual provides instructions for the safe and effective use of the Hejctze Circuit Breaker Finder Model 2222-20. This device is designed to accurately identify circuit breakers for specific outlets or fixtures, simplifying electrical work.

2. Important Safety Information

Always observe basic safety precautions when using electrical devices. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not use the device if it appears damaged.
• Ensure hands are dry before handling electrical equipment.
• Always assume circuits are live until verified otherwise.
• This device is for identification purposes only; do not use it as a voltage tester for safety lockout procedures.
• Consult a qualified electrician for complex electrical work.

3. Package Contents

Verify that all items are present upon unpacking:

• Hejctze Circuit Breaker Finder Receiver (with Pocket Clip)
• Transmitter Unit

4. Product Overview

The Hejctze Circuit Breaker Finder consists of two main components: a transmitter and a receiver. The transmitter plugs into an electrical outlet, sending a signal through the circuit. The receiver is then used to scan the circuit breaker panel to detect this signal.

Image 4.1: The Hejctze Circuit Breaker Finder receiver unit, showcasing its red and black design with a white tip and integrated LED.

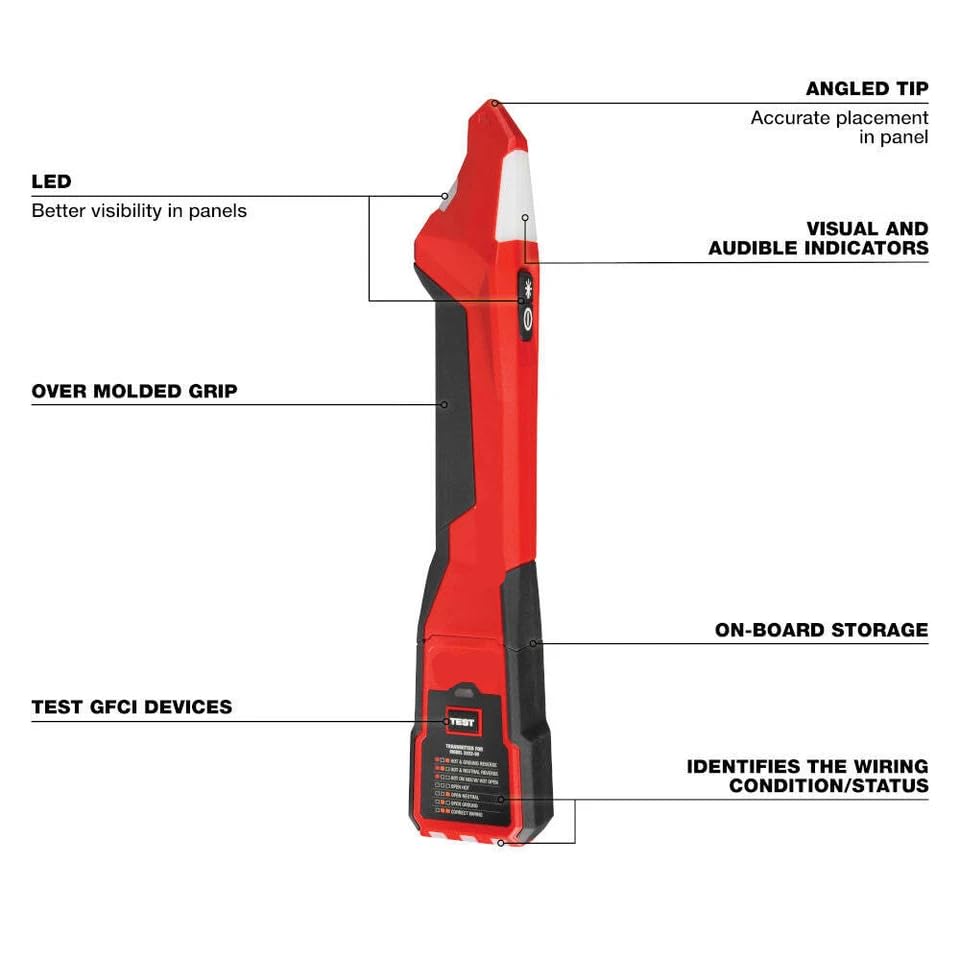

Image 4.2: Hejctze Circuit Breaker Finder receiver with labeled components, including the angled tip for accurate placement, LED for better visibility, visual and audible indicators, over-molded grip, on-board storage, and wiring condition identification.

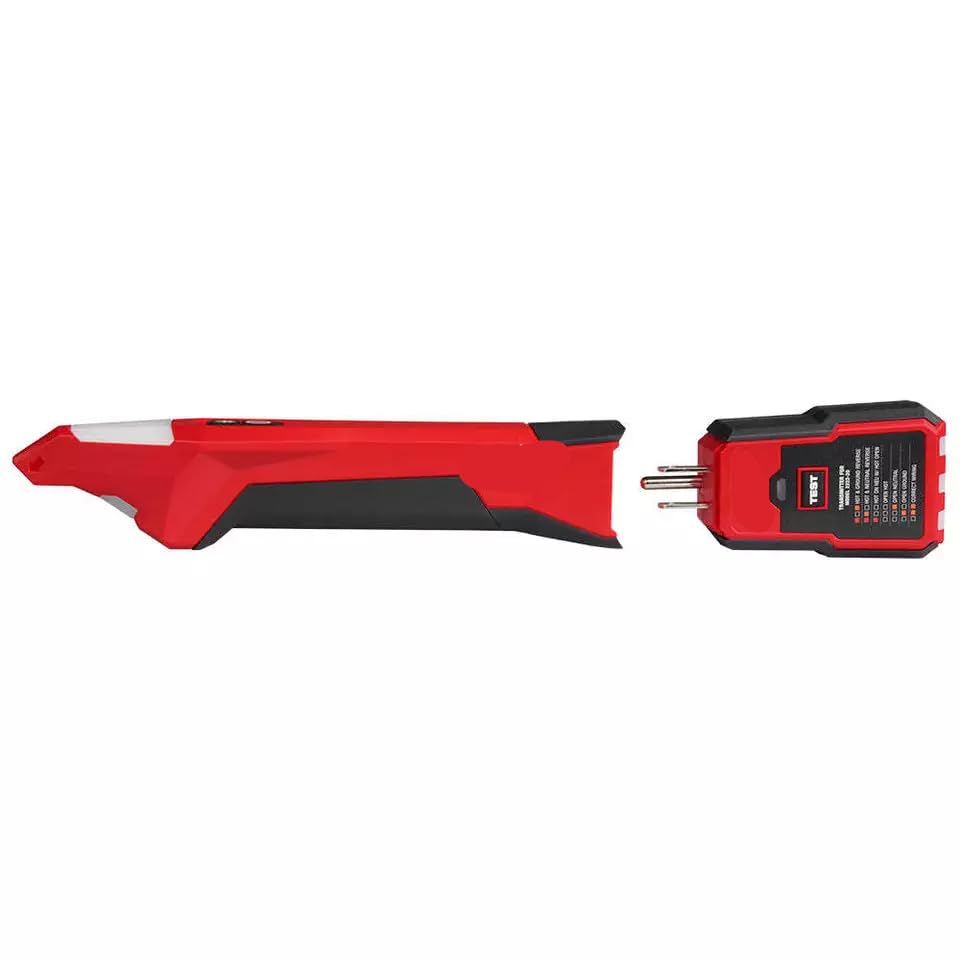

Image 4.3: The Hejctze Circuit Breaker Finder separated into its receiver (left) and transmitter (right) units, illustrating their distinct forms.

5. Setup

Before operation, ensure the transmitter and receiver are ready for use.

1. Transmitter Placement: Plug the transmitter unit into the electrical outlet or fixture whose circuit breaker you wish to identify. Ensure it is securely seated.

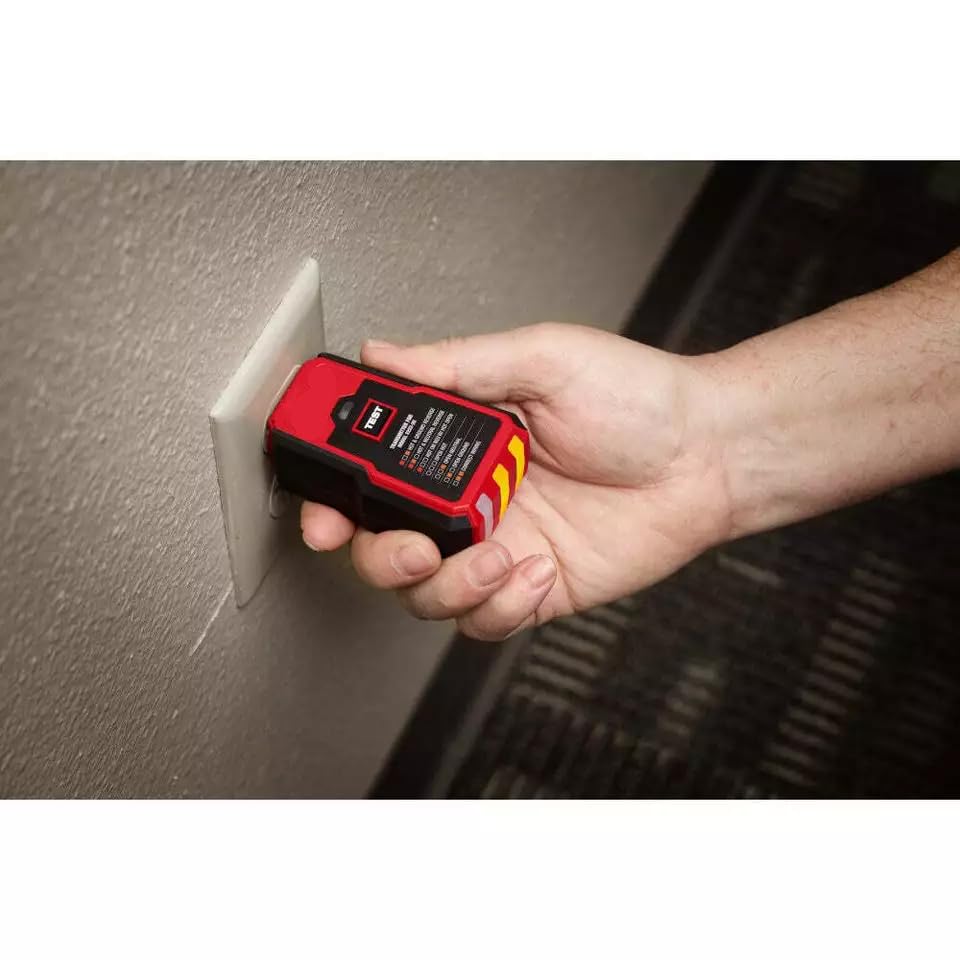

Image 5.1: The compact transmitter unit is shown plugged into a standard wall outlet, ready to send a signal through the electrical circuit.

2. Receiver Preparation: Ensure the receiver unit is powered on. The device typically features a simple one-button operation for activation.

6. Operating Instructions

Follow these steps to identify the correct circuit breaker:

1. Activate Transmitter: Once plugged in, the transmitter begins sending a signal.
2. Scan Breaker Panel: Take the receiver unit to the electrical service panel. Slowly move the receiver along the circuit breakers, scanning each one individually.
3. Identify Breaker: The receiver will provide a clear visual indication (e.g., LED illumination) and an audible signal when it detects the signal from the transmitter, indicating the correct circuit breaker. The LED display clearly indicates the correct circuit breaker.
4. Verify: To confirm, turn off the identified breaker. The power to the outlet where the transmitter is plugged should cease. Turn the breaker back on to restore power.

Image 6.1: A user is shown holding the red and black receiver unit, scanning a circuit breaker panel to locate the corresponding breaker for a live circuit.

The device is compatible with both 120V AC standard household circuits and 240V AC circuits. The transmitter can send signals through walls up to 100 feet away from the electrical outlet or fixture.

7. Maintenance

Proper care ensures the longevity and accuracy of your circuit breaker finder.

• Cleaning: Wipe the device with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures.
• Battery: The device is battery-powered. If performance degrades, replace batteries as per manufacturer's instructions (refer to product packaging or manufacturer website for specific battery type and replacement procedure).

8. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

• No Signal Detected:
  • Ensure the transmitter is securely plugged into a live outlet.
  • Check the receiver's battery level.
  • Verify the circuit is active.
• Incorrect Breaker Identified:
  • Scan the breakers more slowly and deliberately.
  • Ensure no other strong electrical signals are interfering.
  • Re-verify by turning the identified breaker off and checking the power to the outlet.

9. Specifications

10. Warranty and Support

For warranty information and technical support, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Hejctze
