vidugg LED Shower Panel with Bathtub Faucet and Hydro-massage

1. Introduction

Thank you for choosing the vidugg LED Shower Panel. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and retain them for future reference.

Image 1.1: Main view of the vidugg LED Shower Panel, showcasing its sleek brushed stainless steel design and integrated LED display.

2. Product Overview

The vidugg LED Shower Panel is a multi-functional shower system designed for a comprehensive bathing experience. It features durable construction and various water outlets for different shower modes.

Key Features:

• Material: High-quality anti-corrosive stainless steel.
• Functions: 5-in-1 system including LED rain shower, waterfall, 4 body massage jets, hand shower, and bathtub spout.
• LED Display: Digital temperature display for precise control.
• Hydroelectric Power: LED lights and display are powered by water flow, requiring no batteries.
• Valves: Durable brass valve and reinforced piping for leak-free operation.

Image 2.1: Labeled diagram identifying the main components and functions of the shower panel, including the LED rain shower, waterfall, LED temperature display, hand shower, mode selector, ON/OFF switch, body massage jets, and tub spout.

Image 2.2: Detail showing the water mixing valve, the 5 adjustable water modes, and the hydroelectric generator that powers the LED features without batteries.

3. Setup and Installation

The vidugg LED Shower Panel is designed for straightforward installation. All necessary accessories, including screws and piping, are included. A standard NPT 1/2" connection is compatible with most water systems.

Included Components:

• Main Shower Panel Body (Stainless Steel 304)
• Fixed Shower Head (integrated)
• 1.5m Anti-tangle Hose
• Hand Shower (3 adjustable settings)
• Adjustable Holder for Hand Shower
• Complete Installation Kit (screws, pipes, seals)

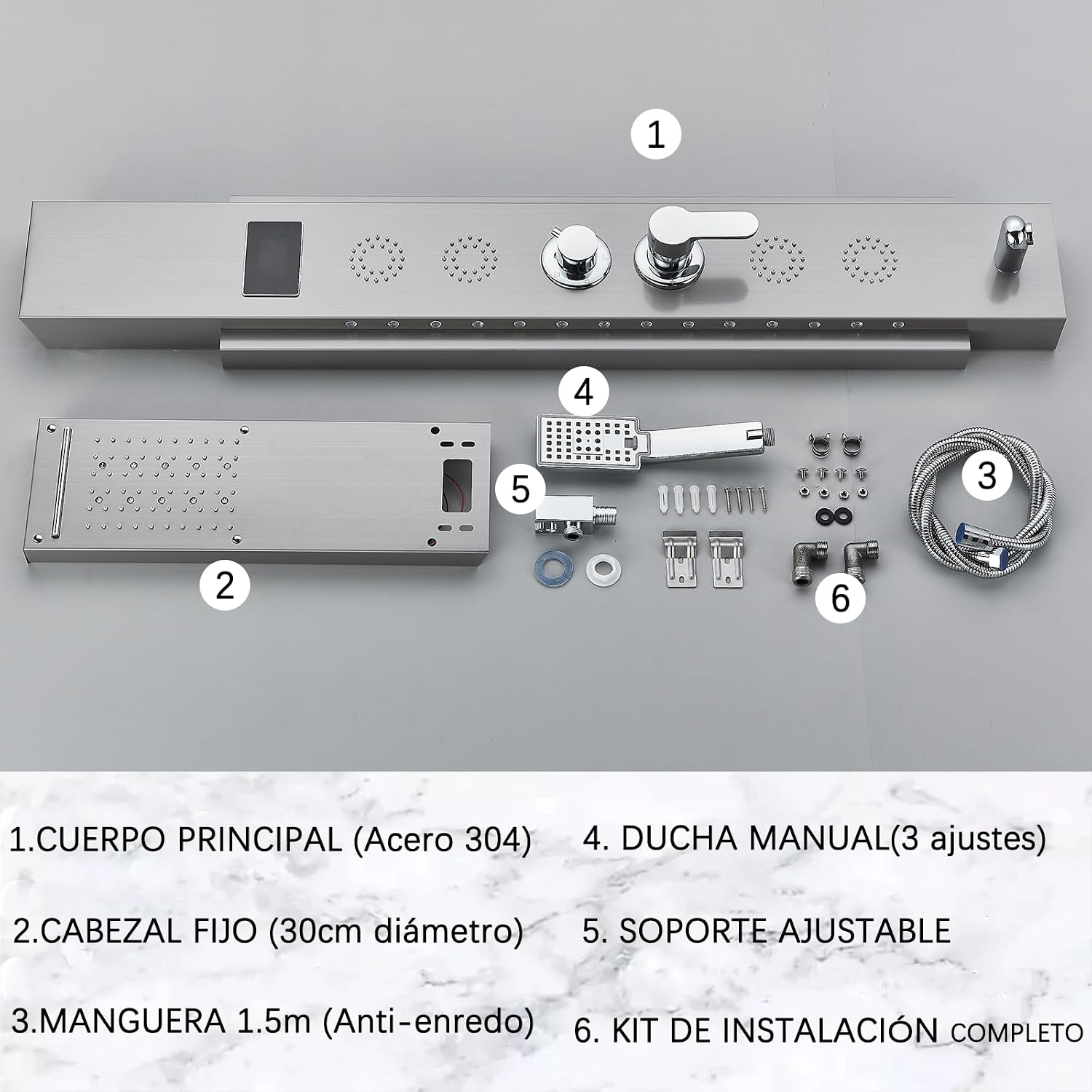

Image 3.1: Visual representation of the components included in the package, numbered for easy identification: 1. Main Body, 2. Fixed Head, 3. Hose, 4. Hand Shower, 5. Adjustable Holder, 6. Installation Kit.

Installation Steps:

1. Prepare Wall: Mark drilling points for the mounting brackets. Ensure the wall is clean and clear of obstructions.
2. Install Brackets: Drill holes and secure the mounting brackets to the wall using the provided screws and anchors.
3. Connect Water Lines: Connect the hot and cold water supply lines to the corresponding inlets on the back of the shower panel. Ensure all connections are tight and sealed to prevent leaks.
4. Mount Panel: Carefully hang the shower panel onto the installed mounting brackets.
5. Final Connections: Connect the hand shower hose to the panel and secure the hand shower to its adjustable holder.
6. Test: Turn on the water supply and check for any leaks. Test all functions of the shower panel.

Image 3.2: Simplified diagram illustrating the quick installation process, from preparing the wall to connecting water lines and mounting the panel.

Image 3.3: Detailed diagrams showing internal plumbing connections, wall mounting, and recommended dimensions for installation, including hot and cold water inlet pipe placement.

4. Operating Instructions

Your vidugg LED Shower Panel offers multiple functions for a customized shower experience. Use the control knobs to select and adjust water flow.

Function Selection:

• ON/OFF Switch: The lower lever handle controls the main water flow and temperature (hot/cold).
• Mode Selector: The upper knob allows you to switch between the different water outlets:
  • LED Rain Shower: Provides a wide, gentle rainfall experience from the overhead shower head. The LEDs illuminate with water flow.
  • Waterfall Mode: Delivers a broad, cascading sheet of water for a spa-like sensation.
  • Body Massage Jets: Activates the four adjustable body jets for a targeted massage.
  • Hand Shower: Directs water to the flexible hand shower, which features 3 adjustable spray patterns.
  • Bathtub Spout: Diverts water to the lower spout for filling a bathtub.
• LED Temperature Display: The digital screen displays the current water temperature in Celsius, powered by the water flow.

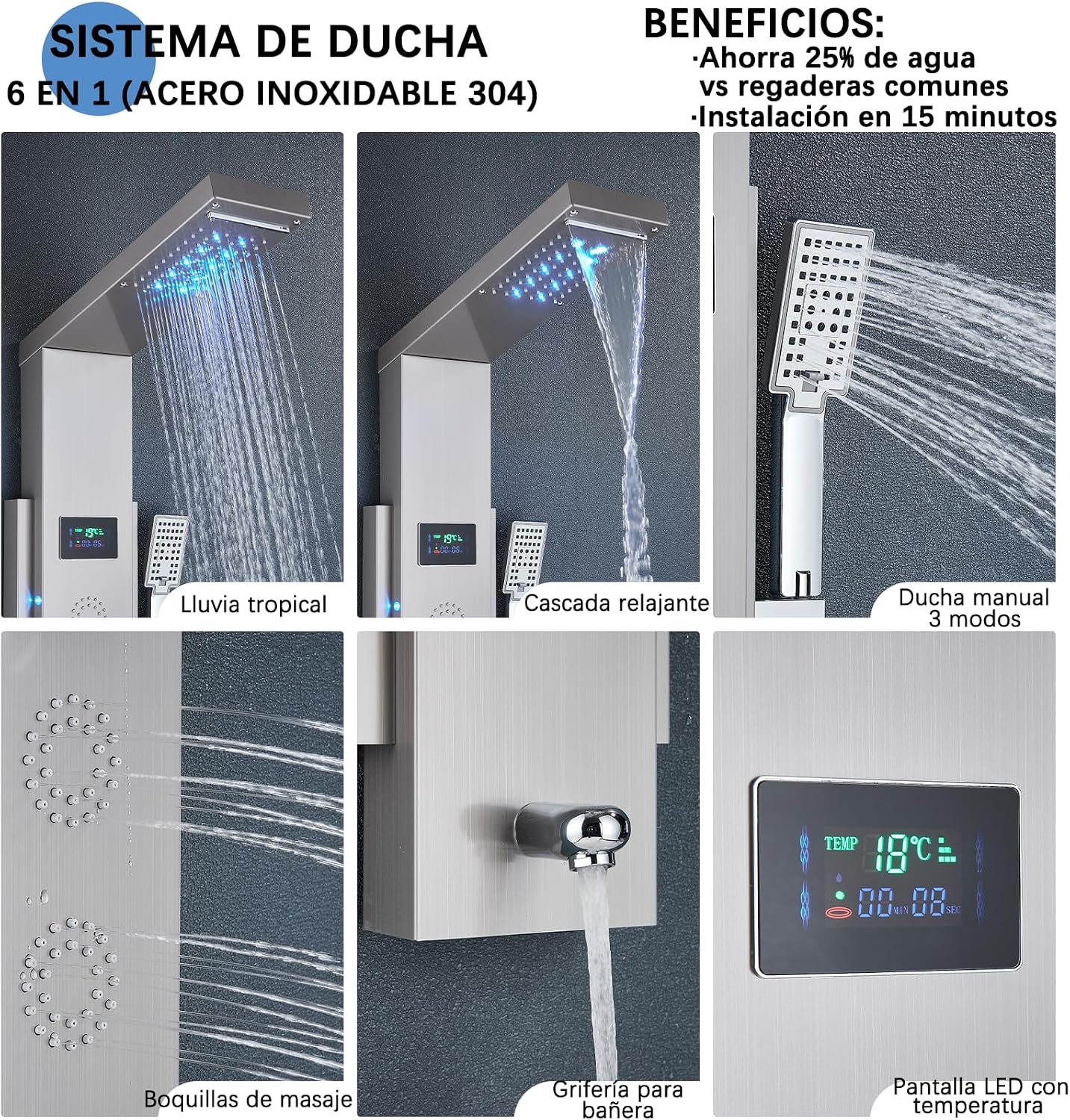

Image 4.1: The shower panel in operation, illustrating the tropical rain shower, relaxing waterfall, and manual hand shower modes, along with the massage nozzles and bathtub faucet.

Image 4.2: The hand shower demonstrating its three distinct spray functions, adjustable by a button on the shower head.

5. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your vidugg LED Shower Panel.

Cleaning:

• Surface Cleaning: Clean the brushed stainless steel surface with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive sponges, which can damage the finish.
• Nozzle Cleaning: The shower head and body jets are designed with anti-calc nozzles. Periodically rub the silicone nozzles to dislodge any mineral deposits. For stubborn buildup, use a descaling solution specifically designed for shower fixtures.
• LED Display: Wipe the LED display gently with a soft, damp cloth. Do not spray cleaners directly onto the display.

General Care:

• Ensure all connections remain tight to prevent leaks. Periodically check for any signs of dripping.
• Avoid excessive force when operating the handles or adjusting the hand shower.

6. Troubleshooting

If you encounter issues with your shower panel, refer to the following common problems and solutions.

Common Issues:

• Low Water Pressure:
  • Check if the main water supply valves are fully open.
  • Inspect shower nozzles and filters for clogs from mineral deposits or debris. Clean as necessary.
  • Ensure the water mixing valve is fully open and not partially restricting flow.
• Leaks from Connections:
  • Turn off the water supply.
  • Check all threaded connections for tightness. Use plumber's tape if necessary.
  • Inspect O-rings and gaskets for damage and replace if worn.
• LED Display/Lights Not Working:
  • Ensure sufficient water flow. The LED features are hydroelectric and require adequate water pressure to operate.
  • Check for any blockages in the water lines that might reduce flow to the hydroelectric generator.
• Water Temperature Issues:
  • Verify that both hot and cold water supplies are connected correctly and fully open.
  • Adjust the main temperature control lever to achieve the desired mix of hot and cold water.

If problems persist after attempting these solutions, please contact customer support.

7. Specifications

Image 7.1: Detailed dimensions of the vidugg LED Shower Panel, including height, width, and projection from the wall.

8. Warranty and Support

vidugg is committed to customer satisfaction. Your product is backed by a seller warranty.

• Seller Warranty: The product includes a seller warranty with 24/7 after-sales support. For warranty claims or technical assistance, please contact the seller directly through your purchase platform.
• Return Policy: This product is eligible for returns for a specified period from the date of purchase. Please refer to your purchase platform's return policy for details.
