TuneCrumph Water Pump 15341-73030 User Manual

1. Introduction

This manual provides essential information regarding the TuneCrumph Water Pump, part number 15341-73030. It is designed to assist with the proper installation, understanding of its function, and general maintenance considerations for compatible Kubota compact tractors. Please read this manual thoroughly before installation or service.

Product Compatibility: This water pump is compatible with the following Kubota compact tractor models:

• Kubota L245DT
• Kubota L245
• Kubota L295
• Kubota L295DT

Attention: Precise matching of auto parts is crucial for safe installation and optimal performance. Always verify the part number and compatibility with your specific tractor model before proceeding.

2. Product Overview

The water pump is a critical component of your tractor's engine cooling system. Its primary function is to circulate coolant through the engine block, cylinder head, radiator, and heater core, dissipating heat and maintaining optimal engine operating temperature.

Figure 2.1: Front view of the TuneCrumph Water Pump, showing the pulley and mounting points.

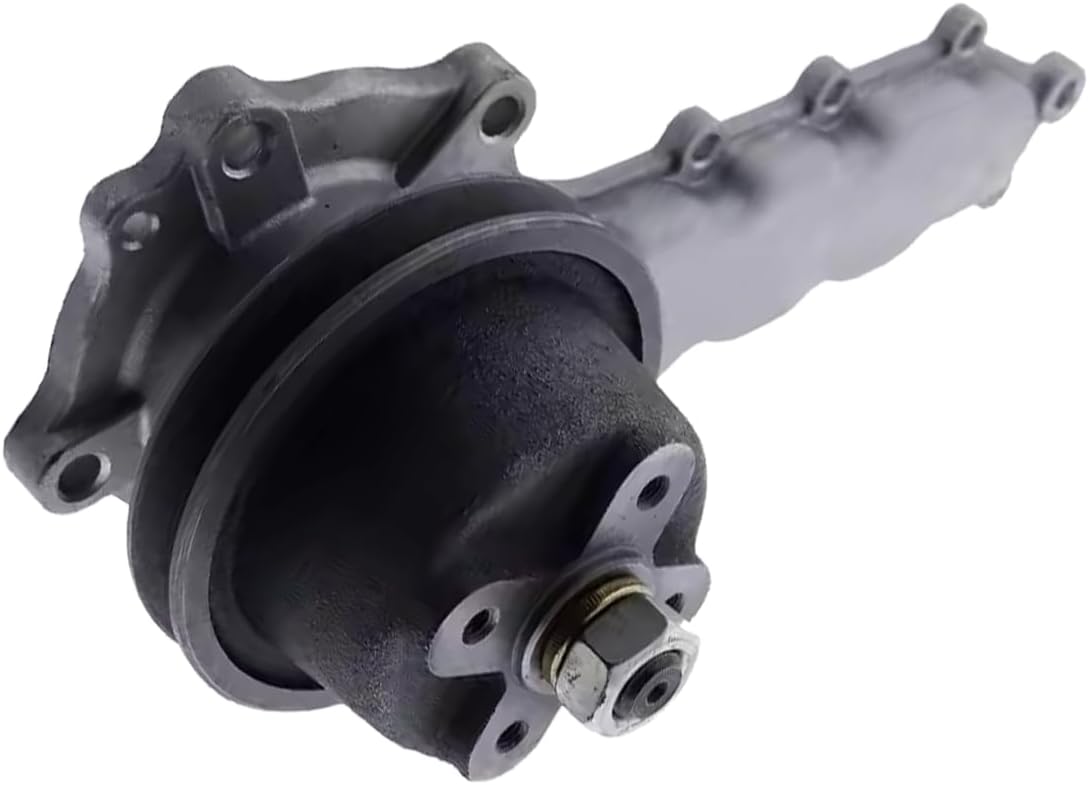

Figure 2.2: Side view of the TuneCrumph Water Pump, illustrating the housing and outlet.

3. Installation Guidelines

Installation of a water pump requires mechanical knowledge and specialized tools. It is highly recommended that installation be performed by a qualified mechanic or service technician.

3.1 Safety Precautions

• Always disconnect the battery before starting any work on the engine.
• Allow the engine to cool completely before draining coolant or working on the cooling system. Hot coolant can cause severe burns.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the tractor is on a stable, level surface and properly supported with jack stands if raised.

3.2 General Installation Steps (Consult Service Manual for Specifics)

1. Drain the engine coolant from the radiator and engine block.
2. Remove any components obstructing access to the water pump (e.g., fan shroud, belts, hoses).
3. Carefully remove the old water pump, noting the orientation and any gaskets or seals.
4. Clean the mounting surface on the engine block thoroughly, removing all old gasket material and debris.
5. Install the new TuneCrumph water pump with a new gasket, ensuring proper alignment. Apply a thin layer of RTV sealant if recommended by the tractor's service manual.
6. Tighten mounting bolts to the manufacturer's specified torque settings, following the correct tightening sequence.
7. Reinstall all removed components (hoses, belts, fan, shroud).
8. Refill the cooling system with the appropriate type and mixture of coolant.
9. Bleed the cooling system to remove any trapped air.
10. Start the engine and check for leaks. Monitor engine temperature.

4. Operation Principles

Once installed, the water pump operates continuously when the engine is running. It is driven by a belt connected to the engine's crankshaft. The impeller inside the pump rotates, drawing coolant from the radiator and pushing it through the engine's cooling passages. This circulation ensures that heat generated by the engine is transferred to the coolant, which then releases the heat in the radiator.

5. Maintenance

While the water pump itself is a sealed unit and generally not serviceable, its longevity is directly related to the overall health of the cooling system. Regular maintenance of the cooling system is crucial:

• Coolant Level: Regularly check the coolant level in the reservoir and radiator. Top up with the correct coolant type as needed.
• Coolant Quality: Follow the tractor manufacturer's recommendations for coolant flush and replacement intervals. Old or contaminated coolant can lead to corrosion and premature pump failure.
• Belt Tension: Ensure the drive belt for the water pump is properly tensioned. A loose belt can cause the pump to slip, reducing coolant flow, while an overly tight belt can put excessive stress on the pump bearings.
• Hoses and Clamps: Inspect all cooling system hoses for cracks, leaks, or swelling. Check hose clamps for tightness.
• Radiator Condition: Keep the radiator fins clean and free of debris to ensure efficient heat exchange.

6. Troubleshooting

If you experience issues with your tractor's cooling system, the water pump may be a contributing factor. Here are common symptoms of a failing water pump:

• Coolant Leaks: Puddles of coolant under the tractor, especially near the front of the engine, can indicate a leaking water pump gasket or a crack in the pump housing.
• Overheating Engine: If the engine temperature gauge consistently reads high or the engine overheats, it could be due to insufficient coolant circulation caused by a failing pump impeller or a seized pump.
• Whining or Grinding Noises: Noises coming from the front of the engine, particularly a whining, grinding, or squealing sound, can indicate worn or failing water pump bearings.
• Loose Pulley: If the water pump pulley wobbles or has excessive play, it suggests worn bearings.

If you suspect a water pump failure, it is recommended to have the cooling system inspected by a qualified technician immediately to prevent further engine damage.

7. Specifications

8. Warranty and Support

For information regarding product warranty, please refer to the terms and conditions provided by your retailer or contact the manufacturer directly. Specific warranty details are not included in this manual.

For technical support or inquiries, please contact your point of purchase or the TuneCrumph customer service department.
