JUKUDAHU 1234-6B

JUKUDAHU Play Sink with Running Water

Model: 1234-6B

Brand: JUKUDAHU

1. Introduction

Thank you for choosing the JUKUDAHU Play Sink with Running Water. This interactive kitchen playset is designed to provide an engaging and educational experience for children, encouraging role-playing, developing hand-eye coordination, and fostering independence through pretend dishwashing. This manual provides essential information for assembly, operation, maintenance, and safety to ensure a fun and safe play experience.

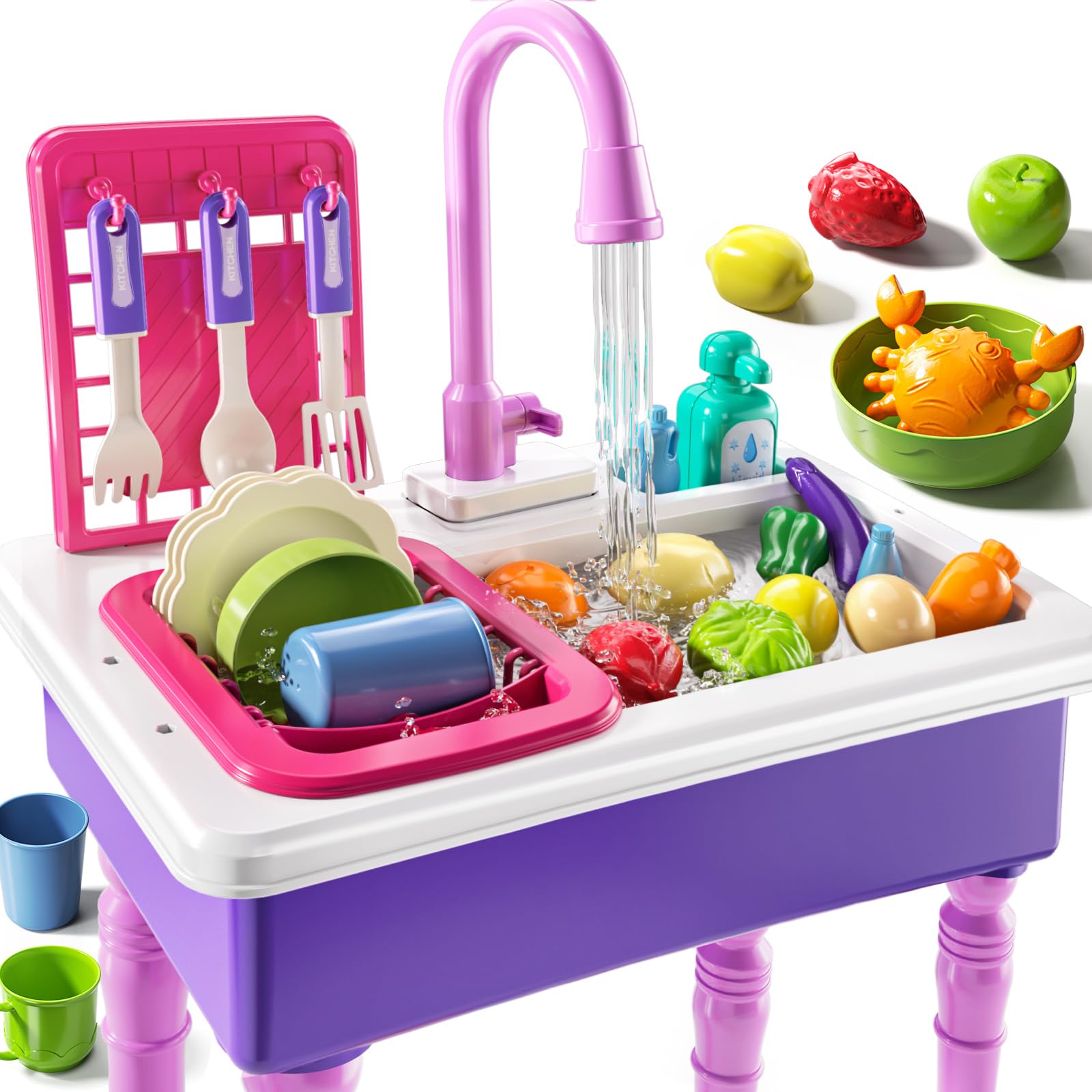

JUKUDAHU Play Sink with Running Water, Purple Play Sink With Base
Overall view of the JUKUDAHU Play Sink with Running Water, featuring a purple base and pink faucet.

2. What's Included

The JUKUDAHU Play Sink set includes the following components:

  • 1 x Kitchen Sink Basin with Base (15.6 x 9.7 x 20.7 inches)
  • 1 x Faucet with 135° rotating capability
  • Plastic Cups
  • Plastic Plates
  • Plastic Knives
  • Play Detergent Bottle
  • Dish Drainer Basket
  • Assorted Play Fruits and Vegetables
  • Utensil Rack with hanging utensils (spoon, fork, spatula)
Assortment of JUKUDAHU Play Sink accessories including plastic fruits, vegetables, dishes, and utensils
All included accessories for the play sink, neatly arranged.

3. Setup

3.1 Assembly

  1. Attach the four pink legs securely to the purple base of the sink.
  2. Place the white sink basin onto the purple base, ensuring it fits snugly.
  3. Insert the faucet into its designated slot on the sink basin.
  4. Attach the utensil rack to the side of the sink.
  5. Place the dish drainer basket into its designated area on the sink.
Video demonstrating the easy assembly process of the JUKUDAHU Play Sink, including attaching legs and placing components.

3.2 Battery Installation

The faucet requires 3 x 1.5V 'AA' batteries (not included) for the automatic water circulation system.

  1. Locate the battery compartment on the underside of the faucet unit.
  2. Use a screwdriver to open the battery compartment cover.
  3. Insert 3 'AA' batteries, ensuring correct polarity (+/-).
  4. Securely close the battery compartment cover and tighten the screws. Ensure the waterproof rubber seal is properly seated to prevent water leaks.
Close-up of the battery compartment on the JUKUDAHU Play Sink faucet, showing three AA batteries being inserted.
Detailed view of the battery compartment for the faucet, highlighting the importance of a tight seal.

4. Operating Instructions

4.1 Filling the Sink

Before activating the water flow, ensure the sink basin is filled with water. The water level must exceed the low water-level hole for the faucet pump to function smoothly.

4.2 Activating Water Flow

  1. Turn the faucet handle to the 'ON' position.
  2. The automatic water circulation system will begin to pump water from the sink basin through the faucet, creating a continuous flow.
  3. The faucet can rotate 135° for versatile play.
  4. To stop the water flow, turn the faucet handle to the 'OFF' position.
Hands washing play vegetables under the running water of the JUKUDAHU Play Sink.
Close-up of play vegetables being washed under the faucet's running water.
Video showcasing the automatic water circulation and various play activities with the JUKUDAHU Play Sink.

4.3 Play Activities

Use the provided plastic cups, plates, and utensils to mimic real kitchen tasks. Wash the play fruits and vegetables under the running water. The dish drainer can be used to air dry the washed items.

Short video demonstrating the JUKUDAHU Play Sink being used for outdoor water play, washing various items.

5. Maintenance

5.1 Cleaning

Regularly clean the sink basin and accessories with mild soap and water. Ensure all components are thoroughly dried before storage to prevent mold or mildew buildup.

5.2 Draining and Storage

When not in use, remove the faucet from the sink toy. The legs are removable for compact storage. Drain all water from the sink basin. If water gets into the battery compartment, immediately remove the water and dry it completely to prevent damage.

JUKUDAHU Play Sink with dimensions indicated, showing its compact size and removable legs for easy storage.
The play sink's dimensions and design allow for easy disassembly and storage.

6. Troubleshooting

Refer to the table below for common issues and their solutions:

ProblemReasonSolution
The faucet doesn't work.
  1. Using the wrong batteries, old batteries, or mixing new and old batteries.
  2. Incorrect manipulation of the faucet leads to no water coming out.
  1. Use new 3x1.5V 'AA' batteries.
  2. Make sure the batteries are installed properly. Ensure the water in the sink toy has exceeded the low water-level.
Although the faucet makes noise, no water is flowing out.The faucet might be clogged inside because there are foreign objects in the kitchen sink toy.We suggest regularly replacing the clean water in the sink toy to make sure that the faucet won't be blocked by foreign objects.
After some time, the faucet stopped working.
  1. The motor has been in continuous use for too long.
  2. When not in use, the faucet remains on and is immersed in water for a long time.
  3. When not in use, the battery remains in the faucet.
  1. It is suggested to play for half an hour and then take a 3 to 5-minute break.
  2. When not in use, please turn off the faucet and remove it from the sink toy.
  3. When not in use, please remove the battery from the faucet.

7. Specifications

  • Brand Name: JUKUDAHU
  • Model Number: 1234-6B
  • Age Range Description: Kid (Suitable for 36+ months)
  • Material Type: Plastic
  • Color: Purple Play Sink With Base
  • Product Dimensions: 15.6 x 9.7 x 20.7 inches
  • Item Dimensions (Package): 16.14 x 10.24 x 5.31 inches
  • Power Source: 3 x 1.5V 'AA' batteries (not included)

8. Safety Information

  • Age Recommendation: This toy is suitable for children aged 36 months and older.
  • Small Parts Warning: Some accessories, particularly the play fruits and vegetables, are small and may pose a choking hazard for young children. Adult supervision is highly recommended during play.
  • Battery Safety: Ensure batteries are inserted with correct polarity. Do not mix old and new batteries or different types of batteries. Remove batteries if the toy will not be used for an extended period.
  • Water Safety: Always ensure the battery compartment is tightly sealed to prevent water ingress. If water enters the compartment, dry it immediately. Use clean water only.
  • Supervision: Always supervise children during play to ensure safe use and prevent accidents.

9. Warranty and Support

For any questions, concerns, or support regarding your JUKUDAHU Play Sink, please contact the manufacturer directly. Keep your purchase receipt for warranty claims, if applicable. Specific warranty details may vary and are typically provided with the product packaging or on the manufacturer's official website.
