1. Introduction
Thank you for choosing the Tabacir Smart Self-Cleaning Cat Litter Box. This innovative device is designed to simplify cat care by automating the litter cleaning process, providing a hygienic environment for your feline companion and convenience for you. Please read this manual thoroughly before operation to ensure proper use and maintenance.
Image: The Tabacir Smart Self-Cleaning Cat Litter Box in white, shown with a cat and a mobile app interface displaying its features.
The Tabacir Smart Litter Box features advanced safety sensors, remote app control, effective odor management, and a spacious design suitable for cats weighing between 2.5 and 35 pounds. Its large 100-liter capacity allows for up to 14 days of use without manual scooping, making it ideal for busy households or travel.
Image: A white Tabacir Smart Cat Litter Box with a white cat inside and a tabby cat resting in front, illustrating the convenience of automatic cleaning.
2. Safety Features
Your cat's safety is our top priority. The Tabacir Smart Litter Box is equipped with 10 safety sensor radars, significantly more than standard automatic litter boxes, to ensure maximum protection during operation.
Image: An illustrative diagram highlighting the 10 safety sensor radars within the litter box, detailing their types: Living-Being (1X), Infrared (2X), Inductive (2X), Motion (1X), and Weight Sensor (4X).
These sensors intelligently detect the presence of your cat. If a cat approaches or enters the litter box during a cleaning cycle, the system will immediately halt the drum's rotation, preventing any potential harm. The Living-Being Radar specifically detects living objects, ensuring the system only operates when clear.
Image: An infographic illustrating the five distinct layers of radar protection, including Living-Being, Trash Bin, Door, Gravity-sensing, and Motion radars, ensuring comprehensive safety.
3. Setup Guide
3.1 Unpacking and Placement
- Carefully remove all components from the packaging: the main unit, exhaust duct, storage box, cat litter mat, and litter bags.
- Place the litter box on a flat, stable surface indoors, away from direct sunlight or heat sources. Ensure there is enough space around the unit for proper ventilation and access.
- Connect the power adapter to the unit and plug it into a standard electrical outlet.
3.2 Initial Litter Fill
- Open the drum and fill it with clumping cat litter. The Tabacir Smart Litter Box is compatible with various litter types including Mineral, Tofu, Bentonite, and Mixed litters.
- Ensure the litter level is between the MIN and MAX lines indicated inside the drum. Do not overfill.
3.3 Installing the Cat Stairs and Mat
- Attach the cat stairs to the front of the litter box. These stairs are designed to assist kittens, older cats, sick cats, or short-legged cats in easily entering and exiting the unit.
- Ensure the stairs are pulled out approximately halfway to optimize their function and litter collection.
- Place the detachable cat litter mat (300D Oxford cloth) in front of the stairs to further collect scattered litter. This mat is anti-leakage, anti-stick bottom, anti-scratch, and easy to clean.

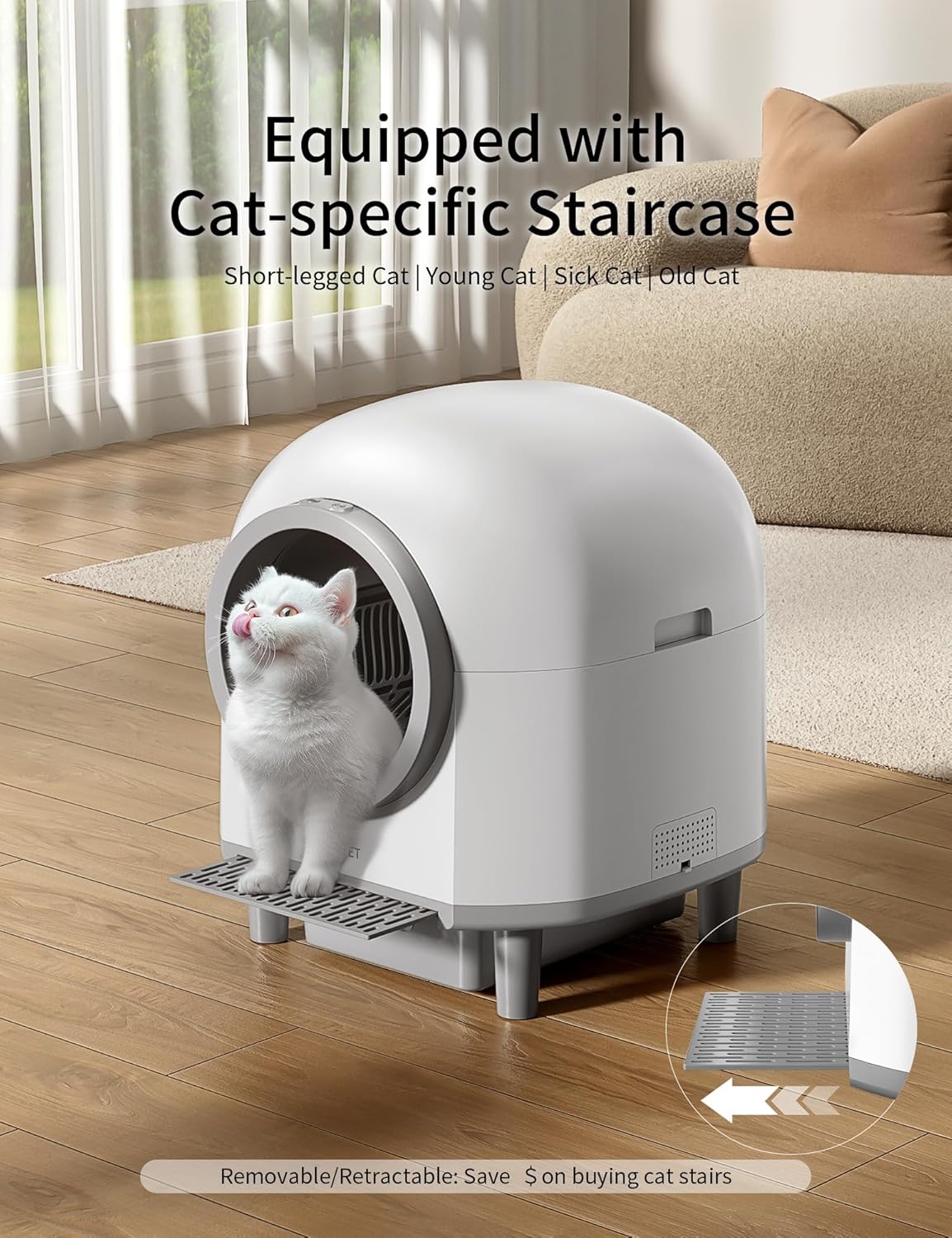

Image: The Tabacir Smart Cat Litter Box with its integrated cat stairs, demonstrating how the stairs provide easy access for cats and are retractable for convenience.
4. Operating Instructions
4.1 Power On and Initial Cycle
Once plugged in, the unit will perform an initial self-check. Allow it to complete this process before your cat uses it.
4.2 App Control and Monitoring
The Tabacir Smart Litter Box can be controlled and monitored via a dedicated, permanently free mobile application. This app connects via 2.4G Wi-Fi.

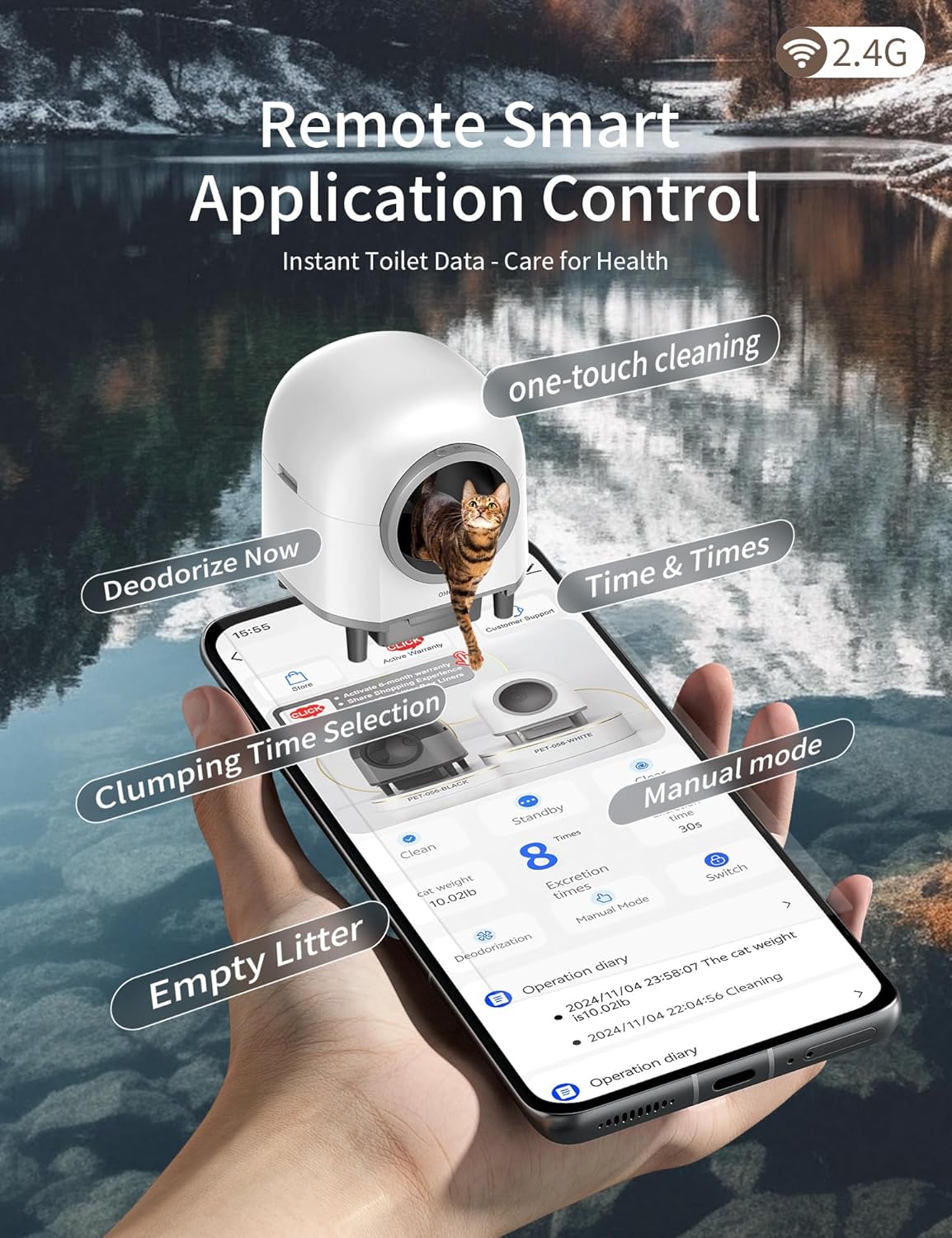

Image: A smartphone displaying the Tabacir Smart Litter Box app, illustrating remote control capabilities such as one-touch cleaning, deodorization, and manual mode.
- Remote Control: Initiate cleaning cycles, activate deodorization, or switch to manual mode from anywhere.
- Health Tracking: The app tracks the frequency and duration of your cat's use, providing detailed health data reports to help you monitor their well-being.
- Sensor Management: You can control the activation of the sensor radars through the app, customizing sensitivity as needed.
- Clumping Time Selection: Adjust the clumping time, especially useful for cats with specific needs (e.g., 300-second clumping for sticky feces).
Image: A visual representation of the remote control functionality of the Tabacir Smart Litter Box via its mobile application, highlighting options like clumping time adjustment.
4.3 Automatic Cleaning Cycle
After your cat exits the litter box, the system will automatically initiate a cleaning cycle after a set delay (configurable via app). The drum rotates to sift out waste, which is then deposited into the sealed waste bin below.
Image: A cutaway diagram of the litter box demonstrating the precise removal of litter clumps during the cleaning cycle, showing the sifting mechanism.
4.4 Odor Control System
The semi-enclosed design and advanced deodorizing fragrance system, combined with a built-in ventilation fan, actively work to neutralize odors, keeping your home fresh. For optimal odor control, it is recommended to change the trash bag frequently.
4.5 Quiet Operation
The Tabacir Smart Litter Box operates at a whisper-quiet 32 dB, ensuring minimal disturbance to you and your cat, even during nighttime cleaning cycles.
Image: The litter box positioned in a bedroom, illustrating its 32 dB whisper-quiet operation, designed not to disturb sleep.
5. Maintenance
5.1 Emptying the Waste Bin
The waste bin has a large capacity, allowing for up to 14 days of use for a single cat. When the bin is full (monitored via app), simply remove the storage box, tie the litter bag, and dispose of it. Replace with a new litter bag.
Image: A visual representation of the litter box's 100L capacity, highlighting its ability to provide up to 14 days of hands-free operation, ideal for travel.
5.2 Cleaning the Drum and Unit
- For optimal hygiene and odor control, it is recommended to clean the drum and the interior of the unit once or twice a month.
- Unplug the unit before cleaning.
- Remove all litter. The drum can be detached for thorough cleaning.
- Wipe down surfaces with a pet-safe cleaner and a damp cloth. Ensure all parts are completely dry before reassembling and plugging in the unit.
5.3 Cat Litter Mat Care
The detachable cat litter mat is made of 300D Oxford cloth, designed to be anti-leakage, anti-stick, anti-scratch, and easy to clean. Simply shake off collected litter or wipe it down as needed.
Image: A detailed view of the detachable cat litter mat, highlighting its tri-proof properties and ease of cleaning.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not powering on. | Power cable not connected; power outlet issue. | Check power cable connection. Try a different outlet. |
| Cleaning cycle not starting. | Cat still inside; waste bin full; litter level incorrect. | Ensure cat has exited. Empty waste bin. Adjust litter level. Check app for error messages. |
| Odor persists. | Waste bin full; insufficient deodorization; dirty drum. | Empty waste bin more frequently. Ensure deodorization function is active via app. Clean the drum and unit thoroughly. |
| App connectivity issues. | Incorrect Wi-Fi password; unit out of range; app outdated. | Ensure correct 2.4G Wi-Fi network and password. Move unit closer to router. Update app to latest version. Restart unit and router. |
| Litter not clumping properly. | Incorrect litter type; insufficient clumping time. | Use high-quality clumping litter. Adjust clumping time in the app (e.g., to 300 seconds). |
If you encounter issues not listed here, please refer to the Warranty and Support section for contact information.
7. Specifications
- Model: MPH-056
- Dimensions (LxWxH): 22.6 x 21.7 x 25.3 inches (57.4 x 55.1 x 64.3 cm)
- Item Weight: 36 pounds (16.3 kg)
- Drum Capacity: 100 liters
- Recommended Cat Weight: 2.5 - 35 pounds
- Noise Level: 32 dB (Whisper-Quiet Operation)
- Safety Sensors: 10 (Living-Being, Infrared, Inductive, Motion, Weight)
- Connectivity: 2.4G Wi-Fi for App Control
- Material: Polypropylene (PP)
- Included Components: Main Unit, Exhaust Duct, Storage Box, Cat Litter Mat, Litter Bags
- Color: White
8. Warranty and Support
Tabacir is committed to providing high-quality products and excellent customer service. We offer the following support for your Smart Self-Cleaning Cat Litter Box:
- 30-Day Home Trial: Experience the product with confidence.
- 12-Month Warranty: Covers manufacturing defects and malfunctions under normal use.
- 36-Months Maintenance Service: Extended maintenance support for your unit.
- Repair Services in the USA: Tabacir has established local repair warehouses in the United States to provide convenient and efficient after-sales service.
- Free Repair Services: For users who purchased our automatic litter box three years ago, we still provide free repair services.
- Contact Support: For any inquiries, technical assistance, or warranty claims, please contact us at: cs-omc@outlook.com
Image: Customer service representatives ready to assist, detailing warranty and support information.
Image: Tabacir's repair services in the USA, offering free inspection, repair, and parts.
