1. Introduction
Thank you for choosing the Kangui WOUPI Wooden Play Tower. This play tower is designed to provide hours of fun and active play for children in a safe outdoor environment. Manufactured from high-quality Nordic pine wood with Autoclave III and IV treatment, this product is built for durability and safety.
The Kangui WOUPI Play Tower complies with the EN71 safety standard, ensuring a secure play experience for your children. Please read this manual carefully before assembly and use to ensure proper installation, safe operation, and effective maintenance of your play tower.

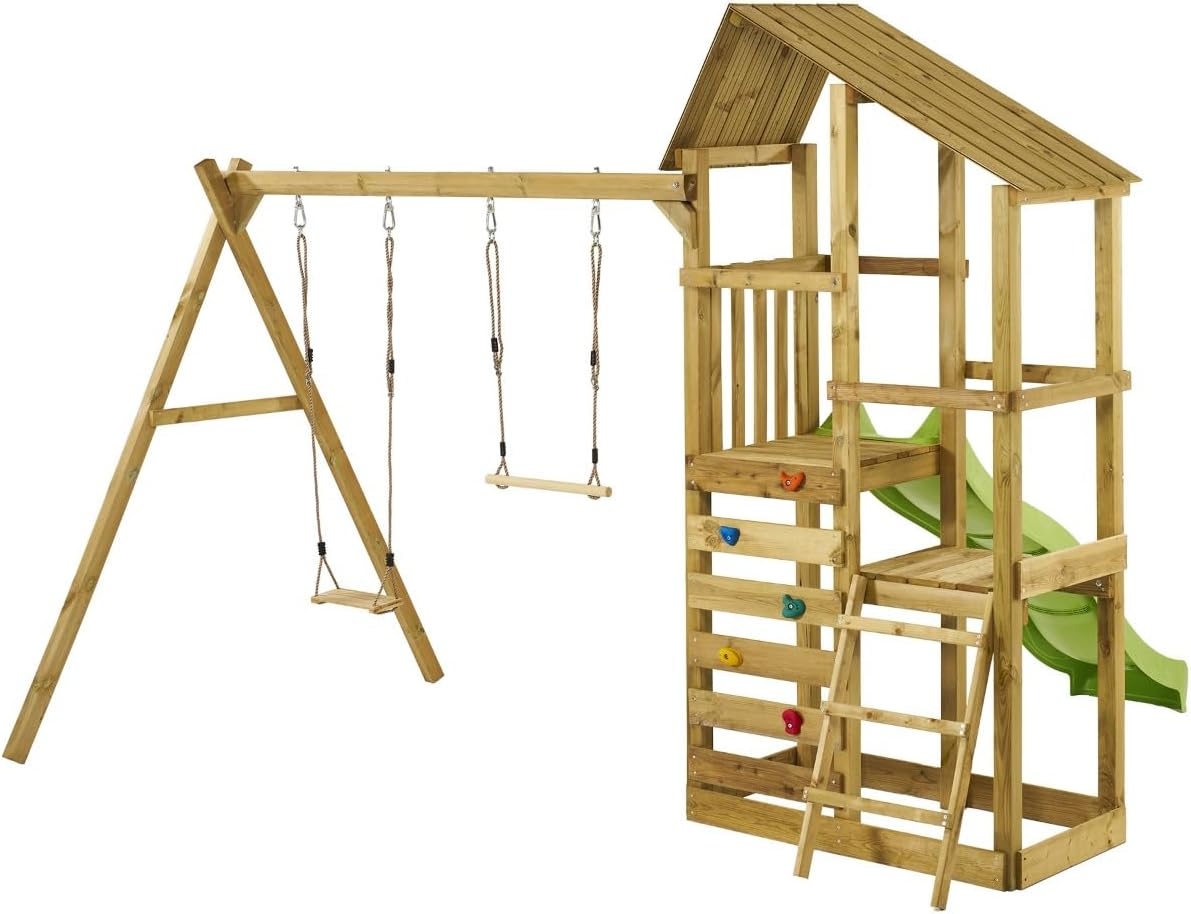

Image 1.1: The Kangui WOUPI Wooden Play Tower, featuring a main tower with a slide and climbing wall, connected to a separate swing set with a swing seat and a trapeze bar.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury.
- Not suitable for children under 3 years due to risk of falling.
- Only one user at a time per accessory (swing, trapeze, slide, climbing wall).
- Maximum user weight for the entire structure is 100 kg. Maximum weight per accessory/user is 50 kg.
- Reserved for family and domestic use only. Not intended for commercial or public use.
- Intended for outdoor use only.
- Adult supervision is necessary at all times when children are using the play tower.
- Maintain a clear space of at least 2 meters around the entire play tower to prevent collisions and ensure safe play.
- Ensure all components are securely fastened and regularly check for loose bolts or worn parts.
3. Components List
The Kangui WOUPI Play Tower includes the following main components:
- 1 x Wooden Play Tower with two platforms (0.90m and 1.20m high)
- 1 x Wooden Cabin with asymmetrical roof
- 1 x Wavy Green Slide (219.6 cm long) with water connection possibility
- 1 x Climbing Wall with 5 colored climbing holds
- 1 x Wooden Swing Seat with adjustable ropes
- 1 x Wooden Trapeze Bar with adjustable ropes
- All necessary screws and mounting accessories
- 1 x Anchoring Kit for ground fixation
Image 3.1: Detailed views showing the base structure with ladder, close-up of the colorful climbing holds, the wavy green slide, and the wooden roof of the cabin.
Image 3.2: Close-up images of the swing seat, the robust connection point of the swing beam, a detail of the assembly bolt, and the wooden trapeze bar.
4. Setup and Assembly
The Kangui WOUPI Play Tower requires self-assembly. A detailed, illustrated instruction manual is included with your product to guide you through each step of the assembly process. Please follow these instructions carefully to ensure the stability and safety of the structure.
4.1 Ground Fixation
It is imperative to fix the play tower to the ground using concrete pads (concrete not supplied) via the provided anchoring kit. This ensures the stability of the structure and prevents tipping during use. Select a level outdoor area for installation, ensuring the required 2-meter clear space around the entire structure.
4.2 Dimensions
Ensure you have adequate space for the assembled play tower. The overall dimensions are as follows:
- Total Dimensions (L x W x H): 355 cm x 292 cm x 260 cm
- Tower Dimensions: 130 cm x 71 cm x 260 cm
- Swing Set Dimensions: 240 cm (L) x 204 cm (H), beam 6.6 cm x 8.6 cm
- Slide Dimensions: 219.6 cm (L) x 48 cm (W) x 120 cm (H)
- Platform Heights: 0.90 m and 1.20 m
Image 4.1: A diagram illustrating the overall length (355 cm), width (252 cm), and height (260 cm) of the assembled play tower.
5. Operating Instructions
The Kangui WOUPI Play Tower offers multiple play activities for children aged 4 to 10 years. Always ensure adult supervision during play.
5.1 Using the Swing and Trapeze
The swing seat and trapeze bar are designed for single-user play. Ensure children are seated properly on the swing or have a firm grip on the trapeze. The ropes are adjustable to suit different heights; ensure they are securely fastened after adjustment.
Image 5.1: A close-up view of the wooden swing seat, showing its slatted design and the sturdy ropes with black adjusters.
Image 5.2: A close-up view of the wooden trapeze bar, highlighting its smooth finish and the ropes with black adjusters.
5.2 Using the Slide
The wavy slide is suitable for single-user descent. Ensure the area at the bottom of the slide is clear before use. The slide has a connection point for water, allowing for a fun water slide experience during warm weather. Always ensure the water connection is secure and supervise children when using water.
5.3 Using the Climbing Wall and Cabin
The climbing wall features 5 colored holds for children to ascend to the platforms. Encourage children to use all holds for balance and safety. The cabin provides a sheltered play area on the upper platform.
Image 5.3: A detailed view of the climbing wall, showcasing the various colored climbing holds and the wooden platform at the top.
Image 5.4: A closer look at the climbing wall, emphasizing the texture and placement of the colorful climbing holds.
6. Maintenance
Regular maintenance is crucial to ensure the longevity and safety of your Kangui WOUPI Play Tower.
- Wood Inspection: The play tower is made from Nordic pine wood with Autoclave III and IV treatment, which provides excellent resistance to rot and insects. However, regularly inspect the wood for any signs of cracking, splintering, or decay. Sand down any rough spots to prevent splinters.
- Hardware Check: Periodically check all screws, bolts, and connections to ensure they are tight and secure. Tighten any loose hardware immediately.
- Rope and Accessory Inspection: Inspect the ropes of the swing and trapeze for fraying, wear, or damage. Check the swing seat, trapeze bar, climbing holds, and slide for cracks or excessive wear. Replace any damaged components promptly.
- Cleaning: Clean the play tower regularly with mild soap and water. Avoid harsh chemicals that could damage the wood or plastic components.
- Ground Anchoring: Verify that the ground anchors remain firmly in place and that the concrete pads (if used) are stable.
7. Troubleshooting
Most issues with the Kangui WOUPI Play Tower can be resolved by following the assembly and maintenance guidelines. If you encounter problems, consider the following:
- Instability: If the structure feels wobbly, re-check all bolted connections and ensure the ground anchoring system is properly installed and secure. Verify the ground is level.
- Damaged Parts: If any part is damaged or broken, cease use immediately and contact the manufacturer for replacement parts. Do not attempt to repair structural components with makeshift solutions.
- Squeaking/Noise: Apply a silicone-based lubricant to metal-on-metal contact points (e.g., swing hangers) if squeaking occurs.
- Water Accumulation: Ensure proper drainage around the base of the play tower to prevent water accumulation, which can lead to wood damage over time.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Kangui |
| Model Number | O1016 |
| Color | Green (for slide) |
| Product Dimensions (L x W x H) | 355 cm x 292 cm x 260 cm |
| Item Weight | 120 Kilograms |
| Material | Nordic Pine Wood (Autoclave III & IV treated) |
| Assembly Required | Yes |
| Age Recommendation | 4 to 10 years |
| Max User Weight (Structure) | 100 kg |
| Max User Weight (Per Accessory) | 50 kg |
| Certifications | PEFC, EN71 |
9. Warranty and Support
The Kangui WOUPI Play Tower comes with the following warranty:
- Wood: 10-year warranty against rot and insect attack.
- Other Elements: 2-year legal conformity guarantee for all other components (e.g., slide, swings, hardware).
For any questions, concerns, or to request replacement parts, please refer to the contact information provided at the point of purchase or visit the official Kangui website.
