1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Lfidontkl AP-1200 Circulating Submersible Water Pump. This pump is designed for use in compatible commercial ice machines, such as the HICON HZB-506080 series, to ensure proper water circulation for ice production.
Please read this manual thoroughly before installation and operation to prevent damage to the product or injury to yourself.
Figure 1: Lfidontkl AP-1200 Water Pump. This image displays the main body of the pump, a dark gray plastic unit, with its electrical cord and a white label detailing its specifications: AP1200, LIQUID FILTER, AC220V-240V, 50Hz, 8.5W, Hmax 0.65m, F.max 600L/h, and a warning not to operate without water.
2. Safety Information
Adhering to these safety guidelines is crucial for preventing electrical shock, injury, or damage to the pump and ice machine.
- Electrical Safety: Ensure the power supply matches the pump's voltage (AC220-240V). Always disconnect power before installing, cleaning, or performing any maintenance on the pump or ice machine.
- Water Operation: The pump is designed for submersible use. Do not operate the pump without water, as this can lead to overheating and motor damage.
- Overheating Protection: This pump features overheating protection to prevent motor burnout. However, continuous dry operation should be avoided.
- Installation: Follow all installation instructions carefully. Improper installation can lead to leaks or malfunction.
- Maintenance: Regular cleaning is necessary to maintain performance. Always ensure the pump is unplugged before handling.
3. Setup and Installation
Proper installation is key to the pump's performance and longevity.
3.1 Compatibility Check
Verify that this AP-1200 pump is compatible with your specific ice maker model. Refer to your ice machine's manual for compatible pump specifications.
3.2 Physical Installation
- Placement: Position the pump securely within the ice machine's water reservoir. The pump features a fixed card slot for stable mounting.
- Water Outlet: Connect the pump's water outlet to the ice machine's water distribution system. Ensure tight inlet and outlet connections to avoid leaks. The detachable water outlet can be rotated for easier cleaning and scale removal.
- Installation Angle: Follow the correct installation angle as instructed by your ice machine's manufacturer to ensure optimal water flow.
- Electrical Connection: Connect the pump's electrical wiring to the designated power connector within the ice machine. Ensure all connections are secure and insulated. The line length is approximately 85cm.

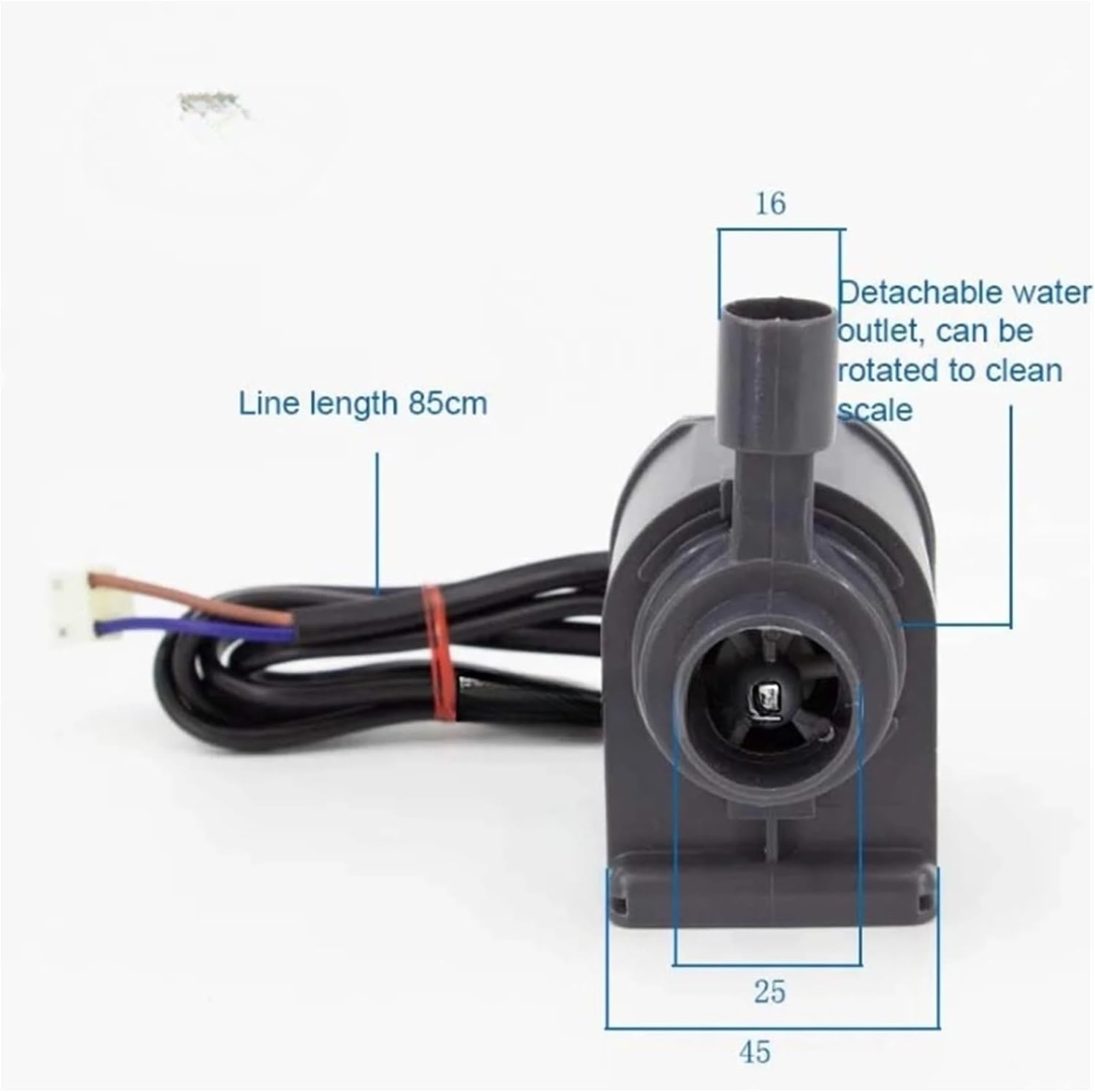

Figure 2: Pump dimensions and detachable water outlet. This image shows the pump from a side view, indicating a line length of 85cm and highlighting the detachable water outlet, which is rotatable for cleaning scale. Key dimensions are marked in millimeters.
Figure 3: Pump features including exhaust air hole and fixed card slot. This image provides another side view with dimensions, pointing out the exhaust air hole and the fixed card slot at the base for secure mounting.
4. Operation
Once installed, the pump operates automatically as part of the ice machine's cycle.
- Water Level: Ensure the ice machine's water reservoir maintains an adequate water level for the pump to remain fully submerged during operation.
- Flow Rate: The pump is designed to provide an appropriate flow rate (600 L/H) for efficient ice production. Monitor the ice machine's performance to ensure proper water circulation.
5. Maintenance
Regular maintenance helps prolong the life of your pump and ensures consistent ice machine performance.
5.1 Cleaning
- Disconnect Power: Always unplug the ice machine from the power source before cleaning the pump.
- Remove Pump: Carefully remove the pump from the water reservoir.
- Clean Water Outlet: The detachable water outlet can be removed and cleaned to prevent scale buildup.
- Impeller Area: Inspect the water inlet and impeller for any debris, mineral deposits, or blockages. Clean gently with a soft brush and water.
- Rinse: Rinse all pump components thoroughly with clean water before reassembly.
Figure 4: Close-up of the pump's water inlet and impeller. This image provides a detailed view of the impeller blades inside the water inlet, which should be kept clear of debris for optimal performance.
6. Troubleshooting
If the pump is not functioning correctly, refer to the following common issues and solutions:
- Pump Not Running:
- Check if the pump is properly connected to the power supply.
- Ensure the ice machine is powered on.
- Verify that the water level in the reservoir is sufficient for the pump to be submerged.
- Reduced Water Flow:
- Inspect the water inlet and impeller for blockages (e.g., scale, debris). Clean as described in Section 5.1.
- Check for kinks or obstructions in the water outlet tubing.
- Unusual Noise:
- Ensure the pump is fully submerged and not operating dry.
- Check for foreign objects caught in the impeller.
- Verify the pump is securely seated in its fixed card slot to prevent vibration.
If problems persist after troubleshooting, consult a qualified technician or contact the seller for assistance.
7. Specifications
The following are the technical specifications for the Lfidontkl AP-1200 Water Pump:
| Specification | Value |
|---|---|
| Model Number | AP-1200 (GMIPM-AP-1200) |
| Voltage | AC220-240V |
| Frequency | 50Hz |
| Power | 8.5W |
| Max Lift (Hmax) | 0.65m |
| Max Flow (F.max) | 600L/H |
| Material | Plastic and Metal (All-copper motor) |
| Line Length | Approx. 85cm |
| Item Weight | Approx. 50 Grams (1.76 ounces) |
Figure 5: Pump dimensions and internal motor detail. This image shows another side view of the pump with various dimensions marked in millimeters, and an annotation indicating an "All-copper motor sustainable work" feature.
8. Warranty and Support
For warranty information, technical support, or replacement parts, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
