1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your DAWDFC MT0068 Universal Digital Motorcycle Tachometer and Speedometer. This instrument is designed to provide accurate and real-time data for your motorcycle, including speed, RPM, odometer, trip meter, time, fuel level, and water temperature. It is compatible with various 12V motorcycle systems.
Figure 1: The DAWDFC MT0068 digital motorcycle instrument, suitable for various motorcycles.
2. Setup and Installation
Before installation, ensure your motorcycle's power is off. Professional installation is recommended. The MT0068 operates on a DC 8-12V power supply.
2.1 Components Overview

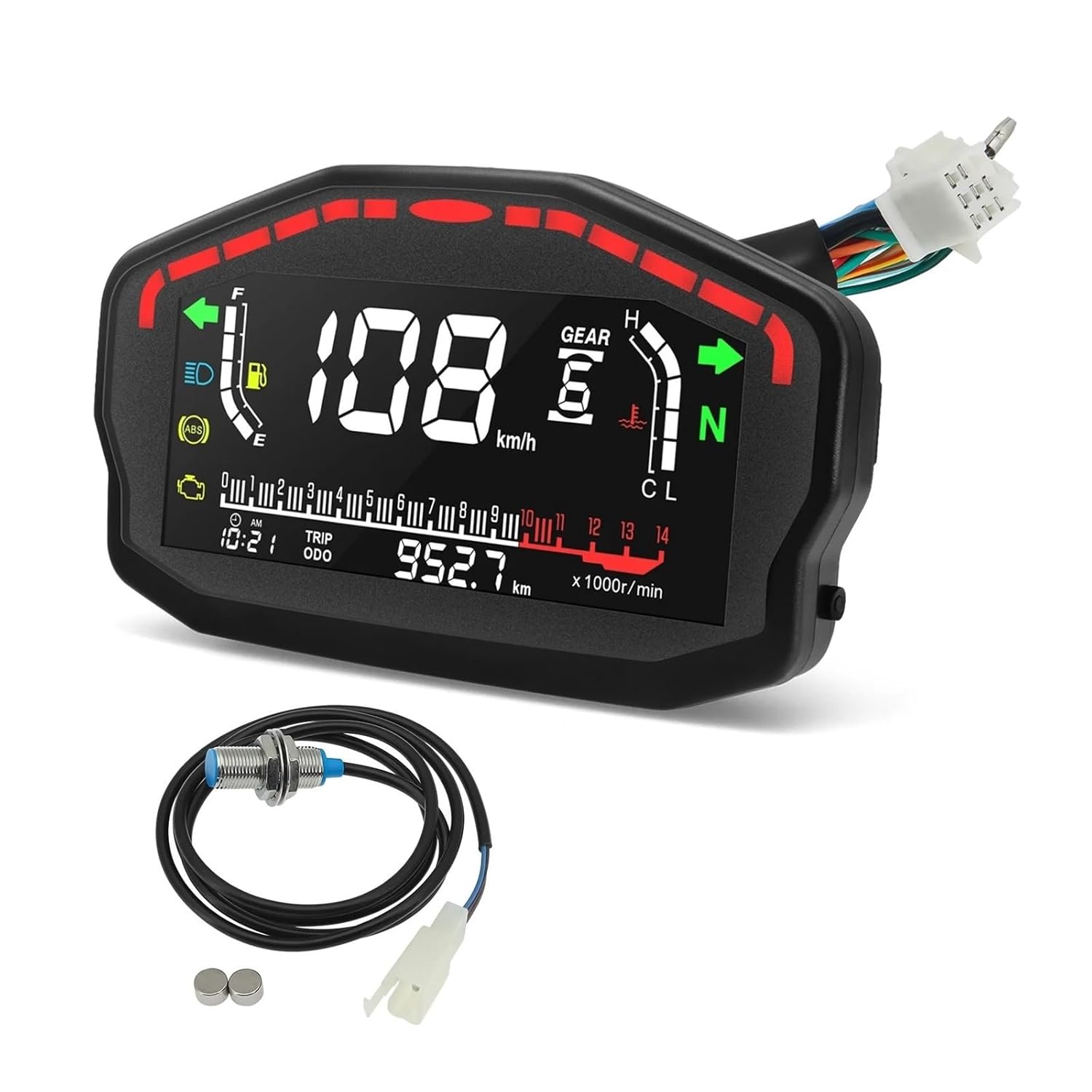

Figure 2: The MT0068 unit showing the main display, wiring harness, and speed sensor with magnets.
Figure 3: The MT0068 unit with its mounting bracket and speed sensor components.
2.2 Wiring Diagram (General Guidance)
Connect the wiring harness to your motorcycle's electrical system. Refer to your motorcycle's service manual for specific wiring points. The unit requires a 12V DC power source. Ensure all connections are secure and insulated.
- Power Input: Connect to a switched 12V DC power source.
- Ground: Connect to the motorcycle's chassis ground.
- Speed Sensor: Install the provided speed sensor and magnets according to the instructions. Ensure proper alignment for accurate readings.
- RPM Signal: Connect to the ignition coil or ECU RPM signal wire.
- Fuel Level Sensor: Connect to the motorcycle's fuel level sensor.
- Water Temperature Sensor: Connect to the motorcycle's water temperature sensor (if applicable).
2.3 Mounting
Securely mount the MT0068 unit to your motorcycle's dashboard using the provided bracket. Ensure the display is clearly visible to the rider and does not obstruct any controls.
3. Operating Instructions
The MT0068 display provides comprehensive information at a glance.

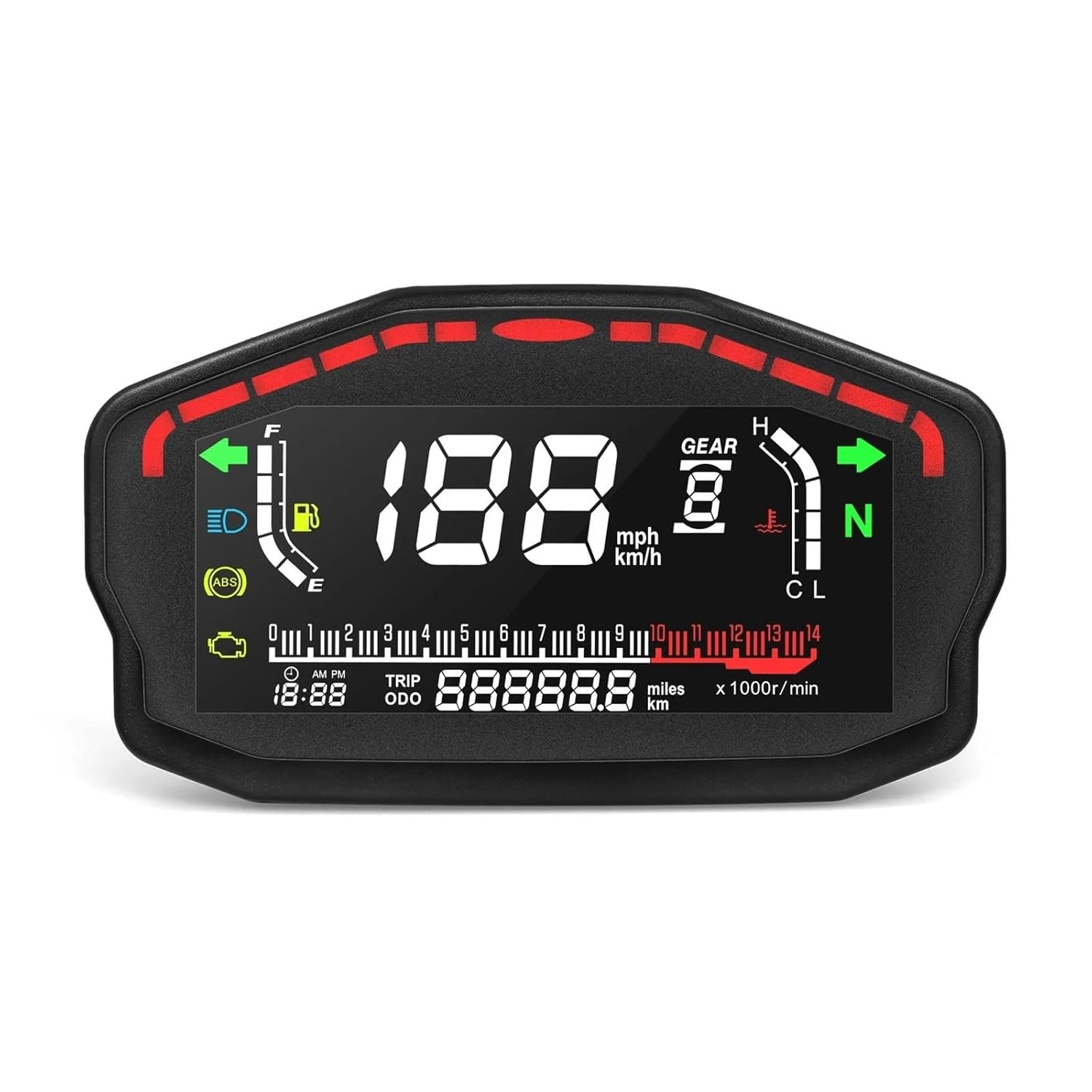

Figure 4: Main display interface of the MT0068 showing speed, RPM, gear indicator, fuel, and other indicators.
3.1 Displayed Information
Figure 5: The MT0068 supports display of Time, RPM, Speed, Water Temperature, Fuel Gauge, and Odometer.
- Speed Display: Shows current speed in km/h or mph. Range: 0-199 km/h (mile).
- RPM Range: Displays engine revolutions per minute, 0-14000 r/min.
- Odometer: Total distance traveled, 0-999999 km (mile).
- Trip Meter: Resettable distance for a single trip, up to 999.9 km (mile).
- Time: 12-hour format clock.
- Fuel Gauge: Indicates current fuel level.
- Water Temperature: Displays engine coolant temperature.
- Gear Indicator: Shows the current gear engaged.
- Indicator Lights: Turn signals, high beam, neutral, ABS, engine check, etc.
3.2 Switching Mileage Units (km/h and mph)
Figure 6: The MT0068 allows switching between kilometers per hour (km/h) and miles per hour (mph).
To switch between kilometers per hour (km/h) and miles per hour (mph), long-press the designated button (usually labeled "MODE" or similar) while in the ODO (Odometer) display mode. The unit will toggle between the two measurement systems.
3.3 Adjusting Odometer and Trip Meter
Specific instructions for adjusting the odometer and resetting the trip meter will depend on the button configuration. Typically, a short press cycles through display modes (ODO, TRIP), and a long press in TRIP mode resets the trip meter. Consult the device's physical buttons for exact functionality.
4. Maintenance
The DAWDFC MT0068 is designed for durability and requires minimal maintenance.
- Cleaning: Wipe the display screen with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the screen or casing.
- Connections: Periodically check all wiring connections to ensure they are secure and free from corrosion.
- Sensor: Ensure the speed sensor and magnets are clean and properly aligned for accurate readings.
- Environmental Protection: While designed to withstand harsh riding conditions, avoid prolonged exposure to extreme temperatures or direct water submersion.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No display/Power off | Loose power connection, no 12V supply, blown fuse. | Check power wiring, ensure 12V DC supply, inspect motorcycle's fuse box. |
| Inaccurate speed reading | Speed sensor misalignment, faulty sensor, incorrect wheel circumference setting (if adjustable). | Verify speed sensor installation and alignment. Check sensor wiring. |
| RPM not displayed or inaccurate | Incorrect RPM signal connection, faulty signal wire. | Ensure RPM signal wire is correctly connected to ignition coil or ECU. |
| Fuel gauge not working | Loose connection to fuel sensor, faulty fuel sensor. | Check wiring to fuel level sensor. |
| Display flickering or erratic | Unstable power supply, loose connections, electrical interference. | Check all power and ground connections. Ensure stable 12V supply. |
6. Specifications
| Feature | Specification |
|---|---|
| Model Name | MT0068 |
| Power Voltage | DC 8-12V |
| Case Color | Black |
| Speed Display | km/h, mph |
| Speed Display Range | 0-199 km/h (mile) |
| Odometer Display | 0 ~ 999999 km (mile) |
| Odometer Display Unit | 0.1 km |
| Trip Meter Display Range | 999.9 km (mile) |
| Trip Meter Display Unit | 0.1 km |
| RPM Range | 0~14000 r/min |
| Time | 12H format |
| Material | Plastic |
| External Testing Certification | CE |
| Dimensions (Approx.) | Length: 1.5 inches, Width: 10 inches, Height: 5 inches (Note: These dimensions are approximate and may refer to package or specific components. Refer to product packaging for precise dimensions.) |
| Weight (Approx.) | 1.01 Pounds (Approx. 0.46 kg) |
7. Customer Support
For any installation questions, operational issues, or further assistance, please contact our customer service team. Refer to your purchase documentation for contact details.
